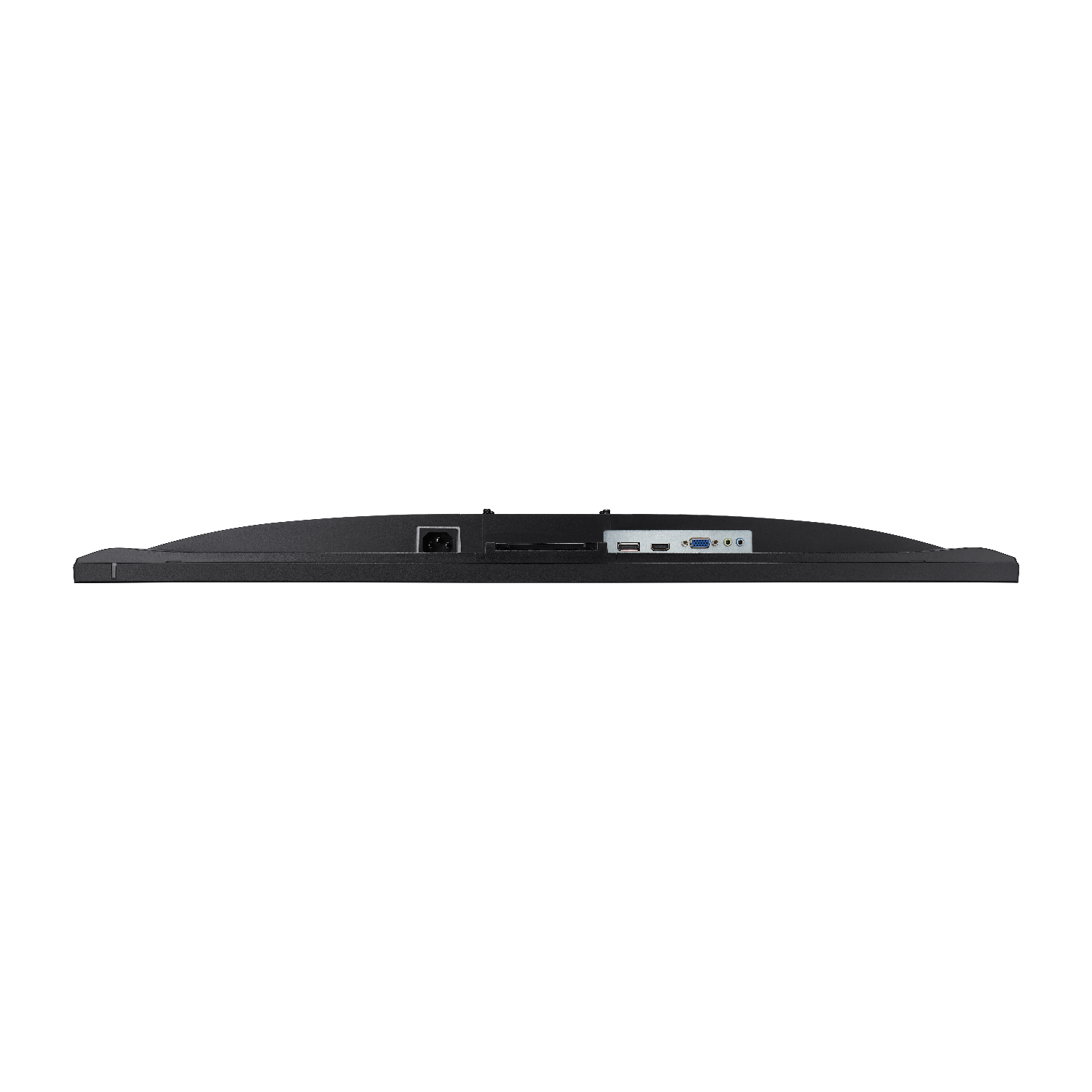

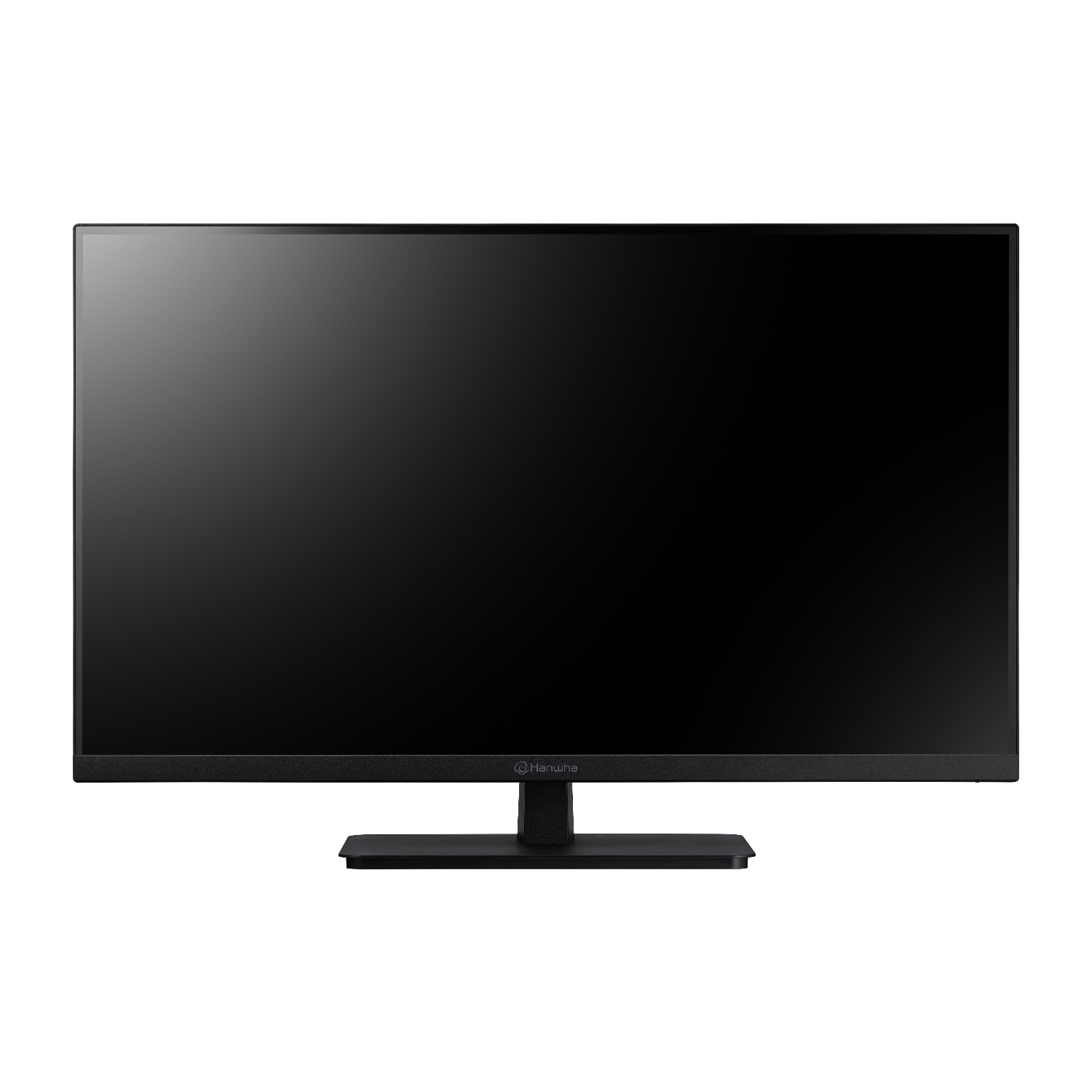

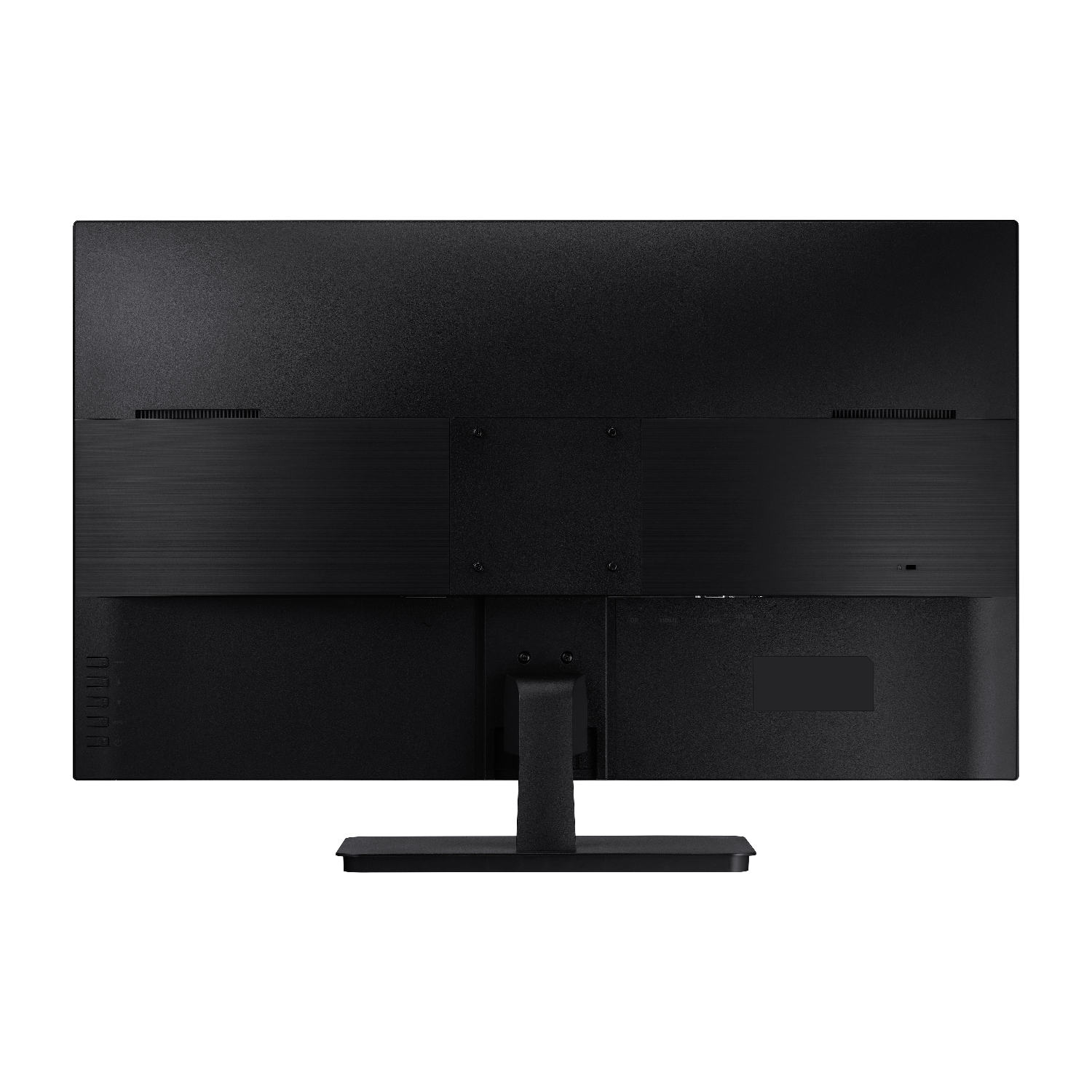

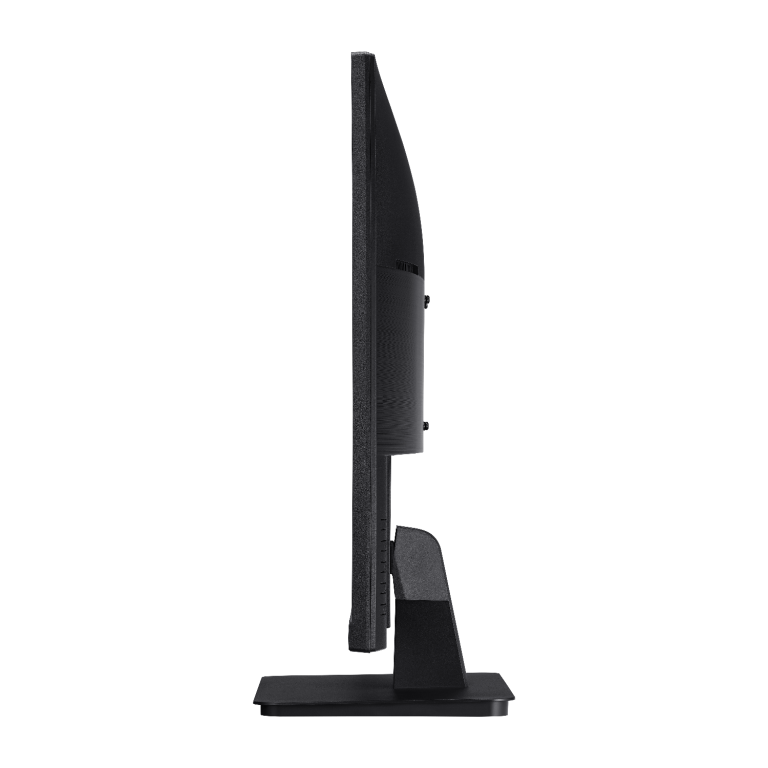

Hanwha - SMT-3215 - 32" LED Monitor, Full HD 1920 x 1080, HDMI, DP, VGA, 16:9 aspect ratio, Built-in Speaker (2W X 2), VESA DPM Compatible (100x100mm) Actual screen size 15.5"
Part number:
SMT-3215
Price:
32" LED Monitor, Full HD 1920 x 1080, HDMI, DP, VGA, 16:9 aspect ratio, Built-in Speaker (2W X 2), VESA DPM Compatible (100x100mm) Actual screen size 15.5"
Features:
- 32" LED Monitor
- Full HD 1920 x 1080
- HDMI
- DP
- VGA
- 16:9 aspect ratio
- Built-in Speaker (2W X 2)
- VESA DPM Compatible (100x100mm) Actual screen size 15.5"
Display
| Type | LED Monitor |
| Screen Size | 31.5" |
| Max. Resolution | 1920*1080 60Hz (FHD) |
| Brightness | 300 cd/m²（Typ） |
| Contrast Ratio | 3200:1（Min） 4000:1（Typ） |
| Aspect Ratio | 16:09 |
| Viewing Angle (H/V) | 178°/178° |
| Display Color | 16.7M |
| Response Time | 20ms(Typ) |
| Video System | None |
| Panel Life | 30,000 hours |
| Filter Type | None |
Interface
| Video > Connectors | VGA（1）HDMI 1.4(1), DP 1.2(1) Audio-in(1) Audio-out（1） |
| Composite Video > Input | None |
| VGA > Connector | 1port Analog D-sub(15 pin) |
| VGA > Input Signal | None |
| VGA > Available Format | 640 x 480@60Hz, 800 x 600@56Hz/60Hz/72Hz/75Hz, 1024 x 768@60Hz/70Hz/75Hz, 1280 x 1024@60Hz/75Hz, 1440 x 900@60Hz, 1680 x 1050@60Hz, 1920 x 1080@50Hz/60Hz, 1280 x 800@60Hz, 1280 x 960@60Hz, 1280 x 720@60Hz |
| HDMI > Connector | HDMI |
| HDMI > Available Format | 640 x 480@60Hz, 800 x 600@56Hz/60Hz/72Hz/75Hz, 1024 x 768@60Hz/70Hz/75Hz, 1280 x 1024@60Hz/75Hz, 1440 x 900@60Hz, 1680 x 1050@60Hz, 1920 x 1080@50Hz/60Hz, 720 x 480P60Hz, 1280 x 720P@50Hz, 720 x 576P@50Hz, 1920x1080P@50/60Hz, 1280 x 800@60Hz, 1280 x 960@60Hz, 1280 x 720@60Hz |
| DP > Connector | DP |
| DP > Available Format | 640 x 480@60Hz, 800 x 600@56Hz/60Hz/72Hz/75Hz, 1024 x 768@60Hz/70Hz/75Hz, 1280 x 1024@60Hz/75Hz, 1440 x 900@60Hz, 1680 x 1050@60Hz, 1920 x 1080@50Hz/60Hz, 720 x 480P60Hz, 1280 x 720P@50Hz, 720 x 576P@50Hz, 1920x1080P@50/60Hz, 1280 x 800@60Hz, 1280 x 960@60Hz, 1280 x 720@60Hz |
| Audio > Connector | Audio in/out |
| Audio > Output Signal | Loop-through line level(PC only), Speakers : 4Ω 2.5Wx 2 |
| Application Support | None |
On Screen Display
| Functions | VESA™ DPM Compatible |
| Language | Korean, English, Pусский, Deutsch, Français, Españo, Italiano, Português, Chinese (Simplified), Chinese (Traditional), Japanese, Arabic |
| Electrical > Input Voltage | AC 100 ~ 240V(50/60Hz) |
| Electrical > Power Consumption | <60W |
| Environmental > Operating Temperature | 0 ~ +40°C (+32°F ~ +104°F) |
| Environmental > Operating Humidity | 10% ~ 80% (non-condensing) |
| Mechanical > Dimensions with Stand (WxHxD) | 714.0*484.2*200.8mm |
| Mechanical > Dimensions without Stand (WxHxD) | 714.0*423.7*53.7mm |
| Mechanical > Weight | 7.28kg(with stand), 5.9Kg(without stand) |
| Mechanical > Protection Glass | None |
| Mechanical > Cabinet Color | Black |
| Mechanical > Wall Mounts | None |
| Mechanical > VESA Mounts Interface | 100 x 100mm |
