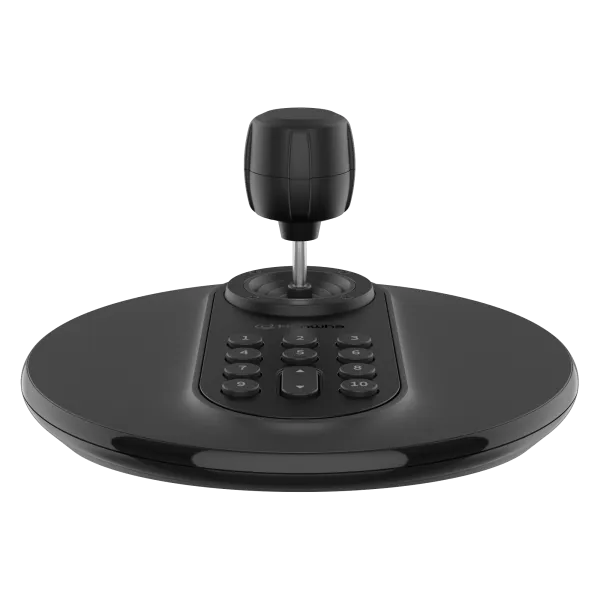

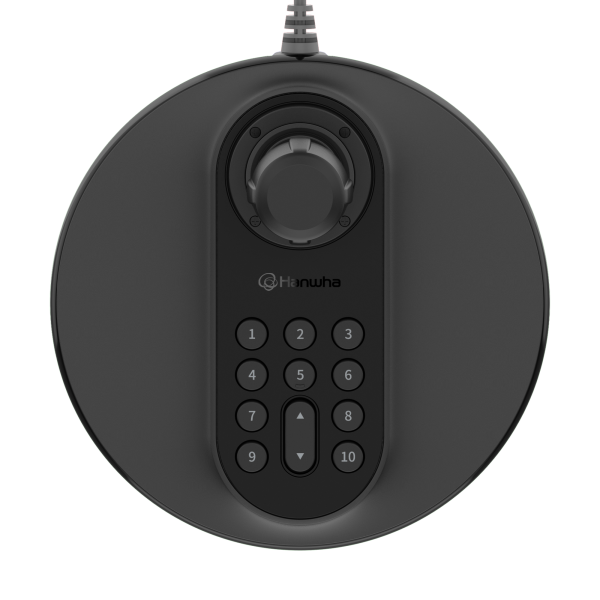

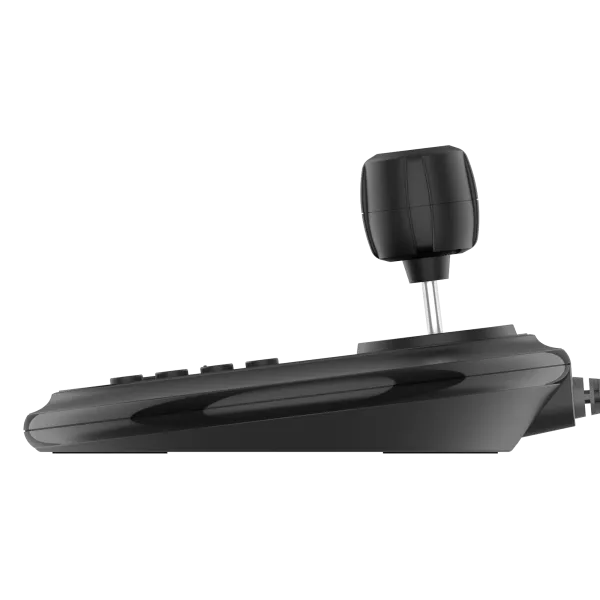

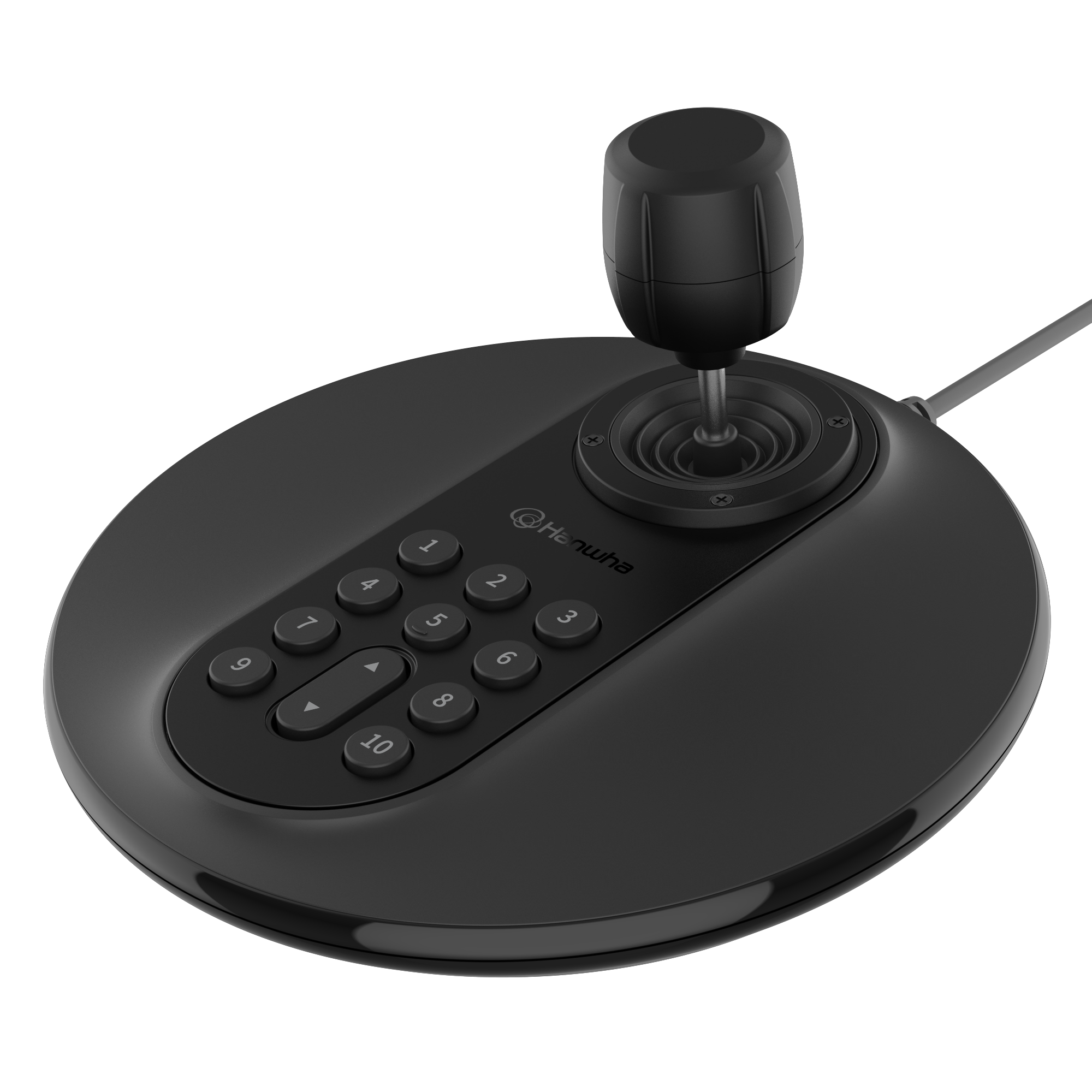

Hanwha - SPC-2001 - Controller, USB 3D joystick
Part number:
SPC-2001
Price:
3D Joystick Controller
Features:
- Superior system control of PTZ cameras with Wisenet WAVE VMS, Wisenet Viewer CMS, or NVR/DVR
- 3D joystick control
- Quick and easy installation with USB connection
| Joystick | ||
| Axis | Hall-effect 3 Axis | |
| Button | 12ea | |
| Performance | ||
| Range of Movement | X/Y-Axis | ±28° |
| Z Axis | ±23.5° | |
| Center | Two Spring, Two Directions | |
| Minimum Power | 0.109 [N·m] | |
| Operating Power | 0.151 [N·m] | |
| Maximum Power | 0.169 [N·m] | |
| Materials | ||
| Housing | ABS | |
| Handle | Poly Carbonate | |
| Cover | Rubber ( Button ) | |
| Shaft | SUM24L + Ni plating | |
| Interface | ||
| Port | 4-pin USB Type A | |
| Software | ||
| Drivers | Standard DirectX Drivers (DirectInput) | |
| Electric Features | ||
| Operating Voltage | (DC 5 [V]), Vdd = 5 [V] (±0.5 [V]) via USB | |
| Operating Current | 50 [mA] | |
| Operating Environment | ||
| Temperature | 0℃ to +40℃ (20% ~ 85% RH) | |
| Materials | ||
| Cable Length | 2 [m] | |
| Size(WxDxH) | 182 X 182 X 106 [mm] | |
| Weight | 405g | |
| Color | Black | |
