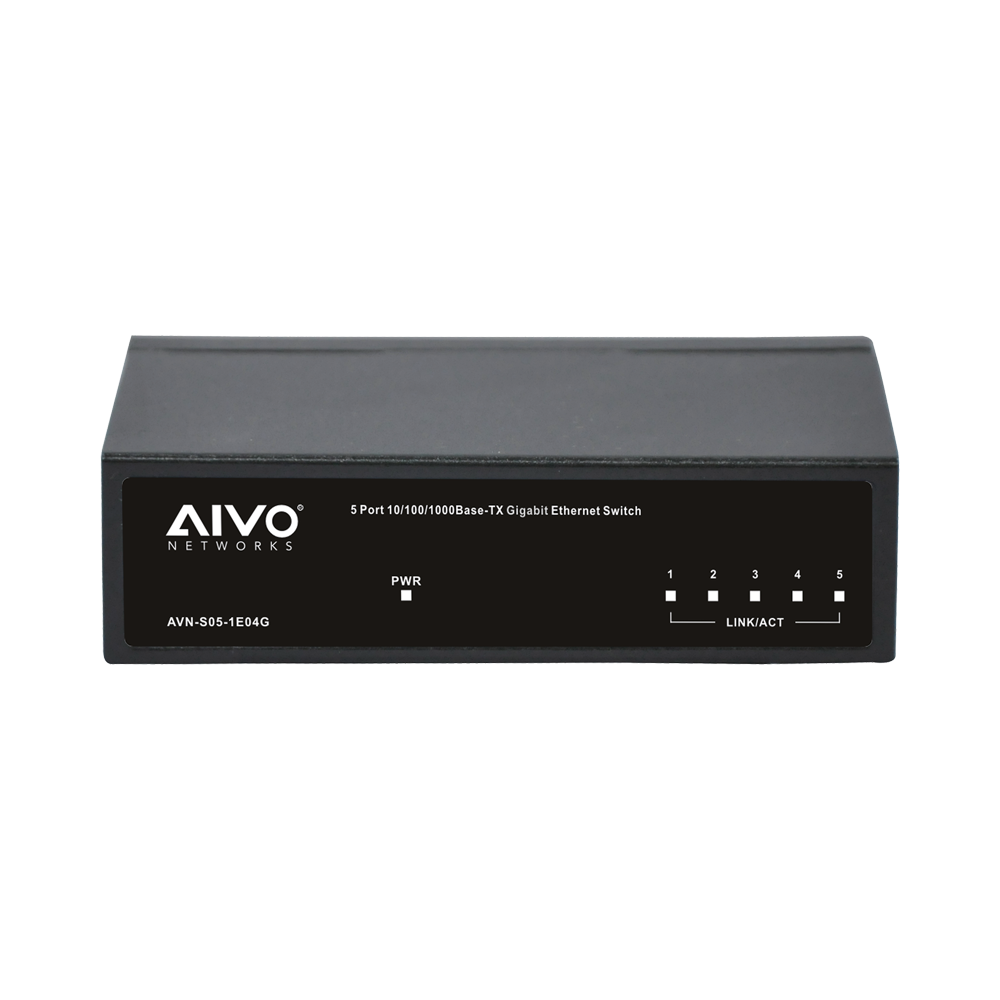

AVYCON - AVN-S05-1E04G - 4+1 Ports Gigabit Network Switch
Part number:
AVN-S05-1E04G
Price:
This product is a Gigabit Ethernet switch. The machine comes with 5x 10/100/1000Mbps RJ45 ports, which can satisfy the full speed forwarding of ports. The machine adopts desktop small cabinet, suitable for business office and family users.
Features:
- IEEE802.3, IEEE 802.3u, IEEE 802.3ab, IEEE802.3z
- Provides 5 10/100/1000 Base-TX ports
- High back-plane bandwidth of 10Gbps
- 4K MAC address table
- IEEE802.3x Flow control
- Surge protection for power and data ports
- Plug and Play design - no configuration required
- EMI standards complies with FCC, CE class B
| GENERAL | |
| Fixed Port | 5 - 10 / 100 Base -TX ports, 2 Gigabit Combo Ports (SFP + RJ45) |
| LED Indicators | PWR, Speed, Link / Act VLAN LED |
| Input Voltage | 100V ~ 240V AC, 50 / 60Hz |
| Network Media | 10BASE-TX: UTP category 5, 5e cable (≤250m) 100BASE-TX: UTP category 5, 5e cable (≤150m) 1000BASE-TX: UTP category 5, 5e cable (≤150m) |
| Forwarding Rate | 10BASE-T: 14880pps / port 100BASE-TX: 148800pps / port 1000BASE-TX: 148800pps / port |
| Power Consumption | 3W |
| Power Supply | 150W (250W optional) |
| Operating Temperature | 0°C ~ 40°C |
| Storage Temperature | -10°C ~ 70°C |
| Relative Humidity | 20% ~ 85% (Non-Condensing) |
| Thermal Method | Fanless |
| Switching Capacity | 10G |
| MAC Address | 4K |
| Port Feature | Port Control |
| Port Mirroring | Supported |
| VLAN | 4K VLANs |
| Traffic Control | IEEE 802.3x Full-Duplex flow control |
| Unit Size | 92mm x 69mm x 25mm |
| Weight | 350g (<4KG) |
| Packaged Contents | AVN-S05-1E04G - Network Switch User Manual Power Cord*1 |
