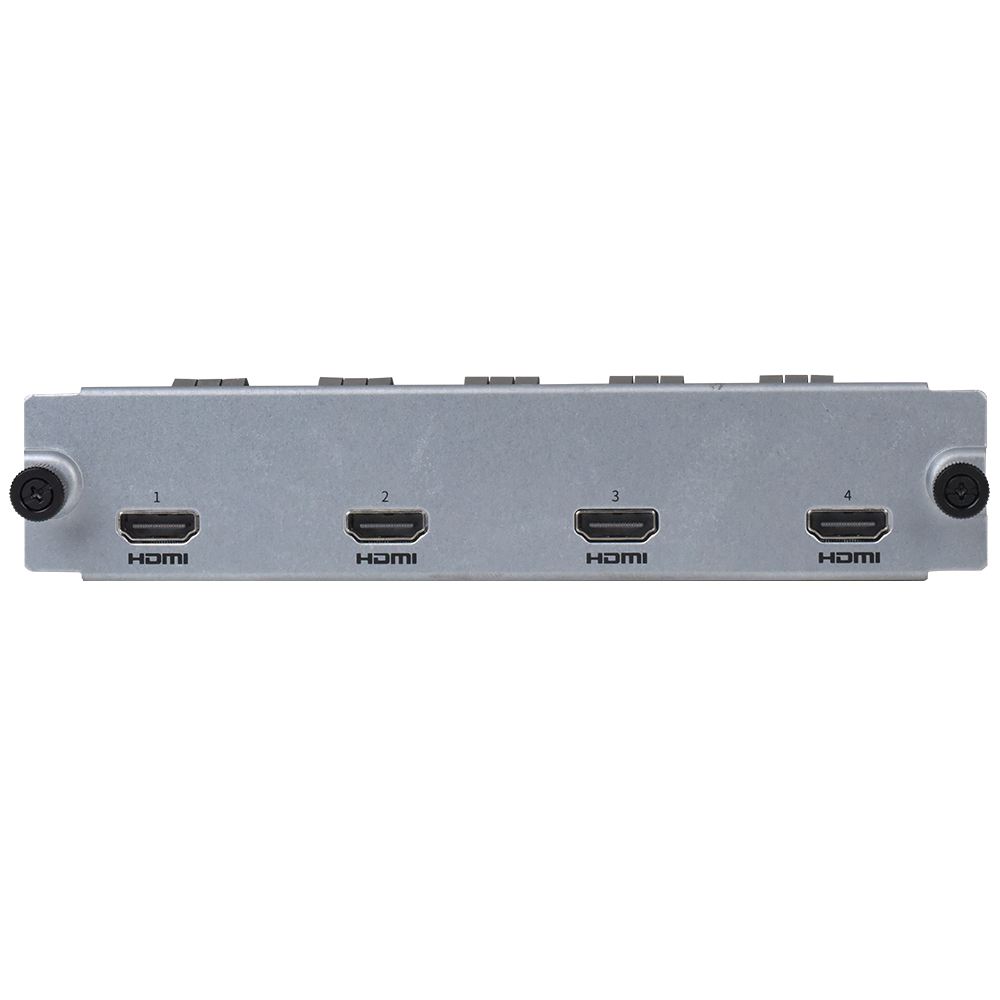

Uniview - FB-HD04-B-NB - 4-CH HDMI Output Decoding Card
Part number:
FB-HD04-B-NB
Price:
UNV 4-Channel H.265 Decoder Card
Features:
- Support 4/7-ch HDMI
- HDMI at up to 4K(3840x2160) resolution
- All HDMI independent outputs provided
- Support H.265/H.264 video formats
- Up to 16 Megapixels resolution recording
| FB-HD04-B-NB | |
| Video/Audio Output | |
| HDMI Output | HDMI1 & HDMI2: 4K (3840x2160) /60Hz, 4K (3840x2160) /30Hz, 1920x1080 /60Hz, 1920x1080 /50Hz, 1600x1200 /60Hz, 1280x1024 /60Hz, 1280x720 /60Hz, 1024x768 /60Hz HDMI3 & HDMI4: 1920x1080 /60Hz, 1920x1080 /50Hz, 1600x1200 /60Hz, 1280x1024 /60Hz, 1280x720 /60Hz, 1024x768 /60Hz |
| Decoding | |
| Decoding Capability | HDMI1 & HDMI2 & HDMI3 & HDMI4: 4 x 16MP@30, 5 x 12MP@30, 8 x 4K@30, 12 x 5MP@30, 16 x 4MP@30, 20 x 3MP@30, 32 x 1080P@30, 54 x 960P@30, 64x 720P@30 |
| Decoding | |
| Multi-window | 1/4/5/6/7/8/9/16 |
| Working Environment | |
| Working Temperature | -10°C ~ + 55°C (14°F to +131°F) |
| Working Humidity | 10% ~ 90% (non-condensing) |
| Weight | |
| Weight | <1 Kg (2.2 lb) |
Name
Description
Size
Downloads
File
Datasheet
0.5mb
