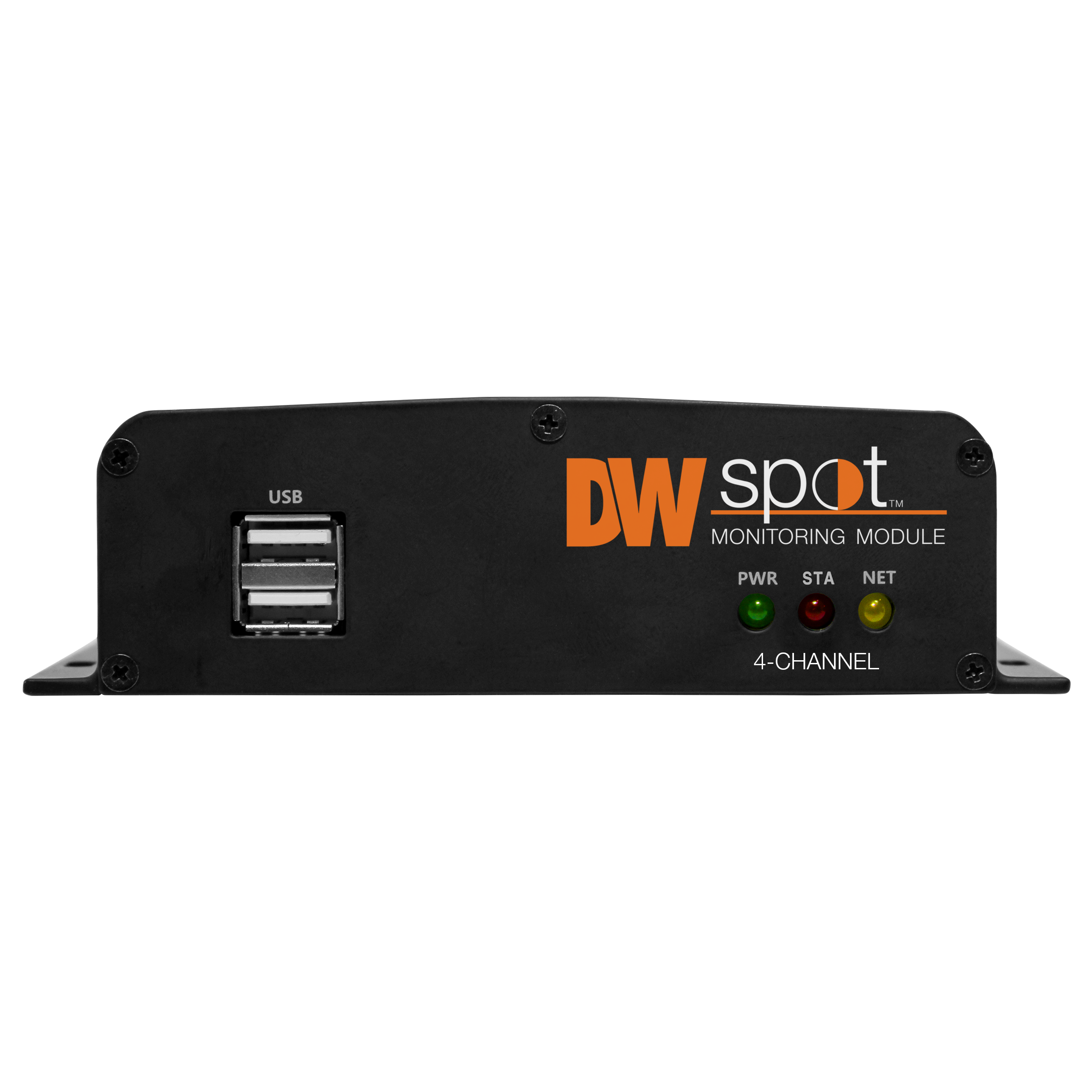

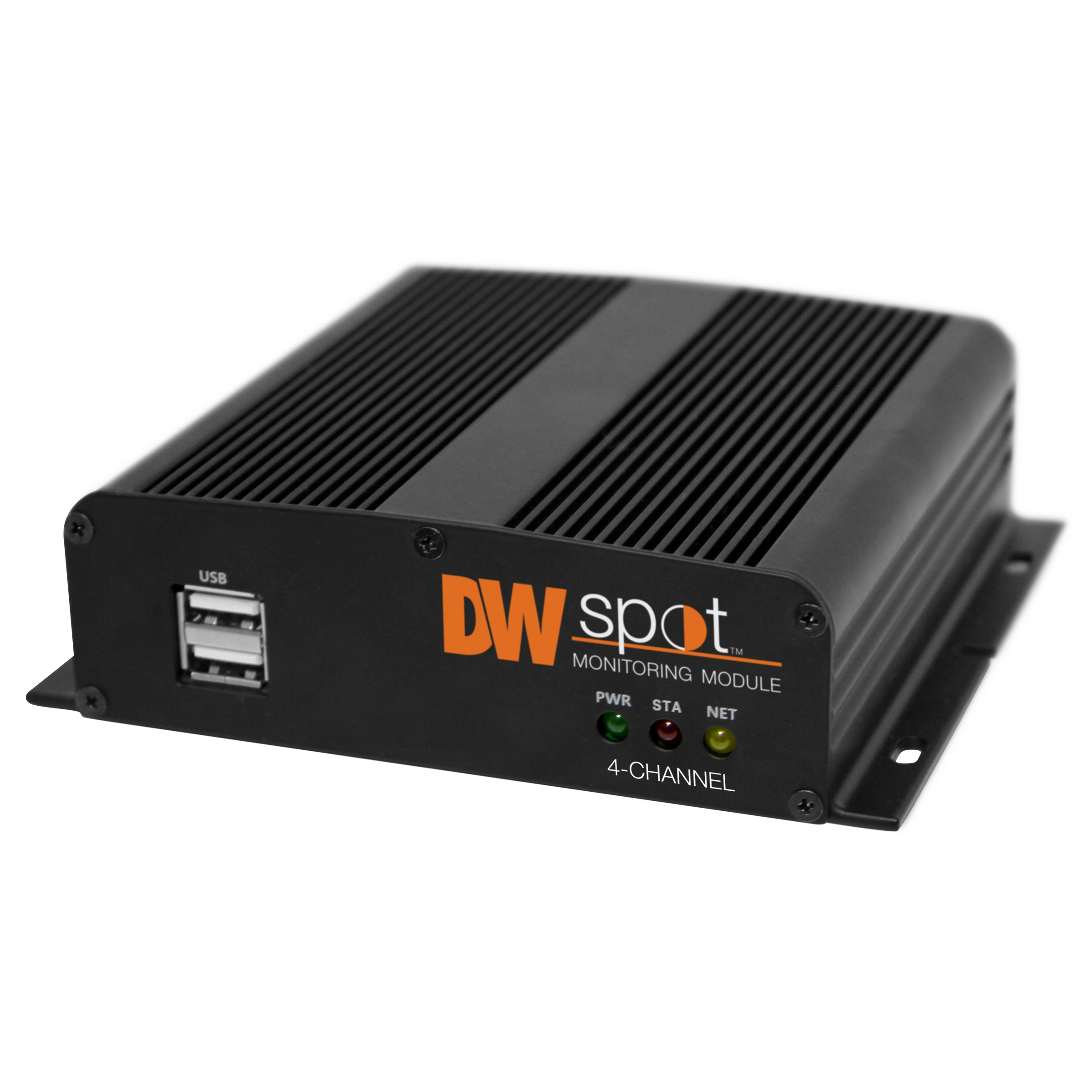

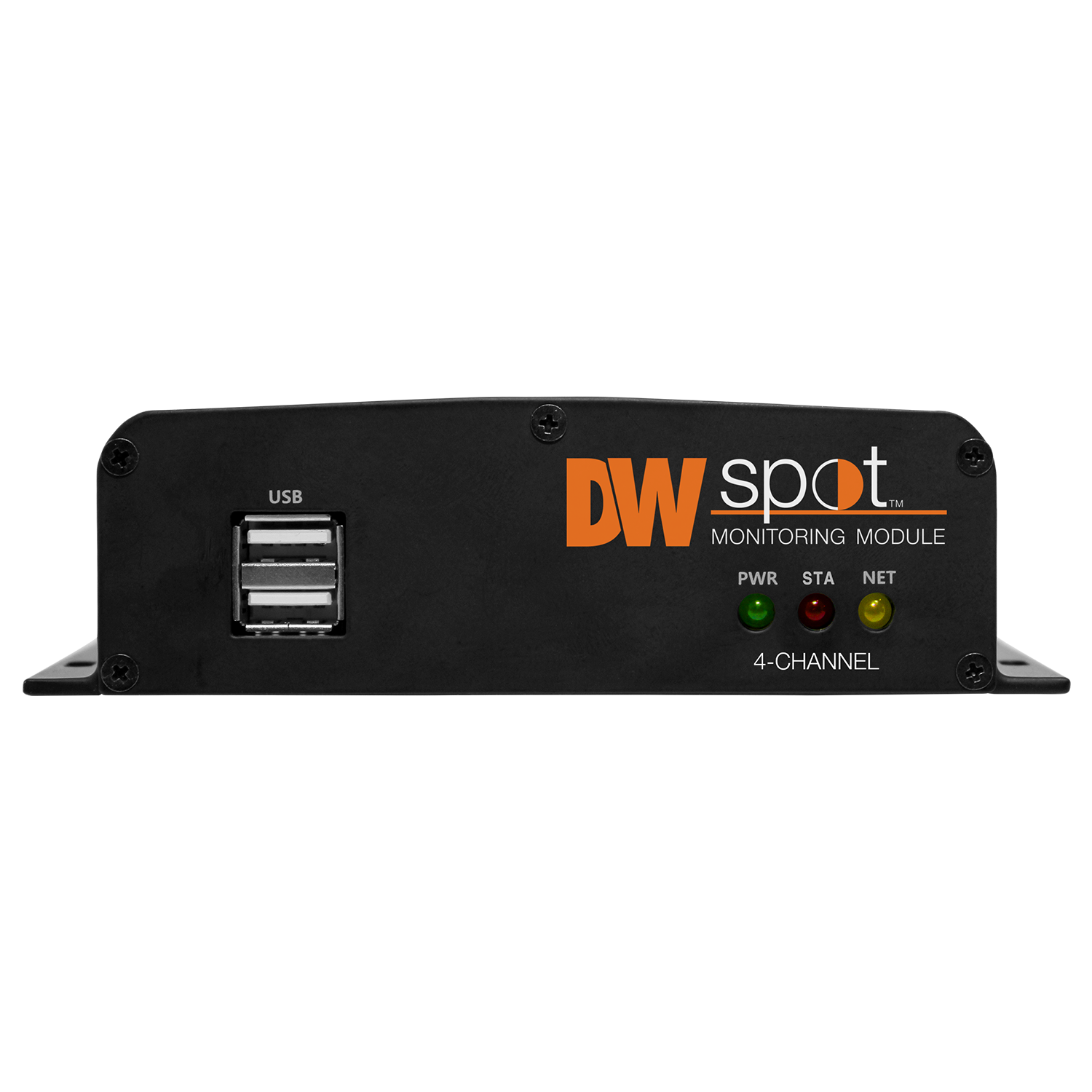

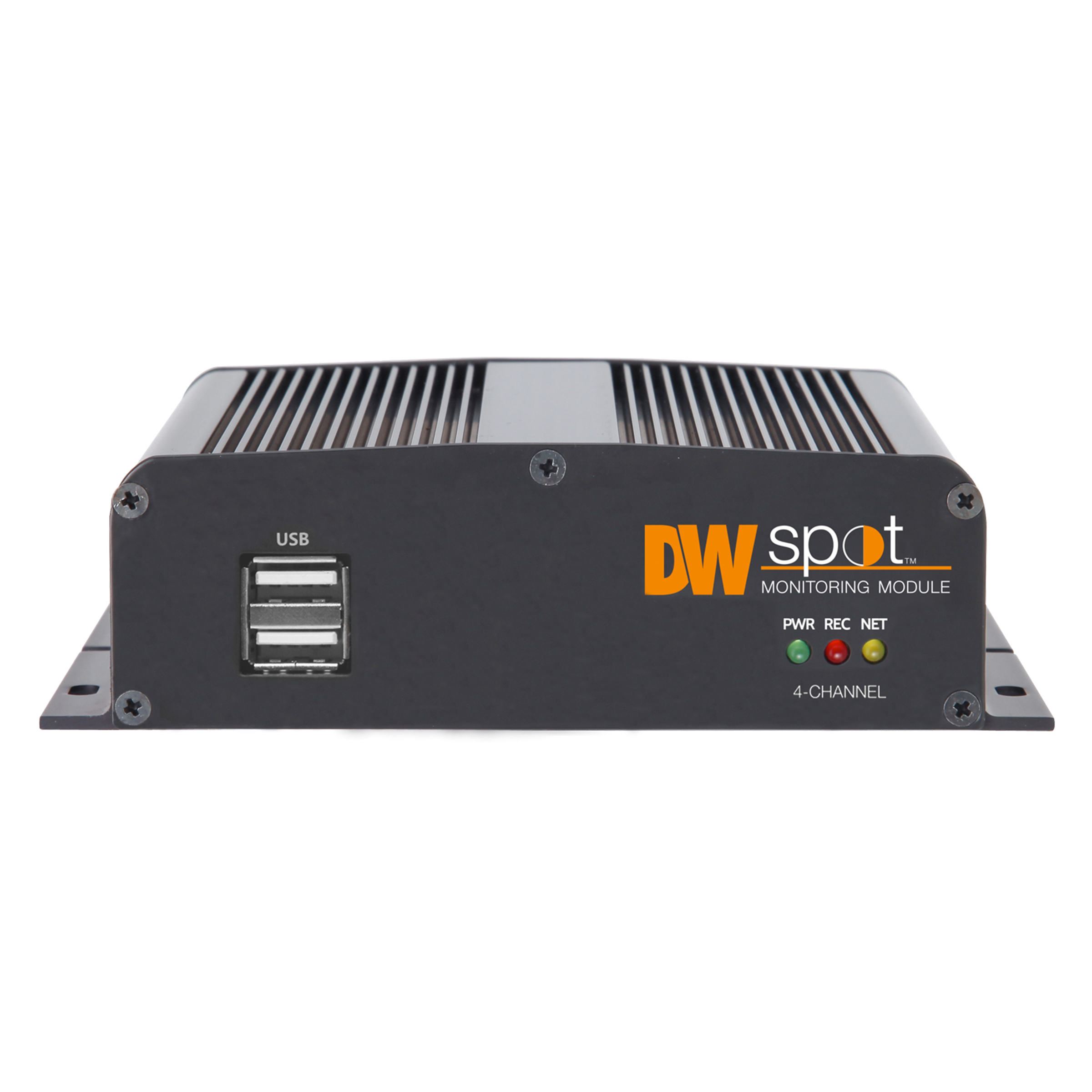

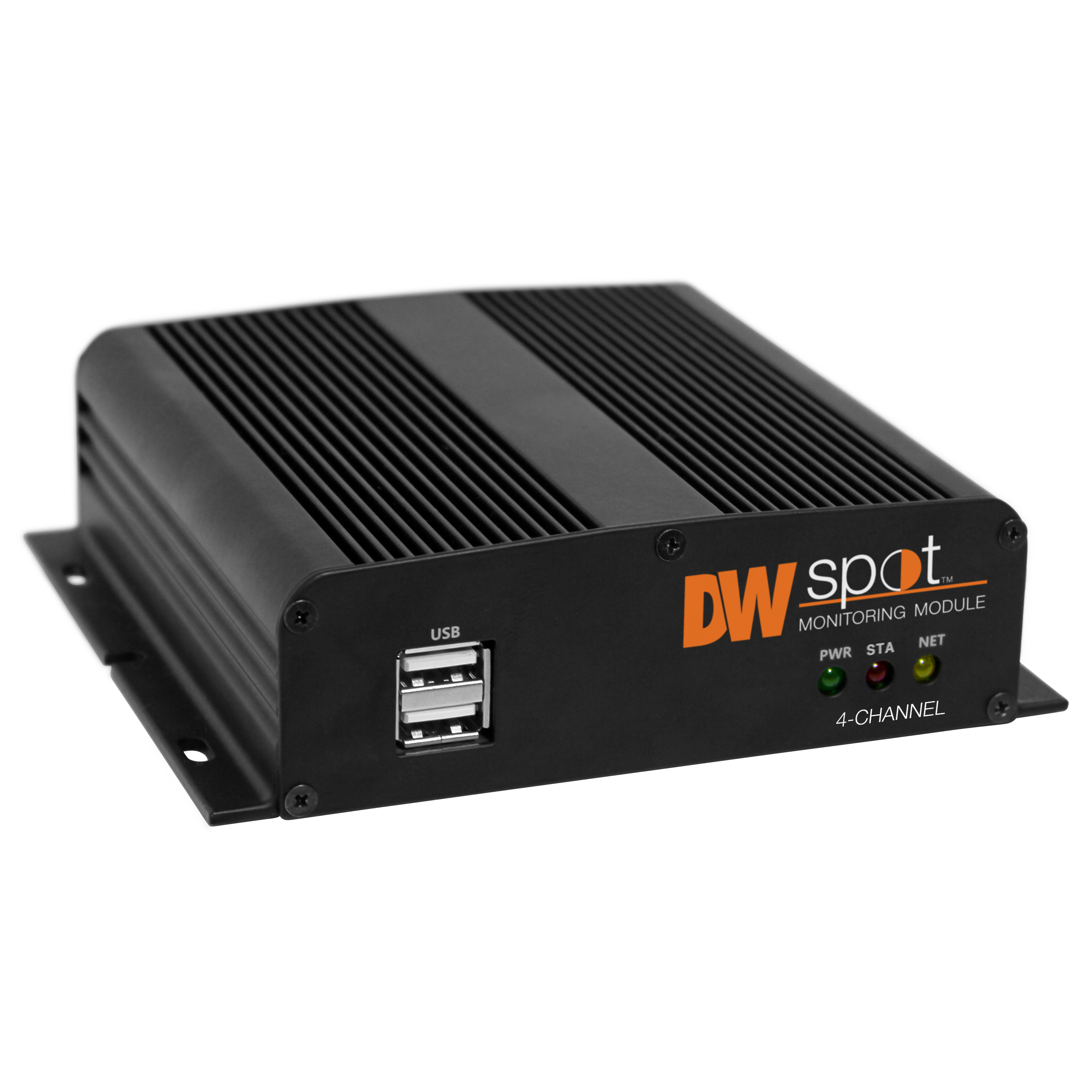

Digital Watchdog - DW-HDSPOTMOD - 4-channel DW Spot Monitoring Module
Part number:
DW-HDSPOTMOD
Price:
Live Monitoring of 4 Cameras Simultaneously, Supports up to 5MP Resolution Cameras, Single Camera View and 4 Camera Full Screen Sequencing, 1 HD and 1 VGA Video Output, Remote Configure Via Web Browser, Automatic Network Search and Device Registration, USB Mouse Included, ONVIF Conformant, 5 Year Warranty
Features:
- Automatic network search and device registration
- Identifies an unlimited number of ONVIF conformant IP cameras and: VMAX A1 G4 DVRs, VMAX IP G4 NVRs, VMAX A1 Plus DVRs, VMAX IP Plus NVRs, VMAX A1 DVRs
- Live monitoring of up to 4 cameras, single and quad-camera view and camera sequencing
- Up to 120fps display
- Drag and drop camera selection from DVRs and NVRs
- Remote configuration via the Internet
- Supports up to 4K resolution cameras, max. 80 Mbps throughout
- 4K (3840 x 2160) true HD and VGA video outputs
- USB mouse included
- Velcro for easy mounting to the back of a monitor
- NDAA/TAA compliant
- 5 year warranty
| Specification | |
|---|---|
| Hardware | |
| Display screen split | 1 4 Sequence |
| Display Speed | Up to 120fps |
| Stream resolution output | True HD: 3840x2160, 1920x1080, 1280x720, 1024x768 VGA: 1920x1080, 1280x720, 1024x768 |
| Video input | NOTE: The DW-HDSPOTMOD only supports H.264 format from cameras. To change the settings, connect to the camera's web client and change the camera's output setting before adding it to the Spot Monitoring Module 4 channels IP cameras (up to 4K, 3840 x 2160 resolution), Universal HD over Coax® VMAX® A1™ DVRs or VMAX® IP Plus™ NVRs |

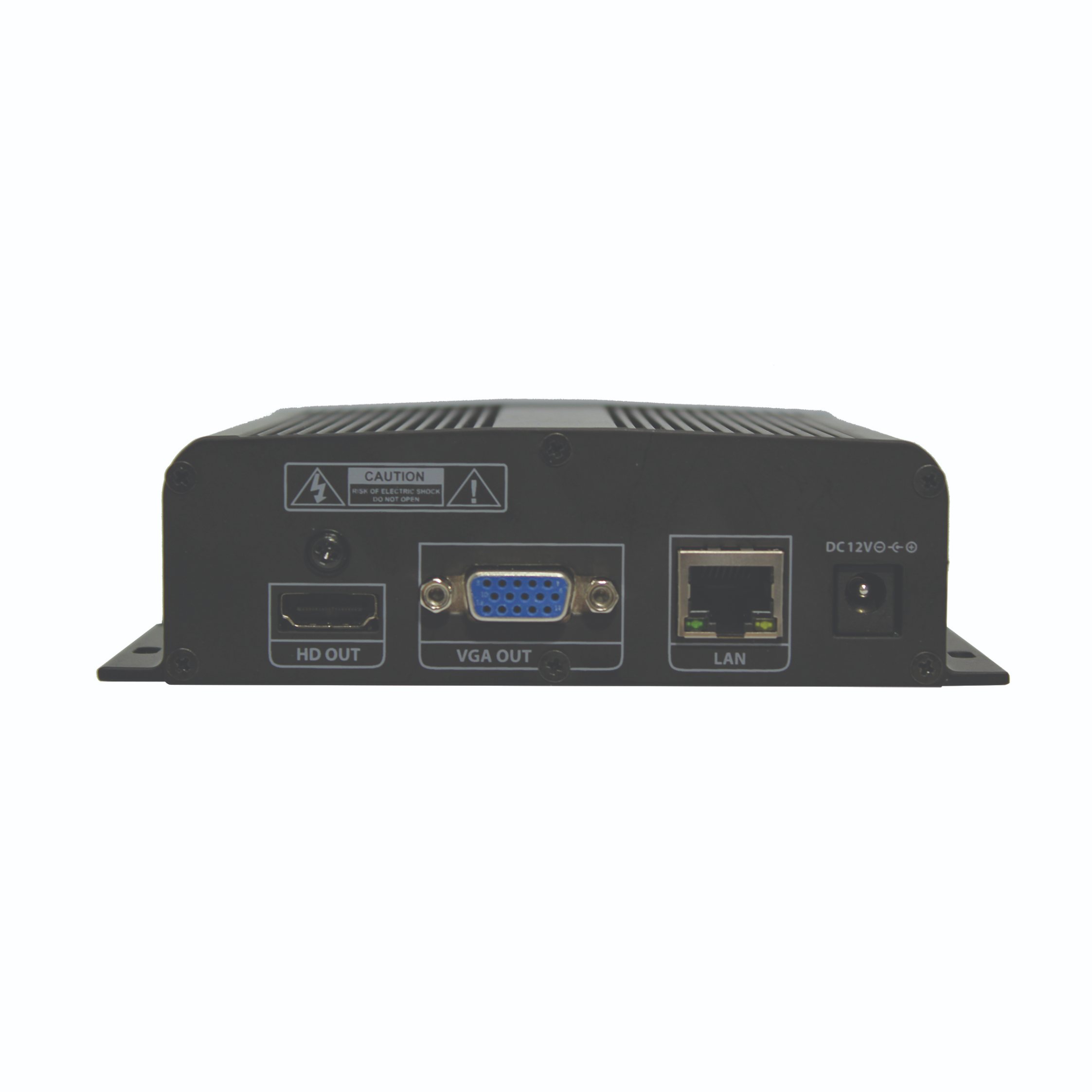

| Video output ports | True HD VGA |
| Max throughput (Mbps) | 80Mbps |
| VMS features | |
| Advanced functions | Auto-reboot and log file system Digital zoom Firmware upgrade by UBS and CMS Import and export settings System settings via web browser (IE) |
| Performance Remote software | C3 CMS DW Spectrum® |
| Performance Web viewer | Internet Explorer® browser Internet Explorer® XP or higher with live view and remote setup Windows OS |
| Network | |
| LAN | 10/100/1000 Base-Tx Ethernet (RJ045) |
| Network function | Time synchronization by an NTP server |
| Protocol | DDNS DHCP Static TCP/IP uPNP |
| Streaming | Dual-streaming |
| Supported protocols | ONVIF |
| Electrical | |
| Power Consumption | 1A |
| Power Requirements | 12V DC |
| General | |
| Operating humidity | 20–90% RH (non–condensing) |
| Operating temperature | 41°F ~ 104°F (5°C ~ 40°C) |
| Recorder Dimensions (H X W X D) | 5.47" x 4.84" x 1.25" Inch (139 x 123 x 32 mm) |
| Surge protect | Video IN ±4KV (Line to Line 1.2us/50us) |
| Surge protect ESD | Air ±15KV / Contact ±10KV |
