TRENDNET - TEG-MGBSX/4 - 4 x TEG-MGBSX
Part number:
TEG-MGBSX/4
Price:

TRENDnet's 4-Pack SFP Multi-Mode LC Module, model TEG-MGBSX/4, includes four fiber gigabit SFP modules that are compatible with standard SFP slots found on network switches and fiber media converters. Each Multi-Mode SFP module is equipped with a duplex LC fiber connection interface, and supports gigabit multi-mode fiber connections for long distance networking applications.



Features:

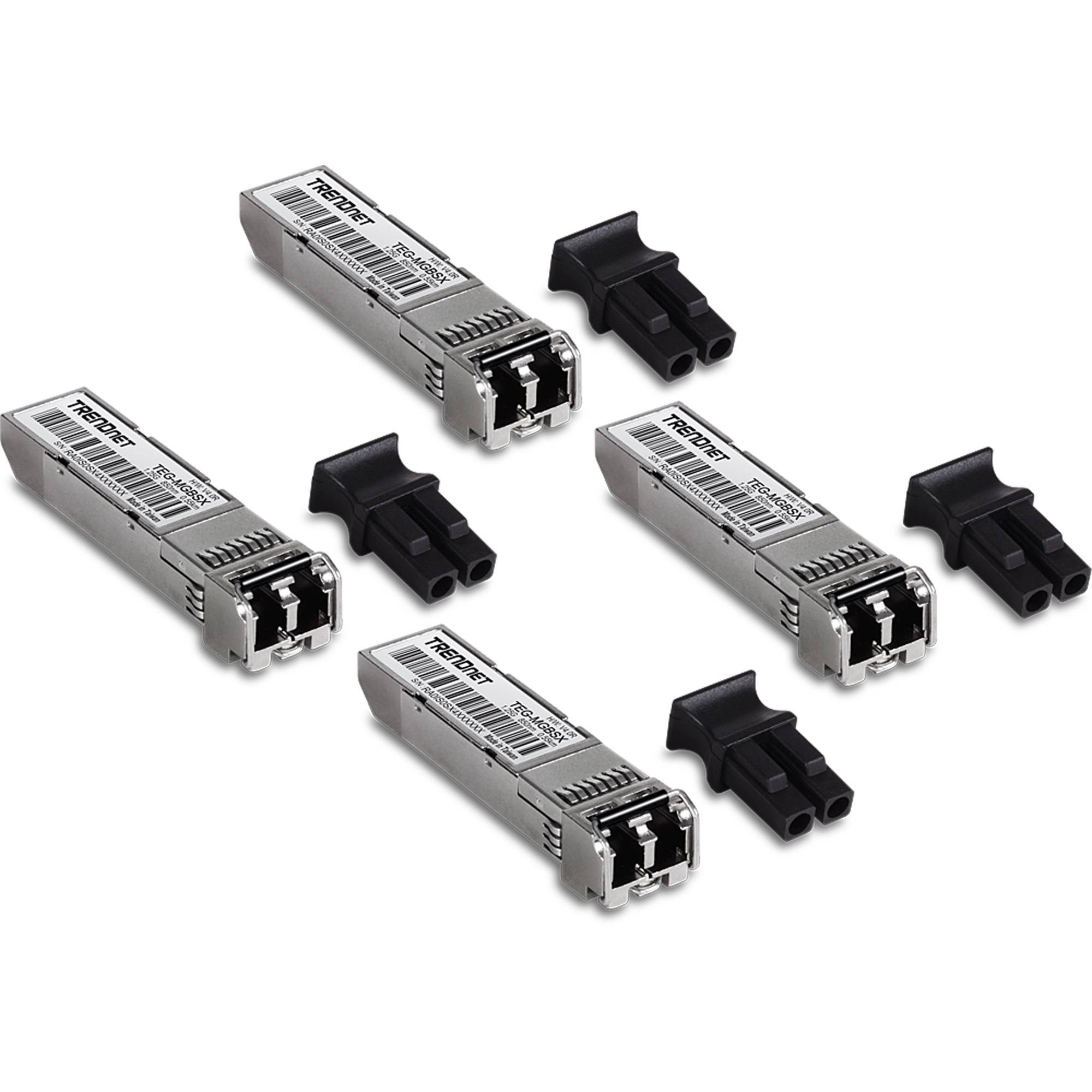

  • Includes four TEG-MGBSX SFP modules
  • Compliant with IEEE 802.3z Gigabit Ethernet
  • ANSI Fiber Channel compliant
  • Small Form-Factor Pluggable (SFP) and Multi-Source Agreement (MSA) compliant
  • Supports data rates of up to 1.25Gbps
  • Transmission distance of up to 550m (1804 ft.)
  • Low Electromagnetic Interference (EMI) design
  • Supports 850nm multi-mode network transmissions
  • Duplex LC optical interface
  • Low power consumption
  • NDAA / TAA compliant (U.S. and Canada only)
  • Lifetime Warranty*
Standards
  • IEEE 802.3
  • IEEE 802.3u
  • IEEE 802.3z
Device Interface
  • SFP MSA Compliant
  • LC duplex connector
Data Transfer Rate
  • 1.25Gbps
Wavelength
  • 850nm
Optical Output Power
  • -9 ~ -3 dBm
Distance
  • 550m (1804 ft.)
Special Features
  • Hot pluggable
  • Metal enclosure
Sensitivity
  • -20 dBm
Power
  • Max. Consumption: 0.8W
Operating Temperature
  • 0° – 70° C (32° – 158 °F)
Operating Humidity
  • Max. 85% non-condensing
Dimensions
  • 57 x 13 x 12 mm (2.2 x 0.5 x 0.5 in.) per unit
Weight
  • 18g (0.6 oz.) per unit
Certifications
  • CE
  • FCC
Warranty
  • Lifetime Warranty*

PACKAGE CONTENTS

  • 4 x TEG-MGBSX
  • Quick Installation Guide
Name
Description
Size
Downloads
File
Datasheet
0.8mb
