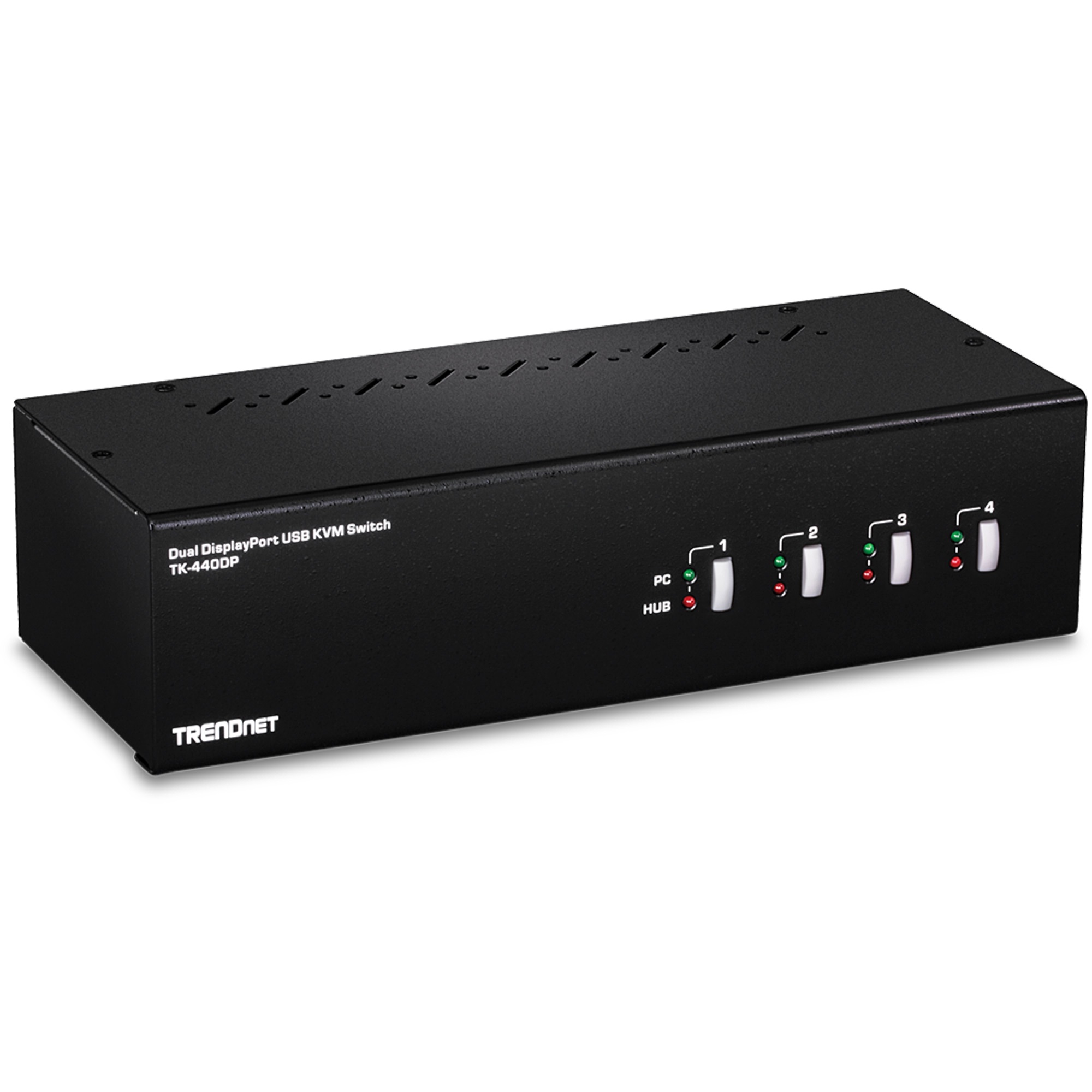

TRENDNET - TK-440DP - 4-Port Dual Monitor Display Port KVM Switch
TRENDNET - TK-440DP - 4-Port Dual Monitor Display Port KVM Switch
TRENDNET - TK-440DP - 4-Port Dual Monitor Display Port KVM Switch
TRENDNET - TK-440DP - 4-Port Dual Monitor Display Port KVM Switch
TRENDNET - TK-440DP - 4-Port Dual Monitor Display Port KVM Switch TRENDNET - TK-440DP - 4-Port Dual Monitor Display Port KVM Switch TRENDNET - TK-440DP - 4-Port Dual Monitor Display Port KVM Switch

TRENDNET - TK-440DP - 4-Port Dual Monitor Display Port KVM Switch

Part number:
TK-440DP
Price:
Dealers only
Add to Quote/Project Registration
Description Specifications Downloads

TRENDnet's 4-Port Dual Monitor DisplayPort KVM Switch, model TK-440DP, allows you to control four computers with one set of console controls. Experience up to 4K UHD resolutions, no driver installation required. The TK-440DP is designed for dual monitor systems with USB mouse and keyboard connections, and features a two-port USB hub to share storage devices or printers between computers.



Features:

  • Dual Monitor DisplayPort 1.2 KVM
  • 3.5mm speaker and microphone connections
  • Designed for use with Dual DisplayPort systems
  • Supports 4K UHD resolutions up to 3840 x 2160 @ 60Hz
  • Up to 2560 x 1440 @ 144Hz
  • 2-Port USB 2.0 hub for storage devices and printers
  • Required cabling sold separately (TK-CP06)
  • No CD installation required
  • NDAA / TAA compliant (U.S. and Canada only)
Console Port Connectors
  • Keyboard: USB Type A
  • Mouse: USB Type A
  • Monitors: 2 x DisplayPort 1.2
  • 2-port USB 2.0 Hub
  • Speaker jack: 3.5mm
  • Microphone jack: 3.5mm

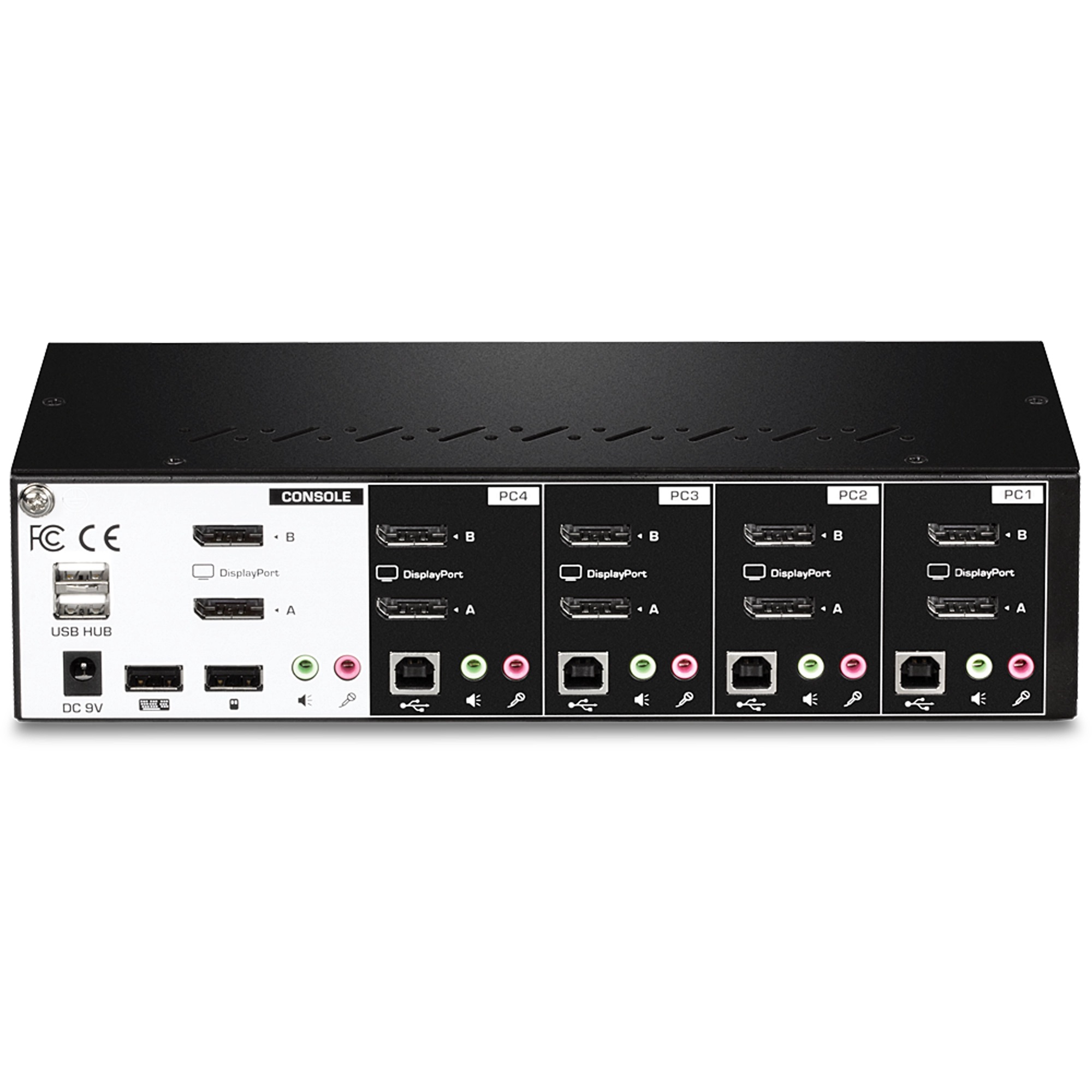

KVM Port Interface
  • Keyboard/Mouse: USB Type B
  • Monitors: 2 x DisplayPort 1.2
  • Speaker jack: 3.5mm
  • Microphone jack: 3.5mm
Computer Interface (up to 4)
  • Keyboard/Mouse: USB Type A
  • Monitors: 2 x DisplayPort 1.2
  • Speaker jack: 3.5mm
  • Microphone jack: 3.5mm
Monitor Resolution
  • Up to 1920 x 1080 @ 144Hz
  • Up to 1920 x 1200 @ 144Hz
  • Up to 1920 x 1440 @ 144Hz
  • Up to 2560 x 1440 @ 144Hz
  • Up to 3440 x 1440 @ 60Hz
  • Up to 3840 x 2160 @ 60Hz

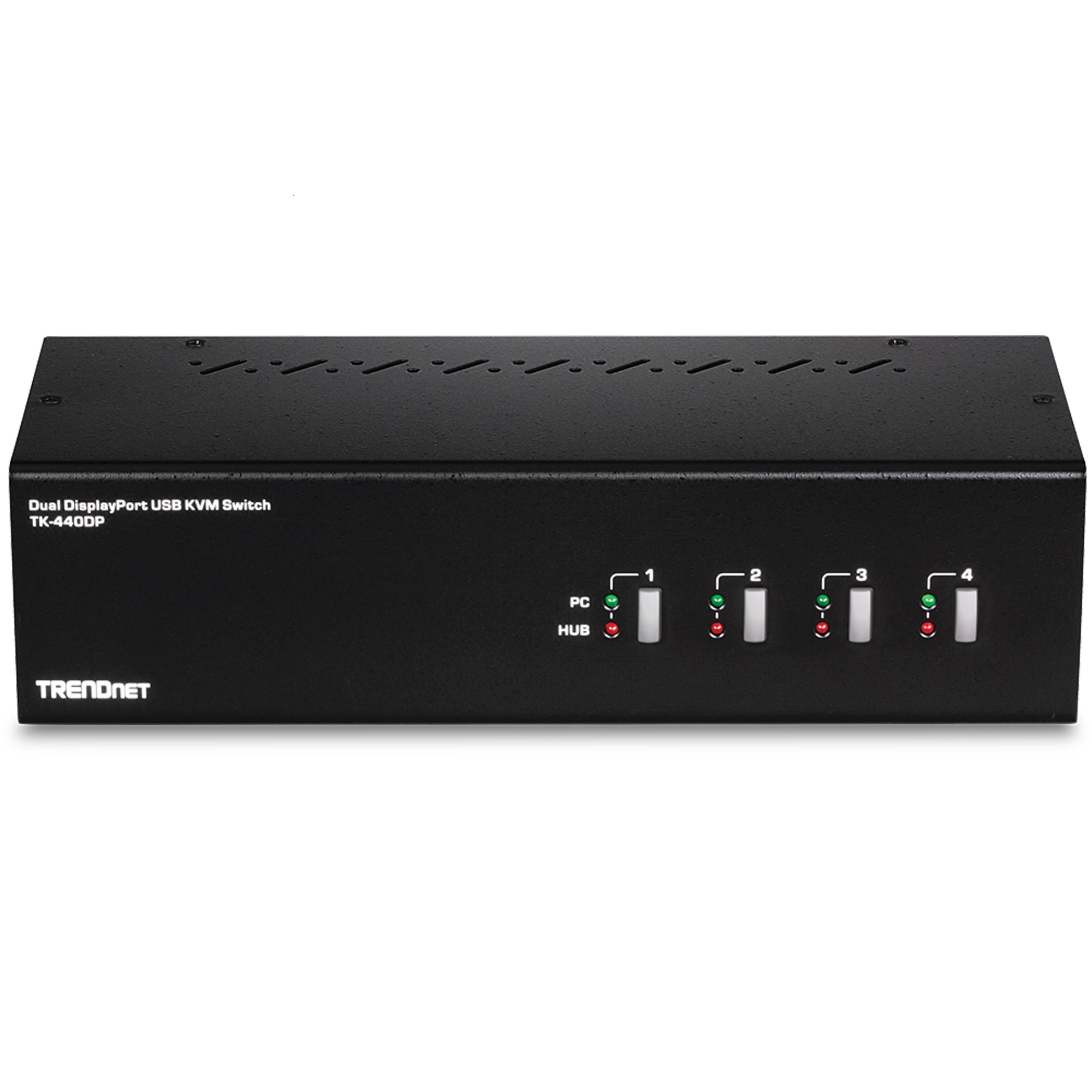

Switching Control
  • Front panel push buttons
  • Keyboard hot key commands
Operating Temperature
  • 0° – 40° C (32° – 104° F)
Operating Humidity
  • Max. 90% non-condensing
Power
  • Input: 100 – 240V AC, 50/60Hz, 0.8A
  • Output: 9V DC, 2A external power adapter
  • Max. consumption: 0.7W
Dimensions (L x W x H)
  • 254 x 100 x 66mm (10 x 3.9 x 2.6 in.)
Weight
  • 1.2kg (2.7 lbs.)
Warranty
  • 2 year
Certifications
  • CE
  • FCC

PACKAGE CONTENTS

  • TK-440DP
  • Quick Installation Guide
  • Power adapter (9V DC, 2A)
Name
Description
Size
Downloads
File
Datasheet
1.2mb
