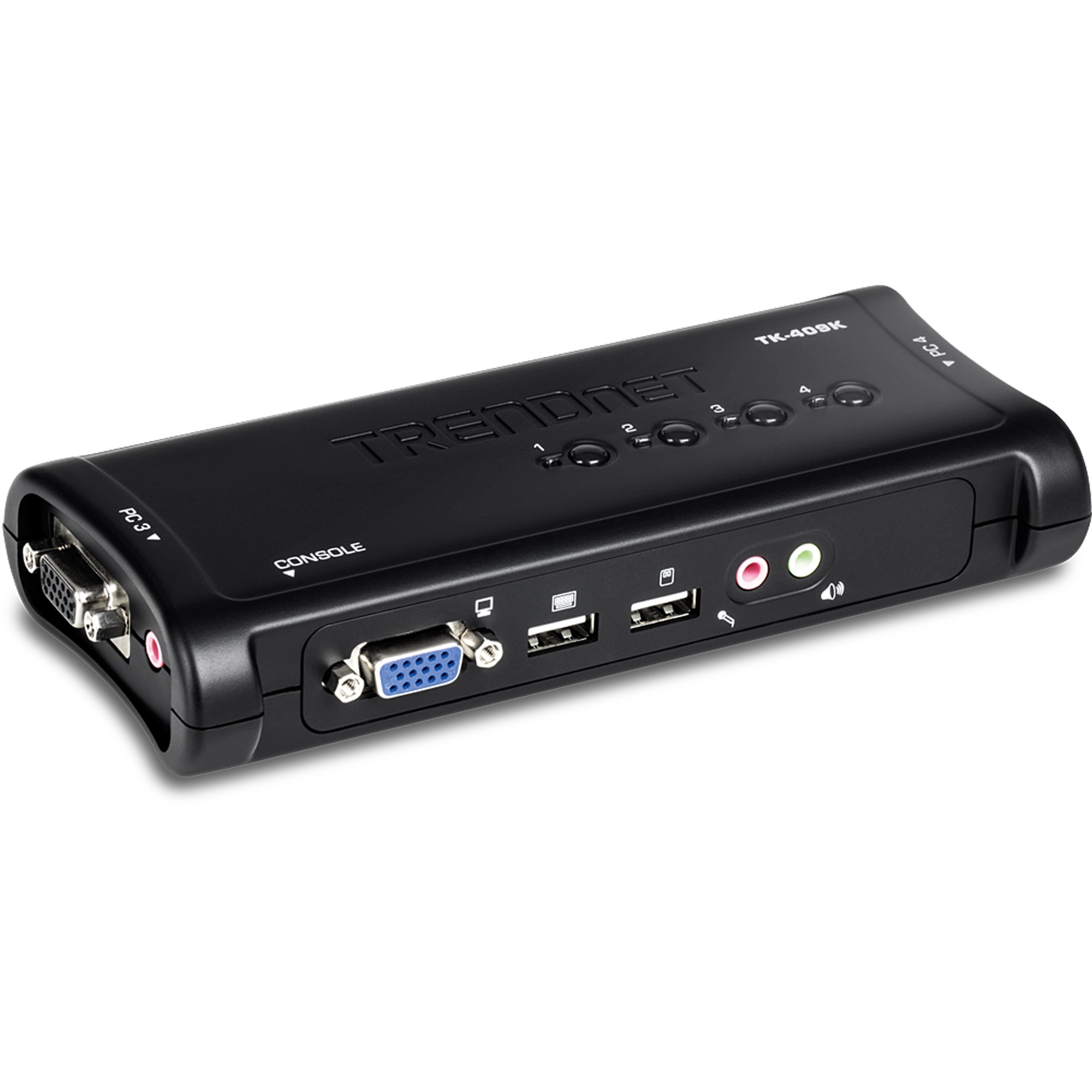

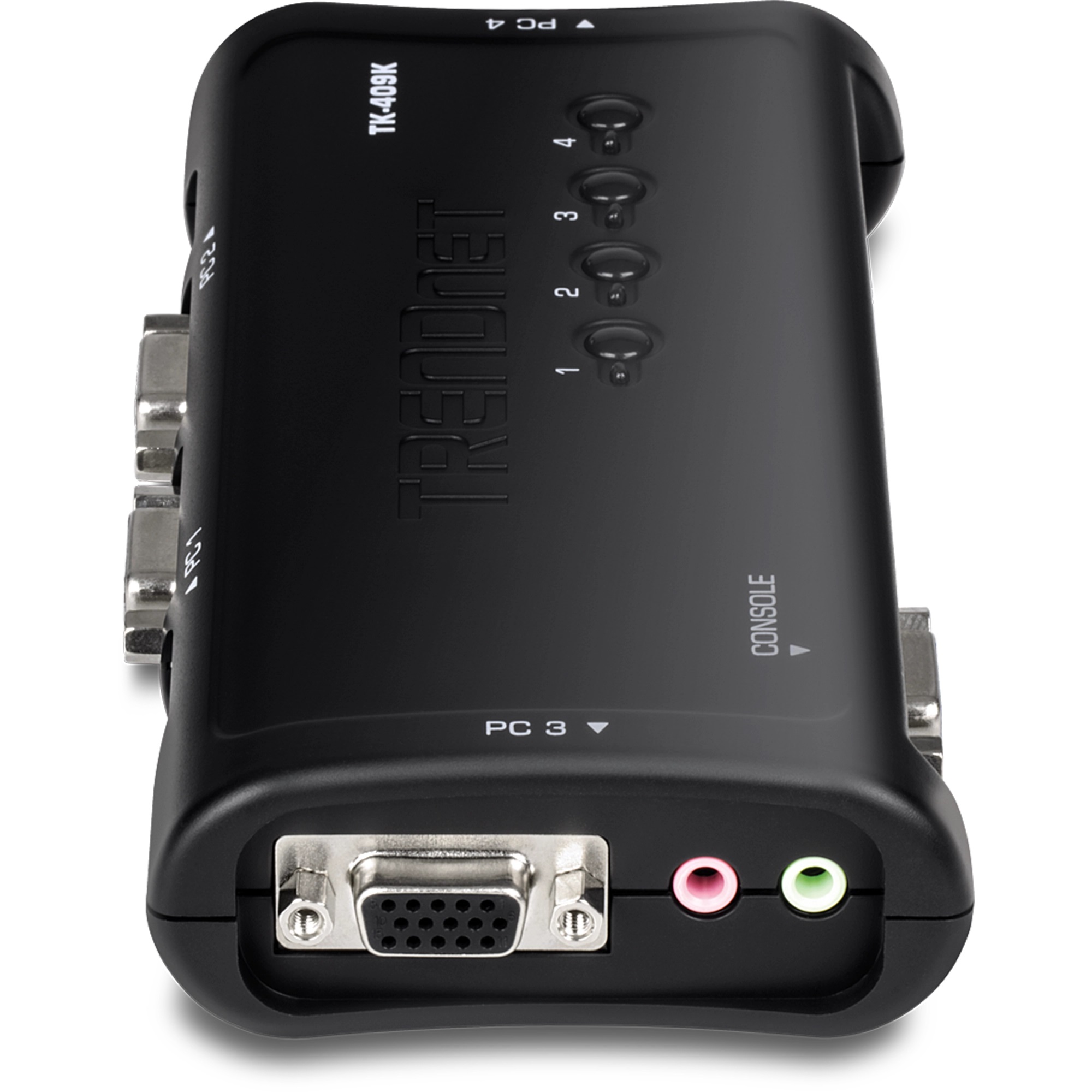

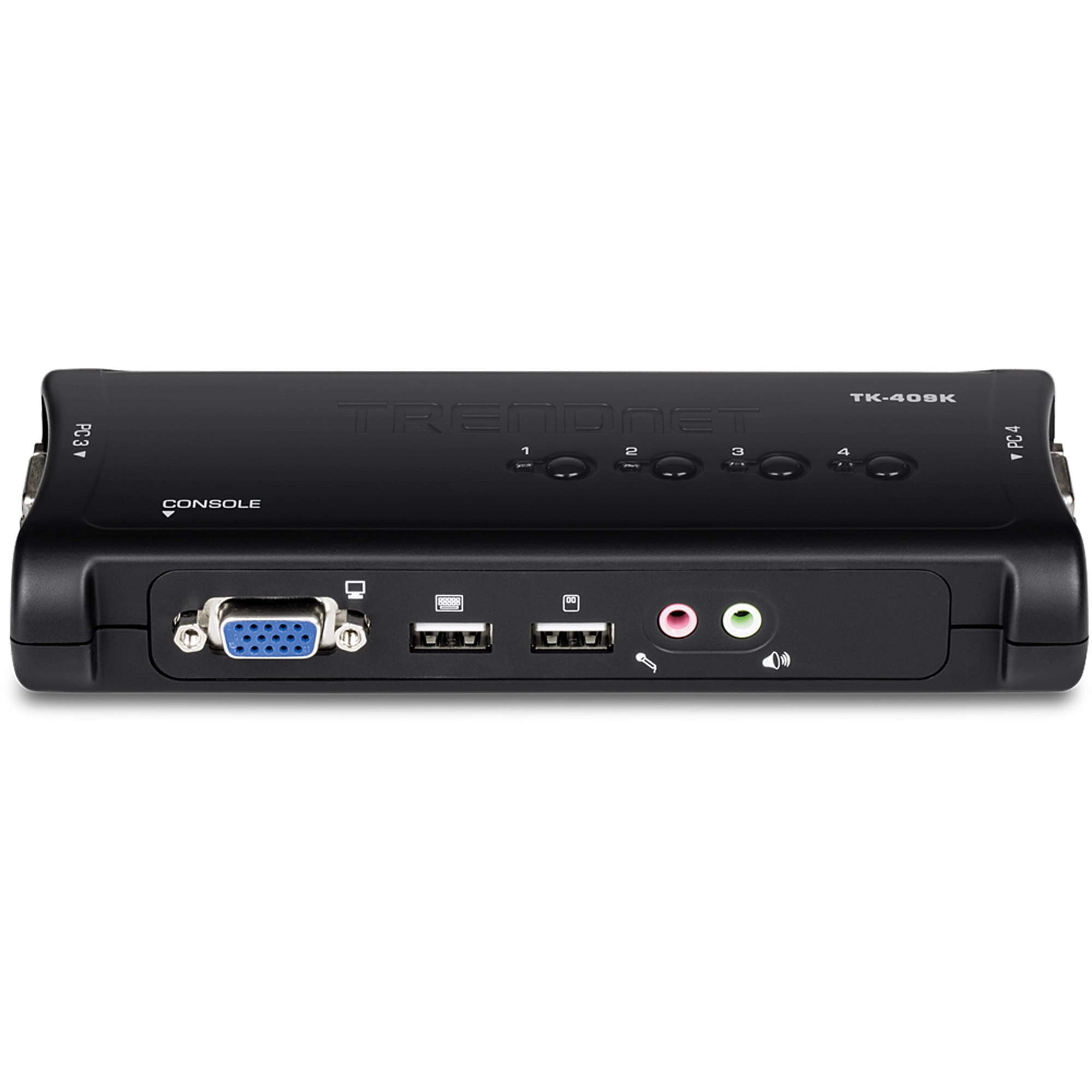

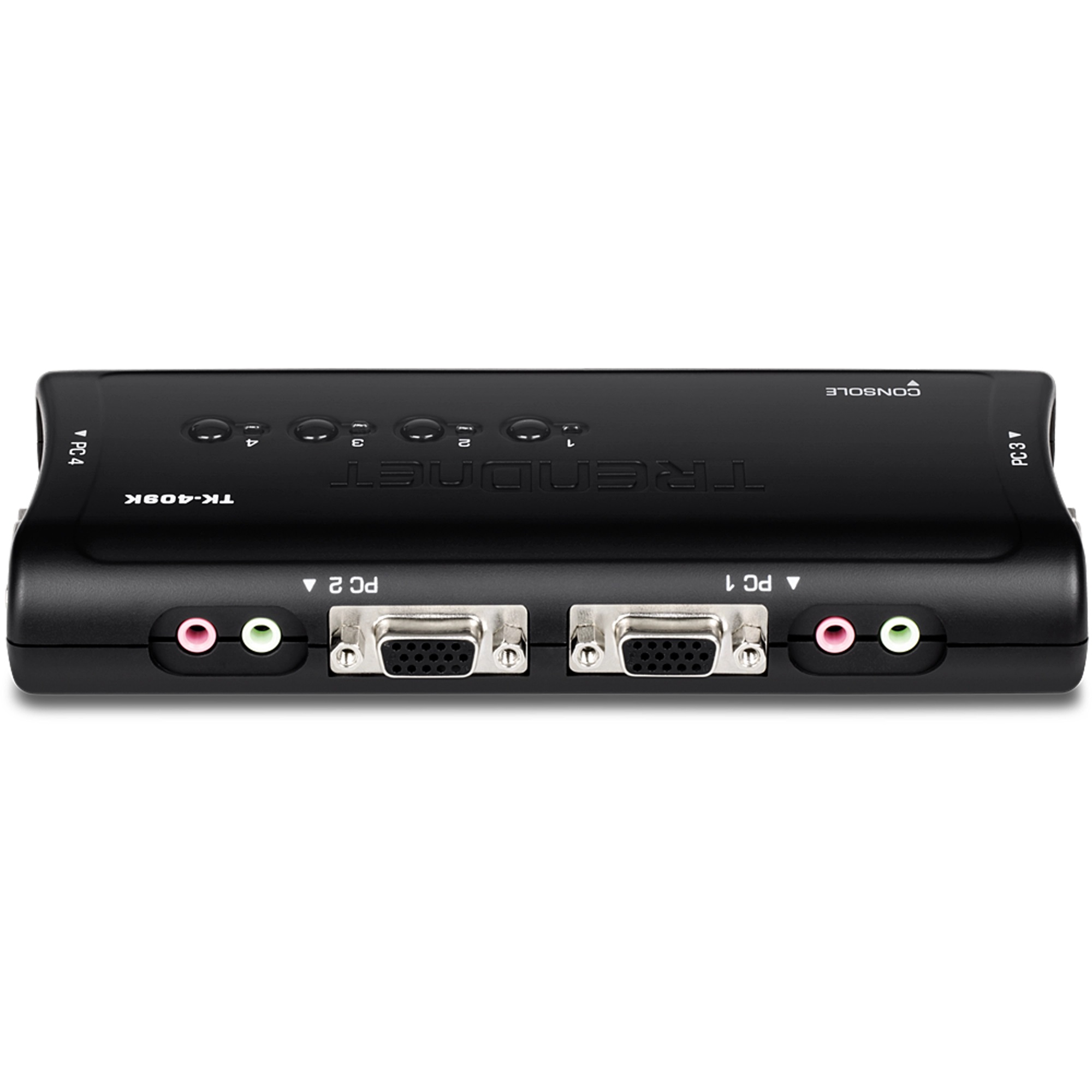

Trendnet - TK-409K - 4-port USB KVM Switch Kit w/Audio (Include 4 x KVM Cables)
Part number:
TK-409K
Price:

TRENDnet’s 4-Port USB KVM Switch with Audio, model TK-409K, allows you to control four computers with one set of console controls. Experience up to 2048 x 1536 resolutions, no driver installation required. Separate sets of KVM cables are included with the KVM switch, so users can start controlling four workstations instantly. The KVM cables also provide power to the KVM switch, eliminating the need for a power adapter. Hot Key operations provide immediate access to features, such as computer switching, and auto-scanning. With its Hot-Plug and Audible Feedback, the 4-Port USB KVM Switch is the perfect choice for managing multiple PCs.



Features:

  • Control up to 4 computers with one set of console devices
  • 3.5mm speaker and microphone connections
  • Designed for use with VGA systems
  • High video quality, up to 2048 x 1536 VGA resolution
  • Compliant with Windows, Linux, and Mac OS
  • Auto-Scan and LED display for computer monitoring
  • Keyboard status restored when switching between computers
  • User definable hot key (Windows only)
  • Plug & Play and hot-pluggable
  • USB interface power method
  • All required cables included
  • No CD installation required
  • NDAA compliant
Console Port Connectors
  • 1 x VGA /SVGA HDB 15-pin (Female)
  • 2 x USB ports (Keyboard / Mouse)
  • 1 x 3.5mm speaker jack
  • 1 x 3.5mm microphone jack
Computer Interface (up to 4)
  • 1 x USB Type A
  • 1 x VGA /SVGA HDB 15-pin (Female)
  • 1 x 3.5mm speaker jack
  • 1 x 3.5mm microphone jack
Cables (4 sets)
  • 2 sets: 1.2m (4 ft.)
  • 2 sets: 1.8m (6 ft.)
  • VGA /SVGA (Male) to VGA /SVGA (Male) / USB Type A
  • Audio cables
Monitor Resolution
  • 2048 x 1536 @ 60Hz
Switching Control
  • Front panel push buttons
  • Keyboard hot key commands
  • Auto-Scan interval: 10 ~ 60 secs
Operating Temperature
  • 0° – 40° C (32° – 104° F)
Operating Humidity
  • Max. 90% non-condensing
Power
  • USB powered
  • Max. consumption: 0.7W
Dimensions
  • 167 x 80 x 28mm (6.6 x 3.2 x 1.1 in.)
Weight
  • 185g (6.5 oz.)
Certifications
  • CE
  • FCC
Warranty
  • 2 year

PACKAGE CONTENTS

  • TK-409K
  • Quick Installation Guide
  • 2 x KVM and Audio cables (1.2m/4 ft.)
  • 2 x KVM and Audio cables (1.8m/6 ft.)
