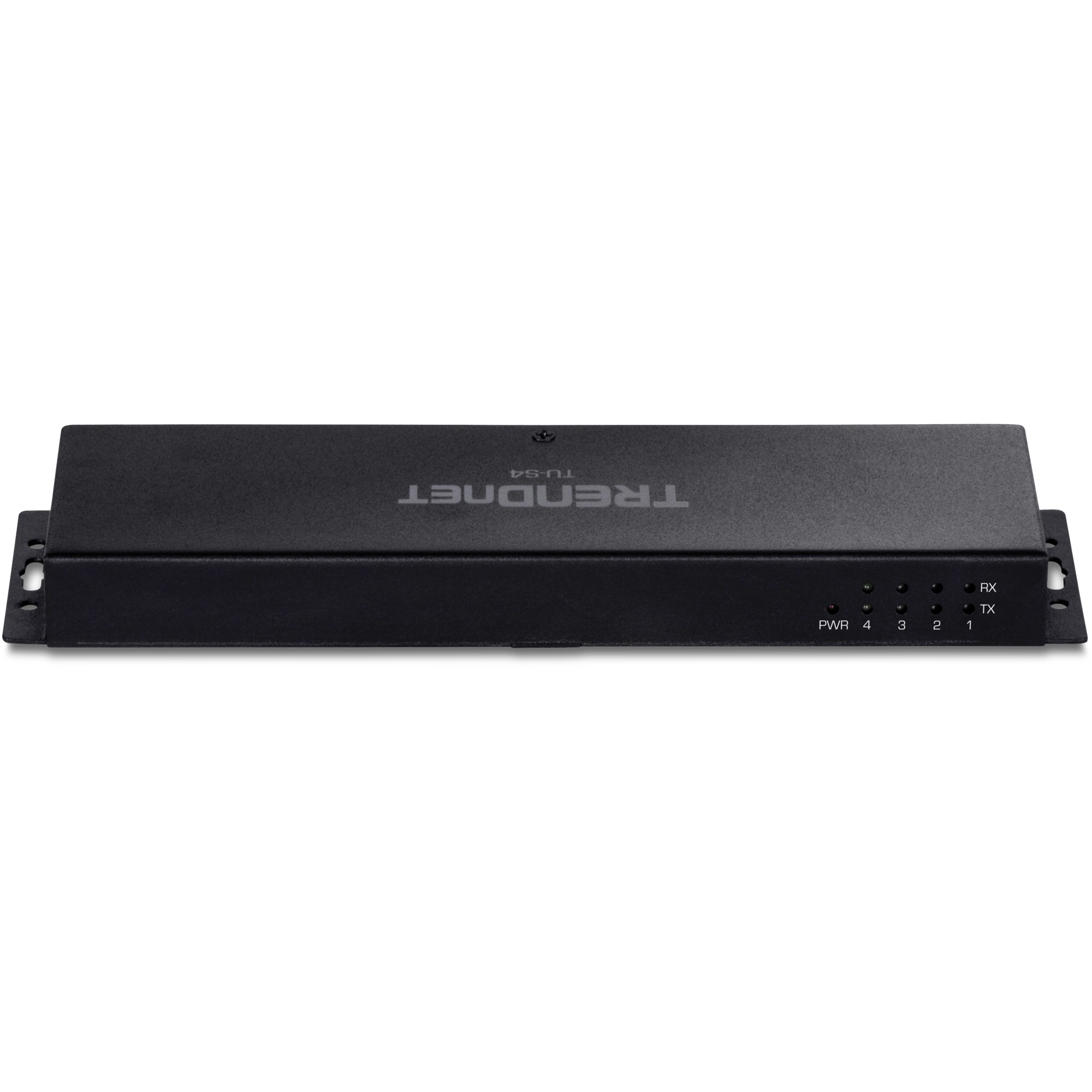

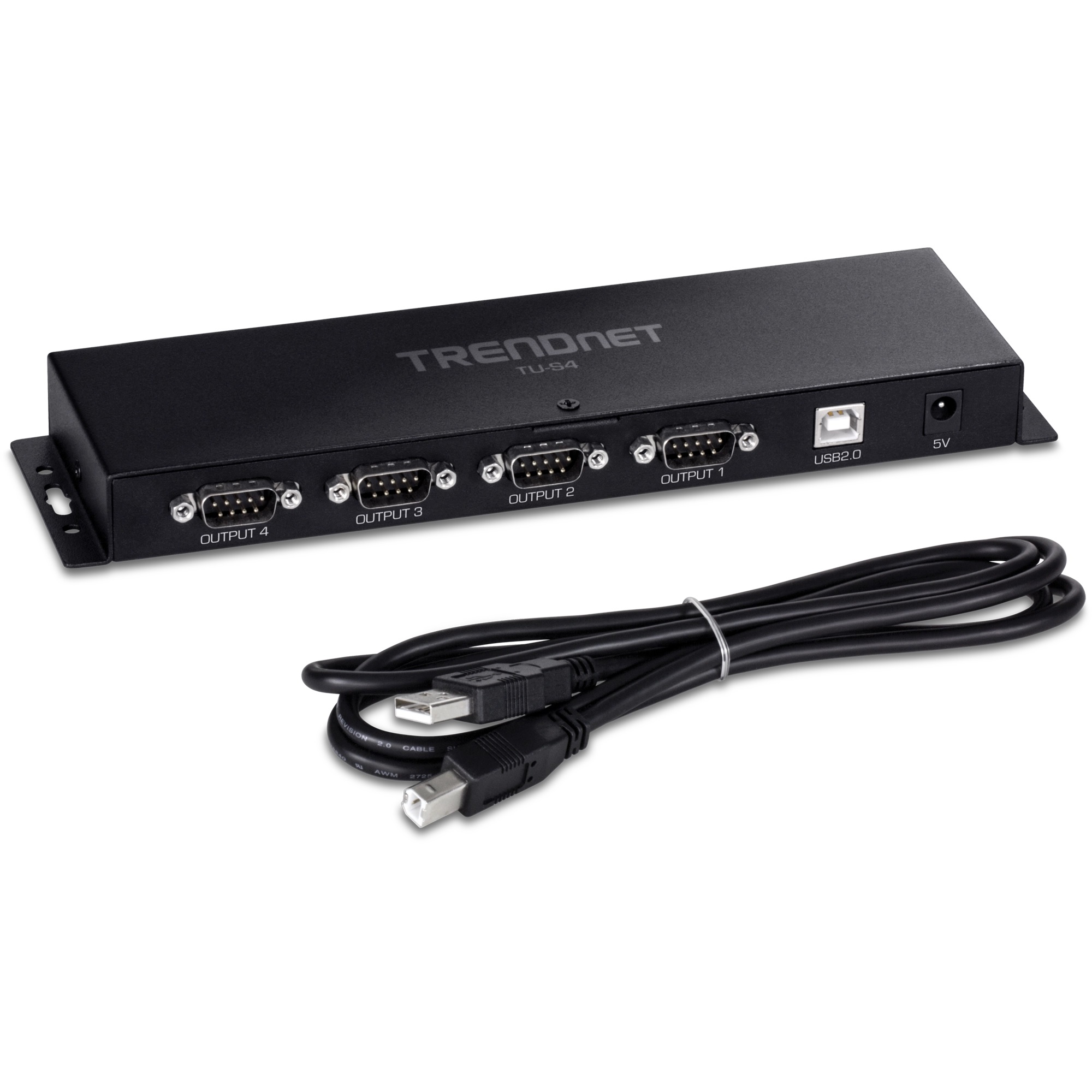

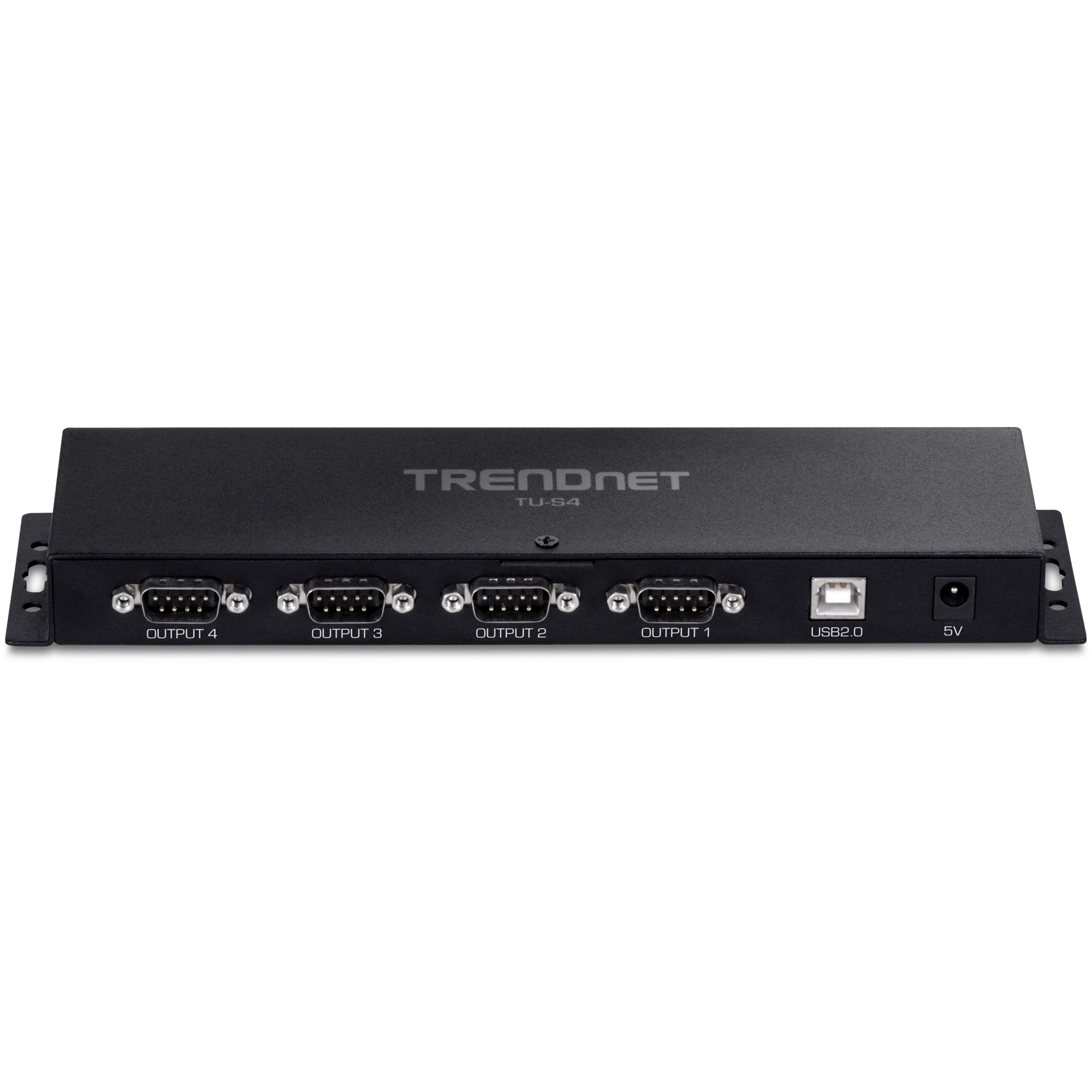

TRENDNET - TU-S4 - 4 Port USB to Serial RS232 Adapter
Part number:
TU-S4
Price:

TRENDnet’s 4-Port USB to Serial RS232 Hub, model TU-S4, allows users to conveniently connect up to four RS232 serial devices, such as a modem or printer, to a USB port on your desktop PC or laptop. The USB to serial adapter supports both Windows and Mac operating systems. Integrated cables provide setup flexibility and accommodates most installation scenarios.



Features:

  • Connect four RS232 serial devices, such as a modem, to a USB port on your computer
  • Easy installation
  • Supports USB 2.0 and compatible with USB 3.0 ports and USB 1.1
  • Supports Windows and Mac operating systems
  • NDAA compliant
Interface
  • 4 x DB9 RS-232 male ports
  • 1 x USB 2.0 Type A port
Data Rate
  • Up to 460Kbps
Cable
  • Length: 1m / 3ft.
  • USB Type B to Type A
Optional Power (not included)
  • Input: 110-240V AC, 50/60 Hz 1A
  • Output: 5V DC, 1A
  • Max consumption: 3W
Supported OS
  • Windows® 10, 8.1, 8, 7
  • Windows® Server 2003, 2008, 2012
  • Mac OS® 11, 10.6~10.15
Operating Temperature
  • 0° – 70° C (32° – 158° F)
Operating Humidity
  • Max. 85% non-condensing
Power
  • Max. consumption: 0.6W
Dimensions
  • 238 x 63 x 23 mm (9.4 x 2.5 x 0.9 in.)
Weight
  • 413g (14.5 oz.)
Certifications
  • CE
  • FCC
Warranty
  • 2 year

PACKAGE CONTENTS

  • TU-S4
  • Quick Installation Guide
  • USB Cable (1m / 3 ft.)
  • CD-ROM (Drivers)
Name
Description
Size
Downloads
File
Datasheet
0.7mb
