Cyber Power - CP2RAIL02 - 4 Post Rail Kit for UPS
Part number:
CP2RAIL02
Price:
Product Overview

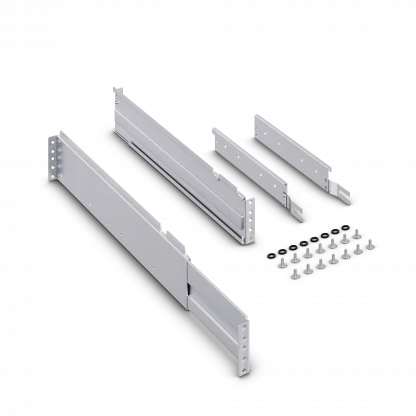

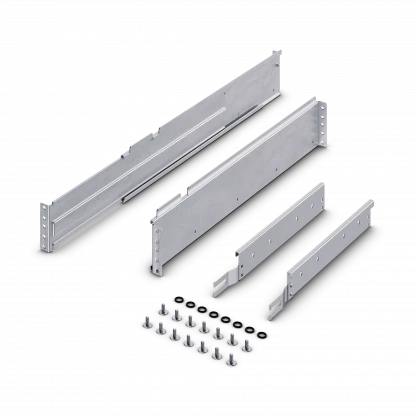

The CyberPower CP2RAIL02 is a heavy-duty 4-post rackmount rail kit engineered to support select 2U and 3U UPS systems weighing up to 500 pounds. Its two adjustable rails expand from 20.1" to 35.8", ensuring compatibility with a wide range of rack depths while facilitating a single-person installation. For added convenience and safety, the kit features slide-out rail stops and is backed by a five-year limited warranty.
Configuration
- • Mounting type: 4-post rackmount
- • Adjustable rail range: 20.1" to 35.8"
- • Maximum weight capacity: 500 lbs
- • Compatible UPS form factors: select 2U and 3U UPS systems
- • Rails: 2 adjustable rails (right and left)
| Output | |
| USB Charge Port | No |
| Physical | |
| Adjustable Length (in.) | 20.1 – 35.8 in |
| Capacity (lbs) | 500 lbs |
| Color | Silver |
| Material of Construction | Metal |
| Mounting Hardware | Yes |
| Rack Height Compatibility | 2U and 3U |
| Dimensions | |
| Physical Dimensions – (WxHxD) (cm) | 2.03 x 8.64 x 51.05 (cm) |
| Physical Dimensions – (WxHxD) (in) | 0.8 x 3.4 x 20.1 (in) |
| Physical Dimensions – (WxHxD) (mm) | 20 x 86 x 511 (mm) |
| Weight (kg) | 2.72 |
| Weight (lb) | 6 |
| Dimensions – Shipping | |
| Shipping – Weight (kg) | 2.99 |
| Shipping – Weight (lb) | 6.6 |
| Shipping Dimensions – (WxHxD) (cm) | 13.72 x 7.37 x 60.2 (cm) |
| Shipping Dimensions – (WxHxD) (in) | 5.4 x 2.9 x 23.7 (in) |
| Shipping Dimensions – (WxHxD) (mm) | 137.16 x 73.66 x 601.98 (mm) |
| Physical | |
| Adjustable Length (in.) | From 20.1 to 35.8 inches |
| Capacity (lbs) | 500 lbs. |
| Enclosure Construction | Steel |
| Mounting Hardware | Included |
| Rack Height Compatibility | 2U and 3U |
| Compatibility | |
| UPS Models | PR750RT2U, PR750RTXL2U, PR1000RT2U, PR1000RTXL2U, PR1500RT2U, PR2000RT2U |
| Warranty | |
| Product Warranty | 5 Years Limited |
Name
Description
Size
Downloads
File
Datasheet
0.3mb
