Hanwha - SLA-T4680A - 4.6Mm Pinhole Lens Module
Part number:
SLA-T4680A
Price:

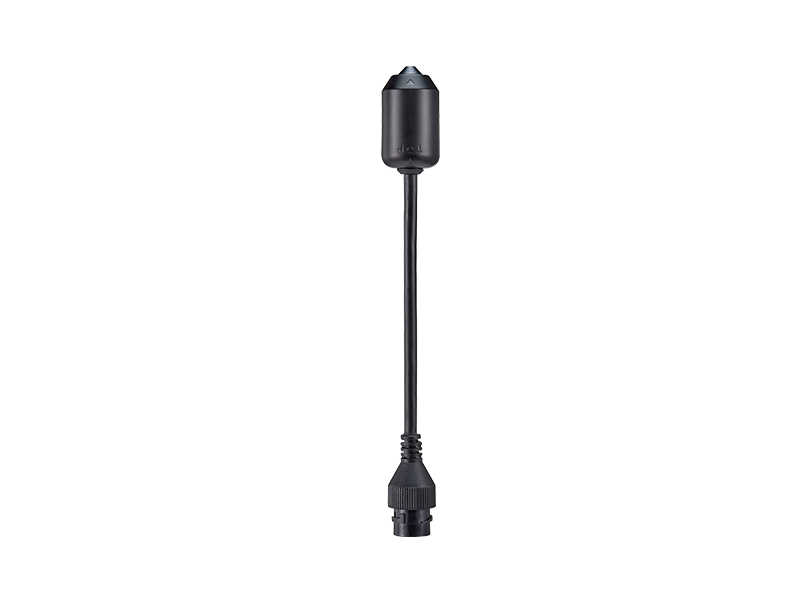

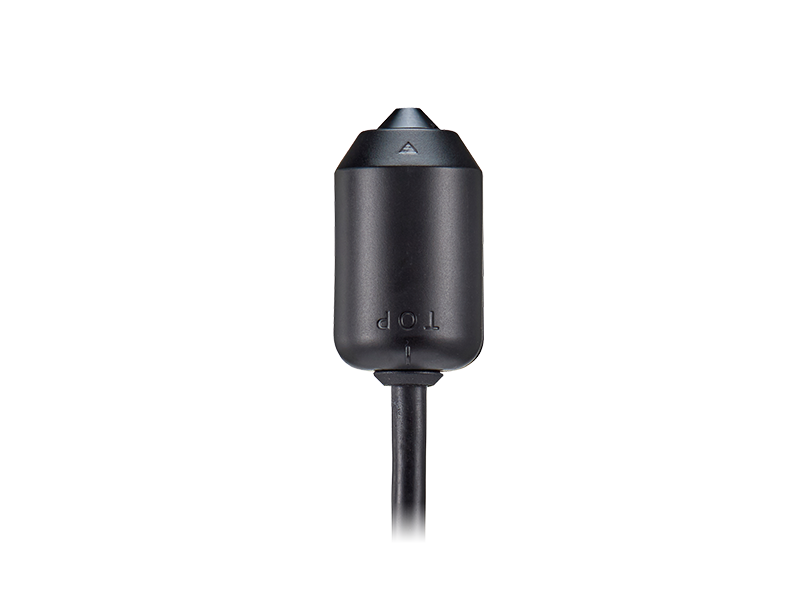

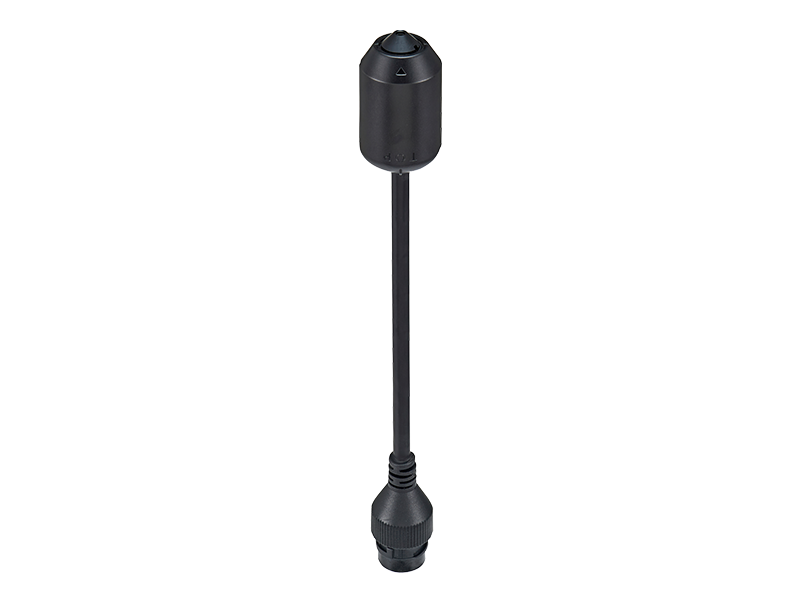

4.6mm pinhole lens module, compatible with the PNM-9000QB / XNB-6002, straight body style, 2MP, 0.06 Lux, 120dB WDR, 73? horizontal field of view, 8 meters/ 26 feet cable. Cable can be shortened as needed. Metal shielded cable/connector.
Features :
- Color: 0.06Lux(F2.5, 1/30sec)
- 4.6mm fixed focal
- Compatible with PNM-9000QB
| Video | |
| Imaging Device | 1/2.8" 2MP CMOS |
| Min. Illumination | Color: 0.06Lux(F2.5, 1/30sec) |
| Lens | |
| Focal Length (Zoom Ratio) | 4.6mm fixed focal |
| Max. Aperture Ratio | F2.5 |
| Angular Field of View | H: 73°, V: 39°, D: 85° |
| Mount Type | RJ12 connected with main unit |
| Focus Control | fixed |
| Mechanical | |
| Color / Material | Black / Plastic |
| Product dimensions / weight | Ø24xL49.8mm, 310g |
