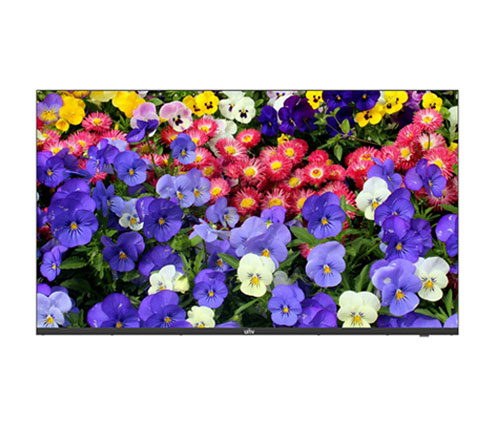

Uniview - MW3243-F-V - 43" CCTV Monitor

Product Overview

Uniview MW3243-F-V is a 43" CCTV monitor with 4K UHD resolution (3840×2160) and LED backlight. It features an industrial-grade panel rated for 24/7 continuous operation, 300 cd/m² brightness, 1000:1 contrast ratio, and 178° wide viewing angles. The monitor includes dual 5W speakers and is VESA compatible for wall or stand mounting.

Key Configuration

• • Panel size: 43 inches; resolution: 3840×2160 (4K UHD)
• • Brightness: 300 cd/m²; contrast ratio: 1000:1; response time: 14 ms
• • Video inputs: 2 × HDMI, 2 × DP
• • Audio output: 3.5mm headphone jack; built-in speakers: 2 × 5W
• • VESA wall mount: 200 × 200 mm; M6 screws (10mm thread depth)

Key Features

• Industrial-grade panel designed for 24/7 continuous operation
• Ultra-narrow bezel, ultra-slim depth lightweight design
• Automatic color and image enhancing engine for improved contrast, details, edges, and color rendering
• Wide 178° horizontal and vertical viewing angles
• Silent operation
• OSD languages: English, French, German, Italian, Dutch, Korean, Simplified Chinese, Traditional Chinese

Technical Context

Color support: 1.07B colors. Display size: 941.184 × 529.416 mm. Pixel pitch: 0.2451 × 0.2451 mm. Accessories included: 1 × HDMI cable, 1 × Quick Guide, 1 × Remote Control, 1 × Power Cable.

Installation Notes

Product dimensions (W × H × D): 964.4 × 560.9 × 94.9 mm; package dimensions: 1055 × 645 × 130 mm. Net weight: 6.8 kg; gross weight: 8.6 kg. Input voltage: AC 100–240V, 50/60Hz; typical power consumption: ≤90W; standby power consumption: ≤0.5W. Operating temperature: 0°C to 40°C; operating humidity: 20%–85% non-condensing. Storage temperature: -10°C to 60°C; storage humidity: 10%–90% non-condensing. VESA mounting: 200 × 200 mm with M6 screws (10mm thread depth). Flexible wall mount and stand mount options.
