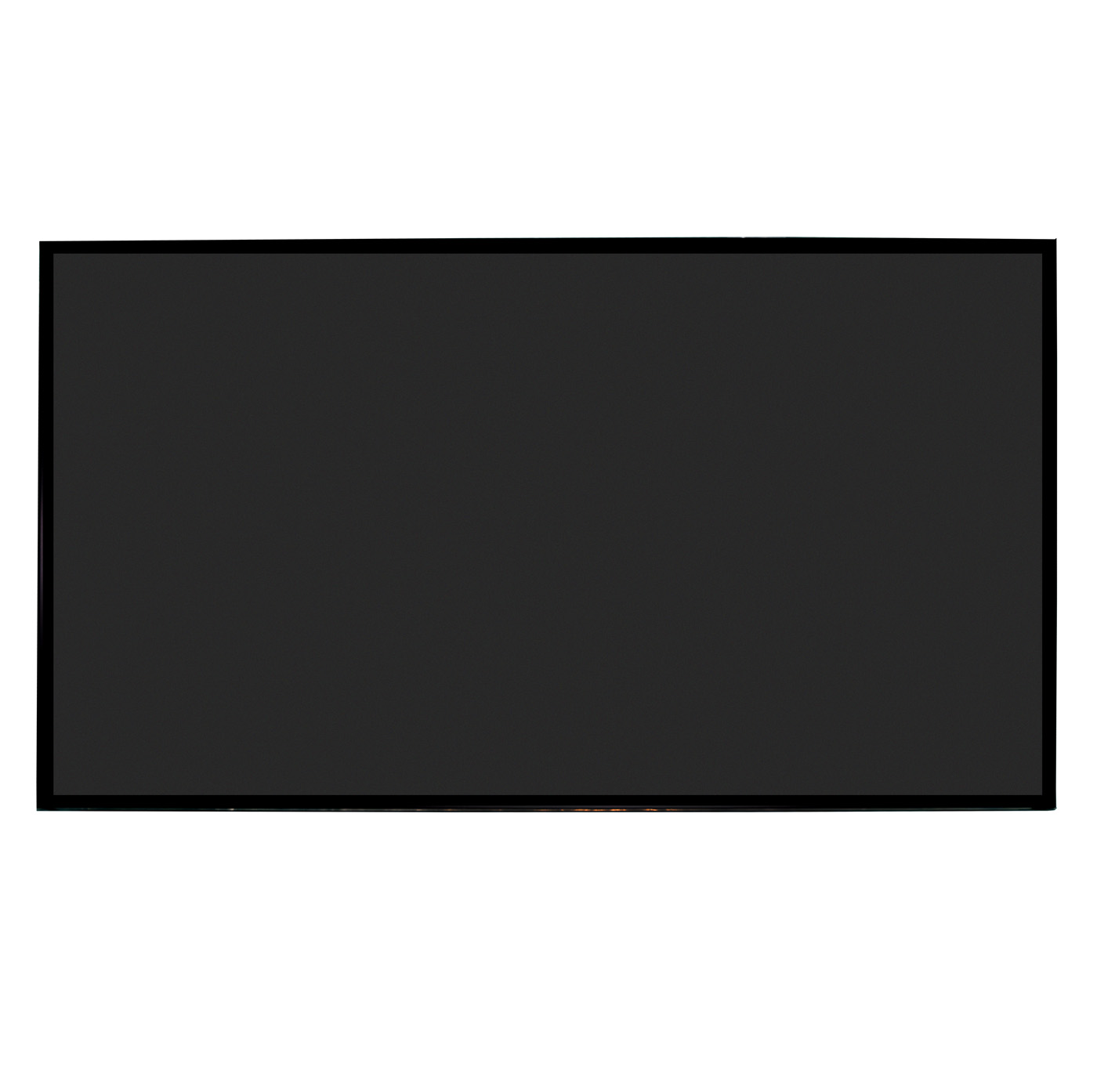

ExacqVision - ADLCD43MB4K - 43” LCD UHD 4K, HDMI, DP, DVI, VGA, Ultra-narrow Bezel, IR RC
43” LCD UHD 4K, HDMI, DP, DVI, VGA, Ultra-narrow Bezel, IR RC.
Professional Video Wall Monitors
American Dynamics Professional Video Wall Monitors produce sharp, true color images that can be used in security rooms and a variety of other applications. These LCD displays are the perfect solution for Ultra High Definition (UHD) video walls. With an integrated video wall processor, and the ability to take a single video source and display it across multiple panels, it is possible to create *huge virtually seamless displays that are an excellent choice for Command & Control Centers where fine details are critical. *Arranging 9 Razor-bezel Professional Video Wall Monitors into a 3 x 3 configuration creates a 165” 4K Ultra High Definition (UHD) image.
Designed for constant use
Unlike plasma technology, LCD video walls require less power. A built-in auto pixel shift feature protects against image burn in of static content making it ideal for constant use 24/7 365 days a year.
Ultra-narrow bezel
Individually mounted consumer grade monitors leave distracting gaps between the screens, but with our professional video wall monitors arranged in a tiled video wall configuration, there are virtually no inter-screen borders.
Features:
- Spread one image across multiple monitors using one video source
- Video wall processor built in
- Remote display management
- Display Port – Input (1)/Output (1)
- HDMI Inputs (3)/VGA Input (1)/DVI Input (1)
- RS-232C Input/Output for PC/Server control
- Control panel lock (panel or IR)
- Auto power recovery
- Auto pixel shift
- All metal chassis
- PIP/PBP/TRI/QUAD displays
- VESA standard hole patterns
| Physical | 43” LCD UHD Monitor |
| Dimensions (W x H x D) | 962 x 554.8 x 72mm (37.87” x 21.84” x 2.83”) |
| Weight (Net) | 23kg (50.70lbs) |
| Bezel (T/B/L/R) | 9.4/9.4/10.7/10.7mm |
| Display | |
| Screen Size | 42.51” |
| Max. Resolution | 3840 x 2160 @ 60Hz |
| Pixel Pitch | 0.2451 x 0.2451mm |
| Brightness | 500cd/m2 |
| Contrast Ratio | 1100:1 |
| Aspect Ratio | 16:9 |
| Viewing Angle | 178o / 178o |
| Display Color | 1.07Billion (10bits) |
| Response Time | < 8ms (Gray to Gray) |
| Video System | NTSC / PAL |
| Interface | |
| Display Port In/Out | 1/1 |
| HDMI Input | 3 |
| DVI In | 1 |
| VGA In | 1 |
| RS232 In/Out | 1/1 |
| Audio Out (3.5 Ø stereo) | 1 |
| Transmitter | |
| IR Remote Control | Yes (Option) |
| Environmental | |
| Operating Temperature | 0o ~ 40o C / 32o ~ 104o F |
| Electrical | |
| Electrical Ratings | AC 100 ~ 240V (50/60Hz) |
| Power Consumption | < 100W |
| Features | |
| Multi Display Function | PBP/PIP/QUAD |
| Temperature Sensor | Yes (Option) |
| De-Interlace | Yes |
| Noise Reduction | Yes |
| Auto Fan Control System | Yes (Option) |
| Auto Pixel Shift | Yes |
| Auto Source Switching | Yes |
| Edge Setting (Horizontal/ Vertical) | Yes |
| Advance Auto Power Recovery | Yes |
| Language | English |
| RS-232C Control | Monitor OSD control using PC |
| Mounts | |
| VESA Mount Size | 600 x 400mm |
| Warranty | |
| Parts/Labor | 3 years |
