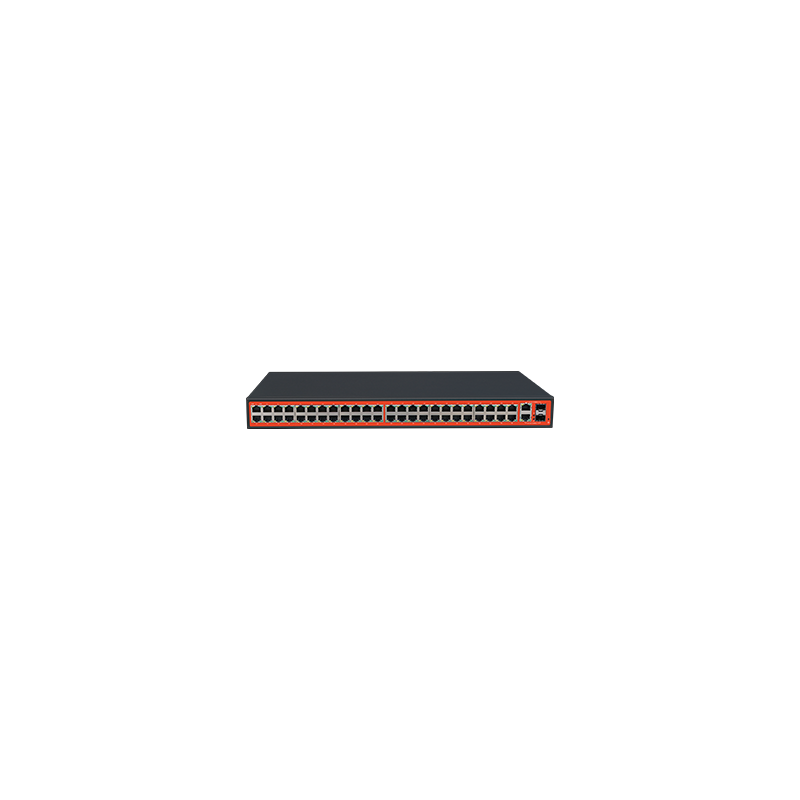

Wi-Tek - WI-PS150GF - 48FE+2 Gigabit Combo SFP 802.3af/at PoE Switch with 48Port PoE(Project model Delivery time 3weeks)
Part number:
WI-PS150GF
Price:

Wi-Tek 48V 802.3af/at fiber PoE switches are unmanaged switches which are play and play and easy to use for CCTV surveillance. They are ideal for deployment in environments that require uninterrupted running of network applications and a high level of performance. In addition, these switches offer Power over Ethernet (PoE) solutions to provide both electrical power and network connectivity to PoE-capable devices, such as IP phones and wireless APs.



Features:

  • 48 10/100Mbps RJ45 Ethernet ports
  • 2 1000Mbps Combo Ports
  • Plug and play, zero configuration
  • Energy efficient design compliant with IEEE802.3az
  •  Silent operation ideal for noise sensitive environment

HARDWARE FEATURES

WI-PS150GF

Hardware Version

V1

Interface

48 100Mbps RJ45 PoE+ Ports

2 1000Mbps Combo Ports

Fan Quantity

2 Fans

Power Budget

700W

Power Supply

AC110-240V 50/60HZ

PoE Standard

802.3af/at

DIP Switch

No

Switching Capacity

13.6Gbps

Mac Address Table

16k

Packet Forwarding Rate

10.11Mbps

Buffer

4Mb

Jumbo Frame

10240Bytes

Protection Level

 6kV Lightning protection 6kV ESD Contact discharge

SOFTWARE FEATURES

Transmission Method

Store-And-Forward

Advanced Functions

Priority Function Mac Address

Auto-Learning And Auto-Aging

Store and forward IEEE

802.3x flow control for Full-duplex Mode

Backpressure for Half-duplex Mode

OTHERS

Certification

CE, FCC, RoHS

Package Dimension

190mm*130mm*35mm

Package Contents

1 × PoE Switch

1 × Power cord

1 × Wall Mount Kit

1 × Installation Guide

Working Temperature

Operating Temperature: -10℃-55℃

Storage Temperature: -40℃-70℃

Operating Humidity: 10-90% RH non-condensing

Storage Humidity: 5–90% RH non-condensing

Name
Description
Size
Downloads
File
Datasheet
1.1mb
File
Quick Start Guide
1mb
