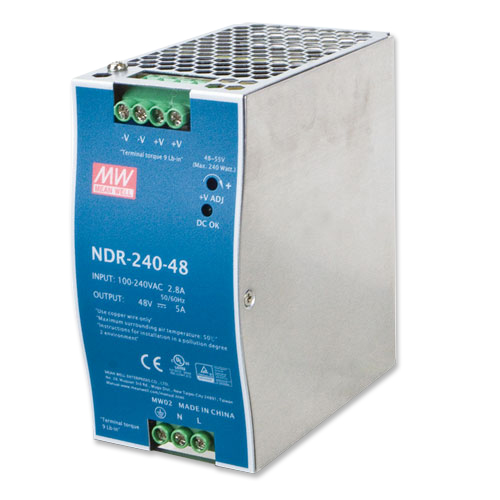

Planet - PWR-240-48 - 48V, 240W Din-Rail Power Supply (NDR-240-48, adjustable 48-56V DC Output)
Part number:
PWR-240-48
Price:
Product Overview
The Planet PWR-240-48 is a 48V, 240W industrial DIN-rail power supply delivering 5A output with an adjustable 48-56V DC range. Features universal AC input (90-264V) or DC input (127-370V), UL508/TUV EN60950-1 approvals, and operating temperature range of -20°C to 70°C. Hardware version 2 only.
Key Configuration
• Output: 48V DC (adjustable 48-56V), rated current 5A, rated power 240W
• Input AC: 90-264V AC, 47-63Hz, 2.5A
• Input DC: 127-370V DC, 47-63Hz, 1.3A
• Dimensions: 63 × 125.2 × 113.5 mm
• Weight: 1.0 kg
• Installation: DIN rail TS-35/7.5 or 15
• Safety approvals: UL508, TUV EN60950-1 (meeting EN60204-1)
| PWR-240-48 (MEAN WELL/NDR-240-48) | |
| Hardware Version | 2 |
| Dimensions (W x D x H) | 63 x 125.2 x 113.5 mm |
| Weight (kg) | 1kg |
| Input Voltage AC | 90-264V AC, 47~63Hz, 2.5A |
| Input Voltage DC | 127-370V DC, 47~63Hz, 1.3A |
| Power Output | 240 watts, 48V, 5A |
| Temperature | Operating: -20~70 degrees C (**) Storage: -40~85 degrees C |
| Humidity | Operating: 20 ~ 95% Storage: 10 ~ 95% (non-condensing) |
| Installation | DIN rail TS-35/7.5 or 15 |
| Safety & Function | Ul508, TUV EN60950-1 approved (meeting EN60204-1) |
| *Note | *The specification is for PWR-240-48 hardware version 2 only. **Please refer to output load derating curve from product specification. |
