VIVOTEK’s VC9101 is a high-performance split-type camera system. Its discreet design, rich functionality and ability to be flexibly integrated into even the tightest spaces, make this camera ideal for indoor or covert surveillance of ATMs, banks, stores and offices.

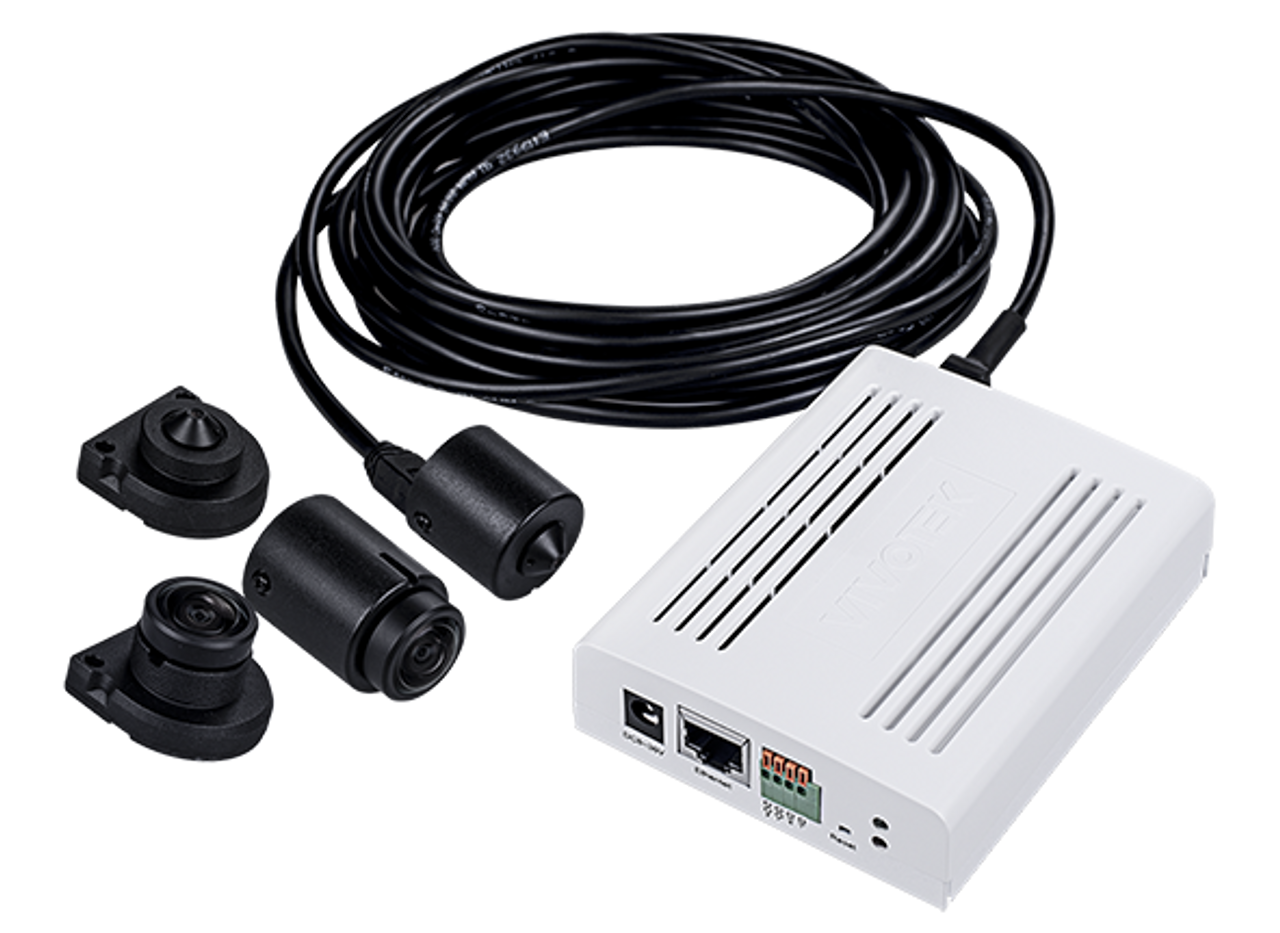

The VC9101 features a separate camera unit (CU series) and video core design, enabling the tiny camera unit (with 5-meter long cable) to be easily and flexibly installed into any decoration or interior design, thus preserving stylish appearances while dramatically saving on installation time and cost.
VC9101 video core has a powerful processor which can stream a 5MP 360 degree fisheye image or a 4MP 16:9 image. Furthermore, the VC9101 is equipped with CNN (Convolutional Neural Network) hardware accelerator which allows the deep learning VCA be more efficient and powerful. VC9101 also provides deep learning based face detection suitable for most installation scenarios.
The VC9101 camera core can support one camera unit and is designed to work in perfect harmony with a choice of 4 different types of camera units, CU9171-H, CU9171-HF, CU9183-H and CU9183-HF. The whole system incorporates a number of advanced features found in VIVOTEK cameras, including WDR Pro, SNV, Smart Stream III technology, 3DNR, and security features like secure boot, signed firmware, and Trend Micro cybersecurity.
Features:
- Discreet, Recessed-Mount Camera Units
- Supports 1 Camera Unit
- 4 Camera Options: 4MP WDR Pinhole, 4MP WDR Pinhole Flat, 5MP WDR Fisheye, 5MP WDR Fisheye Flat
- Two-Way Audio on Video Core
- WDR Pro (120 dB) for Improved Visibility in High Contrast Scenes
- Face Check - Smart Motion Detection
- Video Rotation for Corridor View
- Trend Micro IoT Security
| Specifications - Video Core | |
| Model | VC9101 |
| System Information | |
| CPU | Multimedia SoC (System-on-Chip) |
| Flash | 8 GB |
| RAM | 2 GB |
On-board Storage Video | Seamless Recording to MicroSD/SDHC/SDXC card (1TB capacity supported) and recording to network-attached storage (NAS) |
| Compression | H.265, H.264, MJPEG |
| Video Source | 1 VIVOTEK camera unit |
| Maximum Streams | 3 video streams (Up to 8 configurable profiles) |
| Video Streaming | Adjustable resolution, quality and constant bit rate control, Smart Stream III |
| Image Settings | General settings: video title and time stamp overlay, video orientation (flip, mirror, rotation (CU9171-H(F) only )); Image settings: white balance, image adjustment (brightness, contrast, saturation, sharpness, gamma curve (CU9171-H(F) only )), defog, 3DNR, HLM, scene mode (auto, deblur); Exposure: BLC, HLC, exposure control (exposure level, exposure time, gain control) AE speed adjustment, WDR; Privacy mask; Pixel calculator |
Display Mode Audio | Client dewarping (CU9183-H(F) only) Ceiling mounted: 1O Fisheye, 1P Panoramic, 2P Two Panoramic, 1R One Region, 4R Four Regions, 1O3R One Fisheye Three Regions, 1O8R One Fisheye Eight Regions Wall mounted: 1O Fisheye, 1P Panoramic, 1R One Region, 4R Four Regions, 1P2R One Panoramic Two Regions, 1P3R One Panoramic Three Regions, 1O3R, One Fisheye Three Regions Local dewarping (CU9183-H(F) only ) Ceiling mounted: 1O Fisheye, 1P Panoramic, 2P Two Panoramic, 1R One Region, 4R Four Regions Wall mounted: 1O Fishey e, 1P Panoramic, 1R One Region, 4R Four Regions |
| Audio Capability | Two-Way Audio (full duplex) |
| Compression | G.711, G.726 |
Interface Network | External microphone input External line output |
| Users | Live viewing for up to 10 clients |
| Security | Access list, digest authentication, HTTPS , IEEE 802.1x, Password protection, secure boot, signed firmware, Trend Micro IoT Security (brute force attack event, cyberattack event, quarantine event), user access log, user account management, CSRF protection |
| Protocols | 802.1X, ARP, Bonjour, CIFS/SMB, CoS, DDNS, DHCP, DNS, FTP/SFTP, HTTP, HTTPS, ICMP, IGMPv3, IPv4, IPv6, NTCIP, NTP, PPPoE, QoS, RTSP/RTP/RTCP, SMTP, SNMP, SSL, TCP/IP, TLS, UDP, UPnP |
| Interface | 10 Base-T/100 Base-TX Ethernet (RJ-45) *It is highly recommended to use standard CAT5e & CAT6 cables which are compliant with the 3P/ETL standard. |
ONVIF Solution Integration | Profile G, S, T supported, specification available at www.onvif.org |
Smart Motion Detection Alarm and Event | Five-window video motion detection, face detection, time filter |
| Alarm Triggers | Audio detection, camera tampering detection, cybersecurity events (brute force attack event, cyberattack event, quarantine event), digital input, manual trigger, motion detection, periodical trigger, recording notification, SD card life expectancy, system boot |
| Alarm Events | Event notification via audio clip, camera link, digital output, email, HTTP, FTP/SFTP, NAS server, SD card, push notification File upload via email, HTTP, FTP/SFTP, NAS server, SD card |
General
Connectors LED Indicator Power Input Power Consumption Dimensions Weight Safety Certifications Operating Temperature Humidity System Requirements Operating System Web Browser Other Players Included Accessories Packing Contents Specifications - Camera Unit Model Image Sensor Maximum Resolution Focal Length Aperture Field of View Shutter Time WDR Technology Minimum Illumination Pan/Tilt/Zoom Functionalities S/N Ratio Dynamic Range Dimensions Weight Operating Temperature Humidity Specifications - Camera Unit Model Image Sensor Maximum Resolution | RJ-45 cable connector for 10/100Mbps Network/PoE connection Audio line input Audio line output DC 12V power input Digital input *1 Digital output *1 (DO+: 12V, 50mA; DO-: 30V, Open Drain, 1A) System power and status indicator DC 12V, IEEE 802.3af PoE Class 0 Simultaneous Power Redundancy Supported Max. 8.5 W 105 (W) x 84 (D) x 30 (H) mm 190 g EMC: CE (EN55032, EN55024 Class B), FCC (FCC Part 15 Subpart B Class B), RCM (AS/NZS CISPR32 Class B), VCCI (VCCI-CISPR 32 Class B); Safety : UL (UL62368-1), CB (IEC/EN 62368-1, IEC/EN 60950-22, IEC/EN 62471); Environment: IA: BSMI (EMC: CNS 13438, Safety : CNS 14336-1) Starting Temperature: 0°C ~ 50°C (32°F ~ 122°F) Working Temperature: -10°C ~ 50°C (14°F ~ 122°F) 90% RH (non-condensing) Microsoft Windows 10/8/7 Mac 10.12 (Chrome only ) Chrome 58.0 or above Internet Explorer 10/11 VLC: 1.1.11 or above Quick installation guide, installation kit CU9171-H(F): Pinhole 1/2.7" Progressive CMOS 30 fps @ 2688x1520 f = 3.7 mm F2.5 93° (Horizontal) 48° (Vertical) 117° (Diagonal) 1/5 sec. to 1/32,000 sec. WDR Pro 0.045 lux @ F2.5 (Color) ePTZ: 48x digital zoom (4x on IE plug-in, 12x built-in) 55.9 dB 120 dB CU9171-H: Ø 24 x 30 mm (Without cable) CU9171-HF: 33 x 32 x 20 mm (Without cable) CU9171-H: 19g CU9171-HF: 43g Starting Temperature: 0°C ~ 50°C (32°F ~ 122°F) Working Temperature: -10°C ~ 50°C (14°F ~ 122°F) 90% RH (non-condensing) CU9183-H(F): Fisheye Camera 1/2.7" Progressive CMOS 30 fps @ 1920x1920 |
| Focal Length | f = 1.22 mm |
| Aperture | F2.0 |
| Field of View | 180° (Horizontal) 180° (Vertical) 180° (Diagonal) |
| Shutter Time | 1/5 sec. to 1/32,000 sec. |
| WDR Technology | WDR Pro |
| Minimum Illumination | 0.035 lux @ F2.0 (Color) |
| Pan/Tilt/Zoom Functionalities | ePTZ: 48x digital zoom (4x on IE plug-in, 12x built in) |
| S/N Ratio | 56.3 dB |
| Dynamic Range | 120 dB |
| Dimensions | CU9183-H: Ø 24 x 37 mm (Without cable) CU9183-HF: 33 x 32 x 28 mm (Without cable) |
| Weight | CU9183-H: 28g CU9183-HF: 52g |
| Operating Temperature | Starting Temperature: 0°C ~ 50°C (32°F ~ 122°F) Working Temperature: -10°C ~ 50°C (14°F ~ 122°F) |
Humidity DORI (EN 62676-4 Standard) | 90% RH (non-condensing) |
| Detect (25PPM/ 8PPF) | CU9171-H(F): 77 m (252.6 ft) CU9183-H(F): 24.3 m (79.7 ft) |
| Observe (63PPM/ 19PPF) | CU9171-H(F): 30.5 m (100.1 ft) CU9183-H(F): 9.6 m (31.5 ft) |
| Recognize (125PPM/ 38PPF) | CU9171-H(F): 15.4 m (50.5 ft) CU9183-H(F): 4.8 m (15.7 ft) |
| Identify (250PPM/ 76PPF) | CU9171-H(F): 7.7 m (25.3 ft) |
