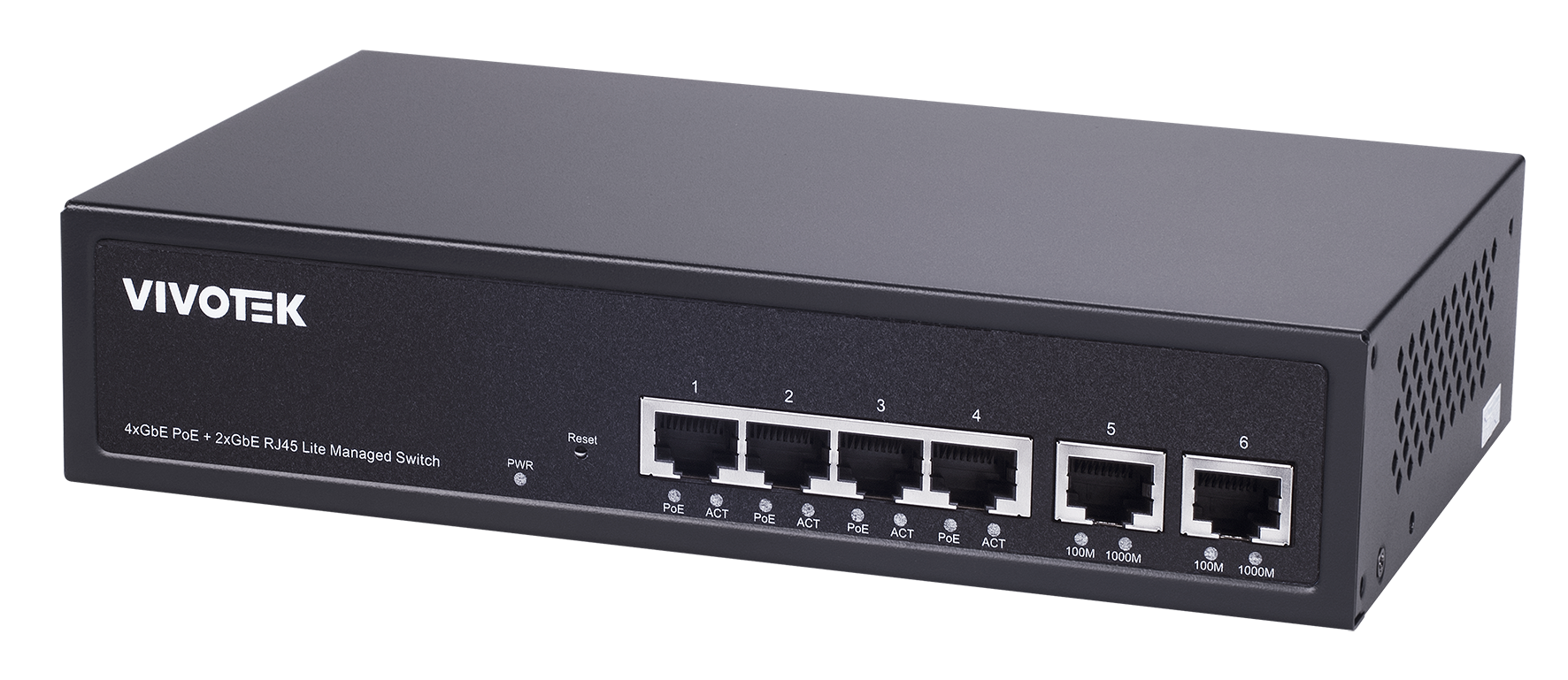

Vivotek - AW-GEL-065A-060 - Unmngd 24-Port 802.3at POE 10/100Mbps Sw 2-Port Uplink
Part number:
AW-GEL-065A-060
Price:
4xGE PoE + 2xGE UTP Lite Managed Switch, 60W. 6 Ports Lite Managed PoE Switch.
Features:
- Gigabit Ethernet
- Extend PoE 250M
Technical Specification | |
| Product Information | |
| Segment | Lite Managed PoE Switch |
| Product Description | 4xGbE PoE + 2xGbE RJ45 Lite Managed Switch |
| Port Configuration | |
| PoE Port Ethernet | 4xGbE PoE |
| Uplink Port Ethernet | 2xGbE RJ45 |
| Total Ports | 6 |
| PoE Function | |
| PoE Port | 4 |
| Max. PoE Output Power | 30W |
| PoE Power Budget | 60W |
| PoE Standard | 802.3 af/at |
| PoE Pin Assignment | 1/2 (+), 3/6 (-) |
| Surge Protection | 4KV |
| HW Performance | |
| Switching Bandwidth | 12 Gbps |
| Buffer Memory | 1Mb |
| Forwarding Rate | 8.928 Mpps |
| MAC Address | 4k |
| Jumbo Frames | 9216 Bytes |
| Max. Power Consumption | 65W |
| L2 Managed Features | |
| Spanning Tree | |
| IEEE802.1D (STP) | Yes |
| IEEE802.1w (RSTP) | Yes |
| Trunking | Yes |
| IEEE802.1d (LACP) | Yes |
| Static Aggregation | Yes |
| VLAN | |
| 802.1Q Tag-based VLAN | 4096 VLAN IDs |
| Port-based VLAN | Yes |
| Management | |
| Port Mirroring | Yes |
| Firmware Upgrade | Yes |
| PoE Management | |
| PoE On/Off Control | Yes |
| PoE Alive Checking for PD | Yes |
| Non-Stop PoE | Yes |
| Extended PoE Mode (up to 250m/10mbps) | Yes |
| Environmental Specifications | |
| Operating Temperature | -10°C ~ 50°C (14°F ~ 122°F) |
| Storage Temperature | -20°C ~ 70°C (-4°F ~ 158°F) |
| Operating Humidity | 10 ~ 90% RH |
| Mechanical Specifications | |
| Dimensions | 200 (W) x 118 (D) x 44 (H) mm |
| Weight | 0.66 kg |
| Power Source | |
| Power Input | 100V ~ 240V |
| Frequency | 50 ~ 60 Hz |
| Certifications | |
| Types | CE, FCC, UKCA, LVD, VCCI, BSMI |
| Included Accessories | |
| Content | Power Cord, QIG |
