Simply 45 - S45-810 - 5-1/2″ ProSeries Electrician’s Scissor

Part number:
S45-810
Price:

Product Overview

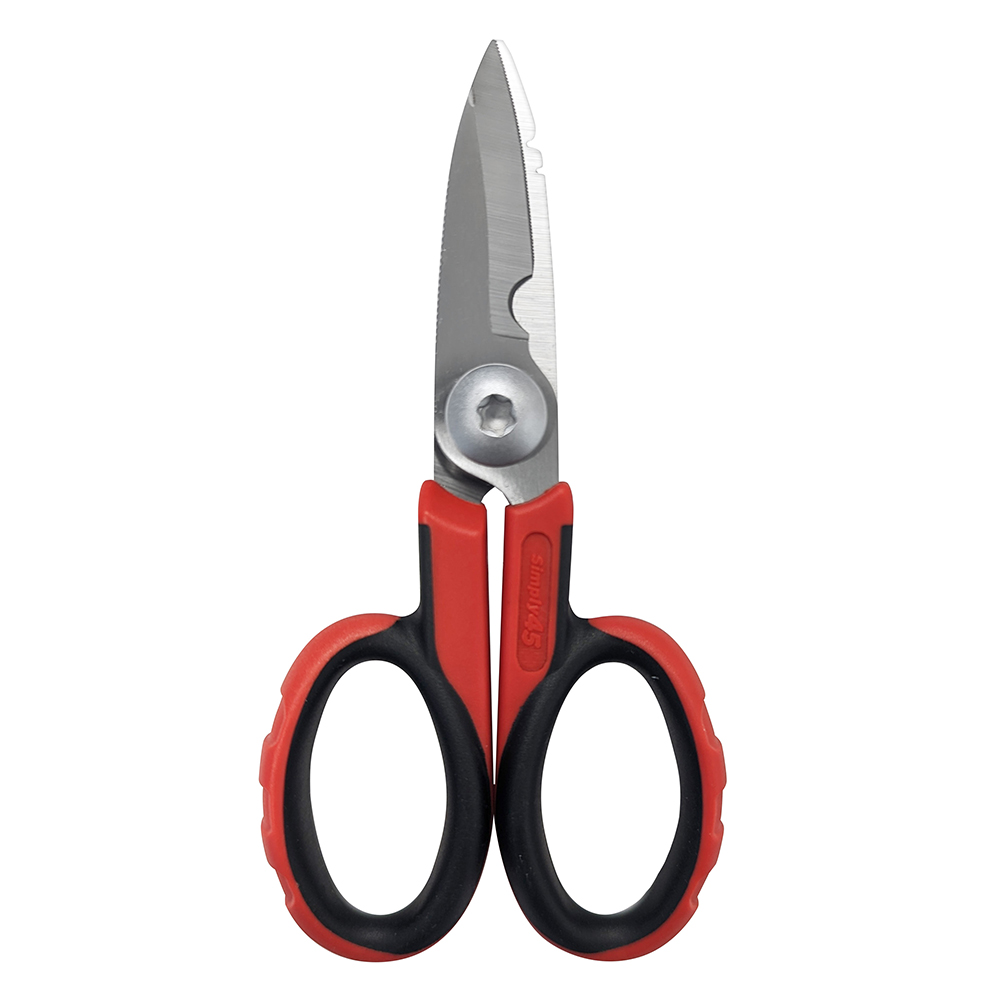

The Simply45 S45-810 is a 5.5" ProSeries electrician’s scissor crafted from high-carbon stainless steel with serrated blades for non-slip cutting. It features an ergonomic ambidextrous handle, a cable-cutting notch, and stripping notches for 18-24 AWG wire. Each blade includes a built-in scraper, file, and cable comb to straighten conductors and prep materials like copper wire, tape, and cable ties.


Key Configuration

  • • Blade material: high carbon stainless steel; tool color: stainless steel with red & black molded handles
  • • Features: serrated teeth for non-slip cutting action; notched to strip 18-24 AWG wire
  • • Ergonomic handles designed for both left and right-handed use
  • • Scraper/file/cable comb on both blades to assist straightening conductors

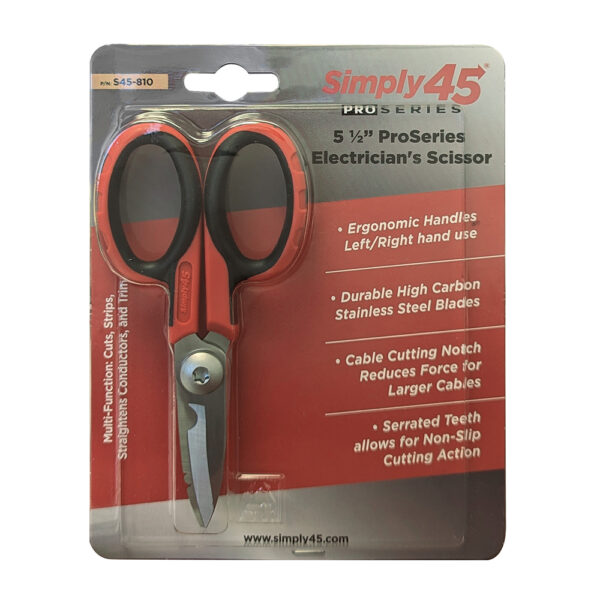

  • • Packaging: blister card; quantity: 1 piece


Key Features

This multi-function tool cuts, strips, files, and trims, utilizing a specialized notch to reduce the force required for larger cables. Equipped with stripping notches for 18-24 AWG wire, the blades also include a built-in scraper and cable comb. Built for long-lasting sharpness, the tool is TAA and P65 compliant.


Technical Context

These shears are compatible with Cat5e through Cat7a (STP/UTP) and 10G cables. They support various jacket types, including CMP Plenum, CMR, LSZH, and Direct Burial. They are optimized for cutting copper wire and cable materials but should not be used on steel core or coax.





Part NumberS45-810
Cable CompatibilityCat5e, Cat6, Cat6a, Cat7, Cat7a, 10G (STP or UTP)
Cable TypeCMP Plenum, CMR, CM, PVC, LSZH, PE, PUR, and Direct Burial.
MaterialHigh carbon stainless steel blades
Tool ColorStainless Steel with Red & Black Molded Handles
FeaturesSerrated teeth for non-slip cutting action
FeaturesNotched to strip 18-24 AWG wire
FeaturesErgonomic handles designed for both left and right handed use
FeaturesScraper/file/Cable comb on both blades to assist straighten conductors
CompliantTAA, P65
Packaging TypeBlister Card
Package Quantity1 piece
