TRENDNET - TEW-941APBO - 5 dBi WiFi 6 AX1800 Outdoor PoE+ Omni-Directional Access Point
Part number:
TEW-941APBO
Price:

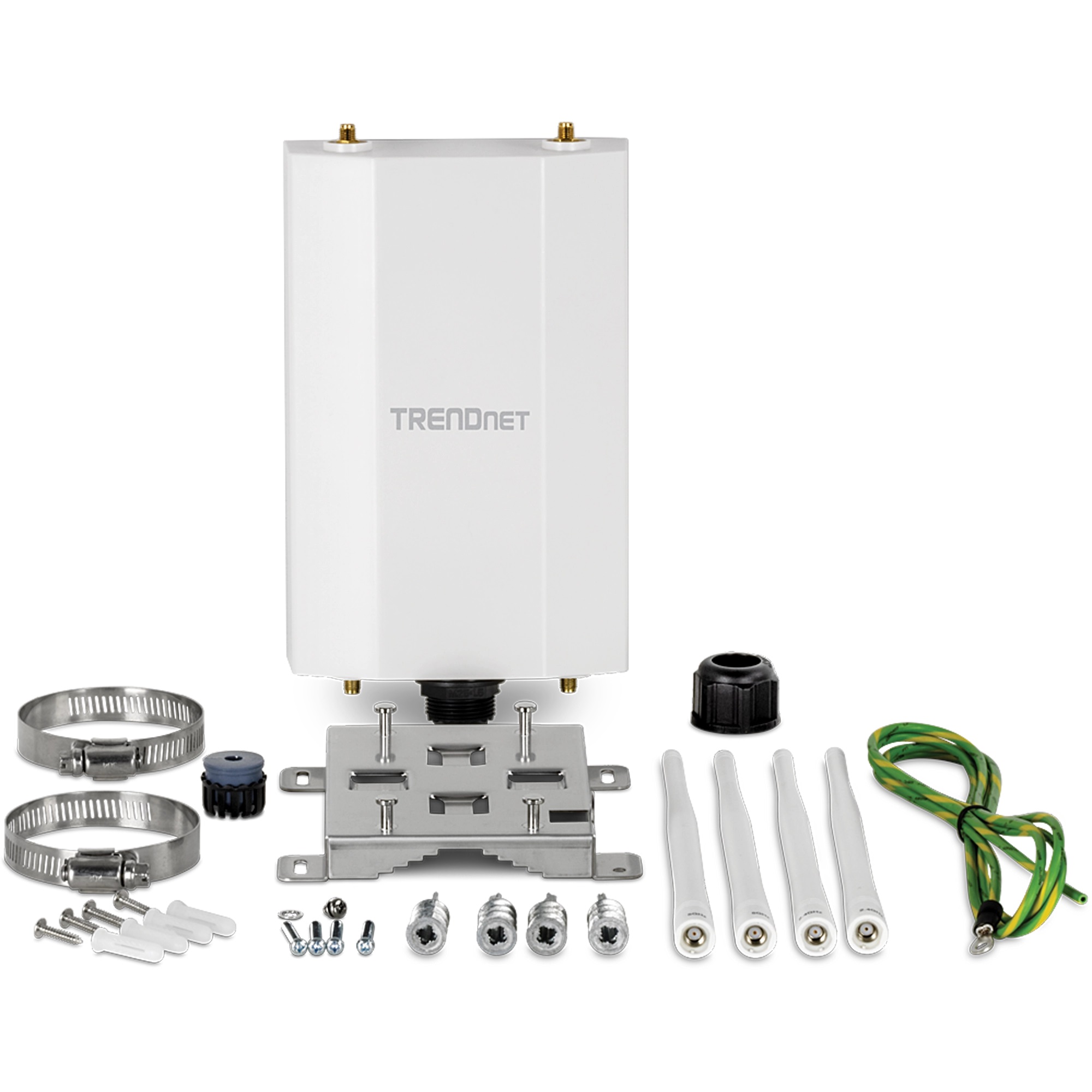

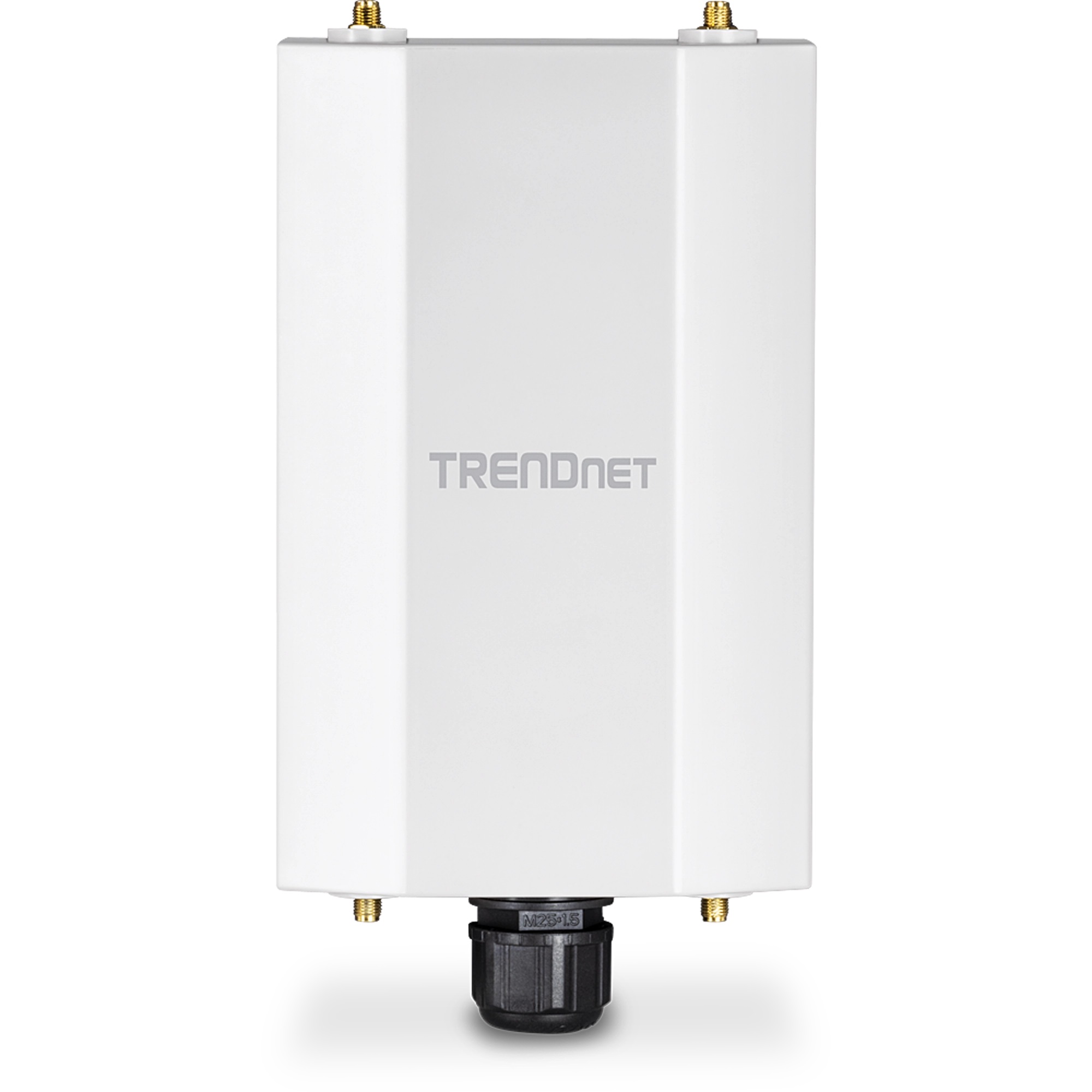

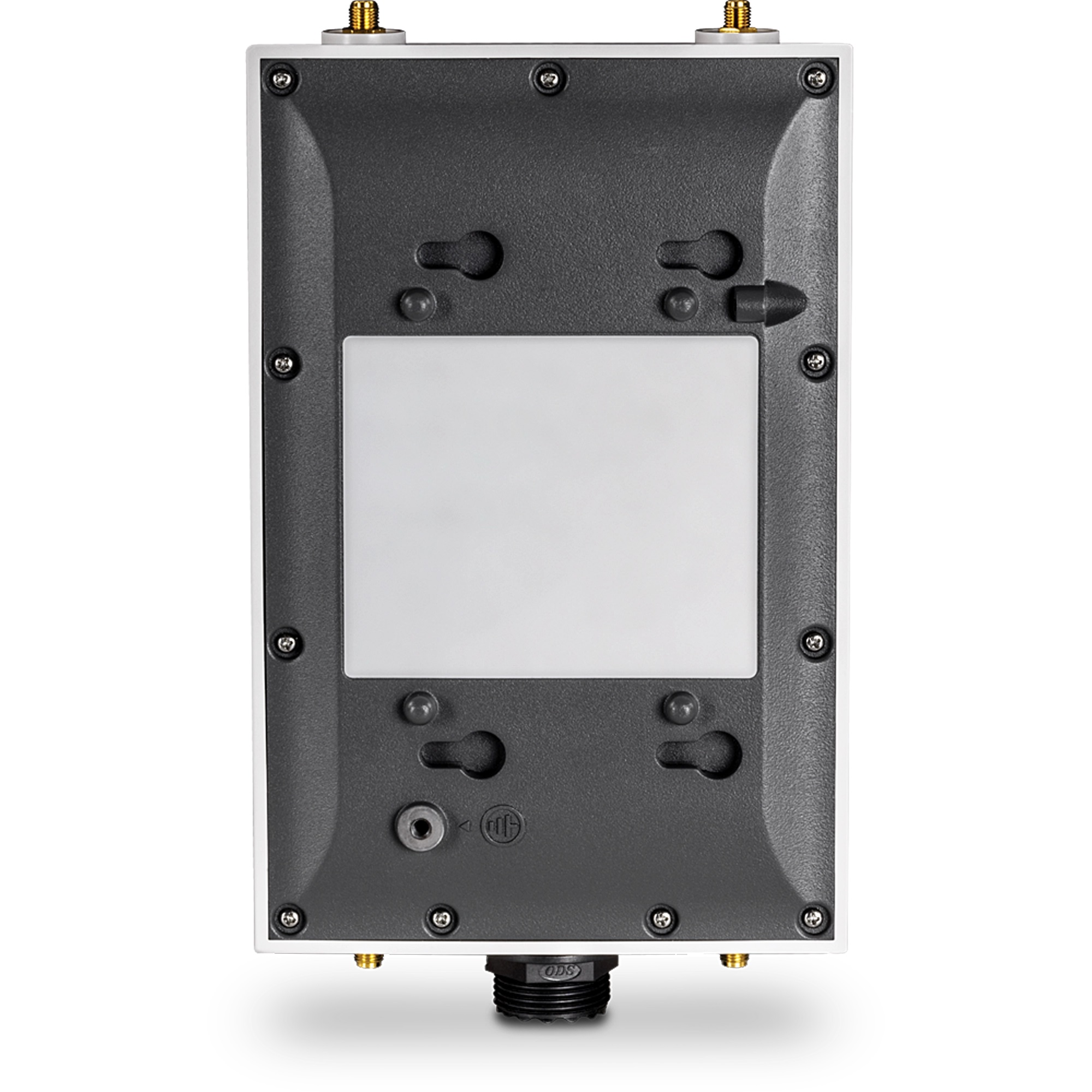

TRENDnet’s 5 dBi WiFi 6 AX1800 Outdoor PoE+ Omni-Directional Access Point, model TEW-941APBO, is designed for point-to-point and point-to-multi-point WiFi bridging applications. This WiFi 6 outdoor access point can be powered with an IEEE 802.3at PoE+ switch or injector. The WiFi 6 outdoor omnidirectional AP supports point-to-point and point-to-multi-point scenarios with Access Point, Client Bridge, and Repeater modes. The IP67 rated housing on this WiFi 6 outdoor access point is designed for outdoor environments, and conveniently includes wall and pole mounting hardware.



Easily manage and configure TRENDnet’s 5 dBi WiFi 6 AX1800 Outdoor PoE+ Omni-Directional Access Point remotely with TRENDnet Hive. TRENDnet Hive is a remote network cloud manager that reduces management time and cost. No additional hardware, server, or personal cloud is required with this WiFi 6 access point and TRENDnet’s reliable cloud service.



Features:

  • Dual band WiFi 6 AX1800 point-to-point and point-to-multi-point bridge

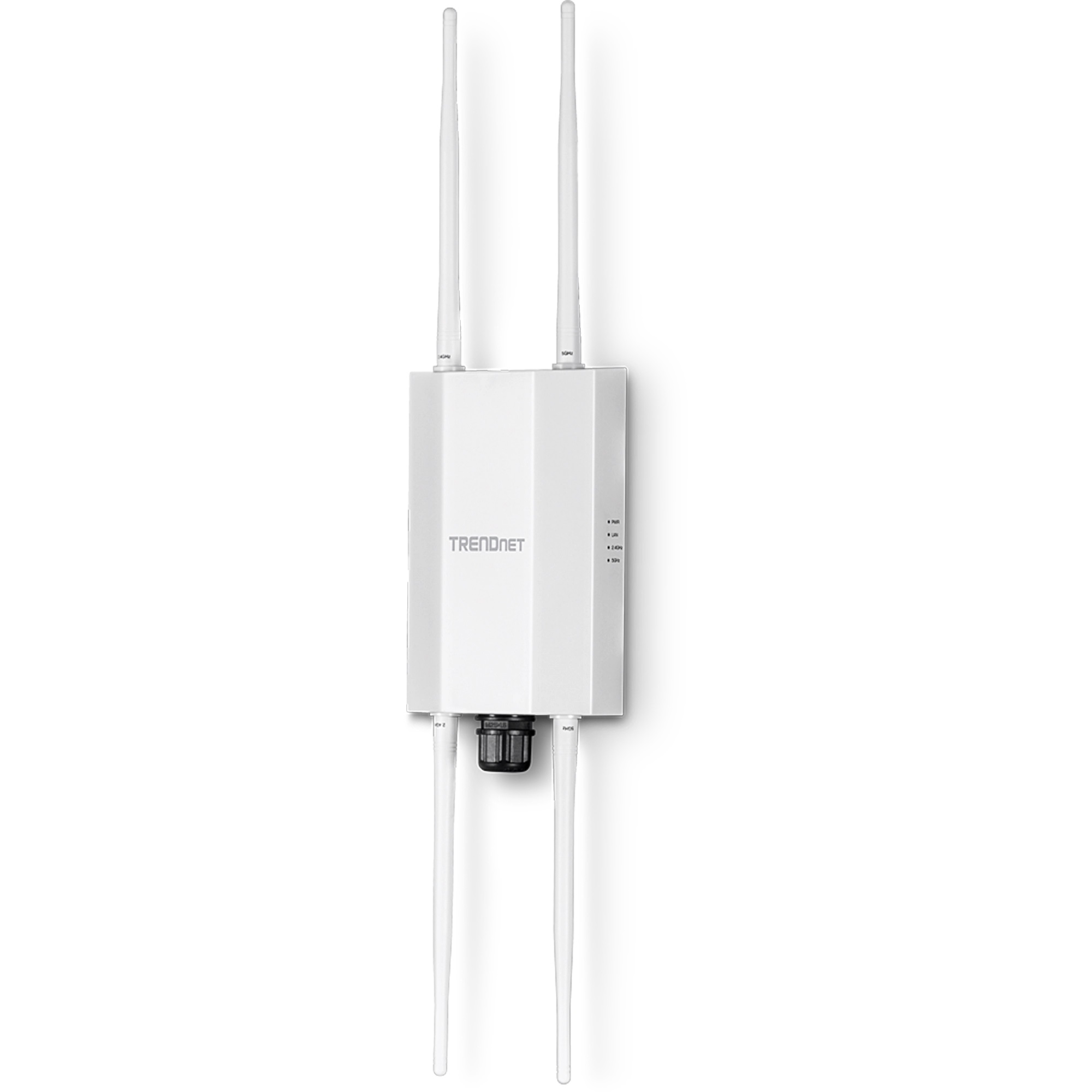

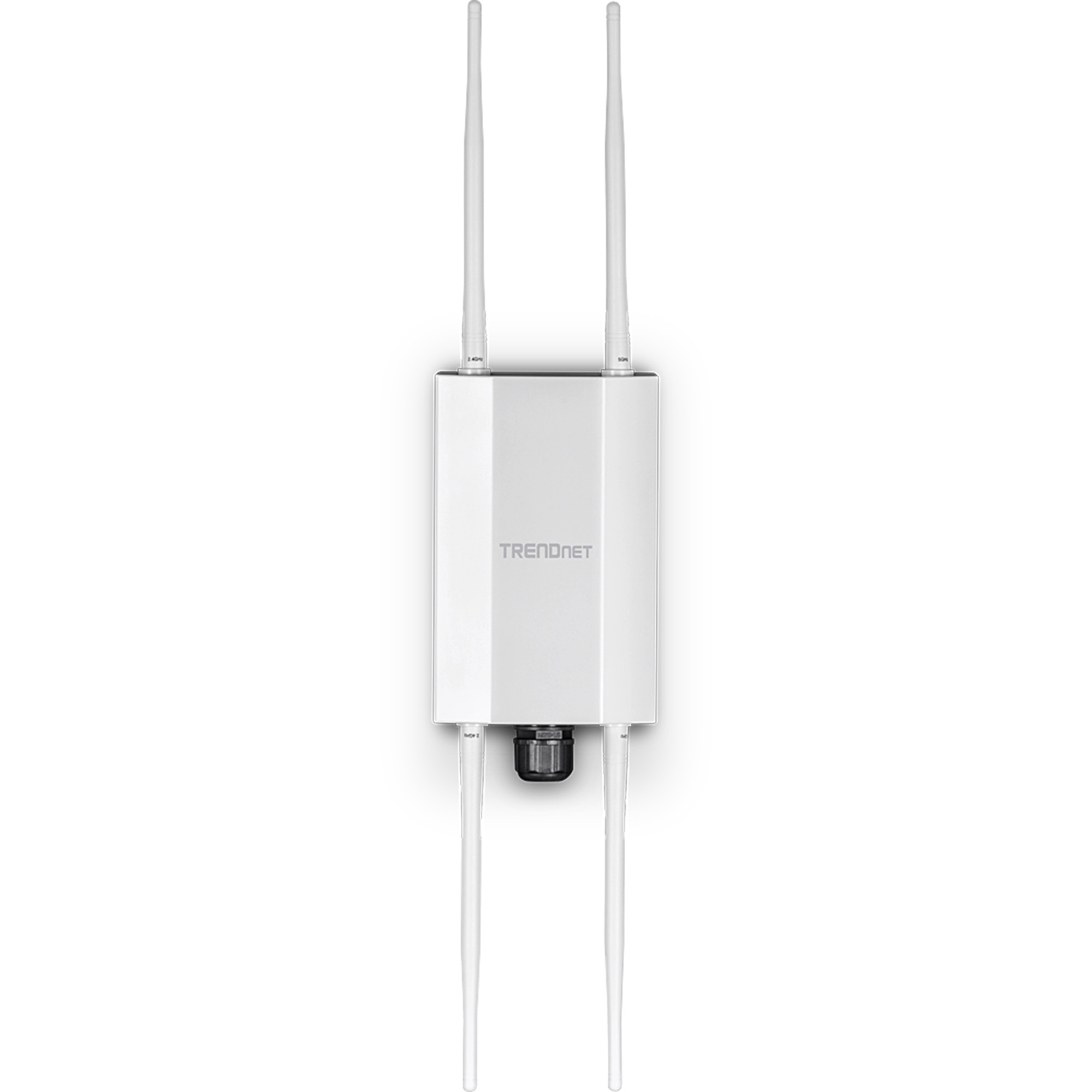

  • 2 x 5 dBi 2.4GHz omni-directional antennas
  • 2 x 5 dBi 5GHz omni-directional antennas
  • 1 x 2.5G PoE+ LAN port
  • Supports Access Point, Client Bridge, and Repeater modes
  • IP67 outdoor weather rated housing
  • Supports IEEE 802.3at PoE+
  • Remote cloud management available with TRENDnet Hive (Additional fee applies)
  • NDAA / TAA compliant (U.S. and Canada only)
Standards
  • IEEE 802.3
  • IEEE 802.3u
  • IEEE 802.3x
  • IEEE 802.3ab
  • IEEE 802.3at
  • IEEE 802.3bz
  • IEEE 802.1Q
  • IEEE 802.11a
  • IEEE 802.11b
  • IEEE 802.11g
  • IEEE 802.11n (5GHz: up to 300Mbps, 2.4GHz: up to 300Mbps)*
  • IEEE 802.11r*
  • IEEE 802.11v
  • IEEE 802.11ac (5GHz: up to 867Mbps)*
  • IEEE 802.11ax (5GHz: up to 1201Mbps, 2.4GHz: up to 573Mbps)*
Hardware Interface

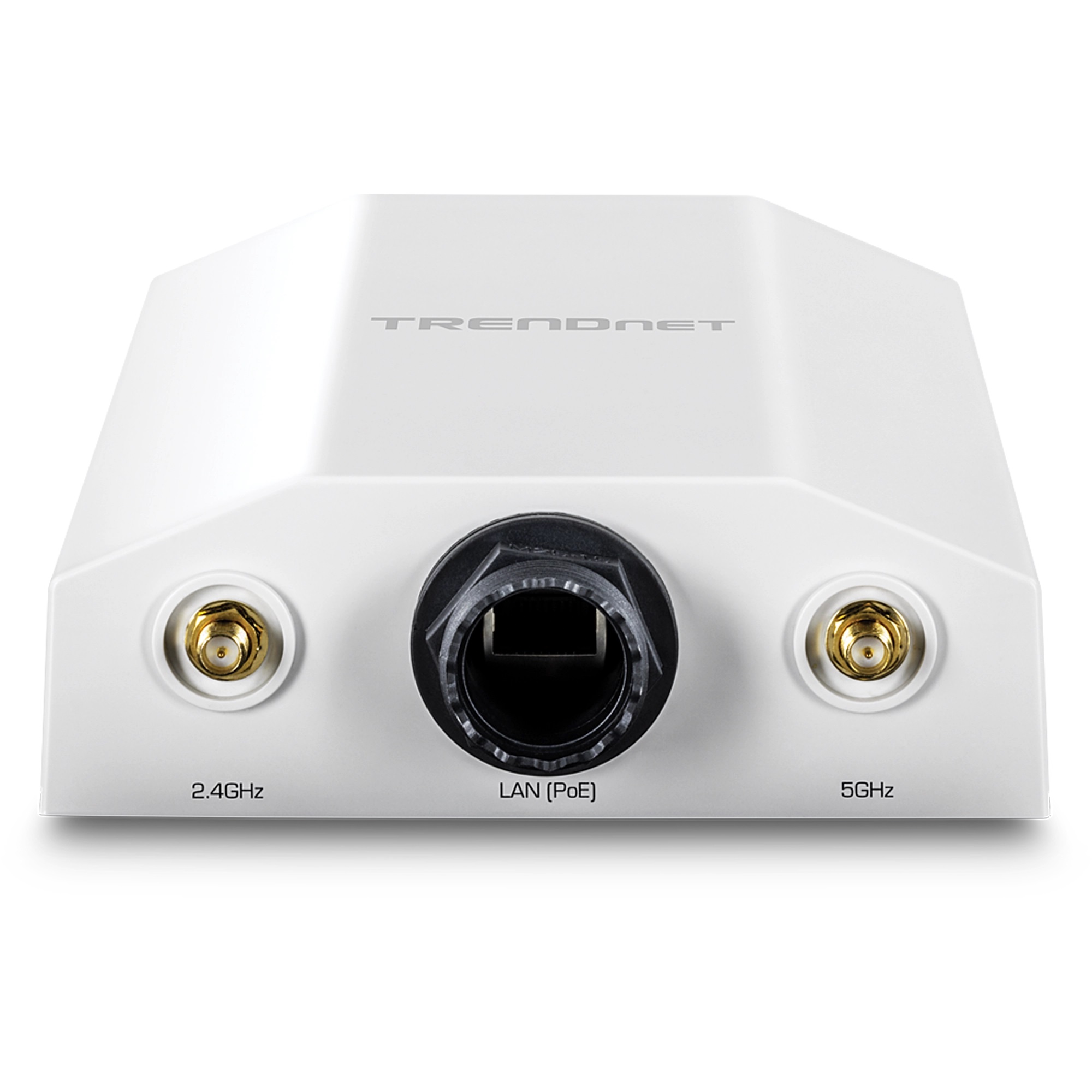

  • 1 x PoE+ 2.5G LAN port (power input)
  • 4 x RP-SMA (female) antenna connectors

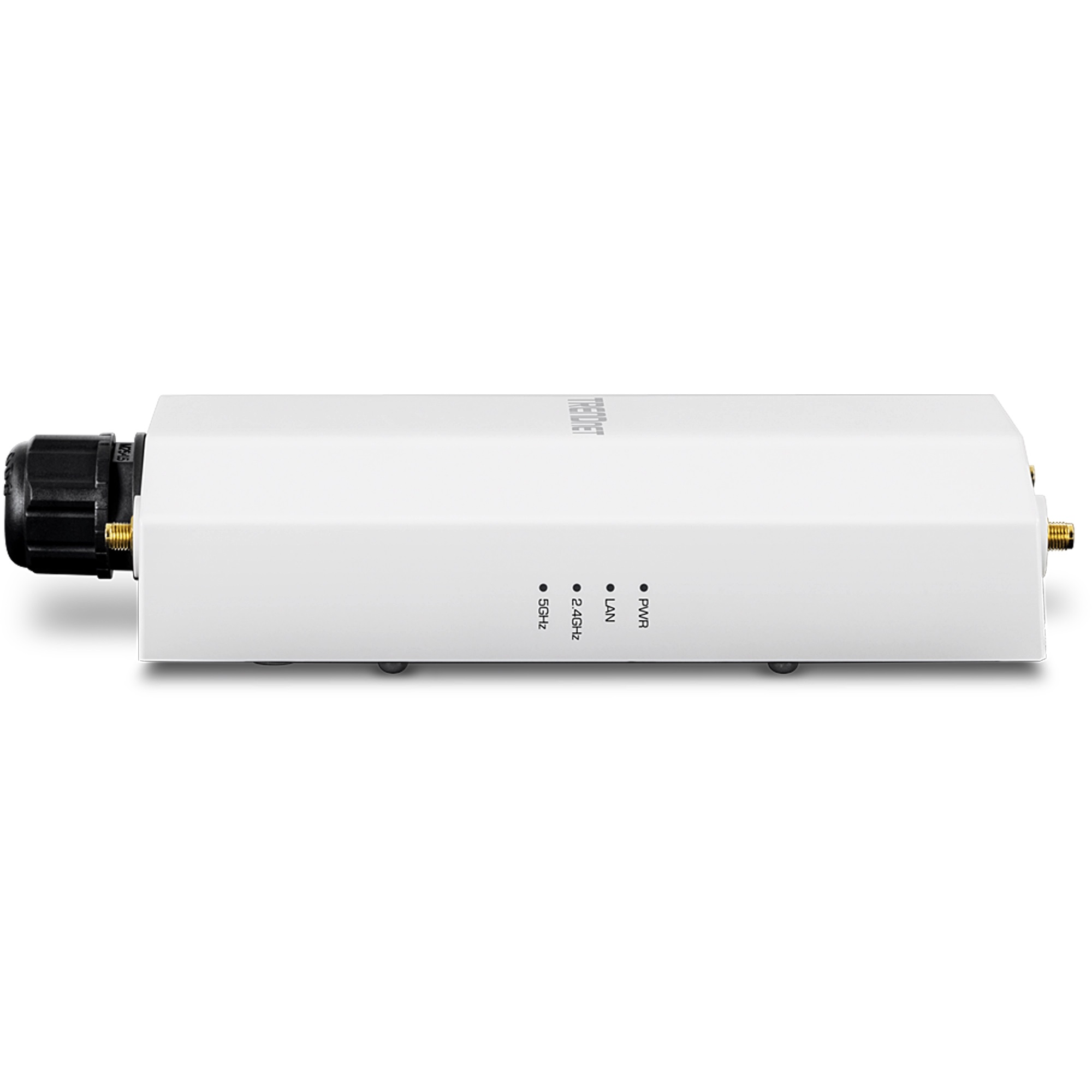

  • LED indicators
Features
  • 802.11ax WiFi 6 support
  • IP67 rated housing
  • MU-MIMO
  • Airtime fairness
  • Band steering
  • 802.1Q VLAN assignment per SSID
  • IPv6 support
  • LEDs on/off
  • 802.11k intelligent radio resource management
  • RSSI Threshold (client signal strength and connectivity control)
  • LLDP
  • Bonjour/UPnP
Operation Modes
  • Access Point
  • Client Bridge
  • Repeater
Management/Monitoring
  • Web based management (HTTP/HTTPS)
  • Command Line Interface (SSH)
  • SNMP v2c/v3
  • Spanning Tree Protocol (STP)
  • Event logging
  • Ping test
  • Traceroute
  • Performance throughput test
  • Schedule WiFi radio enable/disable
  • Ping watchdog/gateway connection monitor
  • Reboot & scheduled automatic reboot
  • Channel utilization scan/AP detection
Hive Cloud Management
  • Configure, monitor, and manage through the TRENDnet Hive Cloud Management Portal remotely via PC or Mac web browser, or through the mobile app
  • Multi-device management
  • Provisioning through scheduled batch firmware or configuration updates for multiple switches
  • Event/hardware network monitoring (CPU/memory utilization)
  • Configure features such as IP address settings, WiFi settings, operation modes, and LED control through cloud management
Access Control
  • Wireless encryption: OWE (Opportunistic Wireless Encryption), WPA/WPA2/WPA3-RADIUS (Enterprise), WPA-PSK/WPA2-PSK/WPA3-SAE (Personal)
  • MAC filter (max. entries: 32)
  • Maximum client limit
  • Client isolation/separate stations
QoS
  • WMM
  • Bandwidth control per SSID
SSID
  • Up to 8 SSIDs per wireless band (16 total)
Frequency
  • 2.4GHz: 2.412 – 2.472GHz
  • 5GHz: 5.180 – 5.825GHz
Wireless Channels
  • 2.4GHz: 1–11
  • 5GHz: 36, 40, 44, 48, 149, 153, 157, 161 and 165
Modulation
  • DBPSK/DQPSK/CCK for DSSS technique
  • BPSK/QPSK/16-QAM/64-QAM/256-QAM/1024-QAM for OFDM/OFDMA
Antenna Gain
  • 2.4GHz: 2 x 5 dBi external
  • 5GHz: 2 x 5 dBi external
Antenna Pattern
Wireless Output Power
  • 802.11a: 21 dBm (max.)
  • 802.11b: 19 dBm (max.)
  • 802.11g: 19 dBm (max.)
  • 802.11n (2.4GHz): 19 dBm (max.)
  • 802.11n (5GHz): 21 dBm (max.)
  • 802.11ac: 21 dBm (max.)
  • 802.11ax (2.4GHz): 19 dBm (max.)
  • 802.11ax (5GHz): 21 dBm (max.)
Receiving Sensitivity
  • 802.11a: -73 dBm (typical) @ 54 Mbps
  • 802.11b: -88 dBm (typical) @ 11 Mbps
  • 802.11g: -74 dBm (typical) @ 54 Mbps
  • 802.11n (2.4GHz): -74 dBm (typical) @ 300 Mbps
  • 802.11n (5GHz): -72 dBm (typical) @ 300 Mbps
  • 802.11ac: -58 dBm (typical) @ 867 Mbps
  • 802.11ax (2.4GHz): -59 dBm (typical) @ 573 Mbps
  • 802.11ax (5GHz): -53 dBm (typical) @ 1201 Mbps
Power
  • IEEE 802.3at Type 2 PoE+ PD Class 4
  • Max. consumption: 25W
Operating Temperature
  • -22° – 60° C (-7.6° – 140° F)
Operating Humidity
  • Max. 90% non-condensing
Certifications
  • FCC
Dimensions
  • 122 x 205 x 45mm (4.8 x 8.07 x 1.77 in.)
Weight
  • 706g (24.9 oz.)
Warranty:
  • 3 year
