5-Port Ethernet Switch

Cost-effective Gigabit Fiber Switch for Residential and FTTx CPE Applications

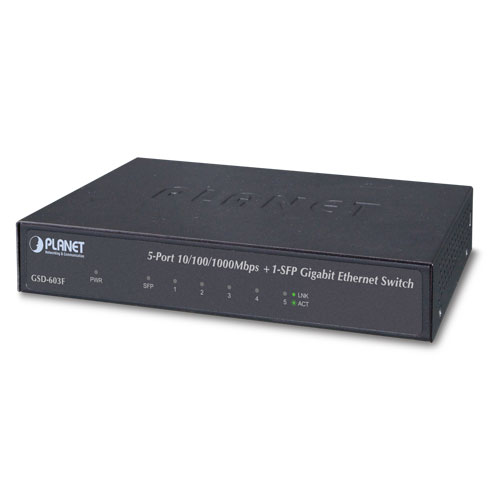

PLANET’s GSD-603F Gigabit Ethernet Switch features 5 Gigabit Ethernet ports, 1 SFP port and provides fiber uplink capability and non-blocking wire-speed performance for various applications that need long-distance data transmission. This metal switch can be easily deployed on the desktop or in the cabinet to make the network placement as convenient as possible.

The GSD-603F acts as a high-performance edge device for FTTx solutions. With one mini-GBIC 1000BASE-SX/LX SFP (Small-Form Factor Pluggable) interface, the deployed distance of the GSD-603F can be extended from 550 meters (via multi-mode fiber) to 10/20/30/40/50/70/120 kilometers (via single-mode fiber). Thus, building a network solution of FTTH (Fiber to the Home), FTTC (Fiber to the Curb) for ISPs or FTTB (Fiber to the Building) for enterprises becomes easy to users. The GSD-603F can handle extremely large amounts of data in a secure topology linking to a metro switch, backbone or high-capacity server.

Energy Saving

The GSD-603F features the technologies that can save energy up to 40% when compared with a normal switch without compromising its performance. The GSD-603F incorporates two advanced Green Networking technologies:

• Low Power Idle Mode for power saving
• Intelligent Scales Power based on cable length

With the Low Power Idle Mode feature, the GSD-603F implements the link-down power saving that complies with IEEE 802.3az Energy Efficient Ethernet (EEE) standard to automatically lower power for a given port when it is not linked. The GSD-603F will automatically adjust power usage of the ports that are shut down or not connected to the network device. The other green technology, Intelligent Scales Power, is an intelligent algorithm that actively determines the appropriate power level based on cable length. When connecting to the GSD-603F with Ethernet cable shorter than 20m, a device can obtain maximum power saving because the GSD-603F would automatically detect the Ethernet cable length and reduce power usage. The connected device can substantially reduce the overall power consumption, which makes a significant contribution to energy saving.

Leading Home, SOHO and Workgroup Users into High-speed Networking Generation

With the increasing popularity of desktops and laptops with built-in Gigabit Network Interfaces, wide applications of shared database device and multimedia centers, super high-speed ethernet switches are expected to become the mainstream in the market. PLANET’s GSD-603F Gigabit Ethernet Fiber Switch is designed in a compact metal housing to offer easy deployment of Gigabit networking for homes, SOHOs or enterprises.

High Performance

Providing 12Gbps internal switching fabric and 9k jumbo frame ability, the GSD-603F can handle extremely large amounts of data in a secure topology linking to a backbone or high-capacity server. The GSD-603F provides 2K MAC address table and 1.5Mbits buffer memory. It offers wire-speed packet transfer performance without risk of packet loss. The high data throughput of the device makes it ideal for most Gigabit environments.

Plug & Play

All RJ45 copper interfaces in the GSD-603F support 10/100/1000Mbps auto-negotiation for optimal speed detection through RJ45 Category 6, 5 or 5e cabling. It supports standard auto-MDI/MDI-X that can detect the type of connection to any Ethernet device without requiring special straight-through or crossover cables.

Features:

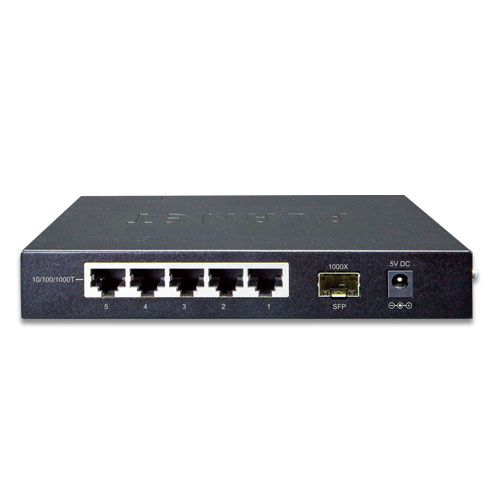

• Ports: 5 10/100/1000TX + 1 1000X SFP
• Type of Switch: Unmanaged
• Switch Fabric: 12Gbps
• Power Consumption: 4.1W/13.99BTU 5DC (Full Loading)
• Throughput: 8.9Mpps
• Operating Temperature: 0 to 50°C
• TAA Compliant
