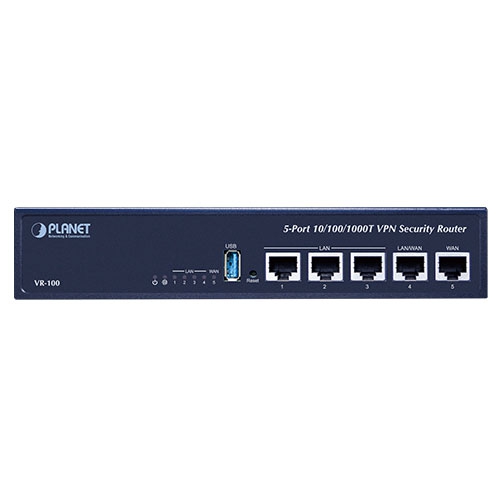

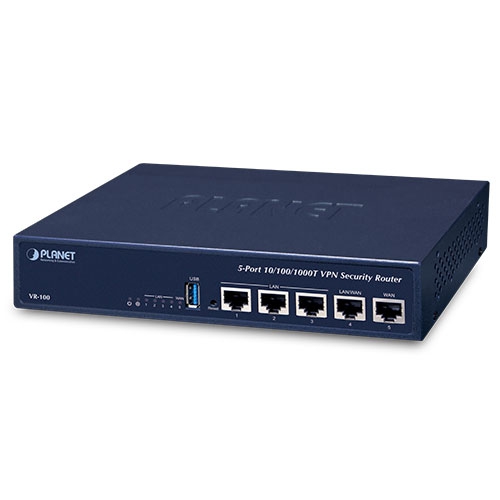

Planet - VR-100 - 5-Port 10/100/1000T VPN Security Router (Dual-WAN Failover and Load Balancing)
Part number:
VR-100
Price:
5-Port 10/100/1000T VPN Security Router (Dual-WAN Failover and Load Balancing, Cyber Security, SPI Firewall, IPv4/IPv6 Filtering, Content Filtering, DoS Attack Prevention, Port Range Forwarding, SSL VPN and robust hybrid VPN (IPSec/GRE/PPTP/L2TP), IPv6, SNMP, PLANET Easy-DDNS, supports CloudViewer app and MQTT, Captive Portal, RADIUS, SD-WAN)
Features:
- Powerful Network Security Solution
- Authentication with Simplified Management
- Excellent Ability in Threat Defense
- Ideal VPN Security Router Solution for SMBs
- Cybersecurity Network Solution to Minimize Security Risks
- Improving Network Efficiency
- Ideal VPN Security Router
Hardware
- 5 10/100/1000BASE-T RJ45 ports
- 1 undefined Ethernet port (LAN/WAN)
- Dual-WAN function
- 1 USB 3.0 port for system configuration backup and restore
- Reset button
- Desktop installation or rack mounting (optional)
- Fanless design
IP Routing Feature
- Static route
- Dynamic route
- OSPF
Firewall Security
- Cybersecurity
- Stateful packet inspection (SPI) firewall
- Blocks DoS/DDoS attack
- Content filtering
- MAC filtering and IP filtering
- NAT ALGs (Application Layer Gateway)
- Blocks SYN/ICMP flooding
VPN Features
- IPSec/Remote server (Net-to-Net, Host-to-Net), GRE, PPTP server, L2TP server, SSL server/client (Open VPN)
- Max. Connection Tunnel Entries: 60 VPN tunnels,
- Encryption methods: DES, 3DES, AES, AES-128/192/256
- Authentication methods: MD5, SHA-1, SHA-256, SHA-384, SHA-512
Networking
- Outbound load balancing
- Failover for dual-WAN
- Captive portal
- RADIUS server/client
- Static IP/PPPoE/DHCP client for WAN
- DHCP server/NTP client for LAN
- Protocols: TCP/IP, UDP, ARP, IPv4, IPv6
- Port forwarding, QoS, DMZ, IGMP, UPnP, SNMPv1,v2c, v3
- VLAN
- Multi-Subnet
- MAC address clone
- DDNS: PLANET DDNS, Easy DDNS, DynDNS and No-IP
Others
- Setup wizard
- Dashboard for real-time system overview
- Supported access by HTTP or HTTPS
- Auto reboot
- PLANET Smart Discovery utility/UNI-NMS supported
| Hardware | |
|---|---|
| Ethernet | 5 10/100/1000BASE-T RJ45 Ethernet ports including 3 LAN ports 1 WAN port 1 LAN/WAN port |
| USB Port | 1 USB 3.0 port for system configuration backup and restore |
| Reset Button | Reset to factory default |
| Thermal Fan | Fanless |
| LED Indicators | PWR (Green) Internet (Green) LAN/WAN (Green) |
| Installation | Desktop installation or rack mounting (optional) |
| Power Requirements | 100-240V AC, 1A max. |
| Power Consumption | 13W max. |
| Weight | 0.85kg |
| Dimensions (W x D x H) | 215.2 x 135 x 42.6 mm |
| Software | |
| Management | Web browser |
| Operation Mode | Routing mode |
| Routing Protocol | Static route: 32 Dynamic route: 4096 |
| NAT Throughput | Max. 900Mbps |
| Firewall Security | Stateful packet inspection (SPI) Blocks DoS/DDoS attack |
| Outbound Load Balancing | Supported algorithms: Weight |
| Protocol | IPv4, IPv6, TCP/IP, UDP, ARP, HTTP, HTTPS, NTP, DNS, PLANET DDNS, PLANET Easy DDNS, DHCP, SNMP, |
| Content Filtering | MAC filtering IP filtering Web filtering |
| Log | System Operation Log |
| Others | Outbound load balancing Failover for dual-WAN Port forwarding DMZ Cybersecurity Dashboard Setup wizard Auto reboot PLANET Smart Discovery utility/UNI-NMS supported |
| VPN | |
| VPN Function | IPSec/GRE/PPTP/L2TP/SSL VPN server |
| VPN Throughput | Max. 60Mbps |
| Encryption Methods | DES, 3DES, AES or AES-128/192/256 encrypting |
| VPN Tunnels | Max. 60 |
| Authentication Methods | MD5/SHA-1/SHA-256/SHA-384/SHA-512 authentication algorithm |
| Standards Conformance | |
| Regulatory Compliance | CE, FCC |
| Environment Specifications | |
| Operating | Temperature: 0 ~ 50 degrees C Relative Humidity: 5 ~ 95% (non-condensing) |
| Storage | Temperature: -10 ~ 60 degrees C Relative Humidity: 5 ~ 95% (non-condensing) |
| Standard Accessories | |
| Packet Contents | VR-100 x 1 Quick Installation Guide x 1 Power Cord x 1 Feet Pads x 4 |
