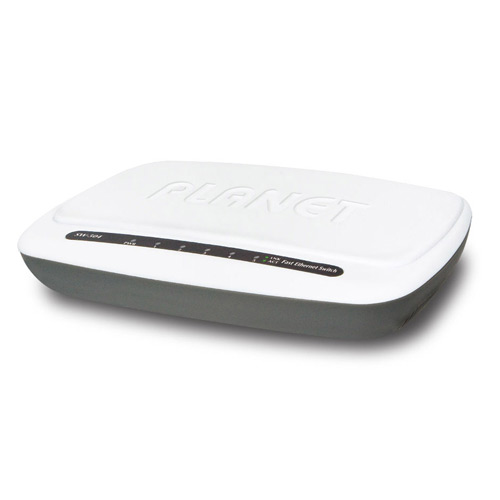

Planet - SW-504 - 5-Port 10/100Base-TX Ethernet Switch, Plastic
With concepts of "Easy to install and use", "Compact-sized design", and "Simple troubleshooting", PLANET SW-504 provides cost-conscious business and home users with the foundation of an integrated system of small-office / home-office networking. The SW-504 is a fancy-shaped plastic model, which is just right for your network of 10 to 50 users.
The SW-504 Desktop Fast Ethernet Switch is simple and cost-effective, and offers highly reliable network . And it is the ideal device for bridging Ethernet and Fast Ethernet workgroups or networks. Therefore, PLANET SW-504 switch will be recognized as one of the most important building blocks for today’s networking technology. To segment the network and ease the network traffic, the 5-port 10/100Mbps is useful for the SOHO switched networks as the friendly network backbone. With LED indicators, the network status can be monitored at a glance.
Features:
- 5 10/100Mbps TP interfaces
- Complies with IEEE 802.3 10Base-T, IEEE 802.3u 100Base-TX
- IEEE 802.3x flow control for full duplex operation and backpressure for half duplex operation
- Features Store-and-Forward mode with wire-speed filtering and forwarding rates
- Supports 2K absolute MAC address
- Automatic address learning and address aging
- Supports Automatic MDI/MDI-X function
- Full/half-duplex capability on each TX port
- LED indicators for simple diagnostics and management
- FCC Class B, CE compliant
| Hardware Specifications | |
| Hardware Version | 3 |
| 10/100Base-T Ports | 5 Auto MDI/MDIX ports |
| Enclosure | Plastic |
| Dimensions (mm) | 168 x 100 x 29 |
| Weight (g) | 142 |
| Power Requirements (External power adapter) | DC 5V, 1A |
| Power Consumption / Dissipation (Full operation) | 3.7 watts / 12 BTU |
| Switch Specification | |
| Switch Architecture | Store-and-Forward |
| Address Table | 2K entries |
| Share Buffer | 384K |
| Flow Control | Back pressure half duplex, IEEE 802.3x pause frame full duplex |
| Switch Fabric | 1.0Gbps |
| Throughput (packet per second) | 0.744Mpps |
| Standard Compliance | |
| Standards Compliance | IEEE 802.3 (Ethernet) |
| IEEE 802.3u (Fast Ethernet) | |
| IEEE 802.3x (Full-duplex Flow Control) | |
| Temperature | Operating: 0~50 degrees C |
| Storage: -20~70 degrees C | |
| Operating Humidity | Operating: 5% to 90%, Storage: 5% to 90% (non-condensing) |
| Regulation Compliance | FCC Part 15 Class B, CE |
| Ordering Information | |
| SW-504 | 5-Port 10/100Mbps Desktop Fast Ethernet Switch |
