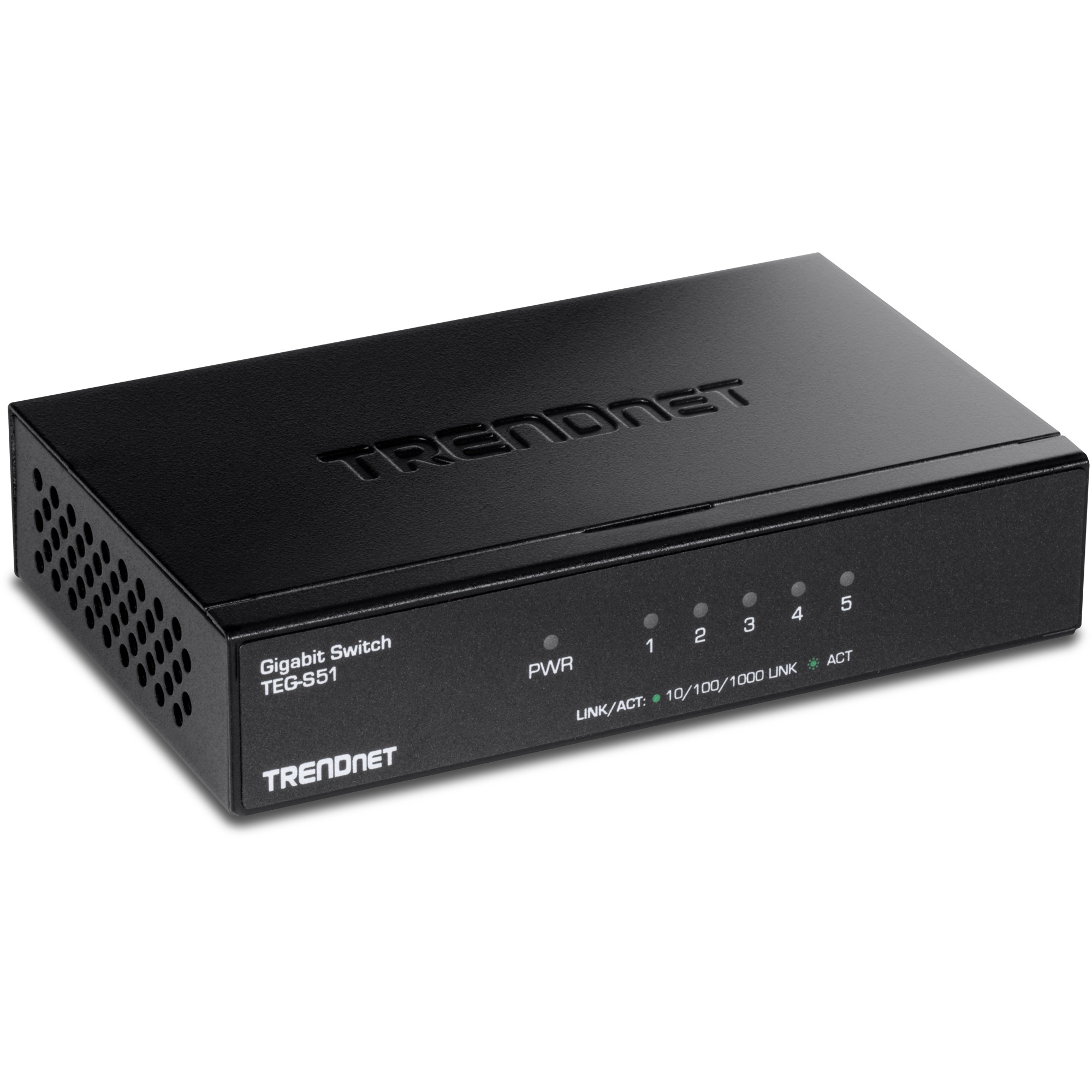

TRENDNET - TEG-S51 - 5-Port Gigabit Switch /w metal case

Name: TRENDNET - TEG-S51 - 5-Port Gigabit Switch /w metal case
Brand: Trendnet
SKU: TEG-S51

Part number:

TEG-S51

Price:

Dealers only

Add to Quote/Project Registration

Description Specifications Downloads

The 5-Port Gigabit Desktop Switch, model TEG-S51, provides high bandwidth performance, ease of use, and reliability. Boost office network efficiency and eliminate network congestion with gigabit speeds and a total switching capacity of 10Gbps with full-duplex mode. Integrate this sturdy metal switch for reliable high-speed network connectivity.

Features:

Plug and play installation
5 x Gigabit ports
10Gbps switching capacity
Sturdy metal switch
Fanless design
NDAA / TAA compliant (U.S. and Canada only)
Lifetime Warranty

Standards	IEEE 802.3 IEEE 802.3u IEEE 802.3x IEEE 802.3ab

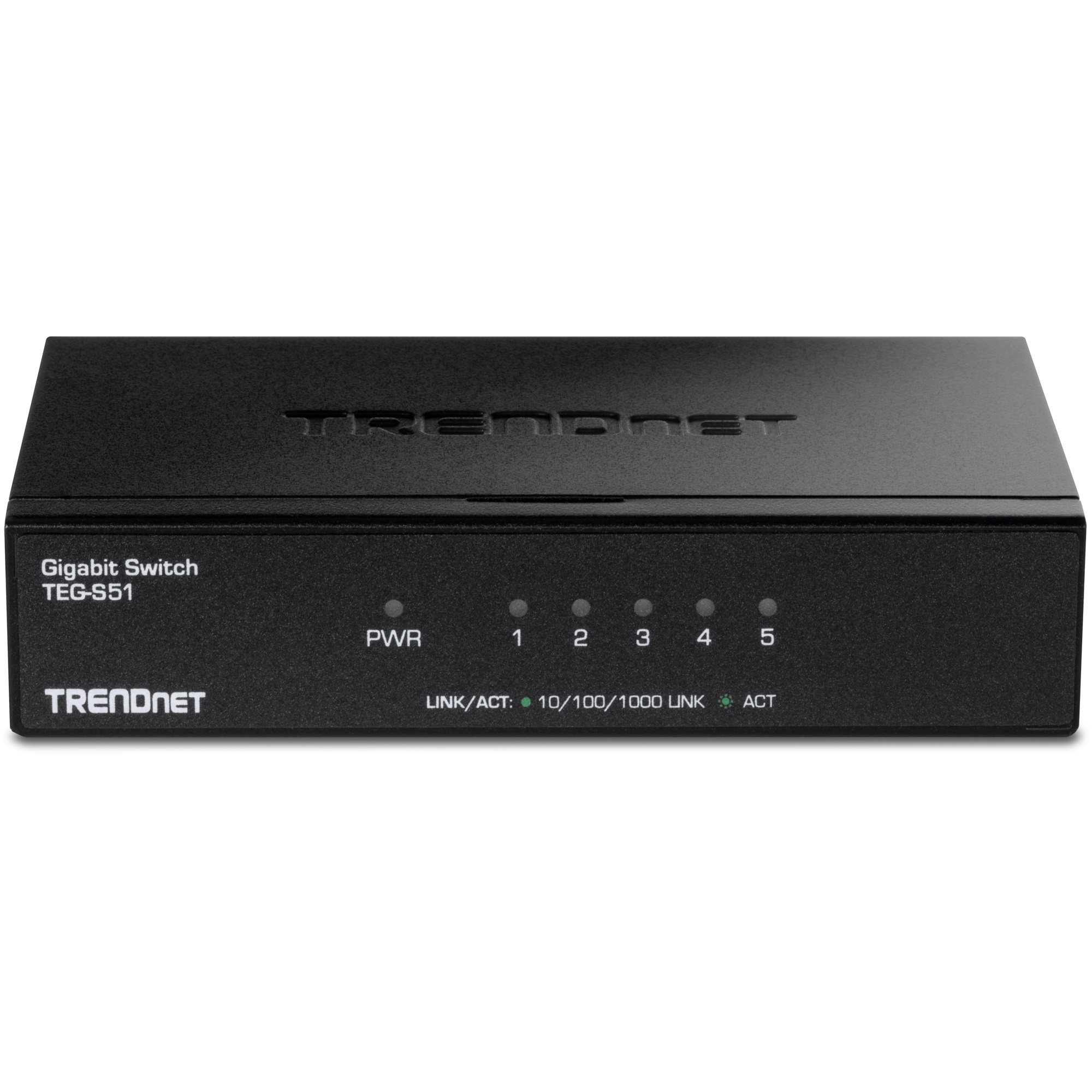

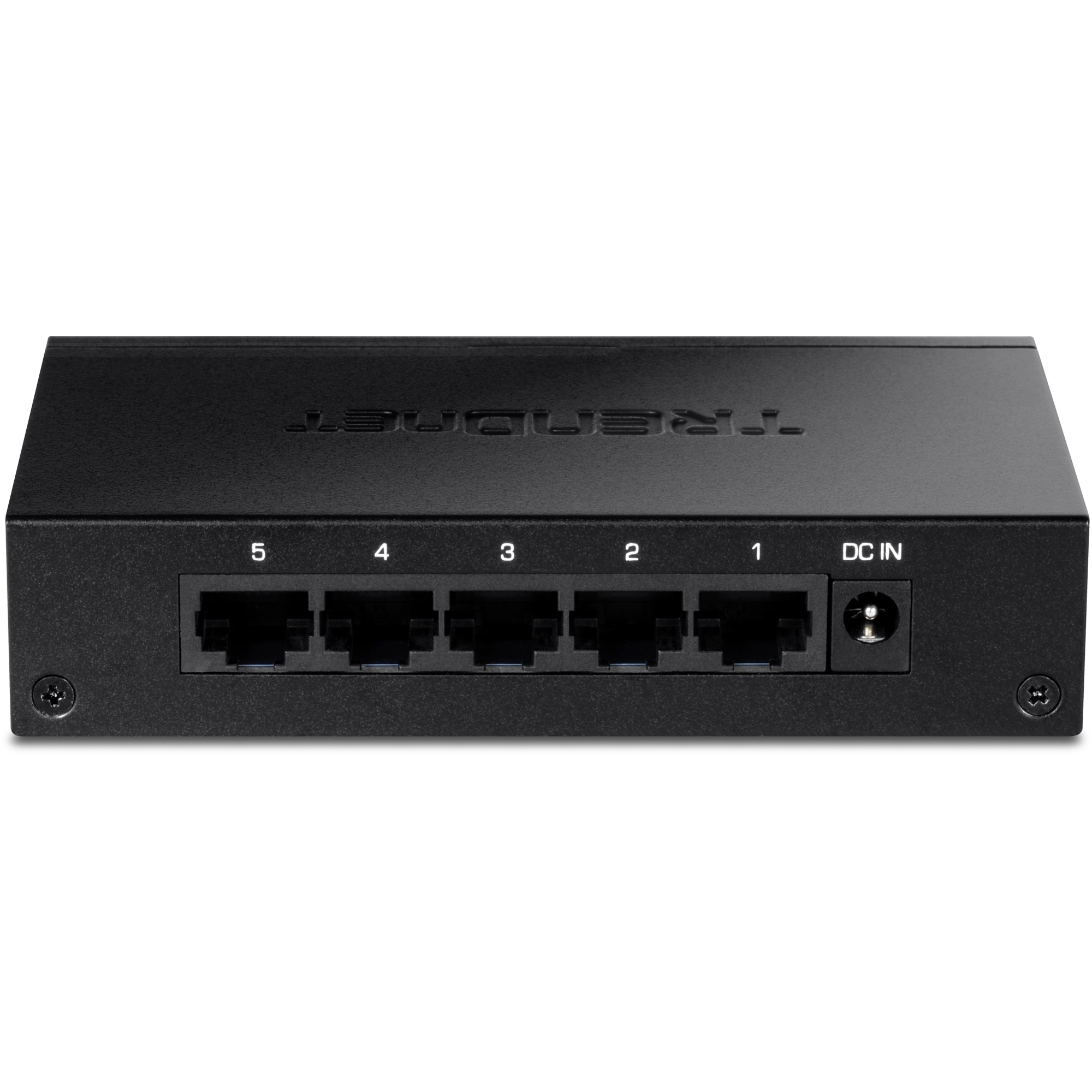

Device Interface	5 x Gigabit ports LED indicators
Data Transfer Rate	Ethernet: 10Mbps (half duplex), 20Mbps (full duplex) Fast Ethernet: 100Mbps (half duplex), 200Mbps (full duplex) Gigabit: 2000Mbps (full duplex)
Performance	Switching Capacity: 10Gbps RAM Buffer: 128KB MAC Address Table: 2K entries Forwarding Rate: 7.44Mpps (64-byte packet size) Jumbo Frames: 9KB
Power	Input: 100 – 240V AC, 50/60 Hz, 0.2A Output: 5 V DC, 1A external power adapter Max. Consumption: 2.01W
Fan/Acoustics	Fanless design
MTBF	1,615,840 hours
Operating Temperature	0° – 40° C (32° – 104° F)
Operating Humidity	Max. 90% non-condensing
Dimensions (L x W x H)	121 x 75 x 26mm (4.76 x 2.95 x 1.02 in.)
Weight	220g (7.76 oz.)
Certifications	FCC CE
Warranty	Lifetime Warranty

PACKAGE CONTENTS

TEG-S51
Quick Installation Guide
Power Adapter (5V DC, 1A)

Name

Description

Size

Downloads

File

Datasheet

0.7mb
