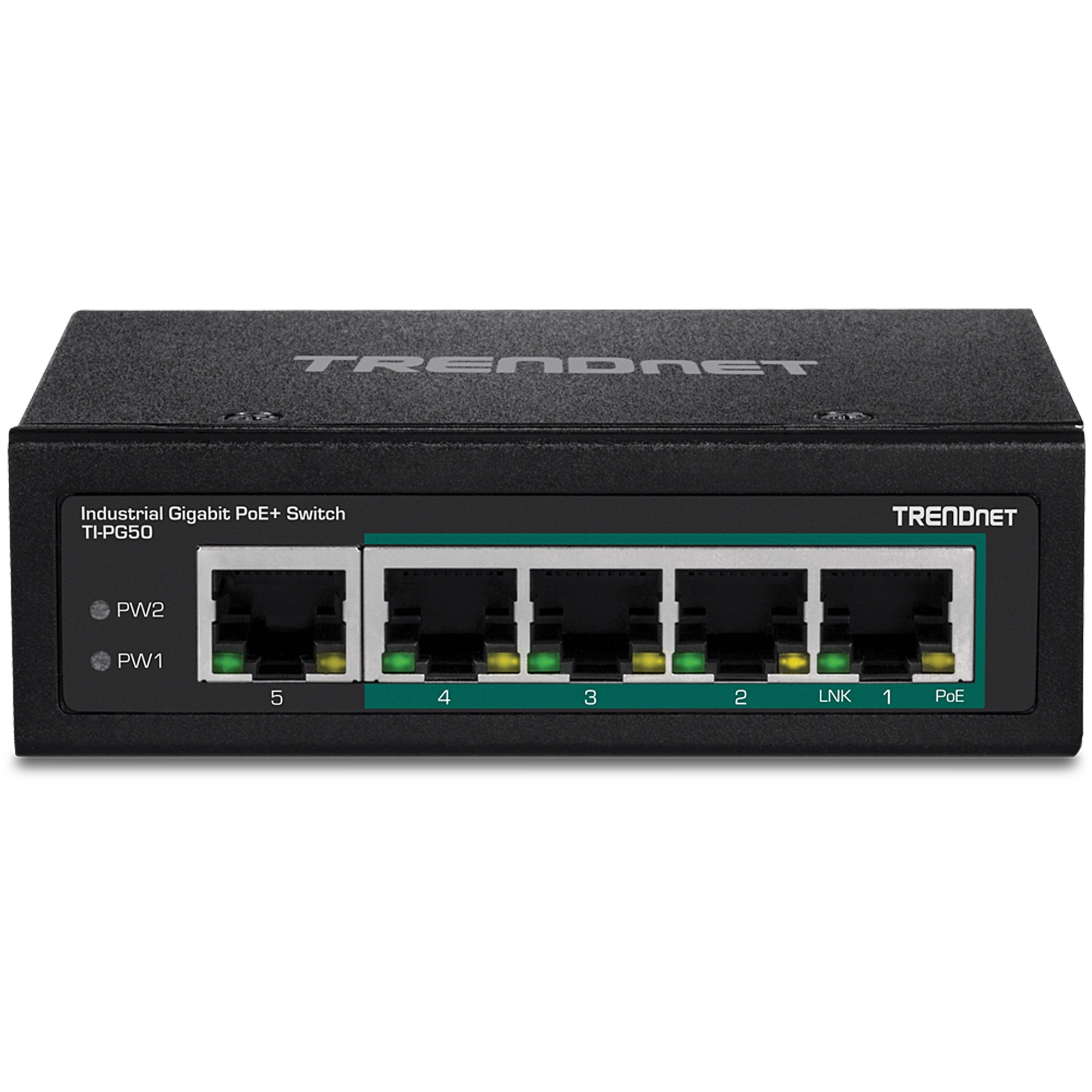

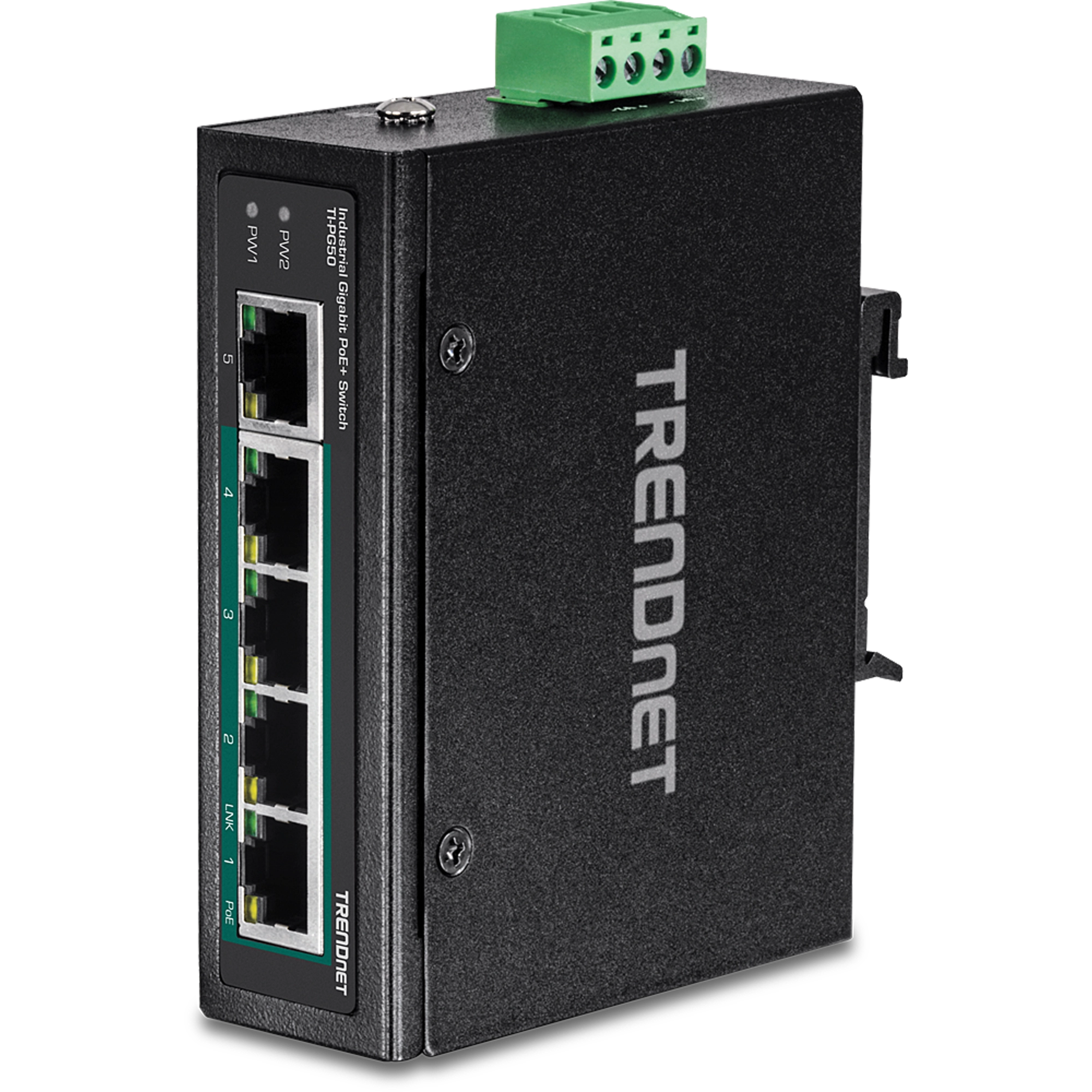

TRENDnet’s Industrial Gigabit PoE+ DIN-Rail Switches feature a rugged IP30 rated metal enclosure. These rugged industrial switches are designed to withstand a high degree of vibration and shock, while operating in both high and low temperatures for industrial environments within -40° – 75° C (-40° – 167° F). Redundant power inputs with overload current protection on each industrial switch minimizes network downtime.

Installers and integrators can save on equipment costs and reduce installation time with TRENDnet’s Industrial PoE+ Switches by delivering up to 30W per port of PoE power and data over existing Ethernet cables. With PoE technology, users only need one set of cables to deliver both data and power from the industrial unmanaged PoE+ switch. With these industrial PoE+ switches, easily network PoE devices, such as high-power wireless access points, PTZ and other advanced IP cameras, VoIP phone systems, IPTV decoders, and access controls.

PoE Power

A 120W PoE+ power budget for up to four Power over Ethernet devices with PoE or PoE+ power.

Fault Tolerance

The industrial switch features redundant power inputs for backup power with overload current protection.

Industrial Design

Rugged IP30 rated housing with a high degree of vibration and shock resistance, and an operating temperature range of -40° – 75° C (-40° – 167° F).

Features:

• 4 x Gigabit PoE+ ports
• 1 x Gigabit port
• 120W PoE power budget
• 10Gbps switching capacity
• Hardened IP30 rated metal switch

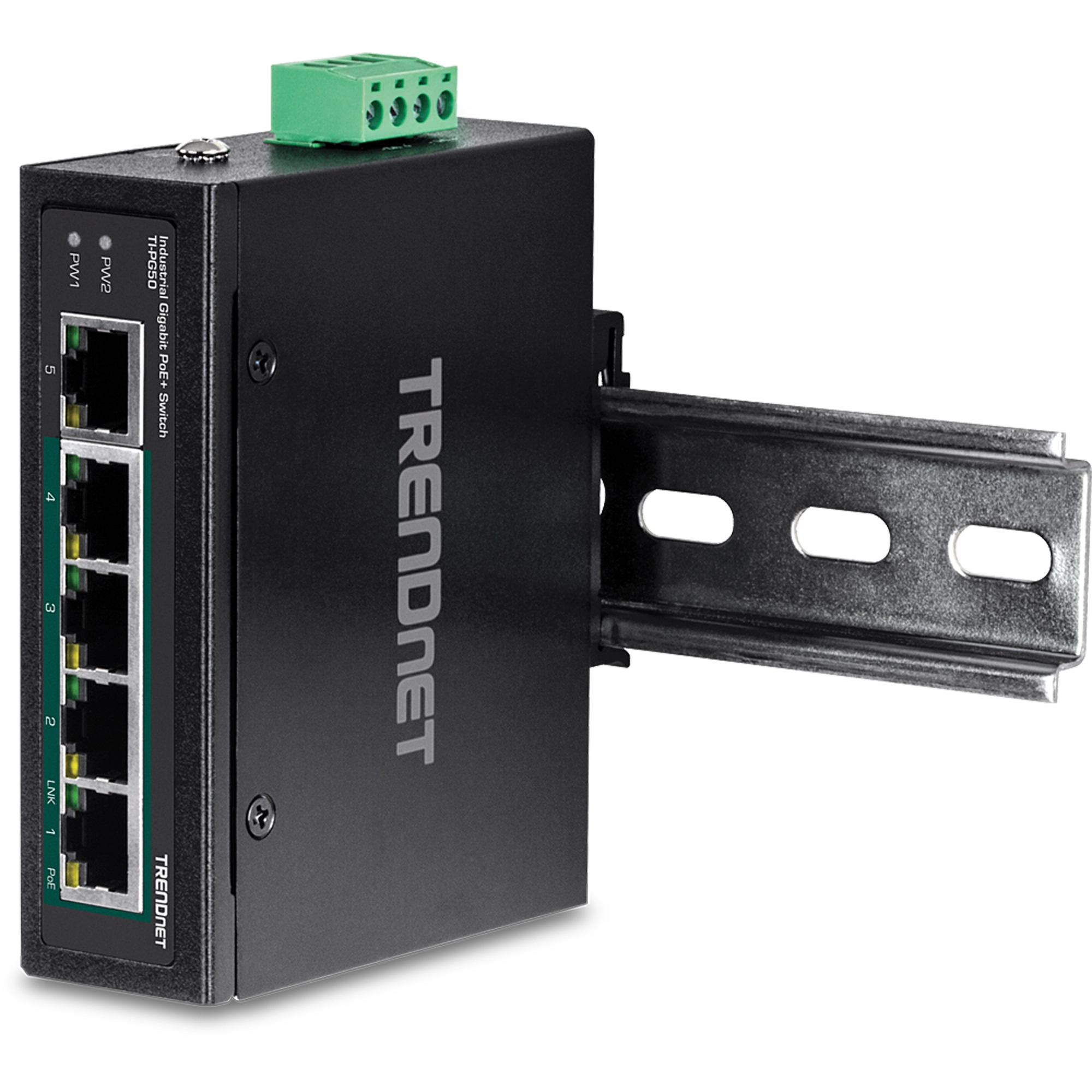

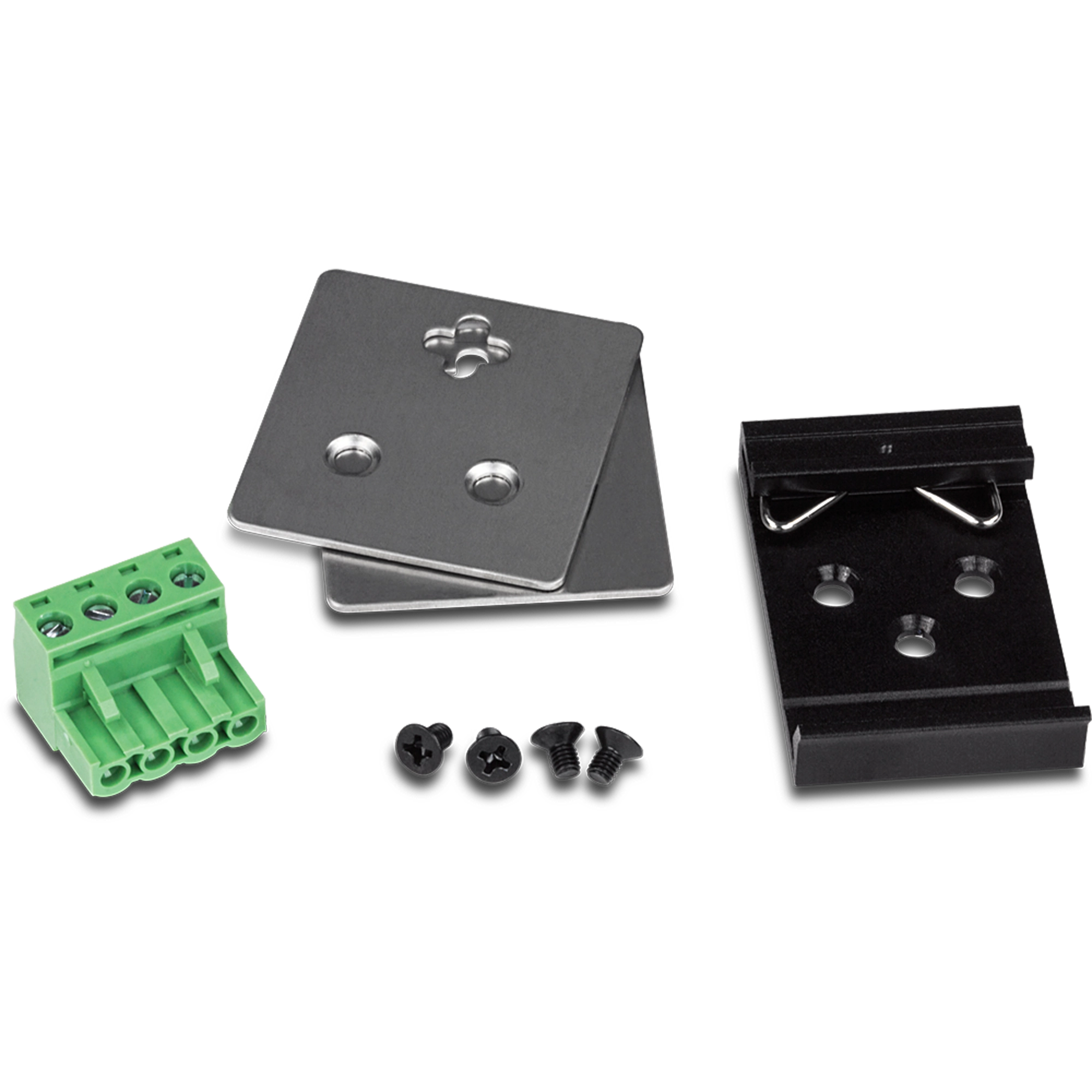

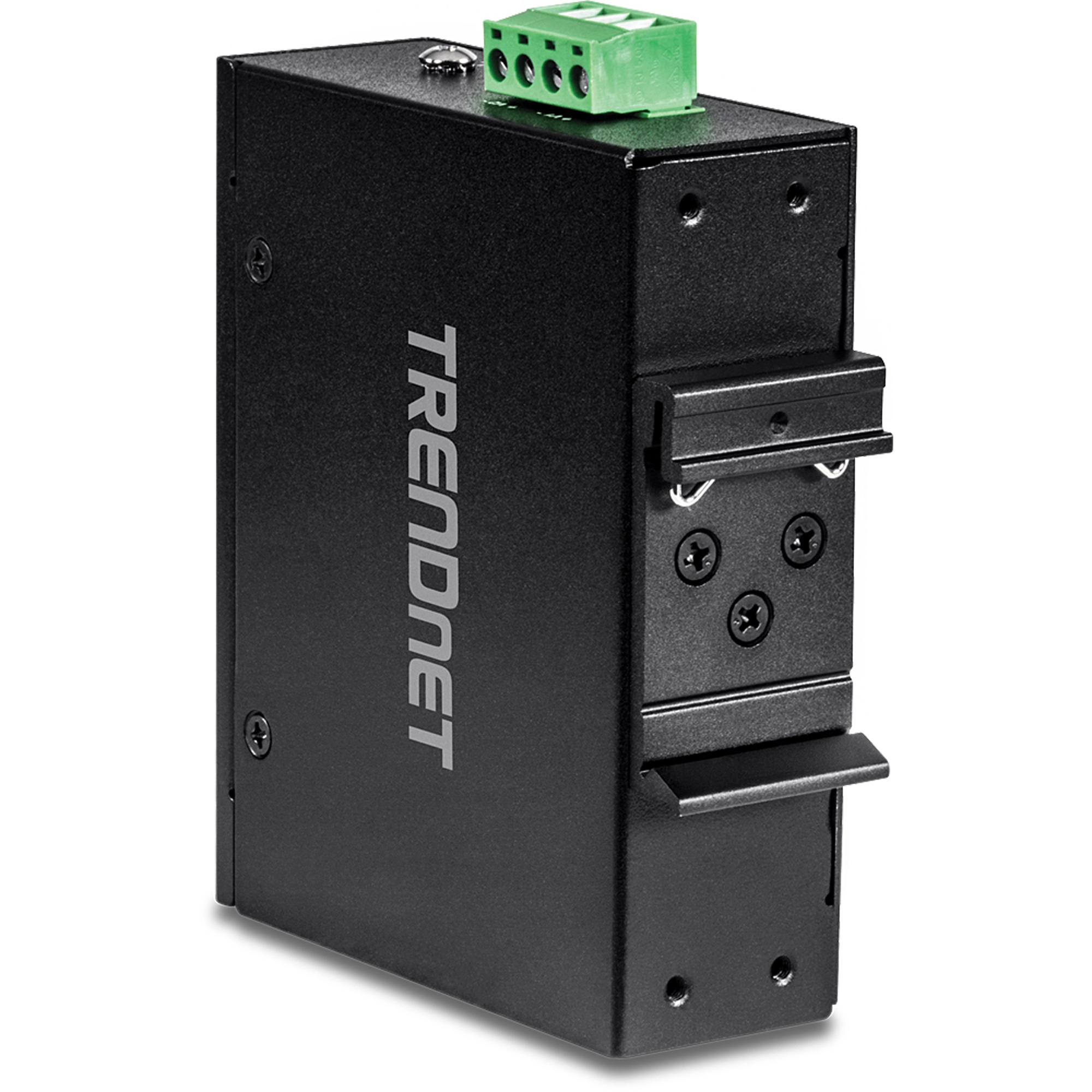

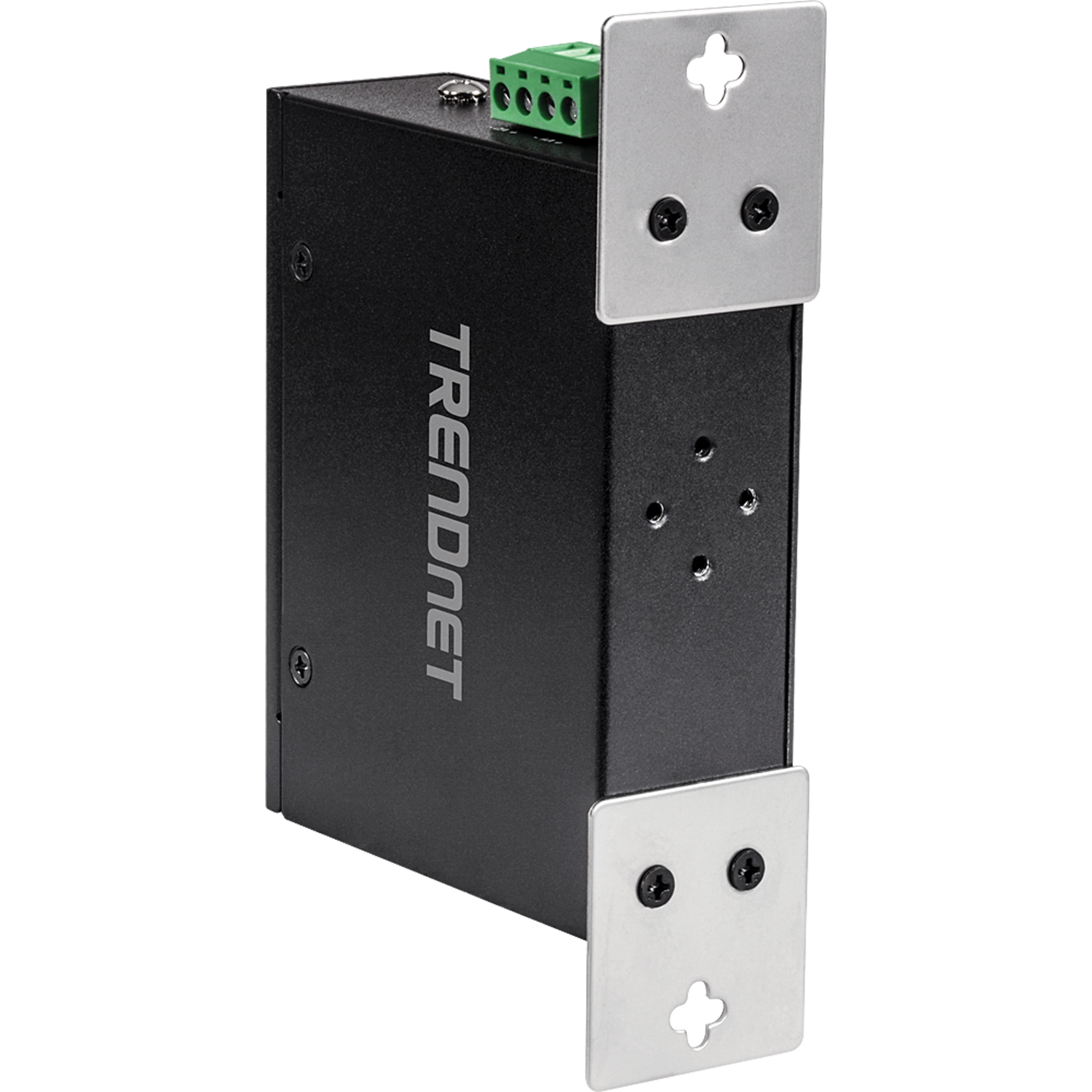

• Includes DIN-Rail and wall mounts
• Operating temperature range of -40° – 75° C (-40° – 167° F)

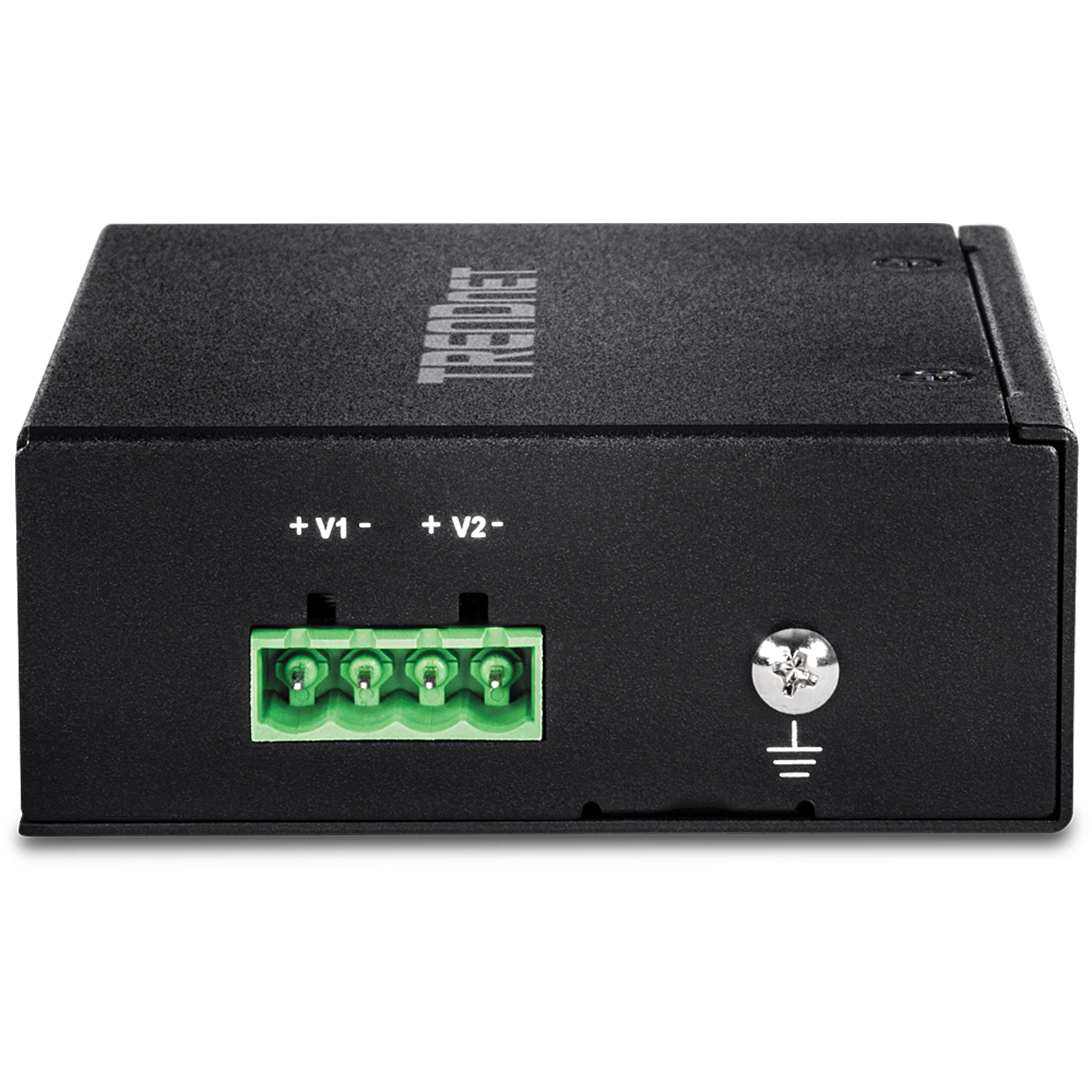

• Redundant power inputs with overload current protection
• Power supply sold separately (models: TI-S15052, TI-S24052, TI-S12048, TI-S24048)
• NDAA / TAA compliant
• Lifetime Warranty*
