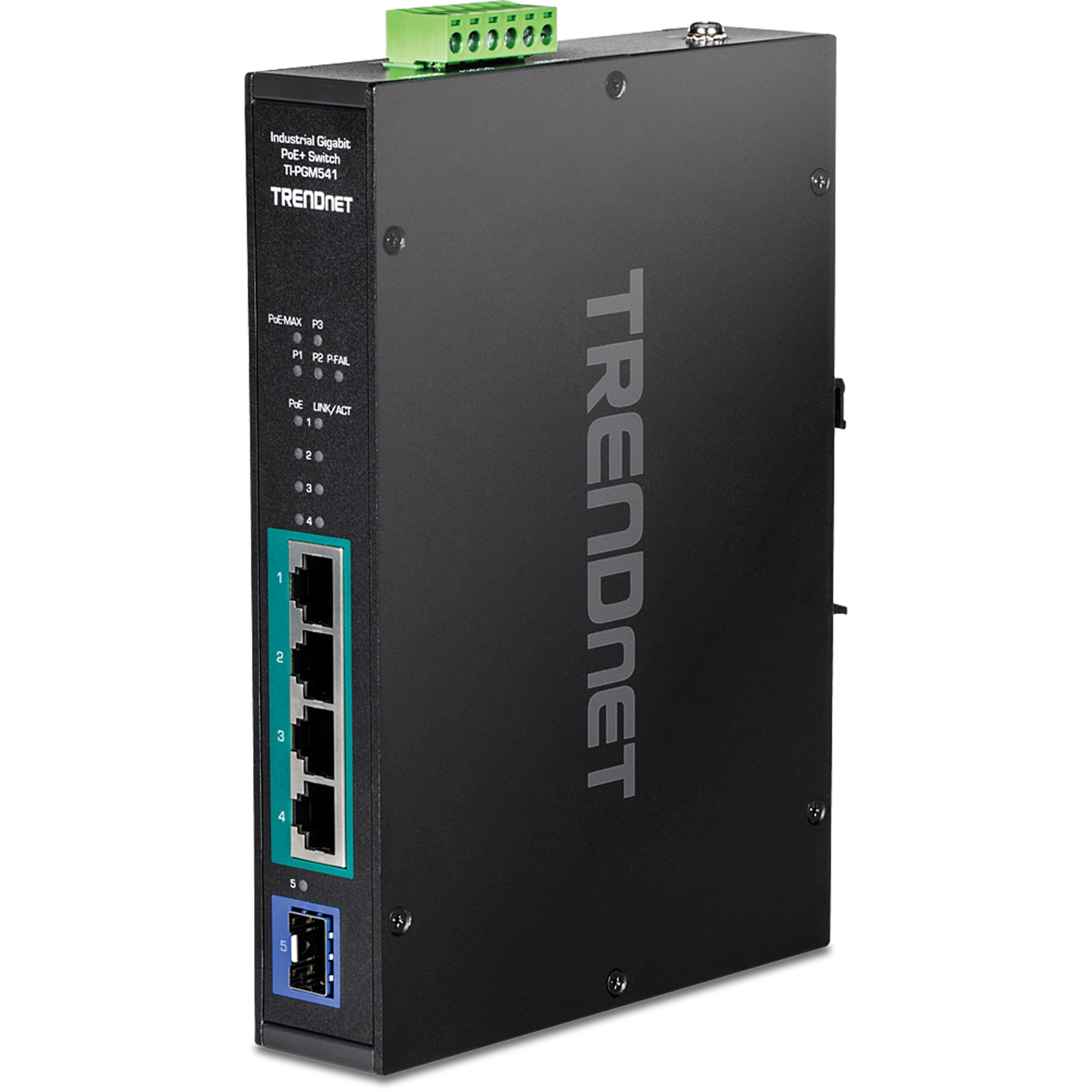

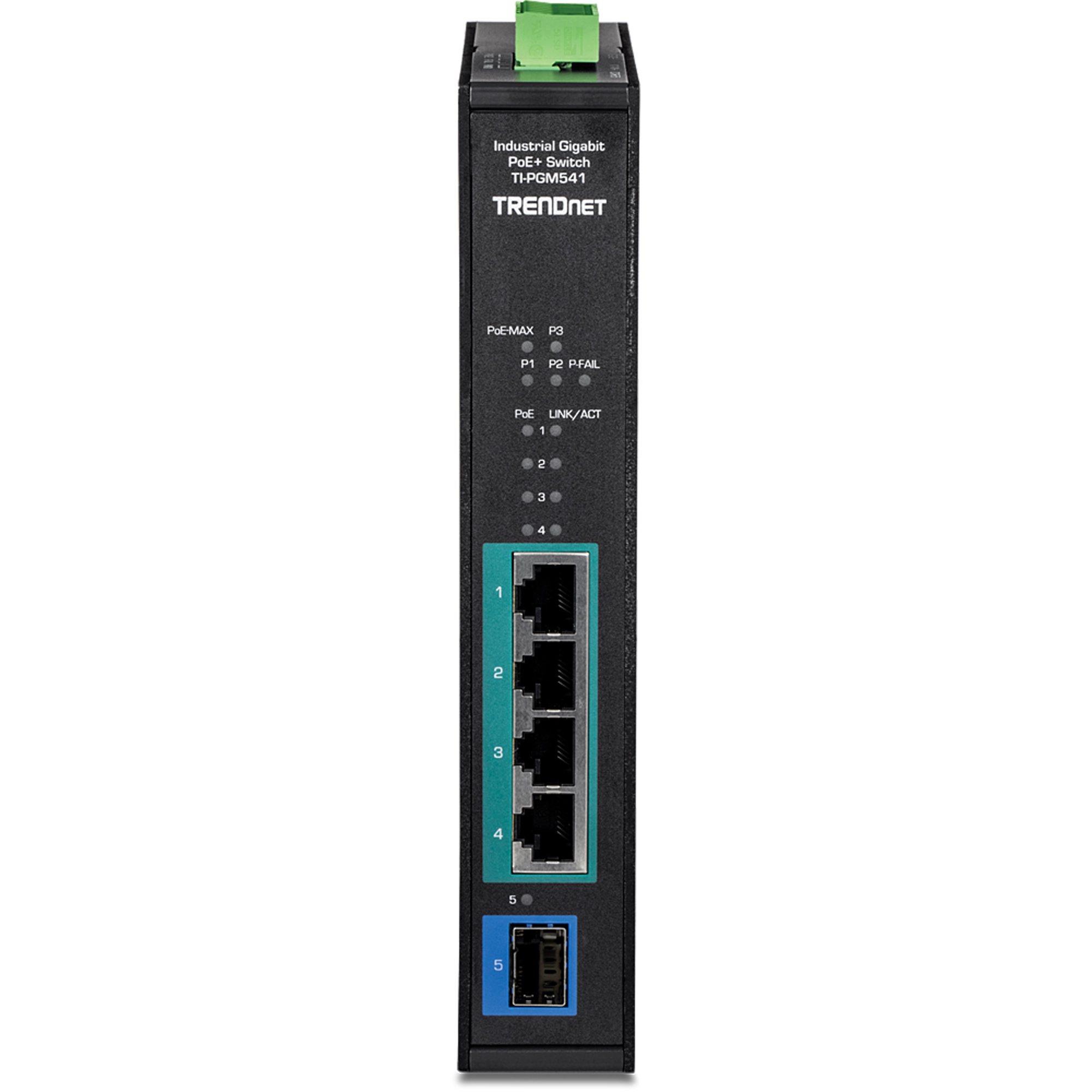

TRENDnet’s 5-Port Industrial Gigabit PoE+ DIN-Rail Switch -20° – 65°C (-4° – 149°F), model TI-PGM541, has four gigabit PoE+ ports with a 120W PoE power budget, plus one gigabit SFP slot for long distance fiber applications. Users are able to connect four PoE+ devices to the switch, while still providing one gigabit SFP slot for an additional network connection. This switch is equipped with an IP30 rated metal enclosure, designed to operate within a wide temperature range of -20° – 65°C (-4° – 149°F) for harsh, industrial environments.

PoE Power

A 120W PoE+ power budget supplies up to four Power over Ethernet devices with PoE+ power.

Fault Tolerance

Features redundant power inputs with overload current protection and output alarm relay.

Industrial Hardened Design

Rugged IP30 rated housing is designed to operate within a wide temperature range of -20° – 65°C (-4° – 149°F).

Features:

• 4 x Gigabit PoE+ ports
• 1 x Gigabit SFP slot
• 120W PoE power budget
• 10Gbps switching capacity
• Hardened IP30 rated metal switch

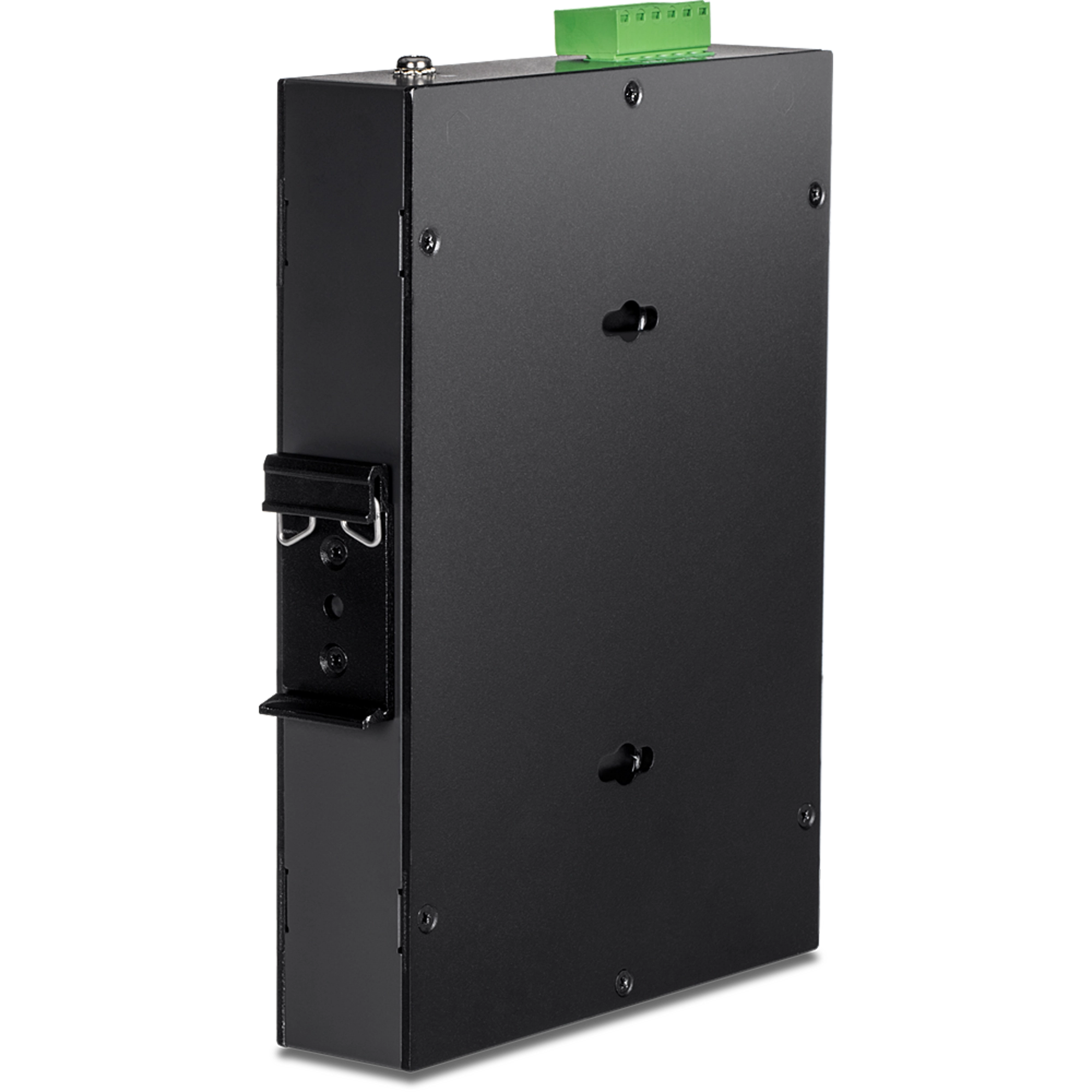

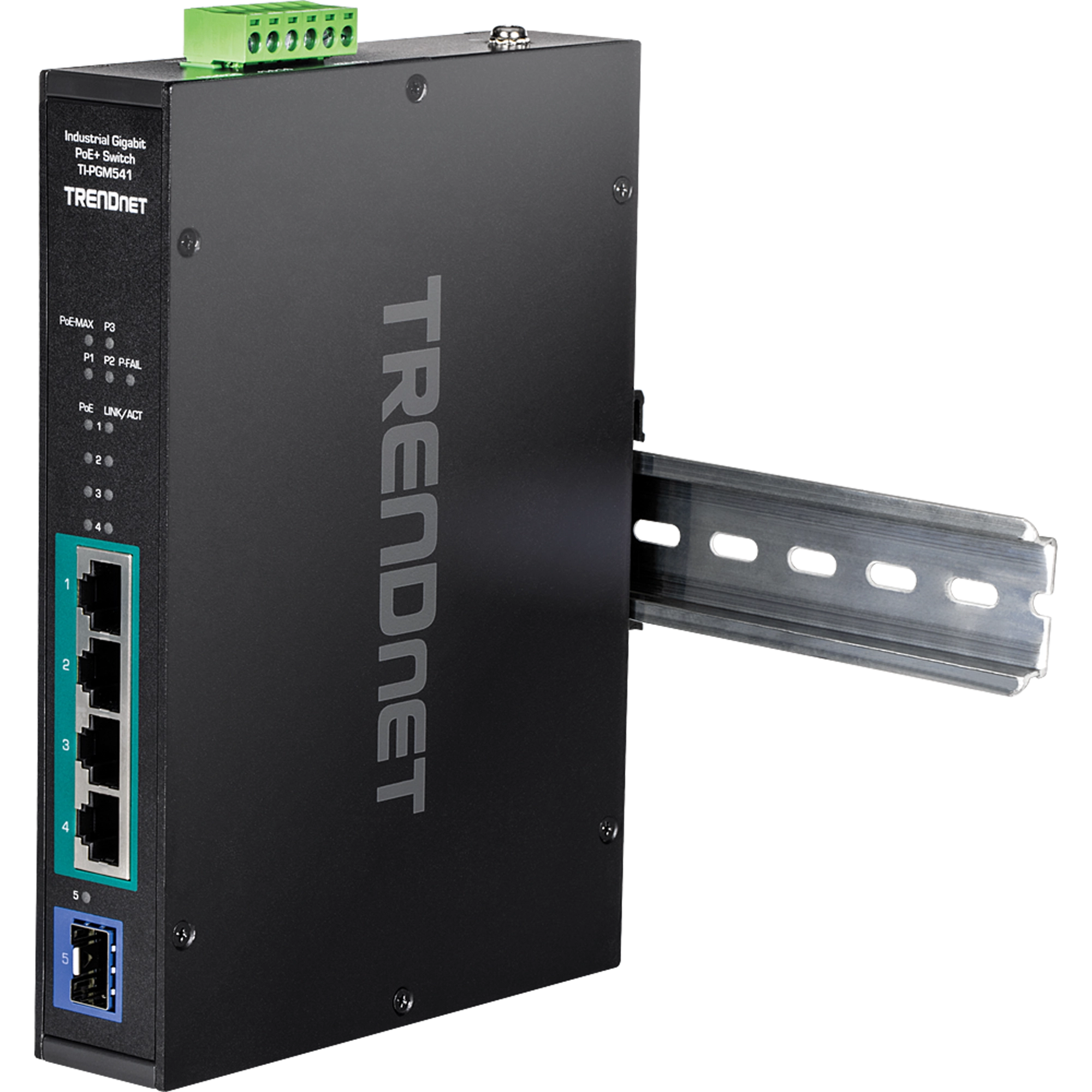

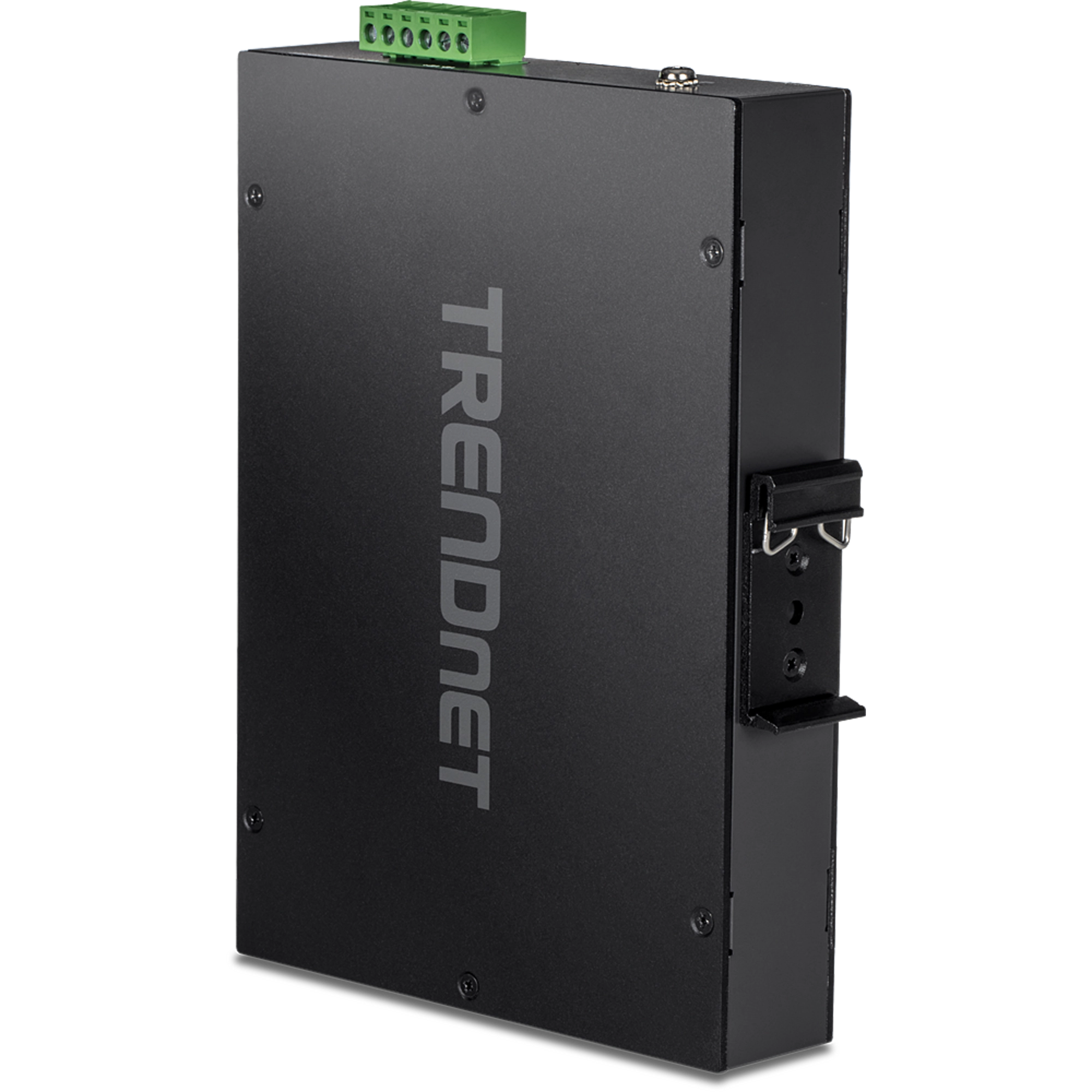

• Includes DIN-Rail and wall mounts
• Operating temperature range of -20° – 65°C (-4° – 149°F)

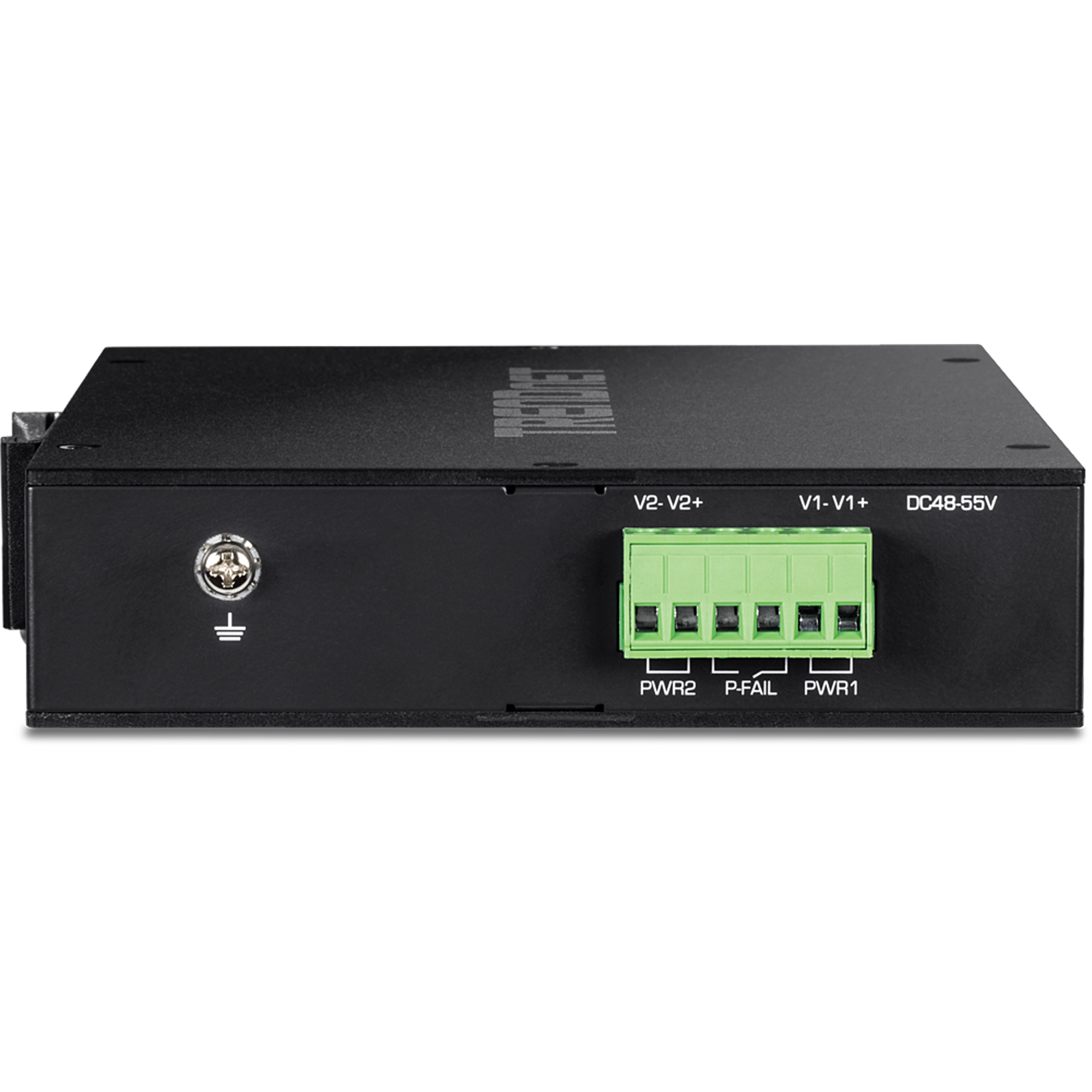

• Redundant power inputs with overload current protection
• Alarm output triggered by power failure
• Power supply sold separately (models: TI-S15052, TI-S24052, TI-S12048)
• NDAA / TAA compliant
• Lifetime Warranty*
