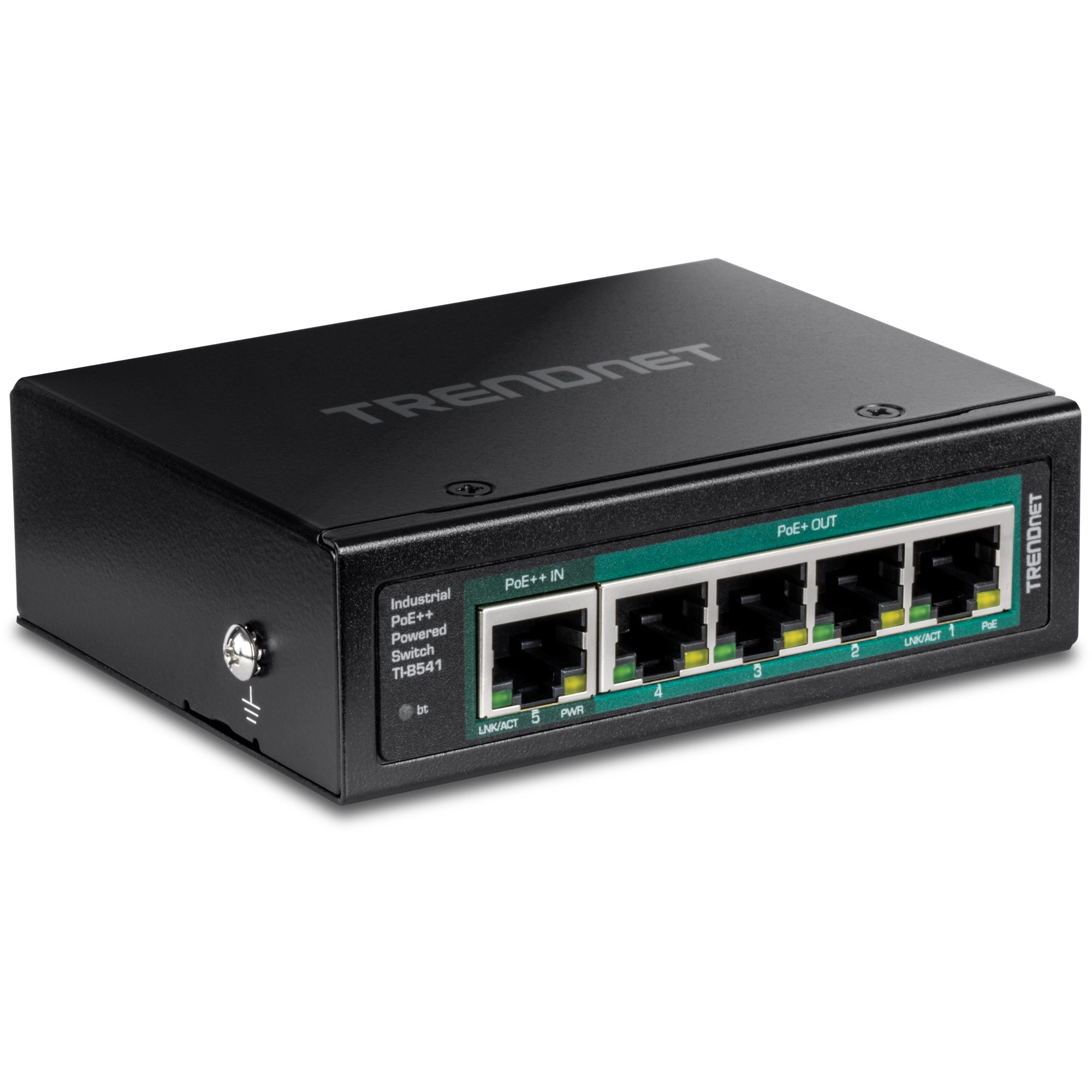

TRENDnet’s 5-Port Industrial Gigabit PoE++ Powered DIN-Rail Switch with PoE Pass-Through, model TI-B541, is powered by a PoE++ switch or injector, no AC adapter is required. The PoE-powered industrial switch features four gigabit PoE+ ports to power devices such as IP cameras, VoIP handsets, and wireless access points. The switch’s PoE++ powered feature allows it to be installed in a place where there is no power source nearby. With an operating temperature range of -40°– 75 °C (-40° – 167 °F), the hardened IP30 rated housing is suitable for extreme industrial environments.
PoE++ Powered
No AC adapter required—this switch is powered by a PoE++ switch or injector. It features four gigabit PoE+ ports to power PoE devices such as IP cameras.
Industrial Hardened Design
Rugged IP30 enclosure with a high degree of vibration and shock resistance, ESD/EMI/surge protection, and a wide operating temperature range (- 40° – 75° C (- 40°- 167° F)).
Easy Installation
No configuration needed, simply connect PoE network devices to the reliable PoE-powered industrial switch.
Features:
- 1 x Gigabit PoE++ input port
- 4 x Gigabit PoE+ output ports
- 65W PoE power budget with PoE++ Type 4 (90W) input power
- 10Gbps switching capacity
- Hardened IP30 rated metal switch
- Includes DIN-Rail and wall mounts
- Extreme operating temperature range of -40° - 75° C (-40° - 167° F)
- NDAA / TAA compliant
- Lifetime Warranty*
| Technical Specifications | |
| Standards |
|
| Device Interface |
|
| Data Transfer Rate |
|
| Performance |
|
| Special Features |
|
| Power |
|
| PoE |
|
| MTBF |
|
| Housing |
|
| Operating Temperature |
|
| Operating Humidity |
|
| Dimensions |
|
| Weight |
|
| Certifications |
|
| Warranty |
|
