Trendnet - TPL-407E2K - 500 AV Compact Powerline Adapter Kit /w Pass Through
Trendnet - TPL-407E2K - 500 AV Compact Powerline Adapter Kit /w Pass Through
Part number:
TPL-407E2K
Price:
Dealers only
Add to Quote/Project Registration
Description Specifications Downloads

The Powerline 500 AV Adapter Kit with Built-In Outlet, model TPL-407E2K, uses existing electrical lines to create a high-speed network. Two adapters are needed to start a network. Connect one adapter to your router and plug another adapter into an outlet on your electrical system for instant high-speed network access. The compact form factor saves space and offers an additional electrical outlet.



Features:

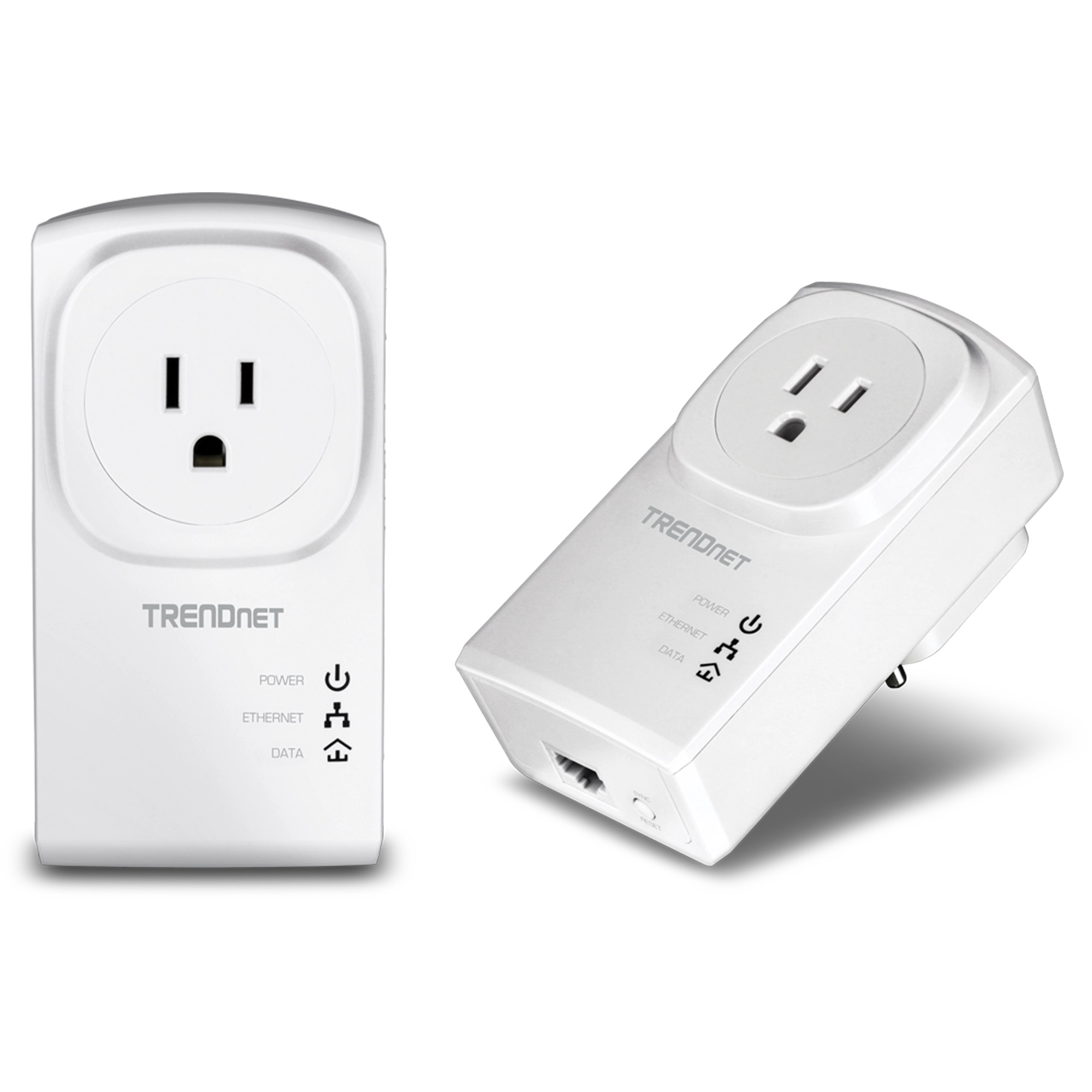

  • Includes two TPL-407E adapters
  • Powerline 500 networking
  • Never lose an electrical outlet with the built-in socket
  • Connects over electrical lines
  • Two adapters are needed to start a network.
  • Compact form factor saves space
  • Easy Installation
  • NDAA compliant
Standards
  • IEEE 802.3
  • IEEE 802.3u
  • IEEE 802.3x
  • IEEE 1901

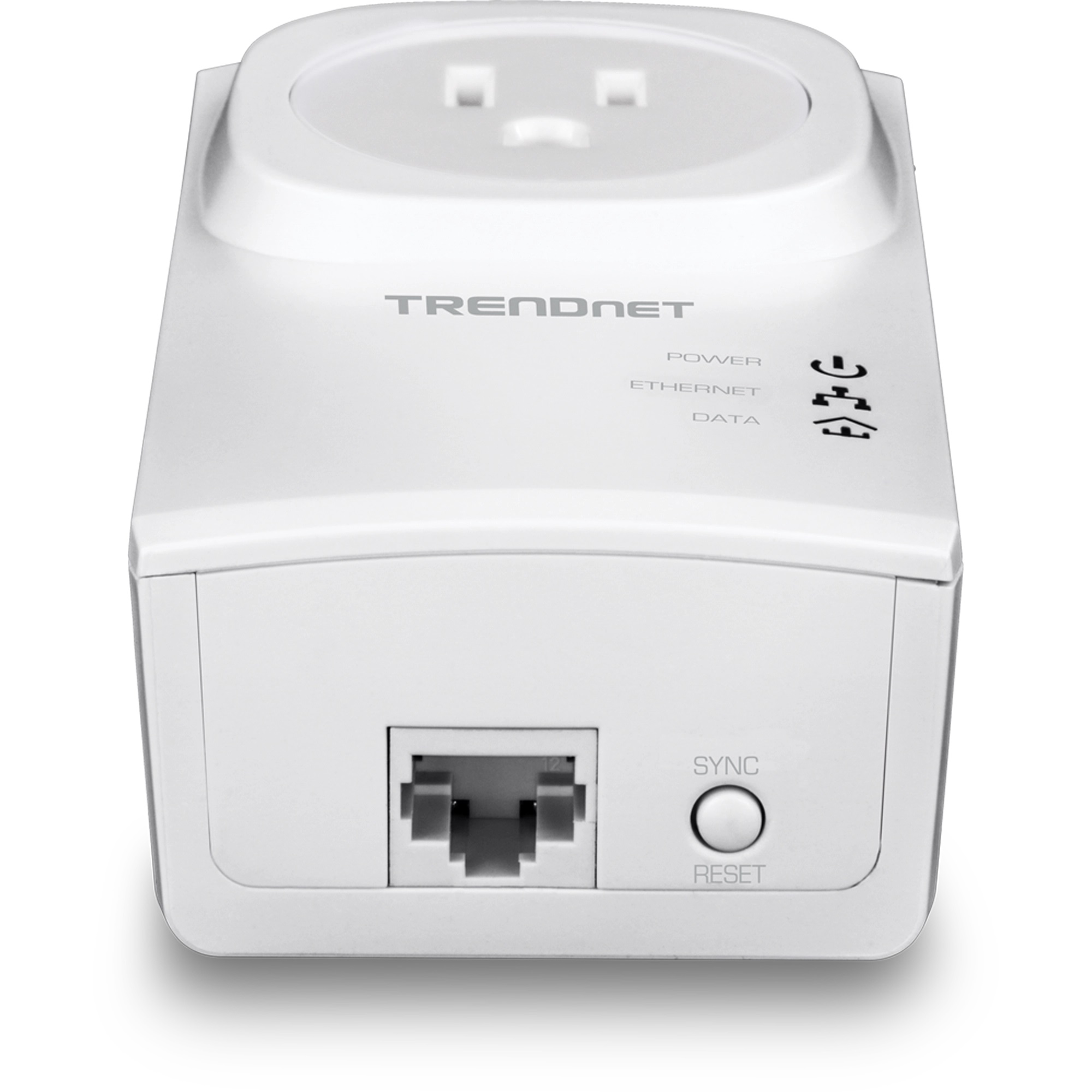

Device Interfaces
  • Ethernet port
  • Sync / reset button
  • Status LEDs
  • Power plug
  • A: North America Type B (NEMA 5–15)
  • EU: Euro Type C (CEE 7/16)
  • UK: United Kingdom Type G (BS 1363)
Frequency Band
  • 2 – 68 MHz
Data PHY Rate
  • 500 Mbps
Networking Distance
  • Up to 300 m (980 ft.) linear distance over electrical power lines
Encryption
  • 128-Bit AES (Advanced Encryption Standard)
Optional Utility: OS Compatibility
  • Windows® 10, 8.1, 8, 7, Vista, XP
Nodes
  • Up to 8 (max.)
Overlapping Powerline Networks
  • Up to 4 (per electrical system)
Outlet Current
  • 110V AC, 20A (max.)
  • 220V AC, 16A (max.)
Power
  • Input: 100 – 240 V AC, 50/60 Hz
  • Consumption: Active mode: 2.7 Watts (max.); Standby mode: 0.34 Watts (max.)
Operating Temperature
  • 0 – 40 °C (32 – 104 °F)
Operating Humidity
  • Max. 90 % non-condensing
Certifications
  • CE
  • FCC
Dimensions
  • 112 x 68 x 40 mm (4.4 x 2.7 x 1.1 in.)
Weight
  • A: 104 g (3.7 oz.)
  • EU: 190 g (6.7 oz.)
  • UK: 190 g (6.7 oz.)
Warranty
  • 3 year limited

PACKAGE CONTENTS

  • 2 x TPL-407E
  • Quick Installation Guide
  • 2 x Network cable (1.5 m / 5 ft.)
Name
Description
Size
Downloads
File
Datasheet
0.7mb
File
User's Guide
1.6mb
File
Quick Installation Guide
1.3mb
