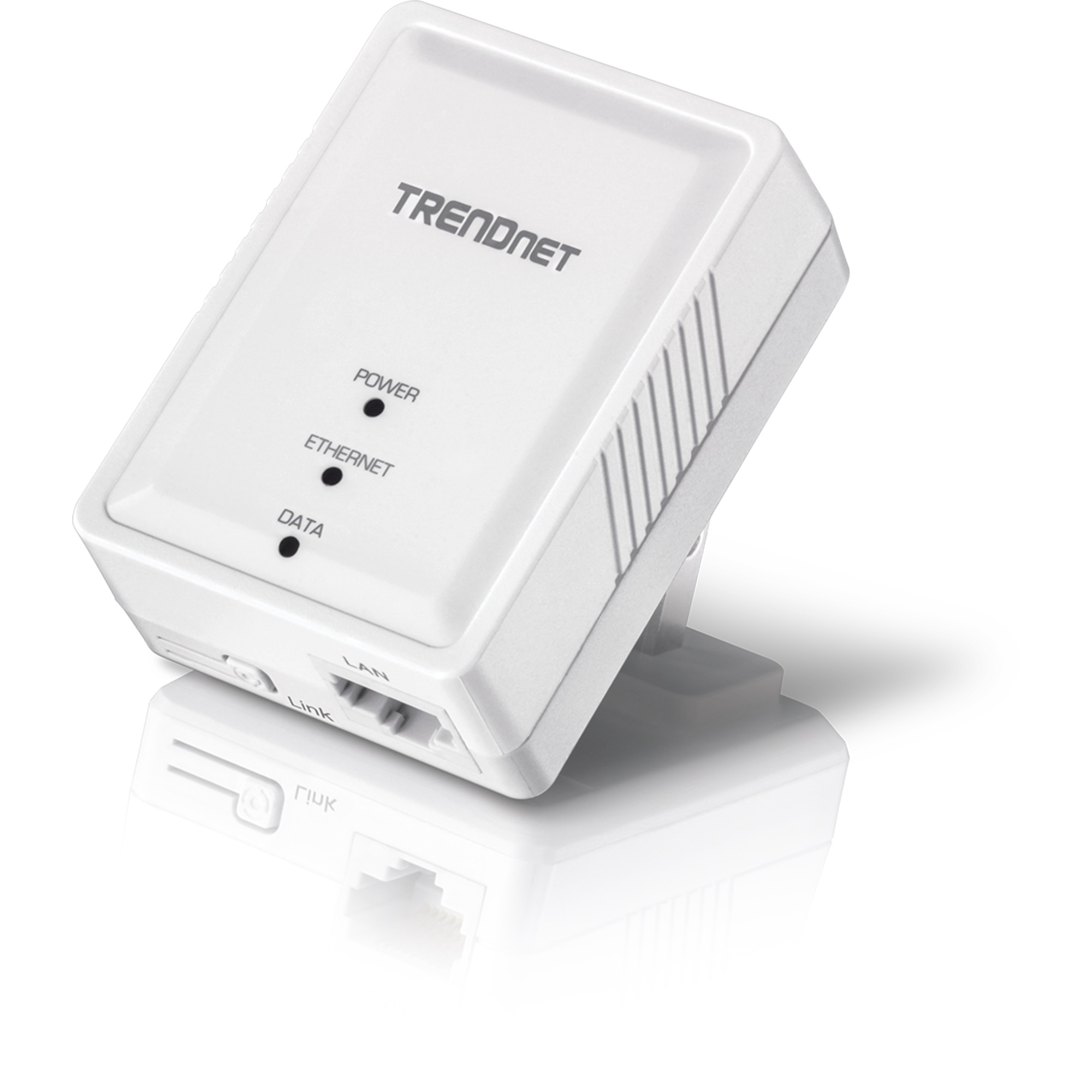

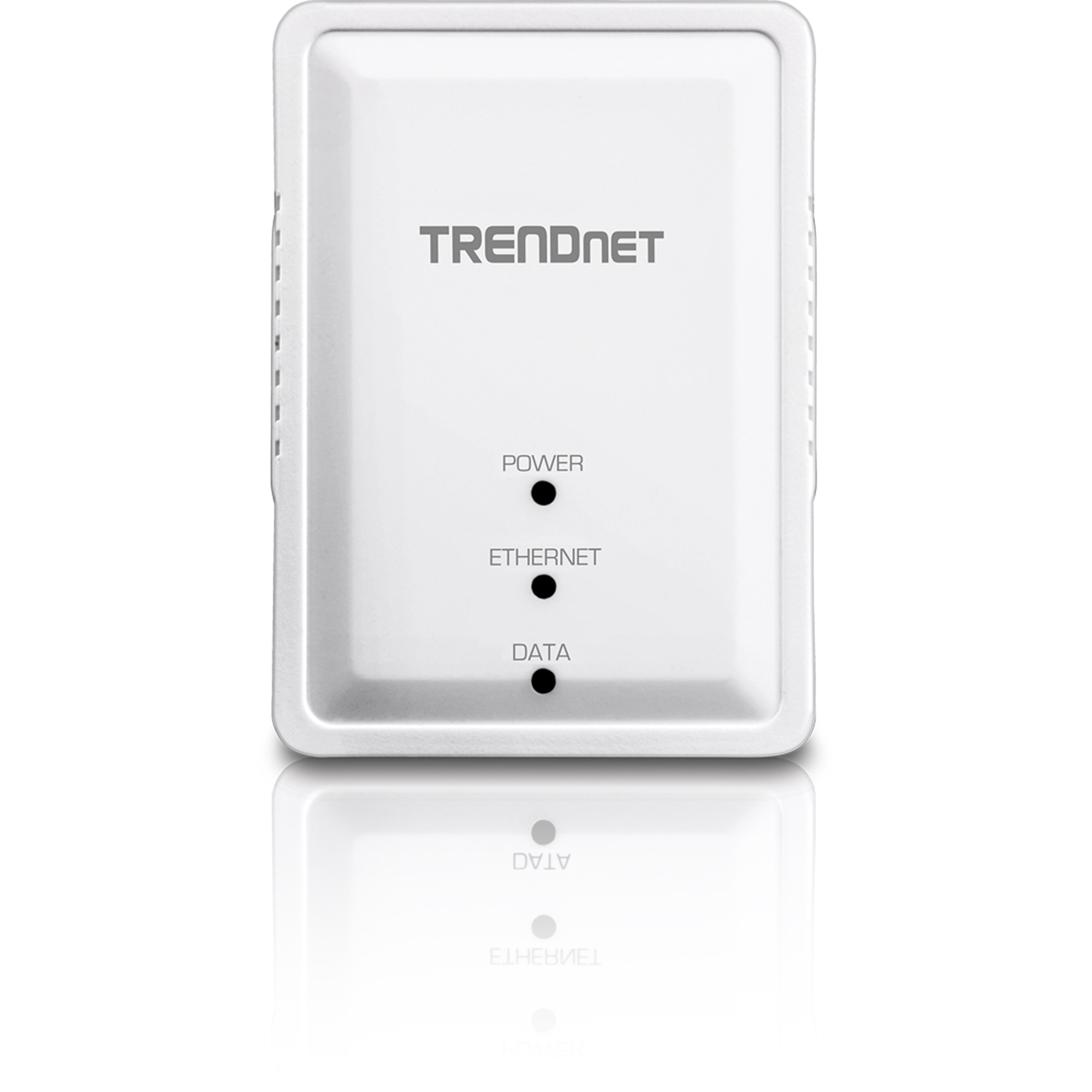

Trendnet - TPL-406E - 500 AV Compact Powerline Ethernet Adapter
Trendnet - TPL-406E - 500 AV Compact Powerline Ethernet Adapter
Part number:
TPL-406E
Price:
Dealers only
Add to Quote/Project Registration
Description Specifications Downloads

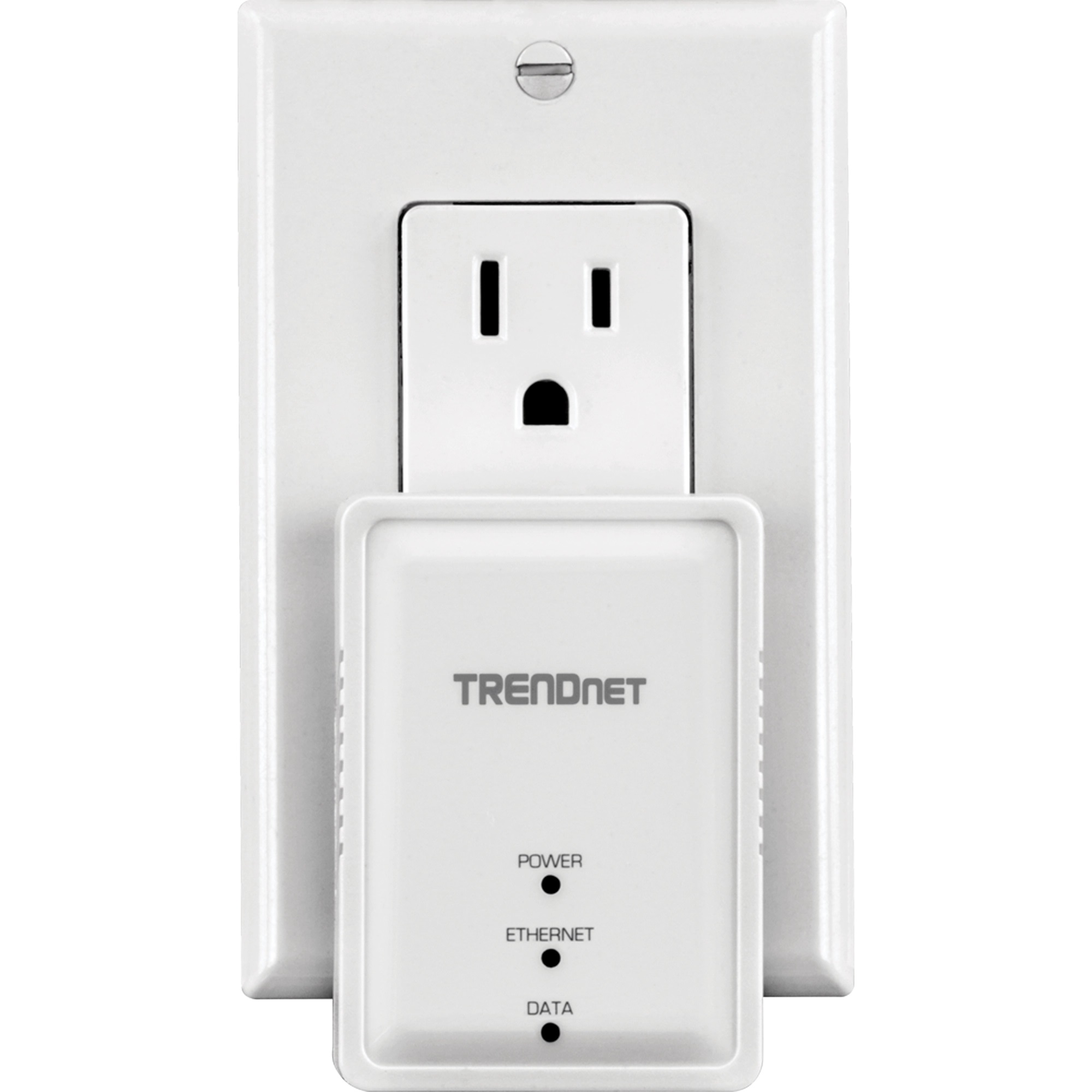

The Powerline 500 AV Nano Adapter, model TPL-406E, uses an electrical outlet to create a high speed network. Two adapters are needed to start a network. Connect one adapter to your router and plug another adapter into an outlet on your electrical system for instant high speed network access. The compact form factor saves space around crowded electrical outlets. Use up to 8 adapters to network devices in different rooms without running new cabling.



Features:

  • Expand your network with this Powerline adapter
  • Easy no-CD installation
  • Two Powerline devices are required to start a network
  • NDAA compliant
Standards
  • IEEE 802.3
  • IEEE 802.3u
  • IEEE 802.3x
  • IEEE 1901

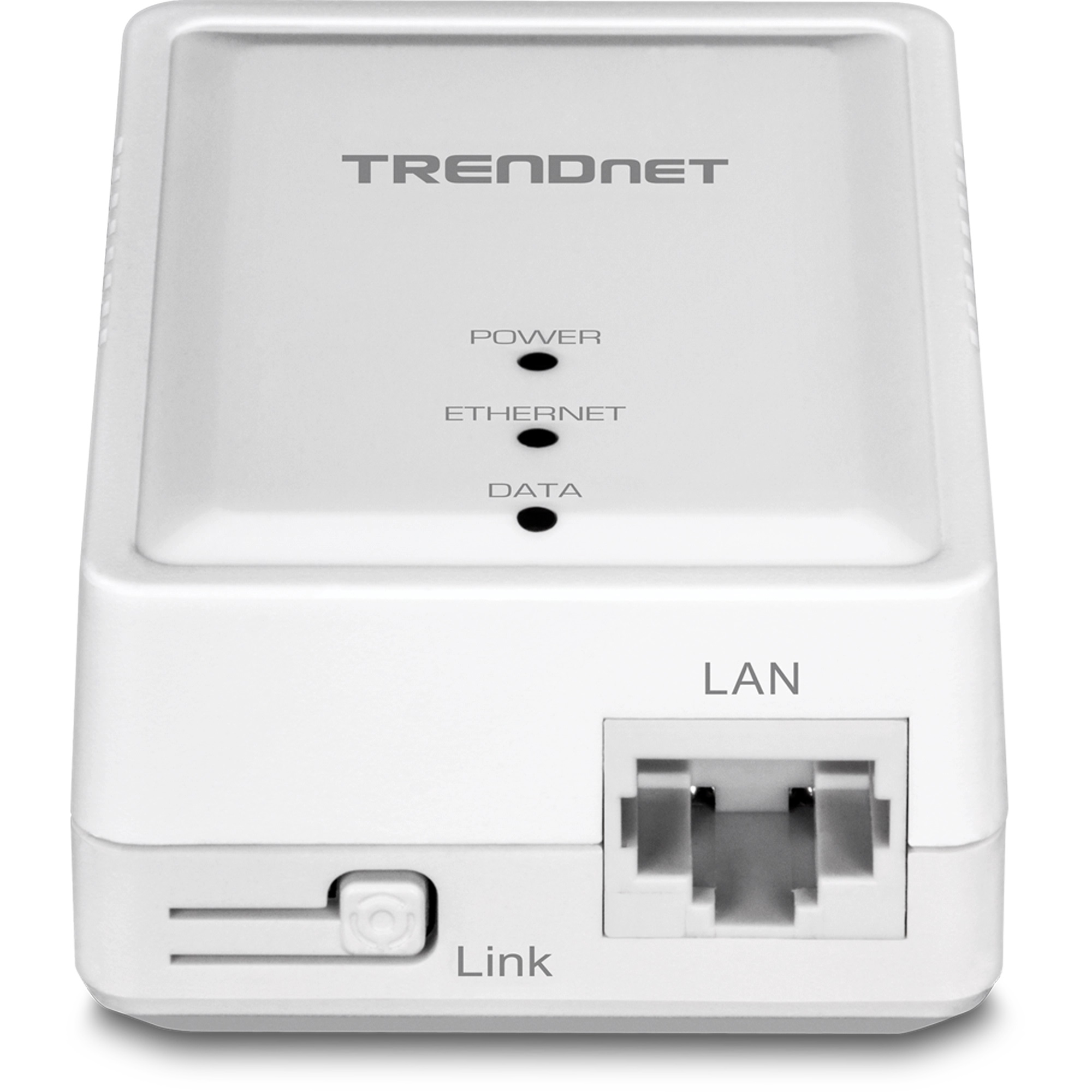

Device Interfaces
  • Ethernet port
  • Link / reset button
  • Status LEDs

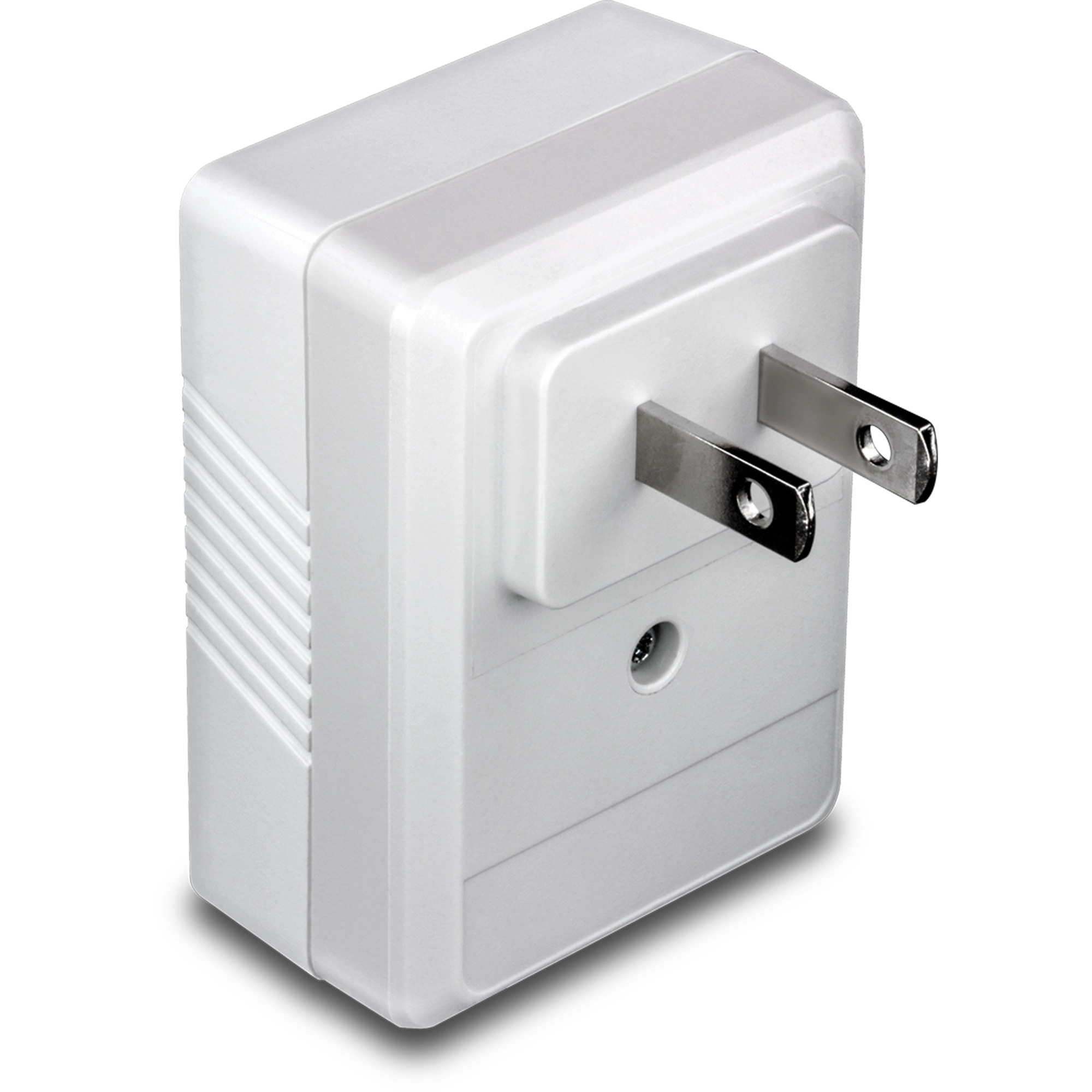

  • Power plug
  • A: North America Type B (NEMA 5–15)
  • EU: Euro Type C (CEE 7/16)
  • UK: United Kingdom Type G (BS 1363)
Frequency Band
  • 2 – 68 MHz
Data PHY Rate
  • Ethernet: Up to 200 Mbps (full-duplex)
Networking Distance
  • Up to 300 m (980 ft.) linear distance over electrical power lines
Encryption
  • 128-Bit AES (Advanced Encryption Standard)
Optional Utility: OS Compatibility
  • Windows® 10, 8.1, 8, 7, Vista, XP
Nodes
  • Up to 8 (max.)
Overlapping Powerline Networks
  • Up to 4 (per electrical system)
Power
  • Input: 100 – 240 V AC, 50/60 Hz
  • Consumption: Active mode: 2.7 Watts (max.); Standby mode: 0.34 Watts (max.)
Operating Temperature
  • 0 – 40 °C (32 – 104 °F)
Operating Humidity
  • Max. 90% non-condensing
Certifications
  • CE
  • FCC
Dimensions
  • 68 x 55 x 28 mm (2.7 x 2.2 x 1.1 in.)
Weight
  • A: 64 g (2.2 oz.)
  • EU: 68 g (2.4 oz.)
  • UK: 68 g (2.4 oz.)
Warranty
  • 3 year limited

PACKAGE CONTENTS

  • TPL-406E
  • Quick Installation Guide
  • Network cable (1.5 m / 5 ft.)
Name
Description
Size
Downloads
File
Datasheet
0.6mb
File
User's Guide
1.7mb
File
Quick Installation Guide
1mb
