ExacqVision - ADLCD55VWBHD - 55” LCD FHD 1080p, HDMI, DP, DVI, VGA, Razor-narrow Bezel 0.44mm, IR RC
Part number:
ADLCD55VWBHD
Price:

55” LCD FHD 1080p, HDMI, DP, DVI, VGA, Razor-narrow Bezel 0.44mm, IR RC



Professional Video Wall Solutions
Create stunning video walls composed of virtually seamless displays

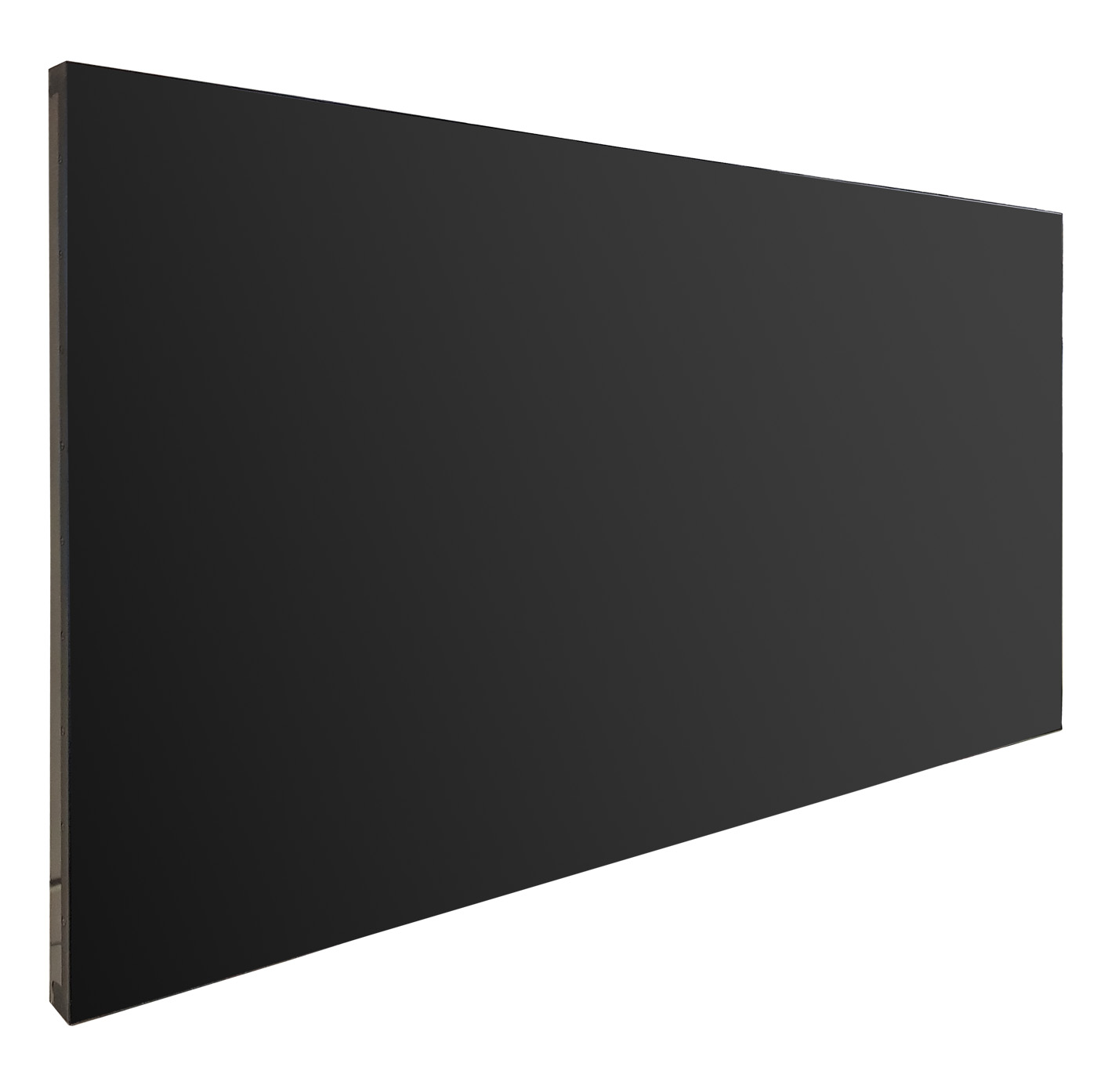

55” Razor-narrow Bezel LCD Monitors
American Dynamics Professional Video Wall Monitors produce sharp, true color images that can be used in security rooms and a variety of other applications. Display a single video source across multiple monitors to create virtually seamless displays. Arranging 4 monitors into a 2 x 2 configuration creates a 110” 4K Ultra High Definition (UHD) image, making these monitors an excellent choice for command & control centers where fine details are critical.

Designed for constant use
Unlike plasma technology, LCD video walls require less power. A built-in auto pixel shift feature protects against image burn in of static content making it ideal for constant use.

Seamless Video Walls
Individually mounted consumer grade monitors leave distracting gaps between the screens, but with our razor-narrow bezel monitors arranged in a tiled video wall configuration, there are virtually no inter-screen borders.



Features:

  • Spread one image across multiple monitors using one video source
  • Video wall processor built in
  • Remote display management
  • Display Port – Input (1)/Output (1)
  • HDMI Inputs (3)/VGA Input (1)/DVI Input (1)
  • RS-232C Input/Output for PC/Server control
  • Control panel lock (panel or IR)
  • Auto power recovery
  • Auto pixel shift
  • All metal chassis
  • PIP/PBP/TRI/QUAD displays
  • VESA standard hole patterns
Physical
Dimensions (H x W x D)1210.51  x 681.22 x 91.6 mm (47.66” x 26.82” x 3.61” )
Weight (Net)26 kg (57.32lbs )
Bezel (T/B/L/R)0.44/0.44/0.44/0.44   mm
Display
Screen Size55 ”
Max. Resolution1920  x 1080 @ 60Hz
Pixel Pitch0.630  x 0.630 mm
Brightness500 cd/m 2
Contrast Ratio1100:1
Aspect Ratio16:9
Viewing Angle178o / 178o
Display Color1.07 Billion (10bits )
Response Time<  8ms (Gray to Gray )
Video SystemNTSC / PAL
Interface
Display Port In/Out1 / 1
HDMI Input3
DVI In1
VGA In1
RS232 In/Out1 / 1
Audio Out (3.5 Ø stereo)1
Transmitter
IR Remote ControlYes
Environmental
Operating Temperature0o ~ 40o C / 32o ~ 104o F
Electrical
Electrical RatingsAC 100 ~ 240V (50/60Hz)
Power Consumption<  167W
Features
Multi Display FunctionPBP/PIP/QUAD
Temperature SensorYes (Option)
De-InterlaceYes
Noise ReductionYes
Auto Fan Control SystemYes (Option)
Auto Pixel ShiftYes
Auto Source SwitchingYes
Edge Setting (Horizontal/ Vertical)Yes
Advance Auto Power RecoveryYes
LanguageEnglish
RS-232C ControlMonitor OSD control using PC
Mounts
VESA Mount Size600  x 400mm
Warranty
Parts/Labor3  years
