TRENDNET - TEW-841APBO - 5dBi Wireless AC1200 Outdoor PoE+ Omni Directional Access Point

Name: TRENDNET - TEW-841APBO - 5dBi Wireless AC1200 Outdoor PoE+ Omni Directional Access Point
Brand: Trendnet
SKU: TEW-841APBO

Part number:

TEW-841APBO

Price:

Dealers only

Add to Quote/Project Registration

Description Specifications Downloads

TRENDnet's 5 dBi Wireless AC1300 Outdoor PoE+ Omni-Directional Access Point, model TEW-841APBO, is designed for point-to-point and point-to-multi-point WiFi bridging applications. The wireless multi-point bridge can be powered with a PoE+ switch or PoE+ injector of your choosing. A variety of installation scenarios are facilitated with Access Point, WDS Bridge, WDS Access Point, WDS Station, and Client Bridge modes. The IP67 rated housing on the wireless multi-point bridge is designed for outdoor environments, and includes wall and pole mounting hardware.

Features:

Dual band Wireless AC1300 point-to-point and point-to-multi-point bridge
4 x 5 dBi omni-directional antennas
Supports Access Point, WDS Bridge, WDS Access Point, WDS Station, and Client Bridge modes
Supports IEEE 802.3at PoE+
IP67 outdoor weather rated housing
NDAA / TAA compliant (U.S. and Canada only)

Standards	IEEE 802.3 IEEE 802.3u IEEE 802.3x IEEE 802.3ab IEEE 802.3az IEEE 802.3at IEEE 802.1Q IEEE 802.11a IEEE 802.11b
IEEE 802.11g	IEEE 802.11n (up to 400Mbps @ 256QAM) IEEE 802.11ac Wave 2 (5GHz: up to 867Mbps @ 256QAM)
Hardware Interface	1 x PoE+ Gigabit LAN port (power input) 4 x RP-SMA (female) antenna connectors LED indicators
Features	802.11ac MU-MIMO Wave 2 support IP67 rated housing Concurrent dual band Band steering WiFi traffic shaping 802.1Q VLAN assignment per SSID IPv6 support (Link-Local, Static IPv6) LEDs on/off 802.11k intelligent radio resource management RSSI Threshold (client signal strength and connectivity control)
Operation Modes	Access Point Client Bridge WDS Access Point WDS Bridge WDS Station
Management/Monitoring	Web based management SNMP v1/v2c/v3 STP Event logging Ping test Traceroute Nslookup Telnet
Access Control	Wireless encryption: WEP, WPA/WPA2-PSK, WPA/WPA2-RADIUS MAC filter Maximum client limit
QoS	WMM Bandwidth control per SSID or client
SSID	Up to 8 SSIDs
Frequency	2.4GHz: 2.412 – 2.462GHz 5GHz: 5.180 – 5.240GHz, 5.745 – 5.825GHz
Wireless Channels	2.4GHz: FCC: 1–11 5GHz: FCC: 36, 40, 44, 48, 149, 153, 157, 161 and 165
Modulation	DBPSK/DQPSK/CCK for DSSS technique BPSK/QPSK/16-QAM/64-QAM/256-QAM for OFDM technique
Antenna Gain	2.4GHz: 2 x 5 dBi external 5GHz: 2 x 5 dBi external
Wireless Output Power	802.11a: FCC/IC: 19 dBm (max.) 802.11b: FCC/IC: 19 dBm (max.) 802.11g: FCC/IC: 19 dBm (max.) 802.11n (2.4GHz): FCC/IC: 19 dBm (max.) 802.11n (5GHz): FCC/IC: 19 dBm (max.) 802.11ac: FCC: FCC/IC: 19 dBm (max.)
Receiving Sensitivity	802.11a: -72 dBm (typical) @ 54 Mbps 802.11b: -87 dBm (typical) @ 11 Mbps 802.11g: -72 dBm (typical) @ 54 Mbps 802.11n (2.4 GHz): -67 dBm (typical) @ 400 Mbps 802.11n (5 GHz): -61 dBm (typical) @ 400 Mbps 802.11ac: -58 dBm (typical) @ 867 Mbps
Power	IEEE 802.3at Type 2 PoE PD Class 4 Max. consumption: 12.6W
Operating Temperature	-22° – 60° C (-7.6° – 140° F)
Operating Humidity	Max. 90% non-condensing
Certifications	FCC IC
Dimensions	111 x 174 x 38mm (4.4 x 6.9 x 1.5 in.)
Weight	302g (10.7 oz.)
Warranty:	3 year

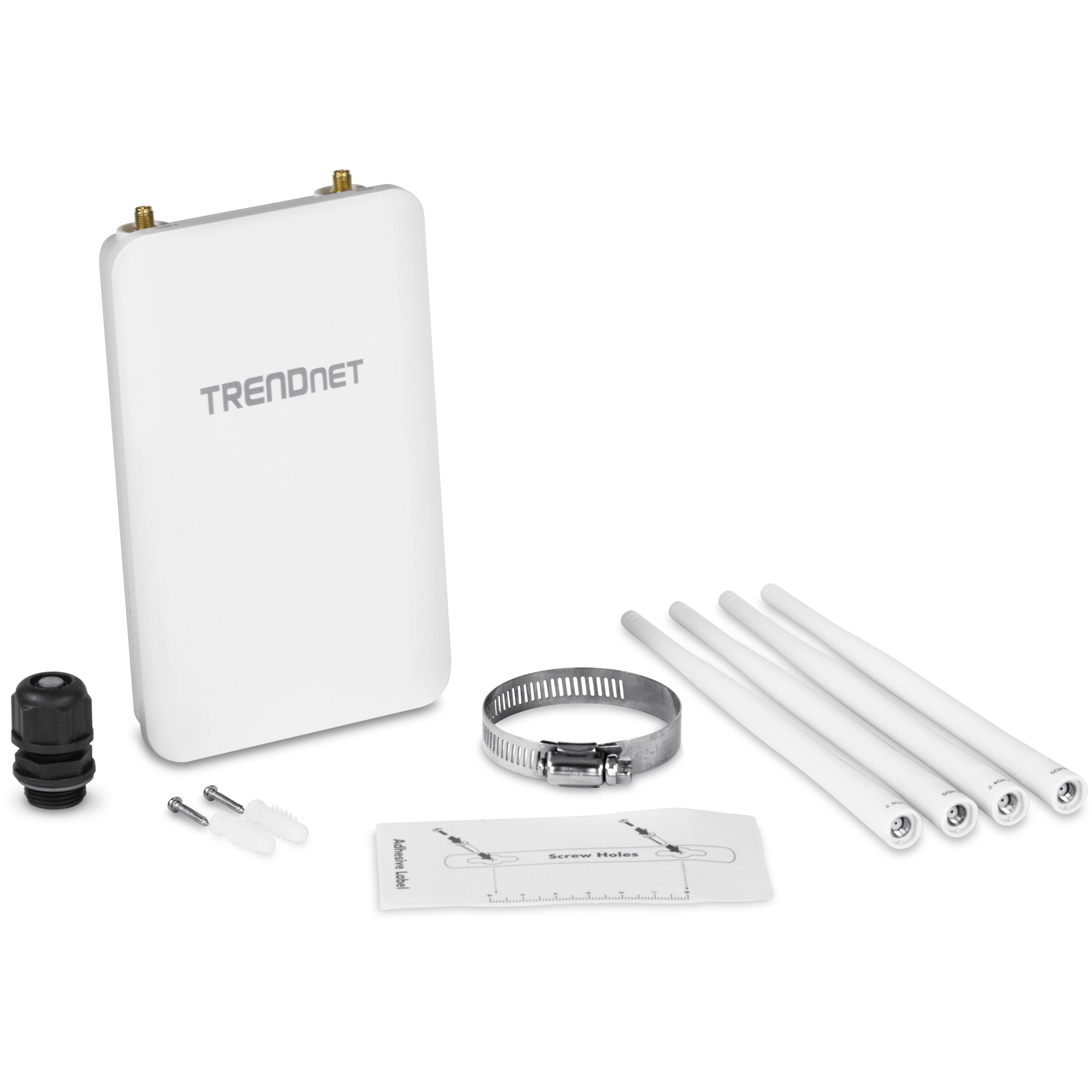

PACKAGE CONTENTS

TEW-841APBO
2 x Detachable 2.4GHz 5 dBi antennas
2 x Detachable 5GHz 5 dBi antennas
IP67 weather rated cable gland
Mounting hardware
Quick Installation Guide
