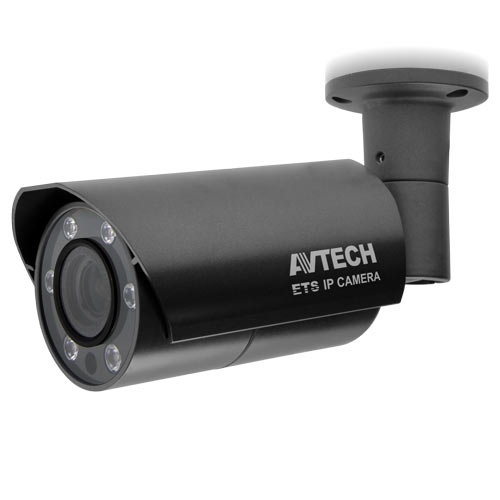

Avtech - AVM5547 - 5MP H.265 IR Bullet IP Camera
Part number:
AVM5547
Price:
- • 5MP H.265 IR Bullet IP Camera
- • Equipped with a motorized lens of f2.8 ~ 12mm
- • Free P2P Cloud EaZy Networking
- • ONVIF standard supported to simplify system integration
- • POE (Power-over-Ethernet) support to eliminate the use of power cables and reduce installation costs
- • Line in / out jacks available for audio transmission
- • IR effective range up to 50 meters for night surveillance
- • WDR to increase image recognizability in overexposure and dark areas
- • Excellent outdoor ID design with cable management
- • Remote Surveillance
- • MicroSD card support (up to 128GB) for video storage
- • External alarm I/O device connection
| Video | |
|---|---|
| Network Compression | H.265 / H.264 / MJPEG |
| Video Resolution | 2592 x 1944 / 2048 x 1536 / 1920 x 1080 / 1280 x 720 / 640 x 480 / 320 x 240 |
| Frame Rate | 30/25 IPS |
| Multiple Video Streaming | 4 (H.265 / H.264 / MJPEG) |
| Network | |
| LAN Port | YES |
| LAN Speed | 10/100 Base-T Ethernet |
| Supported Protocols | DDNS, PPPoE, DHCP, NTP, SNTP, TCP/IP, ICMP, SMTP, FTP, HTTP, RTP, RTSP, RTCP, IPv4/IPv6, Bonjour, UPnP, DNS, UDP, IGMP, QoS, SNMP |
| ONVIF Compatible | YES (Profile S) |
| Number of Online Users | 10 |
| Security | Multiple user access levels with password IP address filtering Digest authentication |
| Remote Access | Internet Explorer on Windows operating system CMS Lite, 32CH CMS software for Windows operating system EagleEyes on iOS & Android mobile devices |
| General | |
| Image Sensor | 1/2.9" SONY CMOS image sensor |
| Min Illumination | 0.1 Lux / F1.4(Wide)~F2.8(Tele), 0 Lux (IR LED ON) |
| Shutter Speed | 1/10,000 ~ 1/15 (Slow shutter) |
| S/N Ratio | More than 48dB (AGC off) |
| Lens | Motorized f2.8 ~ 12mm / F1.4 ~ F2.8 (Auto Focus) |
| Viewing Angle | Wide: 70.4° (Horizontal) / 65.6° (Vertical) / 87.4° (Diagonal) Tele: 25.9° (Horizontal) / 19.2° (Vertical) / 31.8° (Diagonal) |
| IR LED | YES |
| IR Effective Distance | Up to 50 meters |
| IR Shift | YES |
| Smart Light Control | YES |
| White Balance | ATW |
| AGC | Auto |
| IRIS Mode | AES |
| WDR | YES |
| POE | YES (IEEE 802.3af) |
| Defog | YES |
| External Alarm I/O | YES (1 input / 1 output) |
| Micro SD Card Slot | YES (up to 128GB) |
| RAM | 20MB |
| IP Rating | IP66 |
| Startup Temperature | 0℃ ~ 50℃ |
| Operating Temperature | -40℃ ~ 50℃ |
| Operating Humidity | 90% or less relative humidity |
| Power Source (±10%) | DC12V / 1A |
| Current Consumption (±10%) | 225mA (IR LED OFF); 650mA (IR LED ON) |
| Power Consumption (±10%) | 9.5W (PoE / PoN); 8W (DC Adapter) |
| Net Weight | 0.91 kg |
