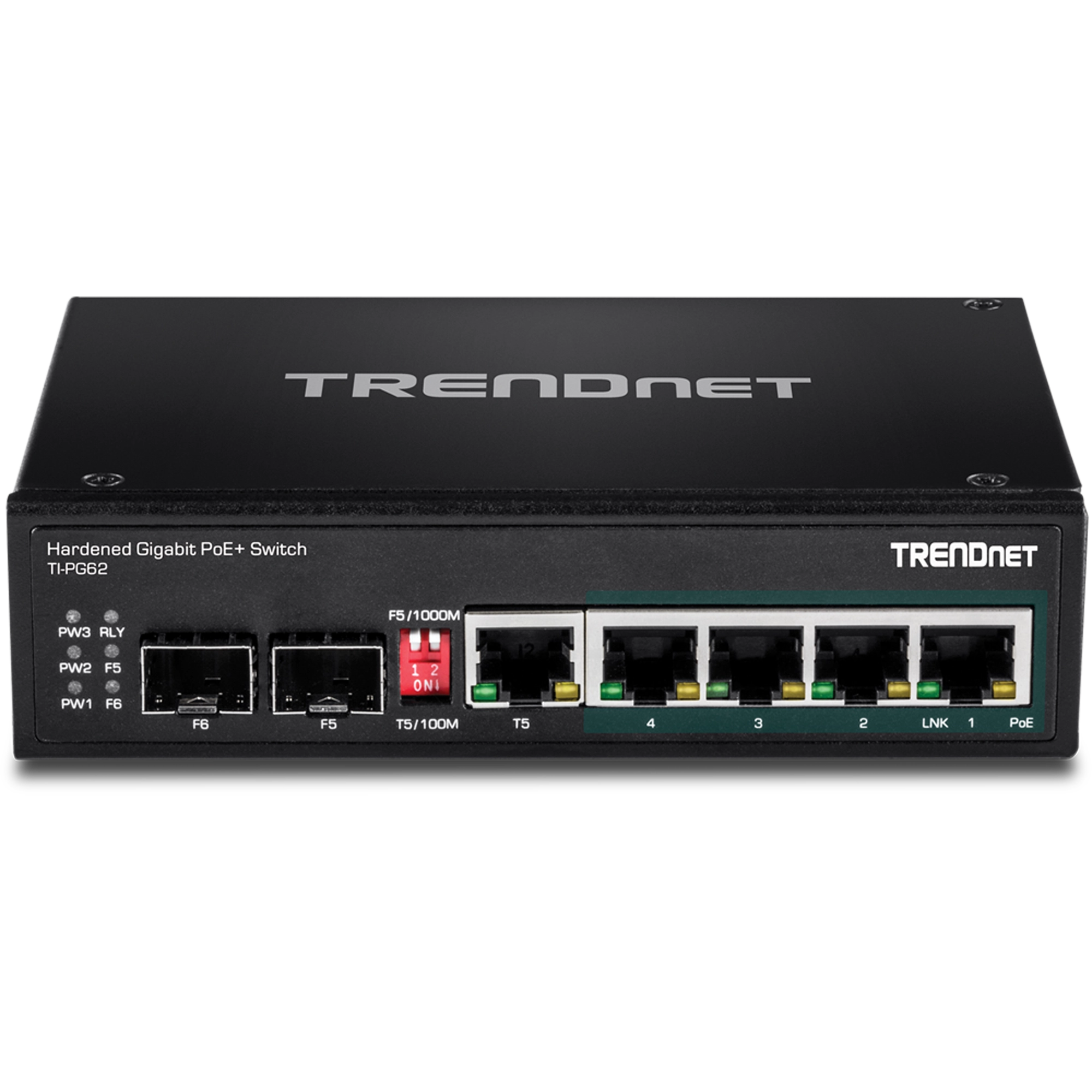

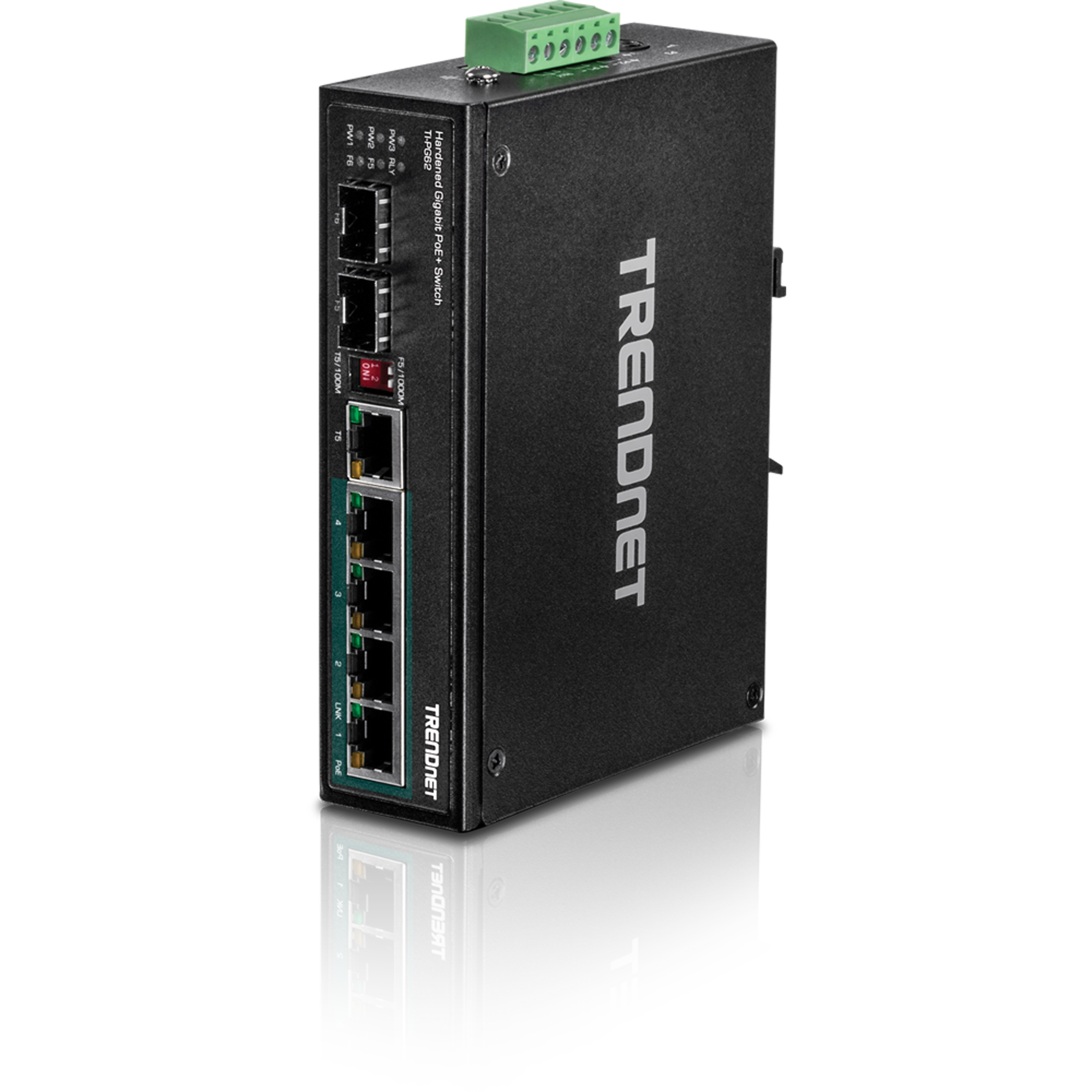

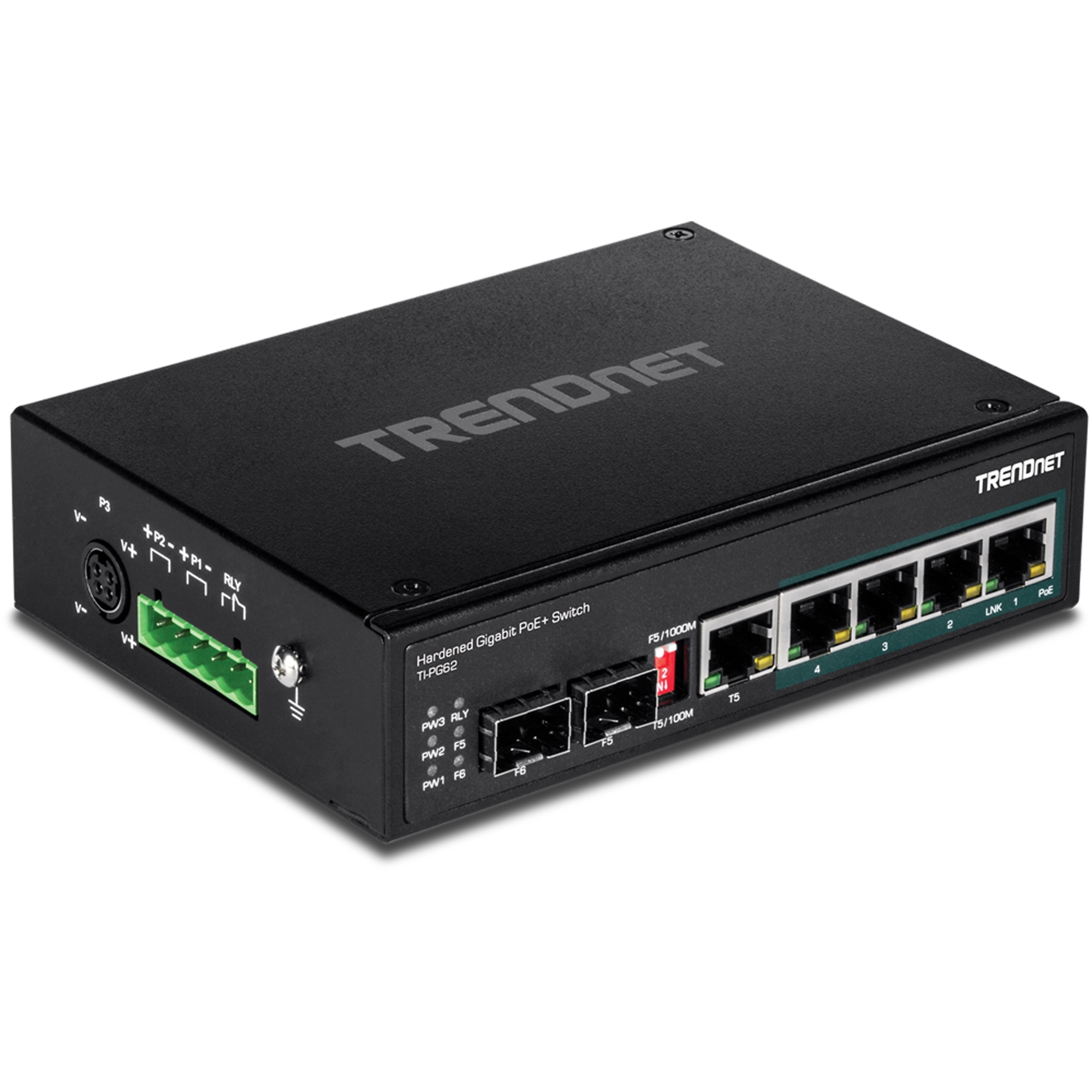

TRENDnet's TI-PG62 is a reliable IP30 unmanaged DIN-rail PoE+ switch with a rugged housing rated for extreme industrial environments. It offers 4 Gigabit PoE+ ports, one shared Gigabit port (RJ-45 / SFP), one dedicated SFP slot, and a 12 Gbps switching capacity. Redundant power inputs and a power failure alarm relay.
PoE Power
A 120 Watt PoE+ power budget supplies up to four Power over Ethernet devices with PoE+ power.
Fault Tolerance

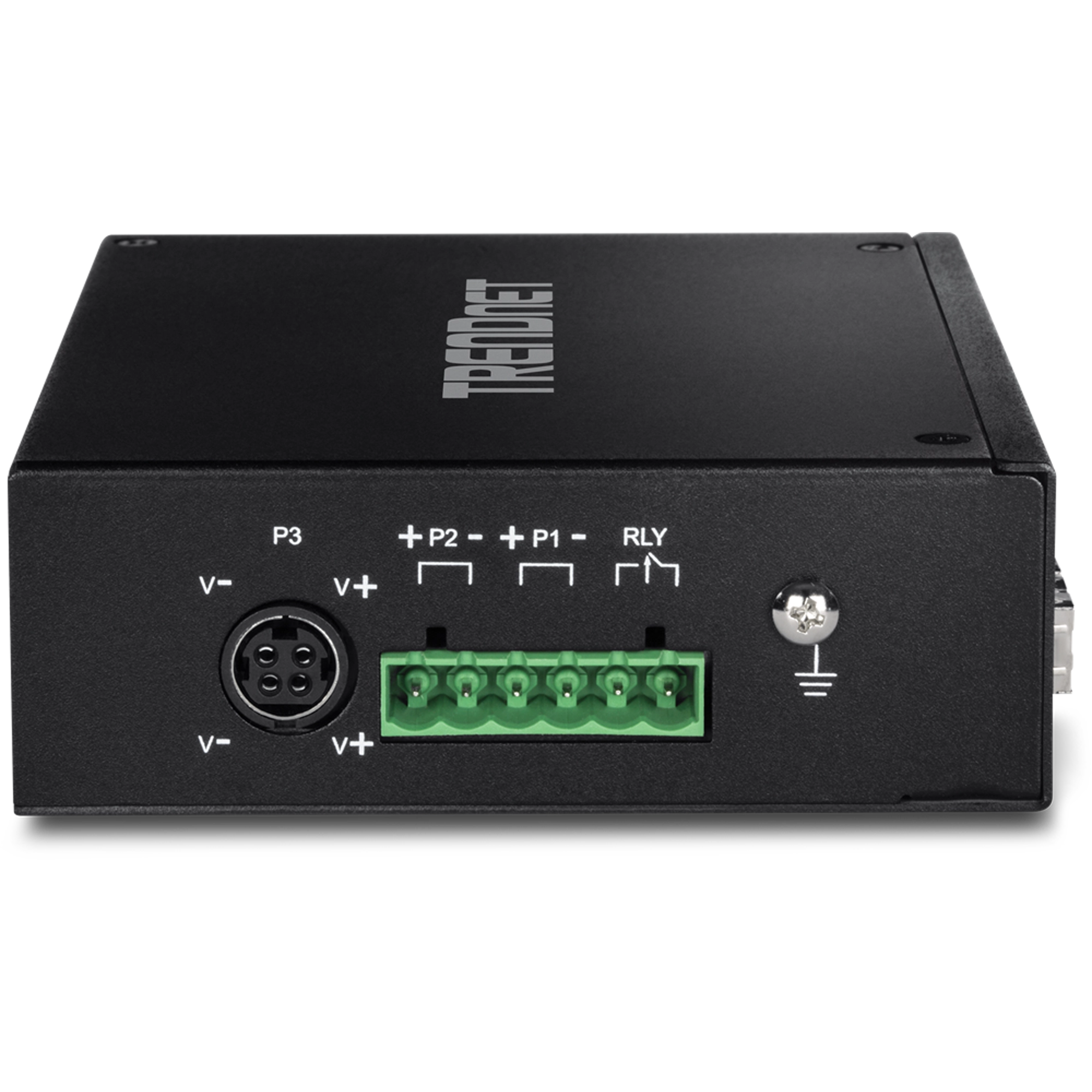

Features redundant power inputs (Primary and RPS) from external power sources and an output alarm relay to indicate the event of input power failure.
Industrial Hardened Design
Equipped with a rugged IP30 rated enclosure and designed to withstand a high degree of vibration, shock, protection against ESD / EMI / surge, and operate with a wide temperature range (- 40 – 75 °C (- 40 - 167 °F)) for harsh environments.
Features:
- 4 x Gigabit PoE+ ports
- 1 x shared Gigabit port (RJ-45 / SFP)
- 1 x dedicated SFP slot
- 120 Watt power budget
- 12 Gbps switching capacity
- Hardened IP30 rated metal switch

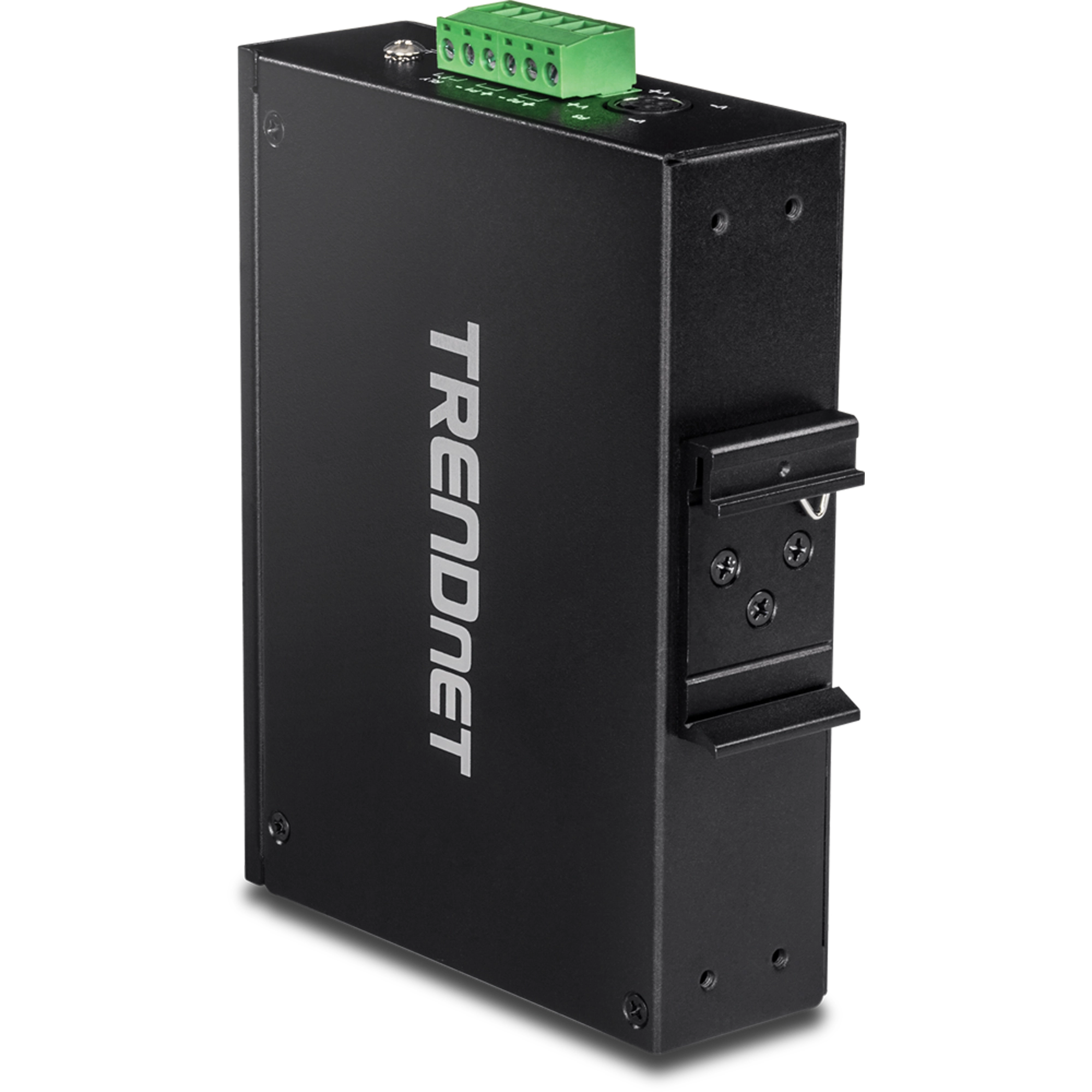

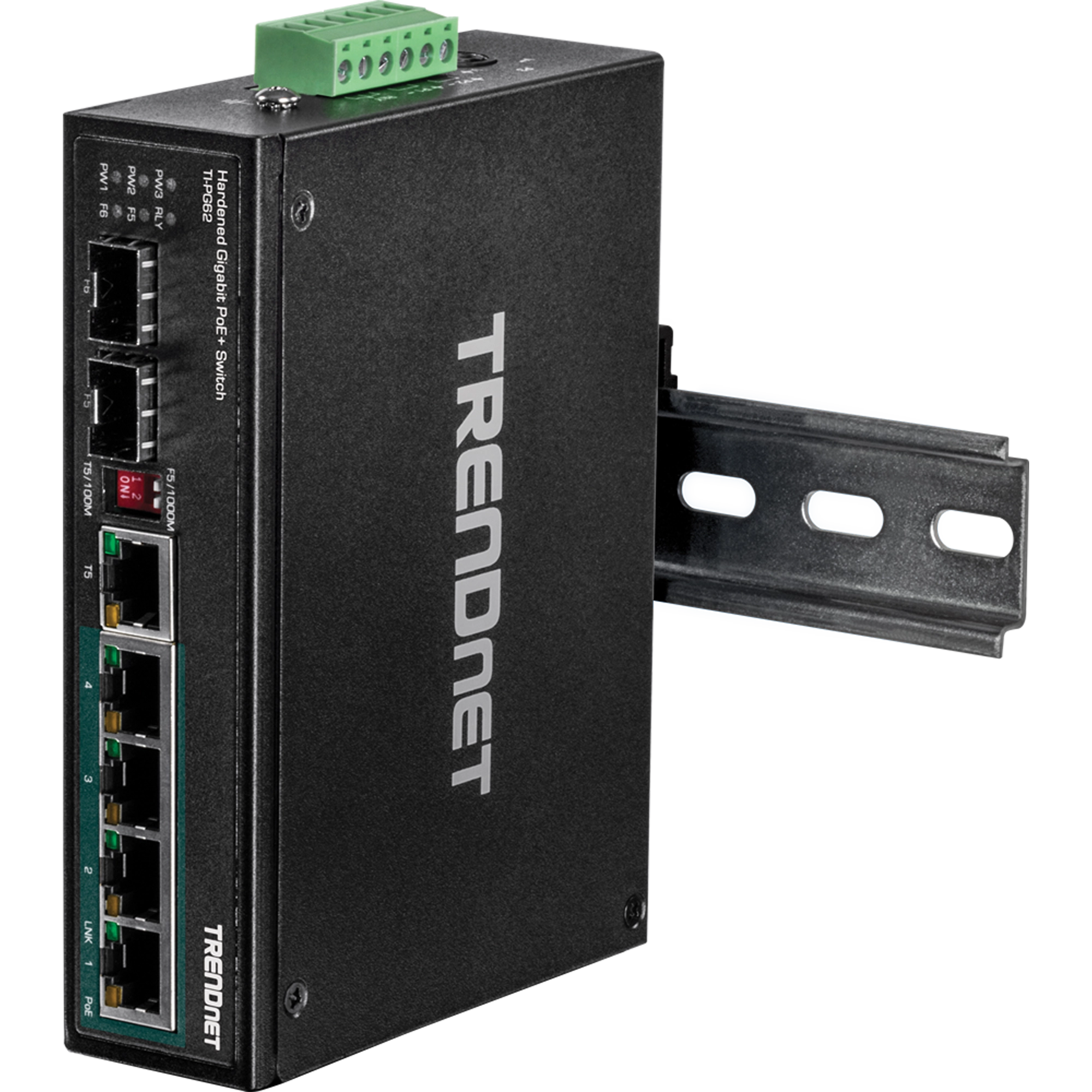

- Includes wall and DIN-rail mounts
- Extreme -40 to 75 ºC (-40 to 167 ºF) operating temperature range
- Redundant power inputs with overload current protection
- Alarm output triggered by power failure
- Power supply sold separately (models: TI-S15052, TI-S24052, TI-S12048, TI-S24048, 48VDC3000)
- NDAA / TAA compliant
- Lifetime Warranty*
| Technical Specifications | |
| Standards |
|
| Device Interface |
|
| Data Transfer Rate |
|
| Performance |
|
| Special Features |
|
| DC Power |
|
| AC Power |
|
| PoE |
|
| Terminal Block |
|
| DIP Switch |
|
| Alarm Relay Contact |
|
| MTBF |
|
| Housing |
|
| Operating Temperature |
|
| Operating Humidity |
|
| Dimensions |
|
| Weight |
|
| Certifications |
|
| Warranty |
|
