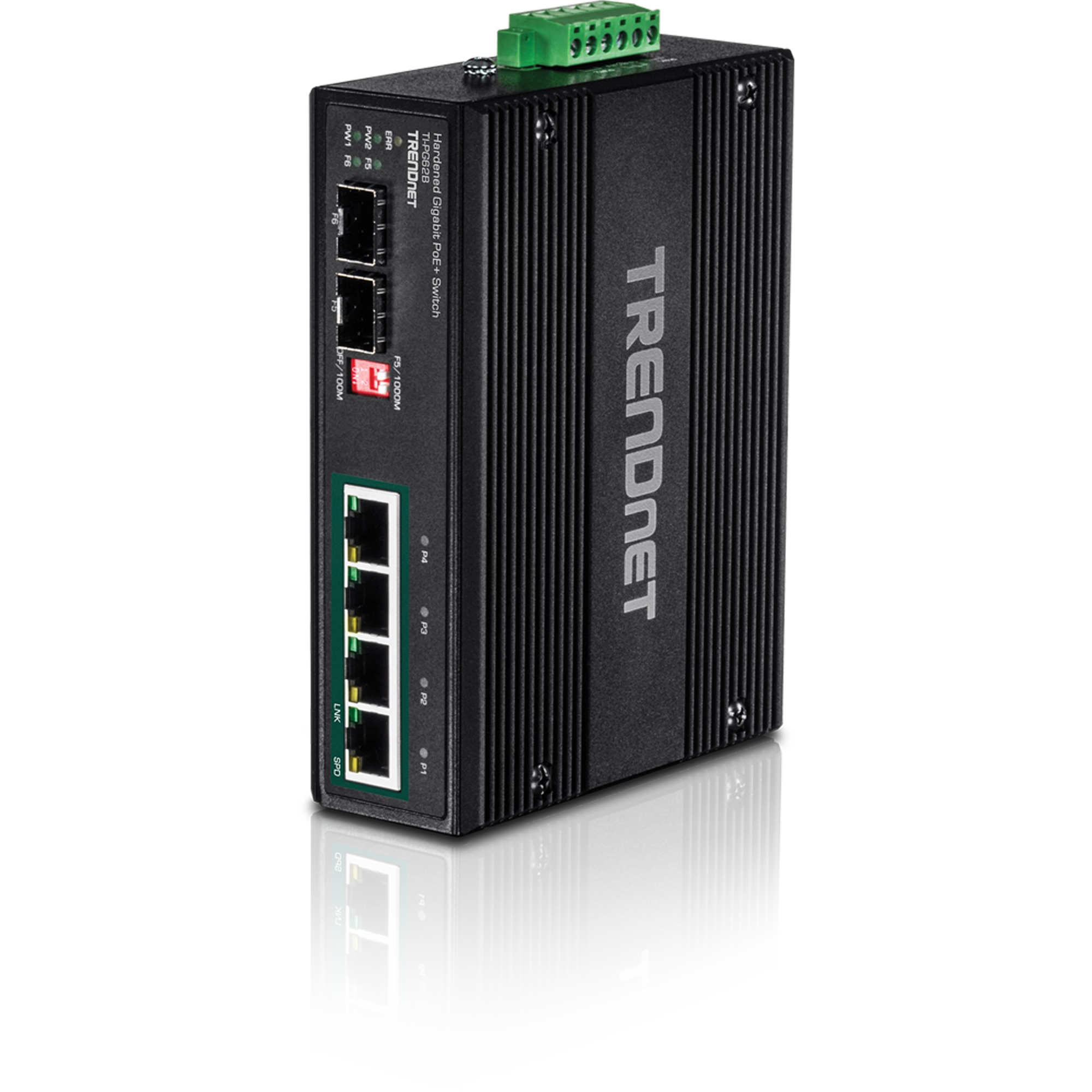

TRENDnet’s 6-Port Industrial Gigabit PoE+ DIN-Rail Switch, model TI-PG62B, is an industrial variable voltage switch with four gigabit PoE+ ports, a 120W PoE power budget, and two dedicated SFP slots. Users are able to connect four PoE+ devices and two SFP modules to this industrial variable voltage PoE+ switch with a 12Gbps switching capacity for high-speed connectivity to the network. The industrial variable voltage PoE+ switch is equipped with a rugged IP30 rated metal enclosure, and designed to withstand a high degree of vibration and shock, while operating within a wide temperature range of -40° – 75° C (-40° – 167° F) for industrial environments. Dual 12 – 55V DC power inputs on the industrial variable voltage switch provide redundancy with power failure alarm relay.

PoE Power

A 120W PoE+ power budget on the industrial variable voltage PoE+ switch supplies up to four Power over Ethernet devices with PoE+ power.

Fault Tolerance

The industrial variable voltage PoE switch features dual 12V – 55V DC power inputs for redundancy with overload current protection.

Industrial Design

Equipped with a rugged IP30 rated housing, resistant to a high degree of vibration and shock, and operates within a wide temperature range of -40° – 75° C (-40° – 167° F).

Features:

• 4 x Gigabit PoE+ ports
• 2 x SFP slots (100/1000Mbs)
• PoE power budget 60W@12V – 120W@24-55V
• 12Gbps switching capacity
• Hardened IP30 rated metal switch

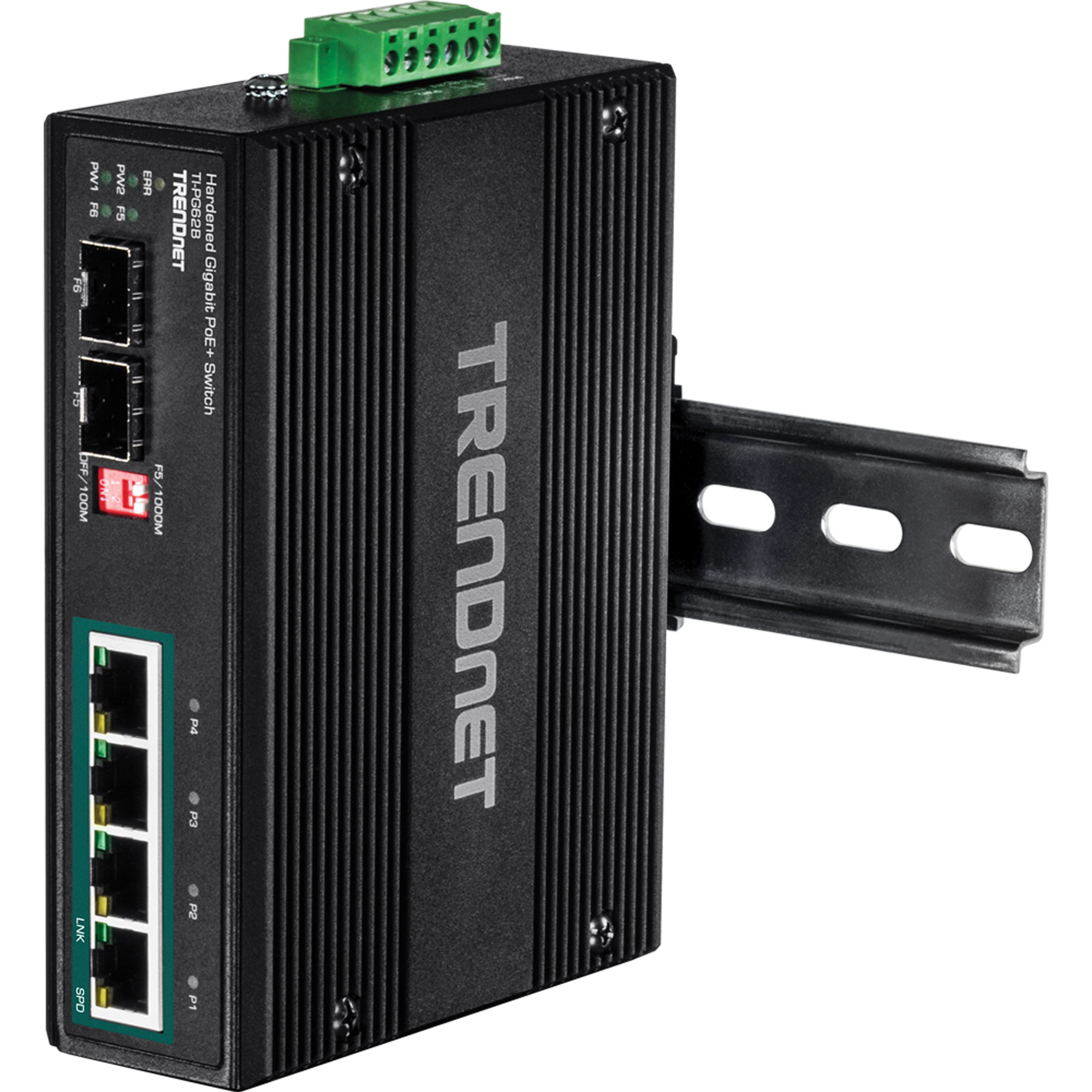

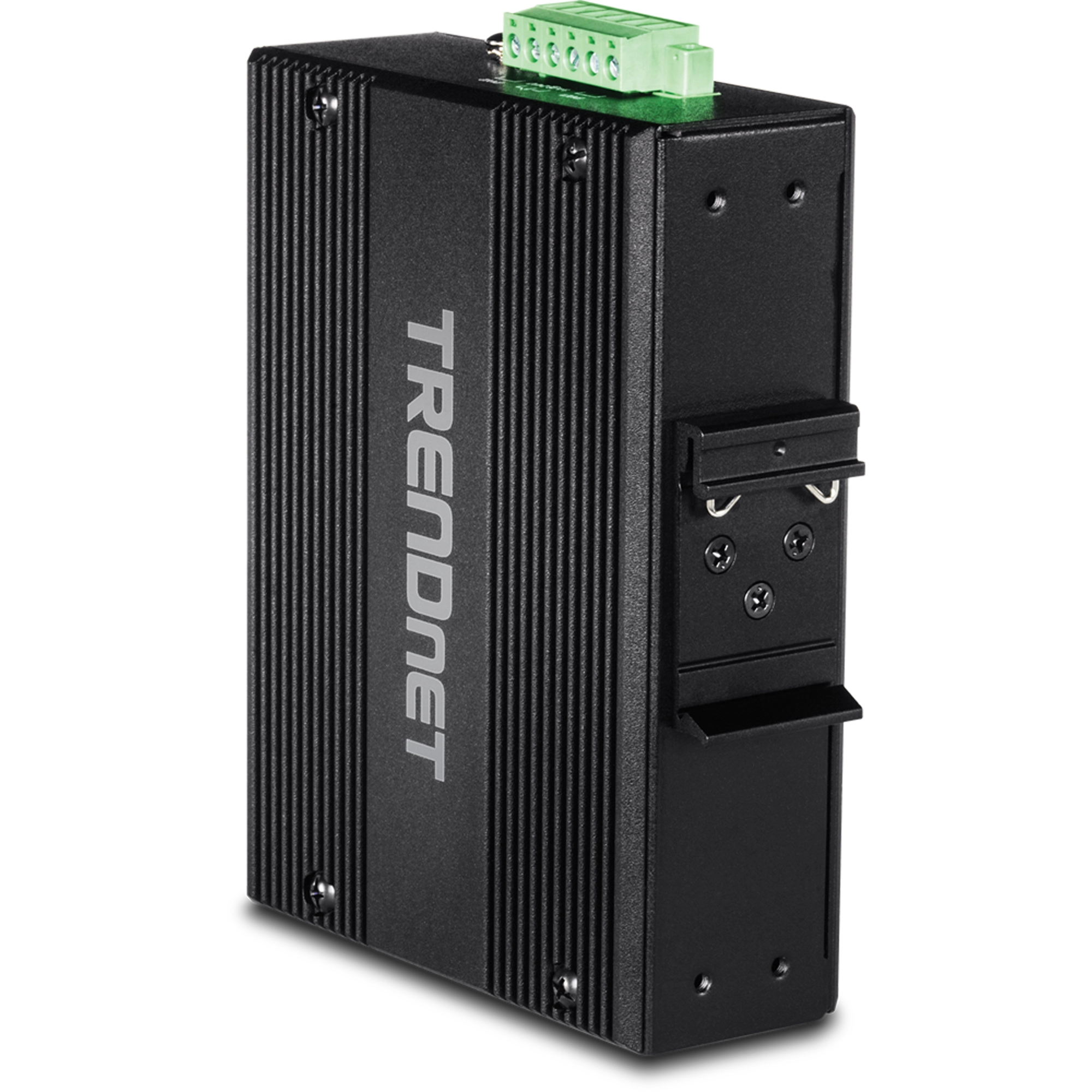

• Includes DIN-Rail and wall mounts
• Operating temperature range of -40° – 75° C (-40° – 167° F)

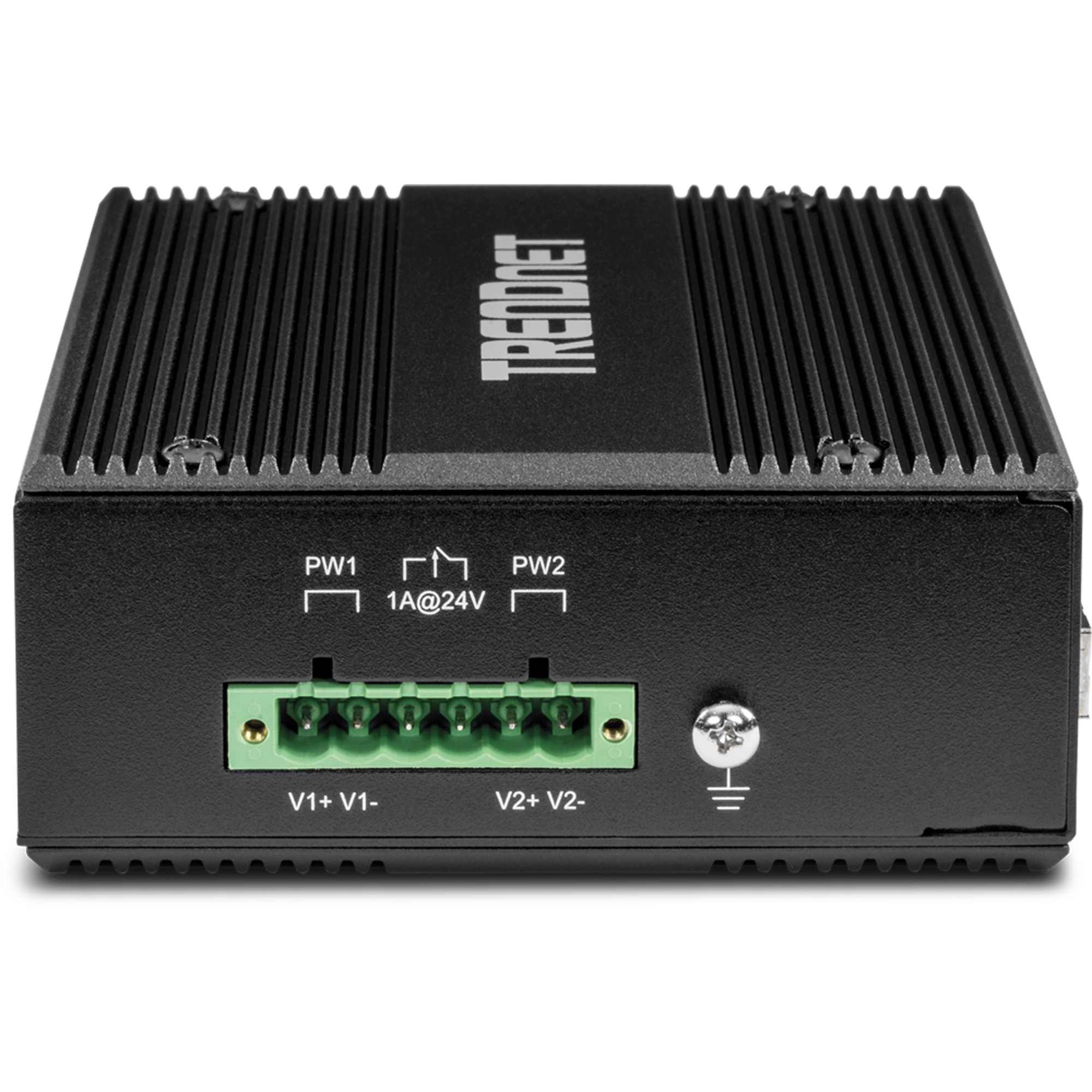

• Dual 12 – 55V DC power inputs for redundancy
• Power supply sold separately (models: TI-S15052, TI-S24052, TI-S12024, TI-S12048, TI-S24048, TI-M6024)
• NDAA / TAA compliant
• Lifetime Warranty*
