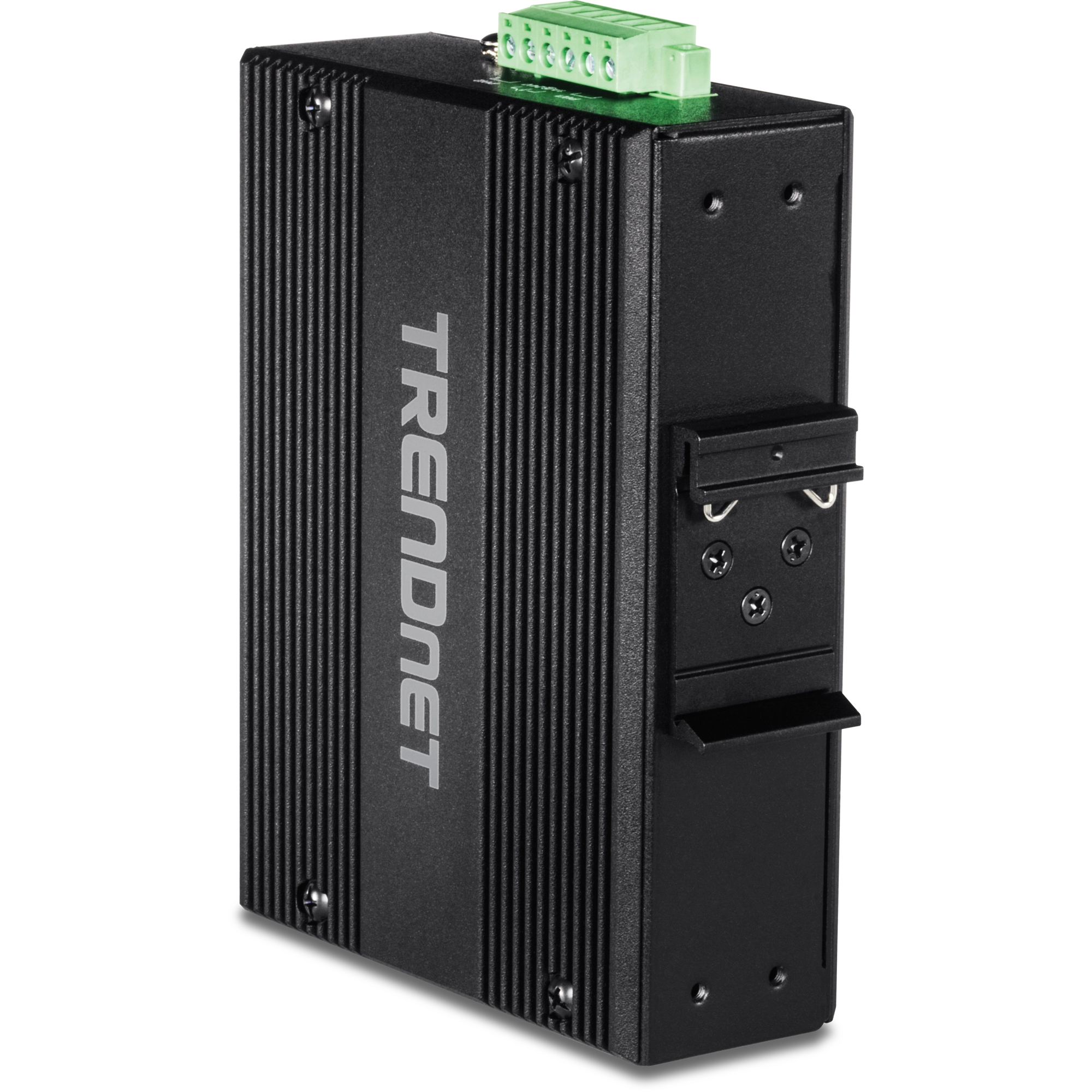

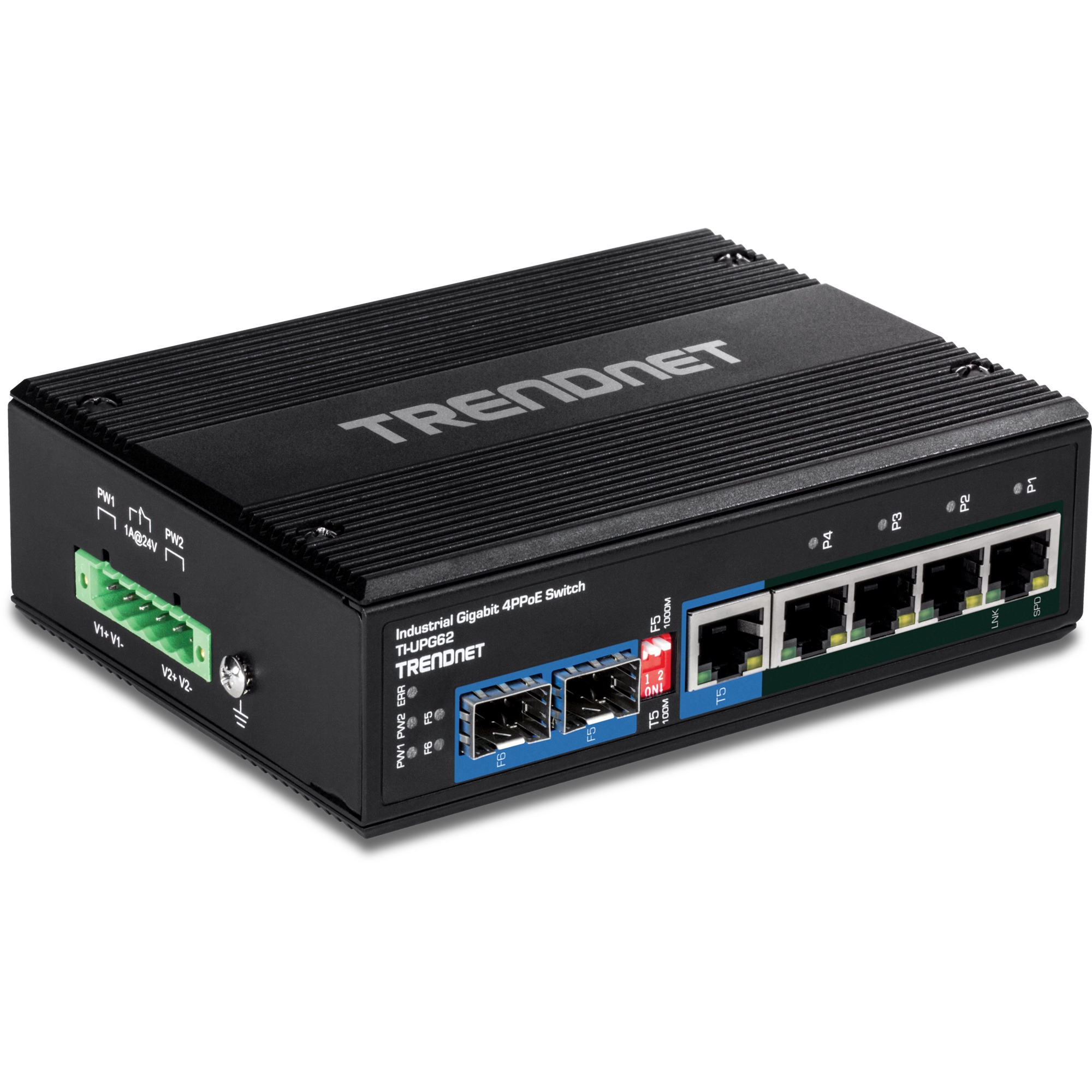

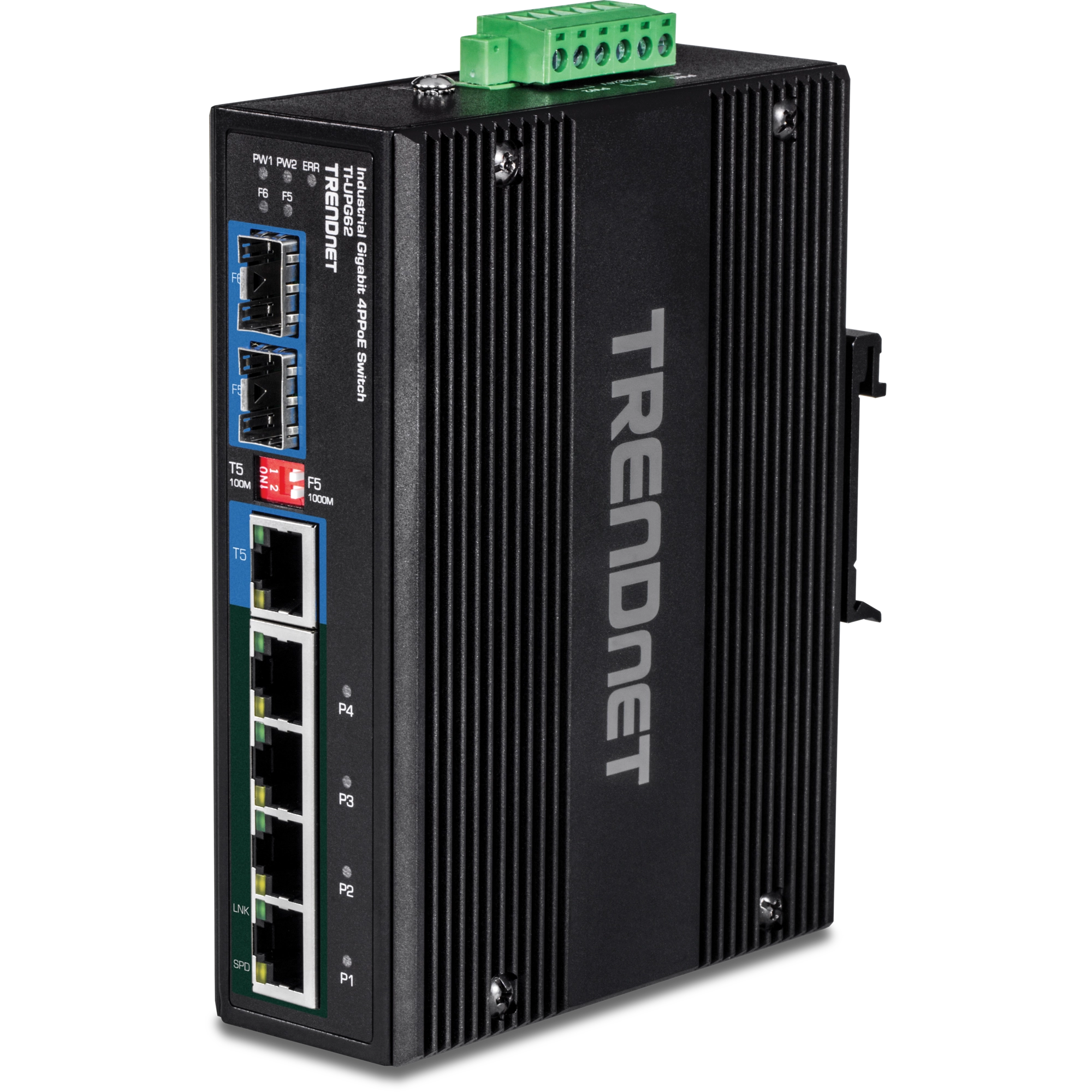

TRENDnet's TI-UPG62 is a reliable IP30 unmanaged DIN-Rail PoE++ switch with a rugged housing rated for extreme industrial environments. It offers 4 Gigabit PoE++ ports, a 240W PoE power budget, two dedicated SFP slots, and a 12 Gbps switching capacity. This hardened industrial switch features multiple redundant power inputs and a power failure alarm relay.

PoE++

A 240 watt PoE power budget supplies up to four Power over Ethernet devices with PoE (15.4W), PoE+ (30W), or PoE++ (90W) power.

Fault Tolerance

Features multiple redundant power inputs (Primary and RPS) from external power sources and an output alarm relay in the event of input power failure.

Industrial Hardened Design

Designed with a rugged IP30 rated enclosure, resistance to a high degree of vibration and shock, protection against ESD/EMI/surge, and a wide operating temperature range (- 40 – 75 °C (- 40 - 167 °F)).

Features:

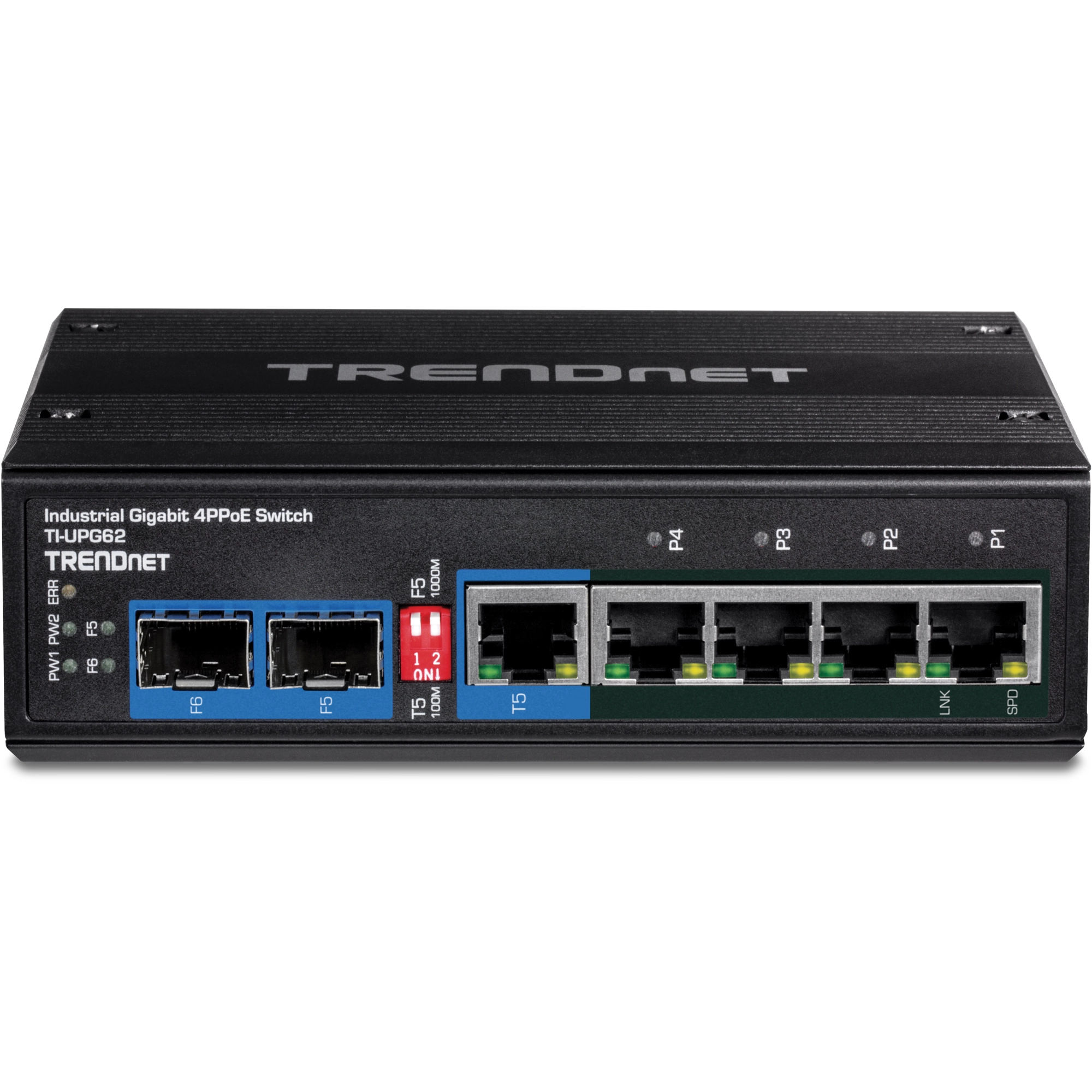

• 4 x Gigabit PoE++ ports
• 1x Gigabit share port
• 2 x Gigabit SFP slots
• 240W power budget
• 12Gbps switching capacity
• Hardened IP30 rated metal switch

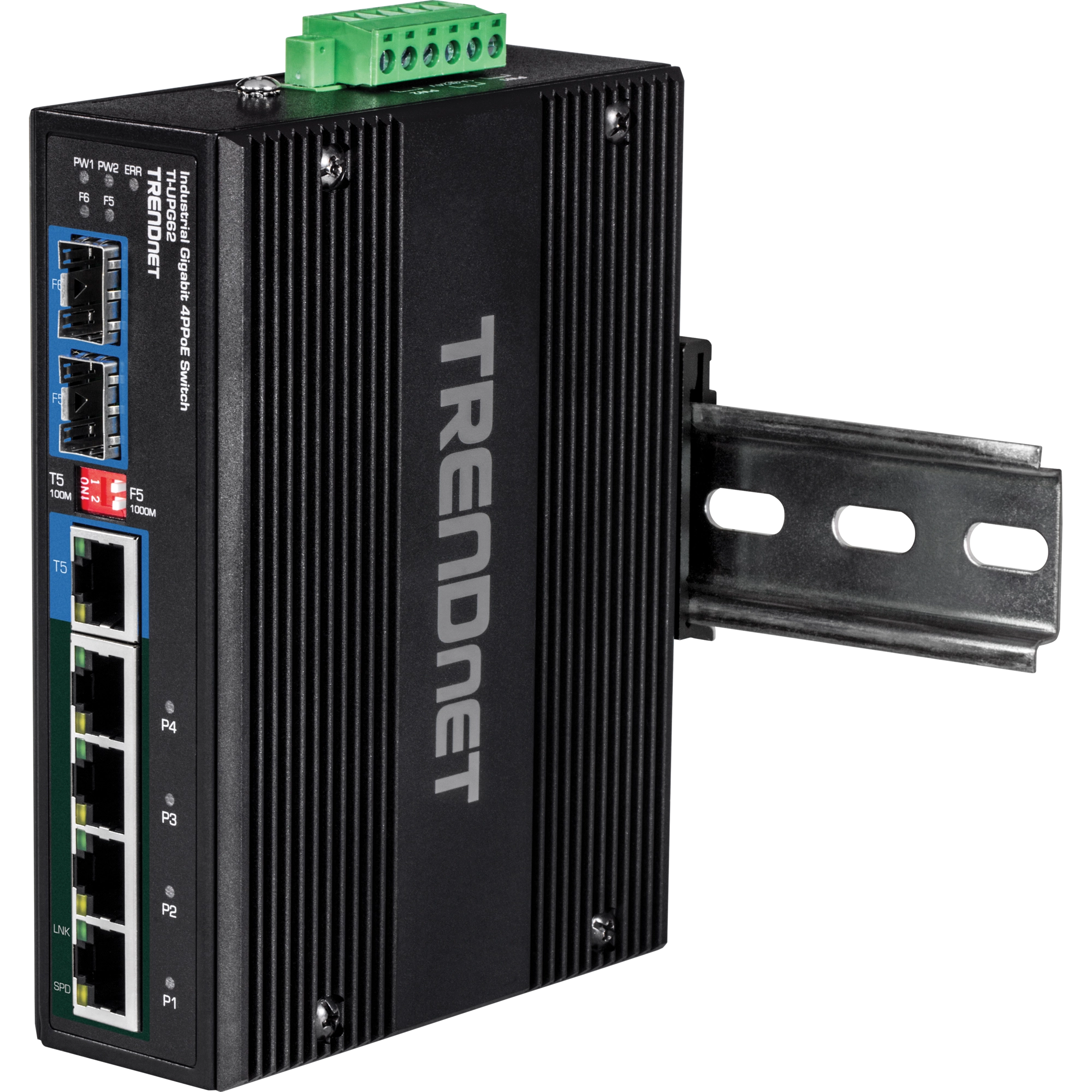

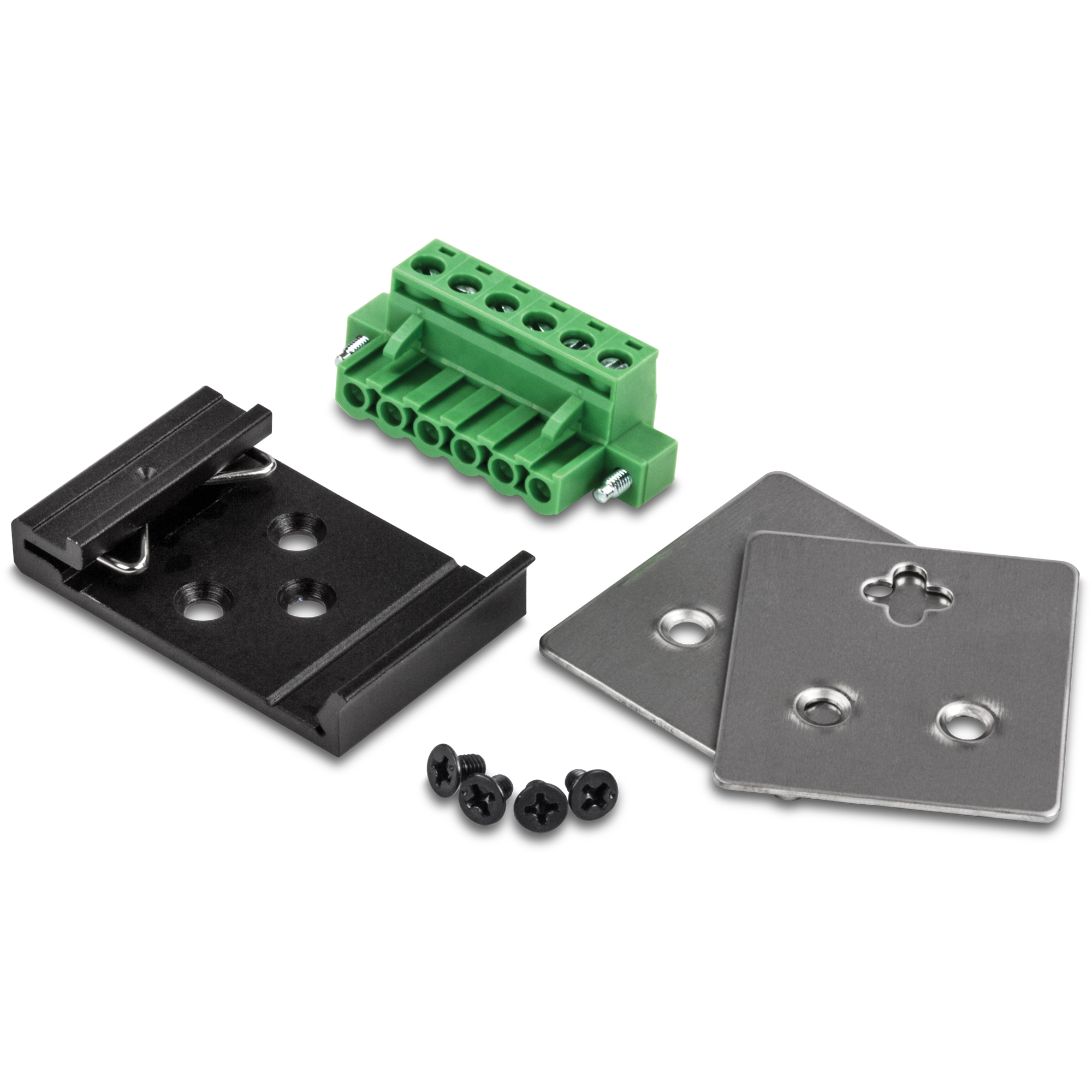

• Includes DIN-rail and wall mounts
• Wide operating temperature range of -40° – 75° C (-40° – 167° F)

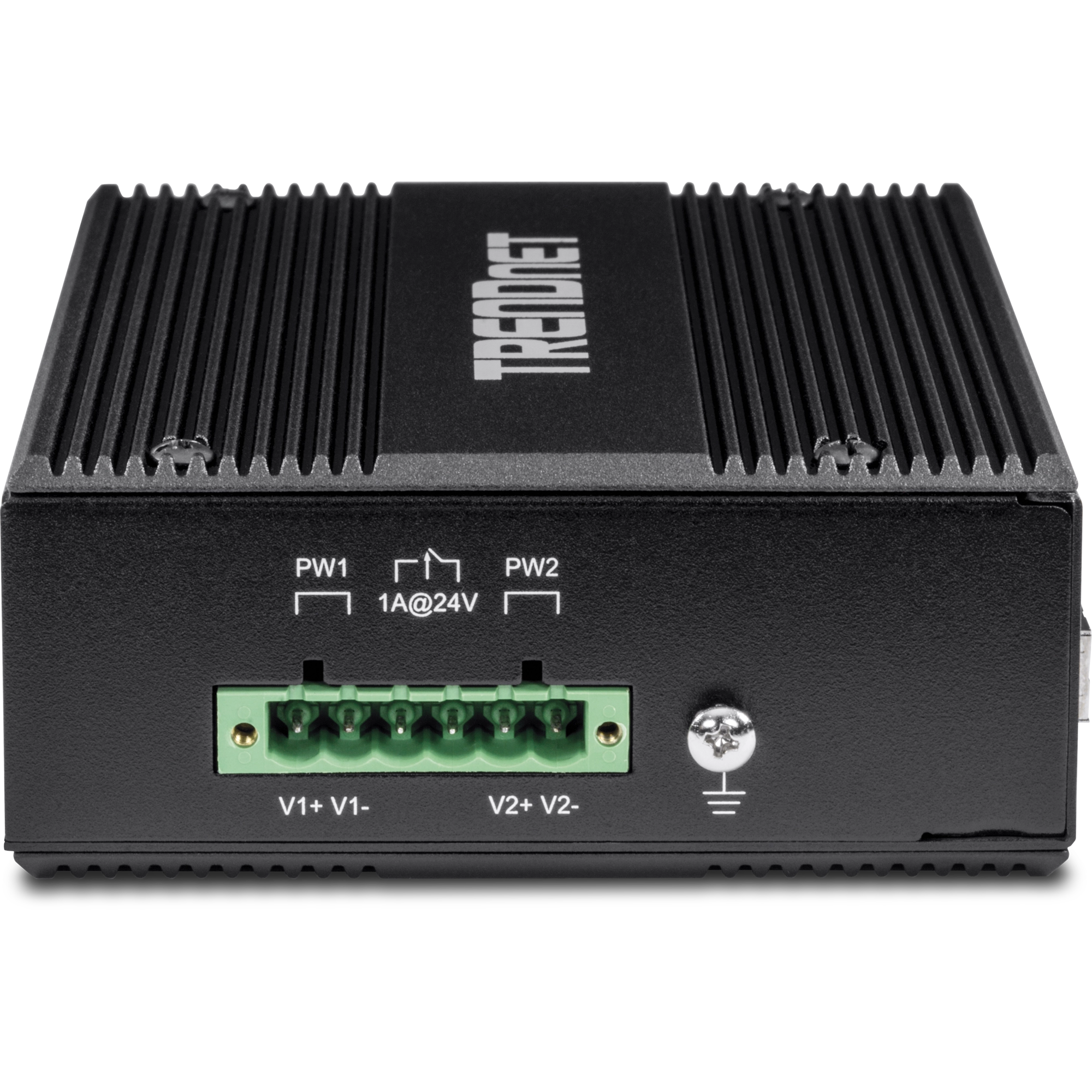

• Dual power inputs for redundancy
• Alarm output triggered by power failure
• Power supply sold separately (TI-S24052, TI-S24048)
• NDAA / TAA compliant
• Lifetime Warranty*
