TRENDnet's Industrial Gigabit PoE+ Wall-Mounted Front Access Switch Series is well suited for IP surveillance, IoT, and automation networks for homes and businesses. These hardened industrial gigabit flat switches provide front access to ports and power interfaces for easier installation. The flat and compact size make them ideal for cabinet installations where space is limited. Each hardened industrial front access switch features gigabit PoE+ ports for connecting devices, such as wireless access points, IP cameras, and IoT appliances. These hardened front access switches come equipped with an IP40 rated metal enclosure, designed to withstand a high degree of vibration and shock, while operating within a wide temperature range of -40° – 75° C (-40° – 167° F) for industrial environments.

Wall-Mounted Front Access Switch

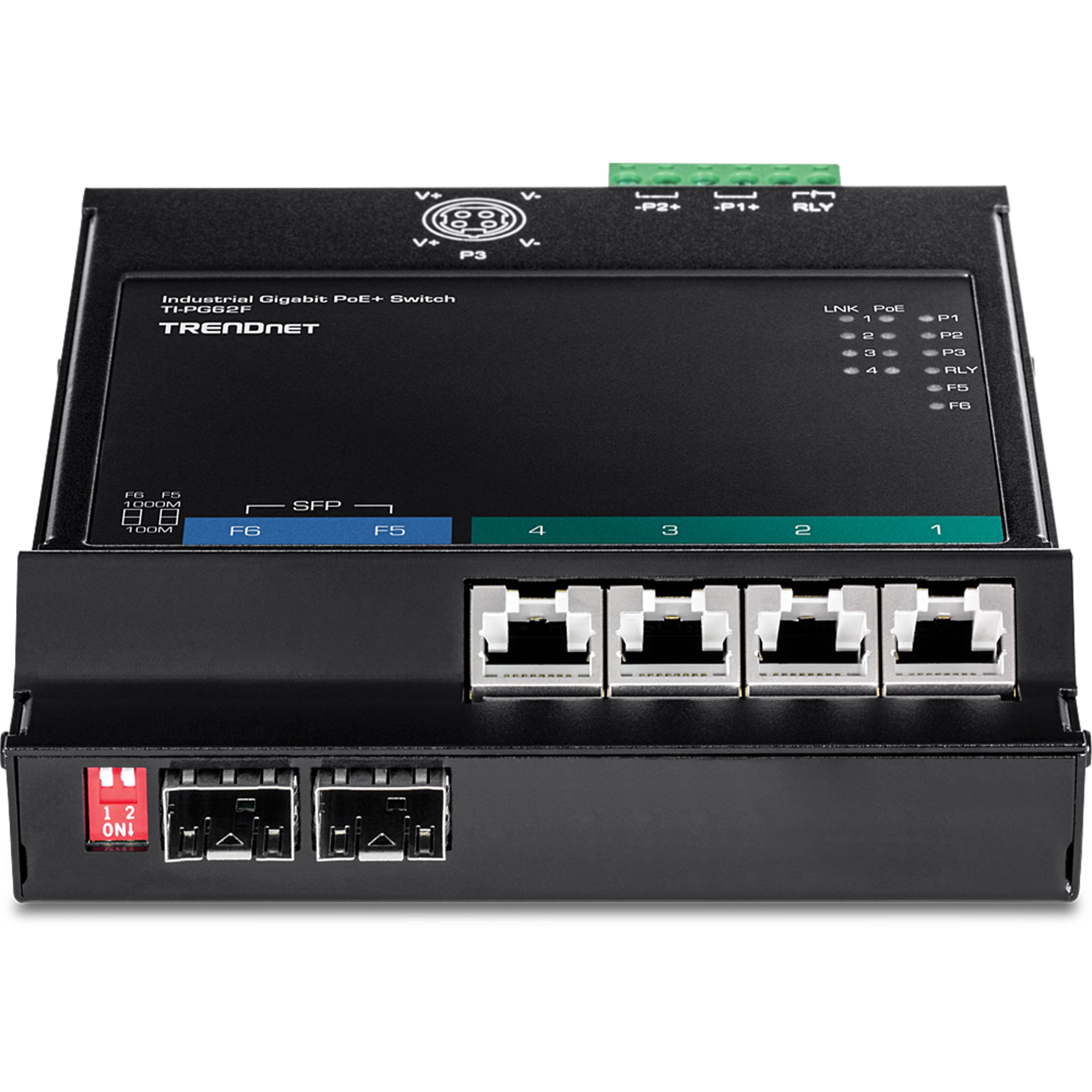

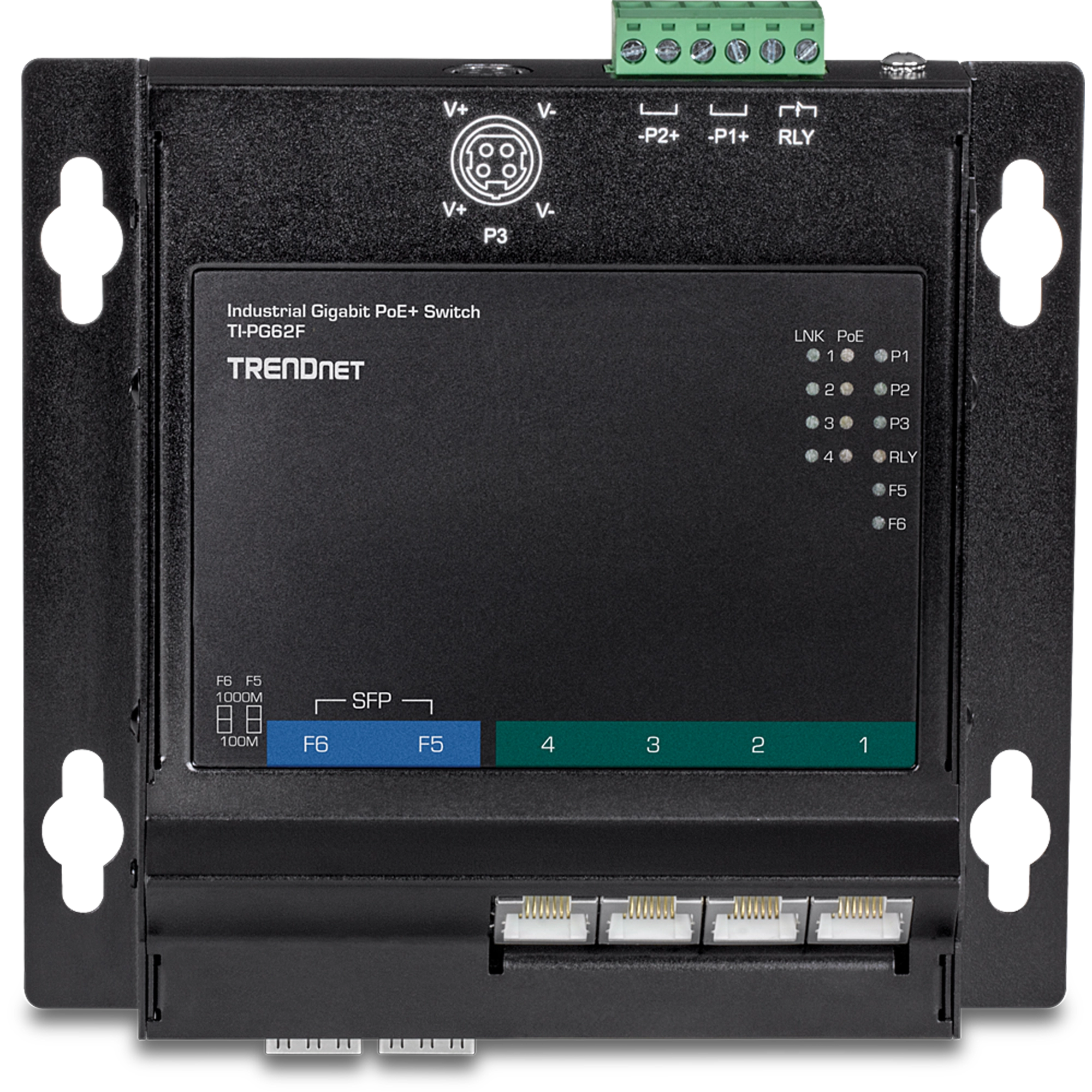

The wall mountable flat switch provides front access to ports and power interfaces for easier installation. It's flat and compact size make it ideal for cabinet installations where space is limited.

PoE+ Power

A 120W PoE power budget supplies PoE power from the hardened industrial front access switch to up to eight Power over Ethernet devices.

Hardened Industrial Design

Equipped with an IP40 rated metal enclosure, this front access switch is designed to withstand a high degree of vibration and shock, while operating within a wide temperature range of -40° – 75° C (-40° – 167° F) for industrial environments.

Features:

• 4 x Gigabit PoE+ ports
• 2 x Gigabit SFP slots
• 120W PoE power budget
• 12Gbps switching capacity
• Forwarding rate: 8.9Mpps (64-byte packet size)
• Supports jumbo frames up to 10KB
• Hardened IP40 rated metal housing

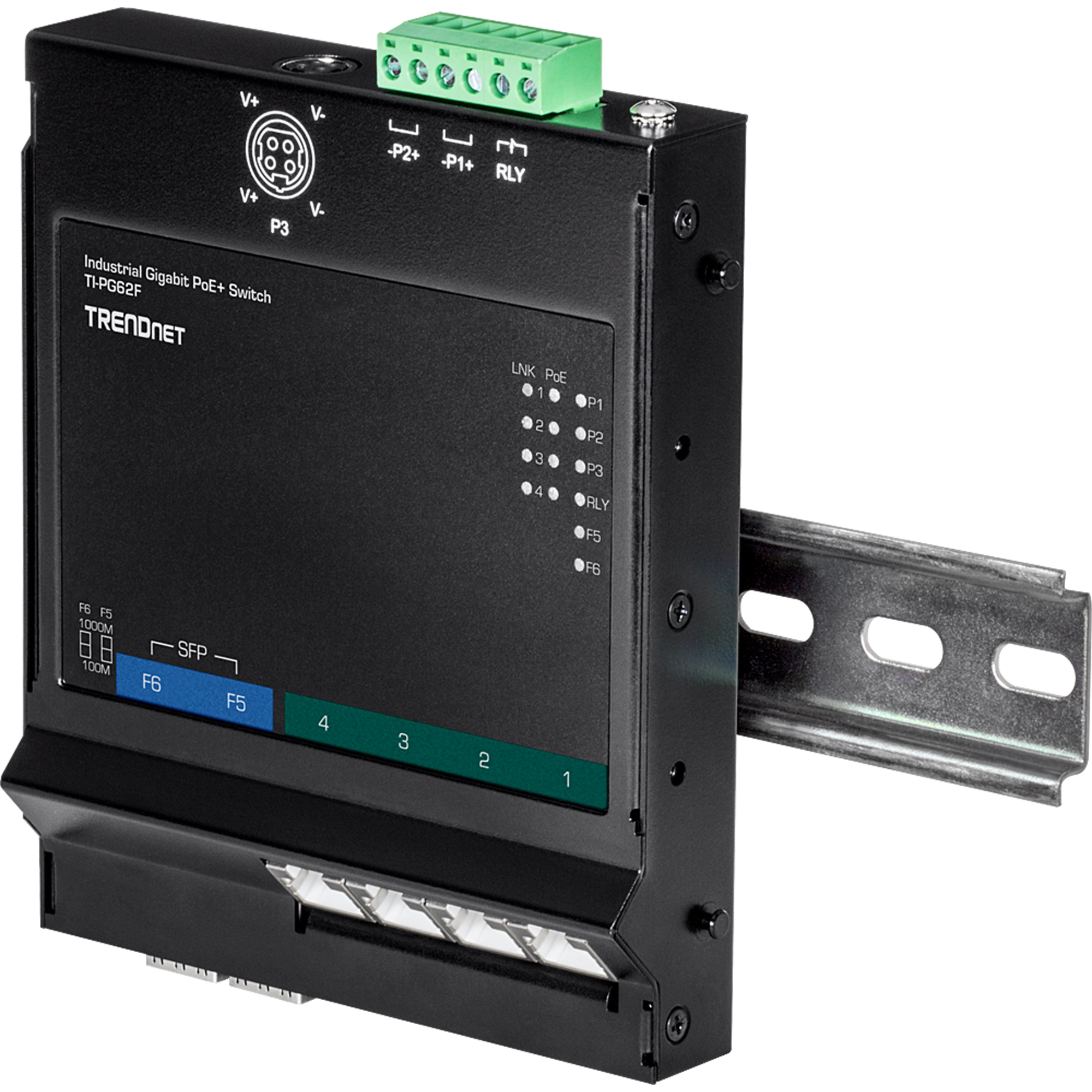

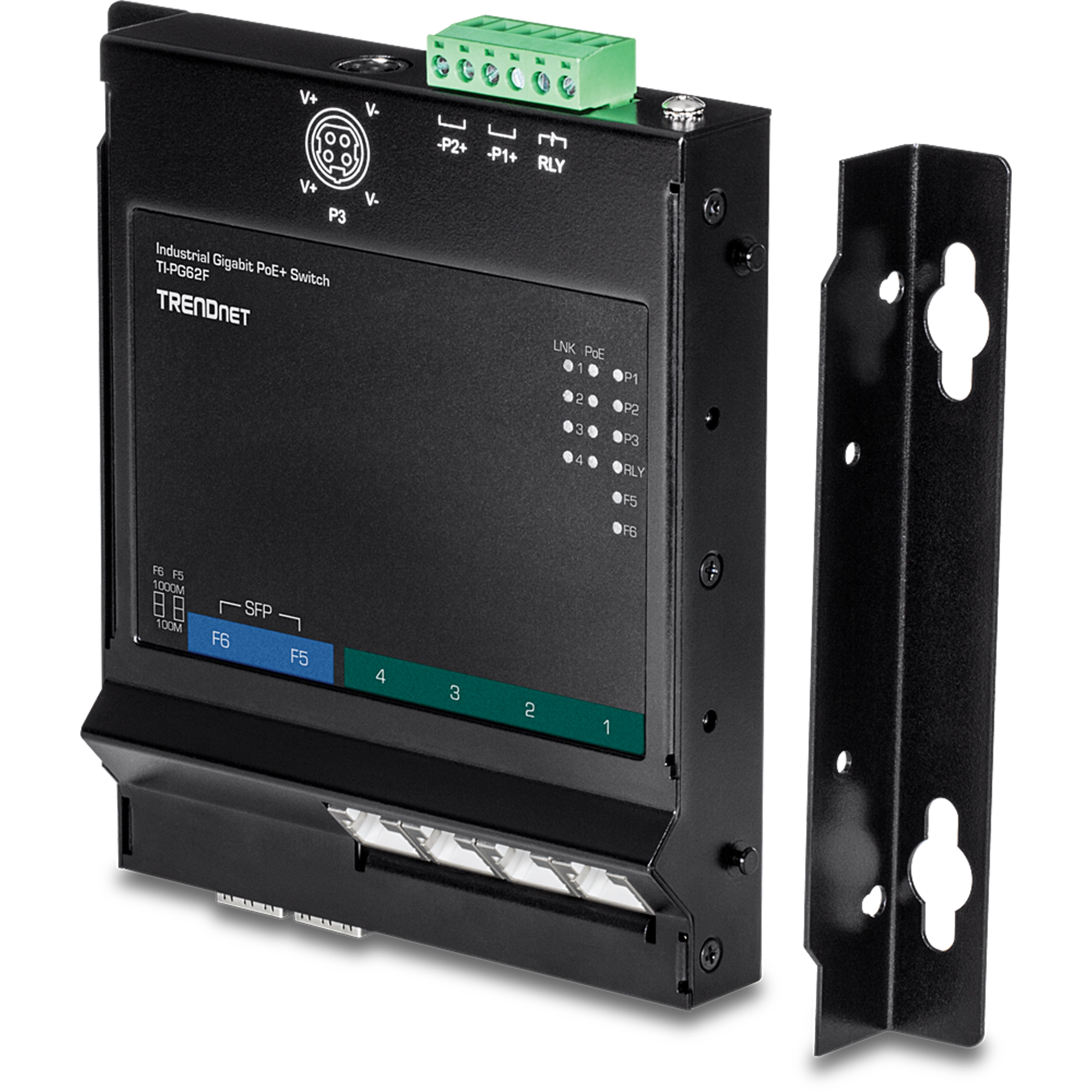

• Includes DIN-Rail bracket and magnetic wall mount kit
• Operating temperature range of -40° – 75° C (-40° – 167° F)
• Redundant power inputs with overload current protection
• Alarm relay triggered by power failure
• Power supply sold separately (models: TI-S15052, TI-S24052, TI-S12048, TI-S24048, and 48VDC3000)
• NDAA / TAA compliant
• Lifetime Warranty*
