Cyber Power - CSB404 - Essential Surge Protector, 600 J, 125 V, 4 ft Cord
Product Overview
The Cyber Power CSB404 is a compact 4-outlet surge protector providing 450 joules of protection for home and office electronics. It features a 4-foot power cord with a NEMA 5-15P plug and utilizes MOV technology to shield devices from power spikes. The unit includes EMI/RFI noise filtering for cleaner performance and an integrated 15A circuit breaker that enables automatic shutdown to prevent overloads.
Key Configuration
- • Surge suppression: 450 Joules; clamping voltage: 500V (H-N, H-G, N-G)
- • Outlets: 4 × NEMA 5-15R
- • Power cord length: 4 ft (1.2 m); input plug: NEMA 5-15P straight plug
- • Circuit breaker: 15 A; maximum input current: 15A

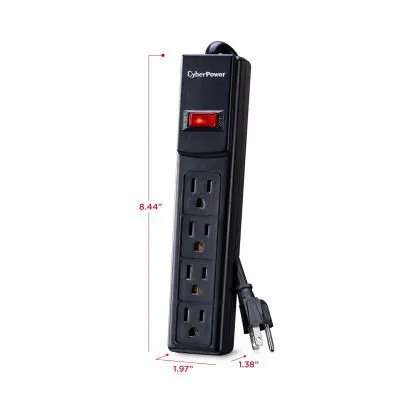

- • Physical dimensions: 50 × 35 × 214 mm (1.97" × 1.38" × 8.44"); weight: 0.41 kg (0.91 lb)
Key Features
The CSB404 utilizes MOV technology to divert up to 22,500A of surge current with a sub-nanosecond response time. It provides 32 dB of EMI/RFI filtration across frequencies up to 100 MHz, ensuring clean power delivery. The unit is housed in an impact-resistant casing and includes keyhole slots for versatile mounting under desks or on walls.
Technical Context
Certified to UL1363 standards, this surge protector features a 15A integrated circuit breaker for reliable overload protection. It is backed by a Limited Lifetime Warranty and a $25,000 Connected Equipment Guarantee, offering professional-grade security for home and office devices. The RoHS-compliant black plastic construction is designed for durability without extra bulk.
Installation Notes
This strip is 0.91 lb and measuring 1.97" × 1.38" × 8.44". It features a 4-foot cord with a straight NEMA 5-15P plug, providing flexibility for desktop or floor placement. Built-in keyhole mounting slots allow for a permanent, low-profile installation on various surfaces.
| Input | |
| Circuit Breaker | 15 A |
| Cord Length | 4 ft (1.2 m) |
| Input Plug Type | NEMA 5-15P |
| Maximum Input Current | 15A |
| Plug Style | Straight |
| Output | |
| Outlet Type | 4 – NEMA 5-15R |
| Outlets – Total | 4 |
| USB Charge Port | No |
| Surge Protection & Filtering | |
| Attenuation | 32 dB |
| Clamping Voltage | 500V (H-N, H-G, N-G) |
| Coax Protection RG6 | None |
| EMI/RFI Filtration | 150 KHz |
| 100 MHz | |
| Yes | |
| Maximum Surge Current | 22500 A |
| Maximum Surge Current H-G | 7500 A |
| Maximum Surge Current H-N | 7500 A |
| Maximum Surge Current N-G | 7500 A |
| Maximum Surge Voltage | 6000 V |
| Response Time | <1 Nanosecond |
| Surge Suppression (Joules) | 450 J |
| Physical | |
| Color | Black |
| Form Factors Supported | Keyhole (Wall Mount or Under-counter Installation) |
| Material of Construction | Plastic |
| Dimensions | |
| Physical Dimensions – (WxHxD) (cm) | 5.0 x 3.51 x 21.44 (cm) |
| Physical Dimensions – (WxHxD) (in) | 1.97 x 1.38 x 8.44 (in) |
| Physical Dimensions – (WxHxD) (mm) | 50 x 35 x 214 (mm) |
| Physical Weight (kg) | 0.41 |
| Physical Weight (lb) | 0.91 |
| Dimensions – Shipping | |
| Shipping – Weight (kg) | 0.45 |
| Shipping – Weight (lb) | 1 |
| Shipping Dimensions – (WxHxD) (cm) | 13.0 x 6.02 x 36.83 (cm) |
| Shipping Dimensions – (WxHxD) (in) | 5.12 x 2.37 x 14.5 (in) |
| Shipping Dimensions – (WxHxD) (mm) | 130.05 x 60.2 x 368.3 (mm) |
| Certifications | |
| Environmental | RoHS Compliant |
| Safety | UL1363 |
| Warranty | |
| CEG Amount | $25,000 |
| Connected Equipment Guarantee | Lifetime |
| Product Warranty | Limited Lifetime Warranty |
