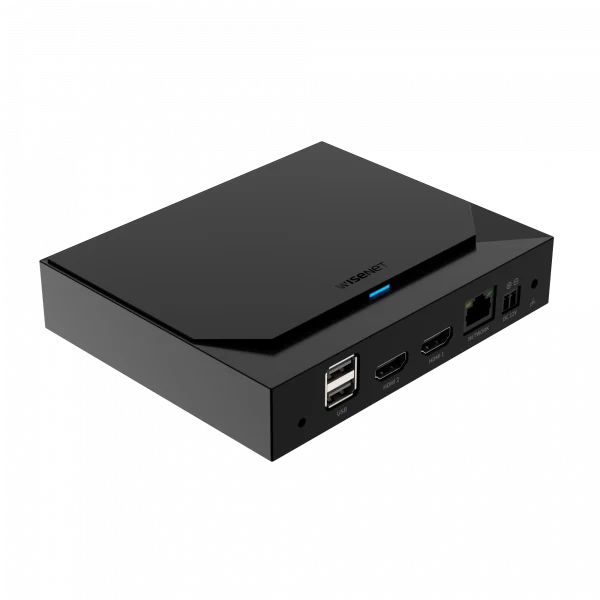

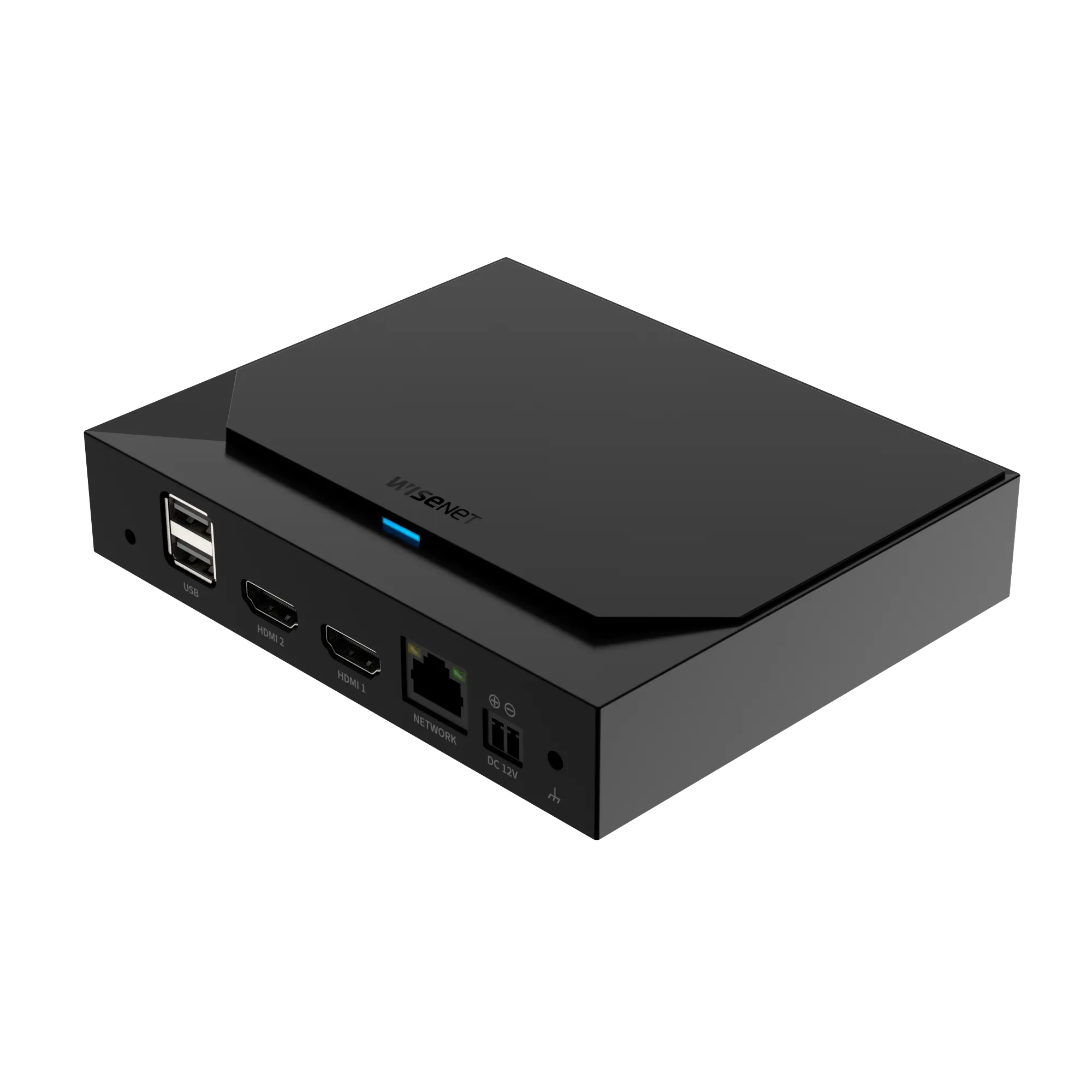

Hanwha - SPD-152 - 64CH Network Video Decoder
Part number:
SPD-152
Price:
Video decoding up to 64 cameras, Dual HDMI output (HDMI#1 UHD, HDMI#2 FHD), Supported resolution: 4K@60FPS ~ 2M@360FPS, ONVIF, SUNAPI, RTSP, H.265 / H.264 / MJPEG codec, up to 20 Layout, Sequence Support, 12V DC, PoE
Features:
- Clone & Expand mode support (HDMI#1 UHD, HDMI#2 FHD)
- Maximum 64 channels (HDMI 1 Clone mode), 36 (HDMI 1) / 25 (HDMI 2) Expand mode
- Maximum decoding performance 8MP@60fps, 2MP@360fps
- ONVIF, SUNAPI, RTSP cameras supported
- Freely adjust camera size to highlight important areas (Tile merge)
- H.265, H.264, MJPEG codec support
- Up to 20 layouts and sequence
- Fisheye dewarping, PTZ Controls, thermal camera temperature check, save snapshot to USB drive
- Management using USB mouse or web interface

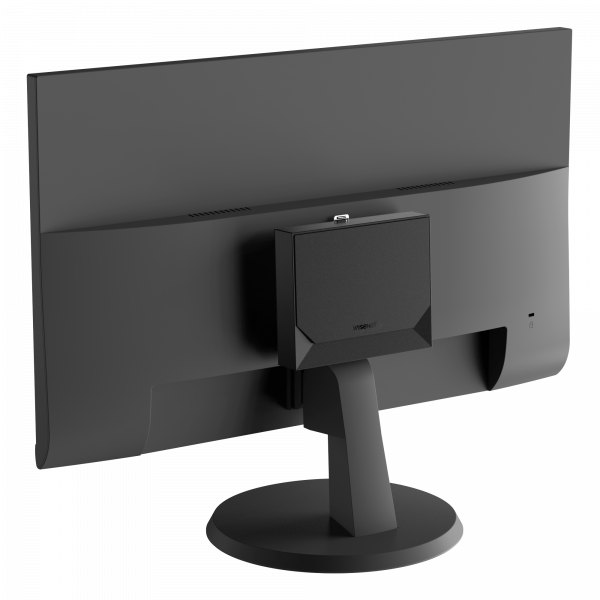

- Easy installation with included VESA monitor-back mount or pole mount with optional pole straps
- PoE and DC 12V Dual power for Power Redundancy Failover
- NDAA / FCC Compliant
| Specifications | ||
| System | ||
| CPU | Embedded CPU | |
| Operating System | Embedded Linux | |
| Video Output | HDMI#1 | 1EA (up-to 4K), Audio support |
| HDMI#2 | 1EA (up-to 1080p), Audio not support | |
| Video-out Format | 3840 X 2160@30Hz (HDMI#1)\n2560 X 1440@30Hz (HDMI#1)\n1920 X 1080@60Hz (HDMI#1, HDMI#2)\n1280 X 1024@60Hz (HDMI#1, HDMI#2)\n1280 X 720@60Hz (HDMI#1, HDMI#2) | |
| External | Ethernet | 1EA (10/100/1000BASE-T) |
| USB | 2EA(USB 2.0) | |
| LED | Power, Network | |
| Network | Bandwidth | Max. 150Mbps |
| Environmental | ||
| Operating Temperature | 0°C to +40°C (32℉ to 104℉) | |
| Operating Humidity | 20% ~ 85% RH | |
| Electrical | ||
| Power Input | 12VDC, PoE (IEEE802.3af) | |
| Power Consumption | Max. 11.0W (12V DC), Max. 12.95W (PoE) | |
| Mechanical | ||
| Color / Material | Black / Metal&Plastic | |
| Dimension (WxHxD) | 140 x 29.5 x 115.4mm | |
| Weight | 260g | |
| Software | ||
| Video | Codec | H.265 / H.264 / MJPEG |
| Max. Decoding Performance | 8M@60fps, 2M@360fps | |
| Division (/Monitor) | ■ Clone mode\n (HDMI#1) Max. 64\n■ Expand mode\n (HDMI#1) Max. 36 (HDMI#2) Max. 25 | |
| Layout | Up to 20, Sequence support | |
| Audio | Codec | G.711 / G.726 / AAC |
| Management | Local UI, Web-Viewer | |
| Time Setting | NTP/Manual | |
| Export/Import | Configuration Export/Import | |
| Log | Max. 100,000 (System log) | |
| Protocol | RTP, RTSP, HTTP, CGI (SUNAPI), ONVIF | |
| Security | IP address filtering, User access Log, 802.1x, Encryption, Device certificate(Hanwha Techwin Root CA), Signed firmware | |
