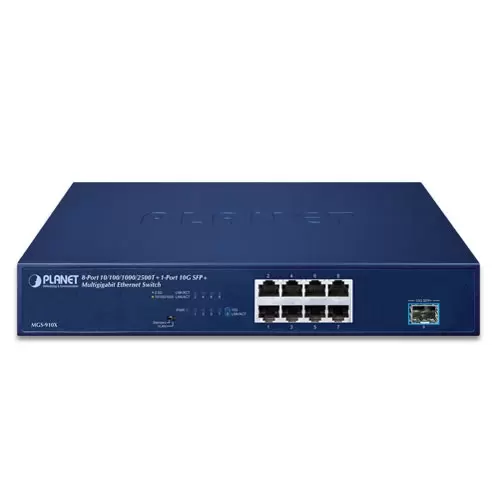

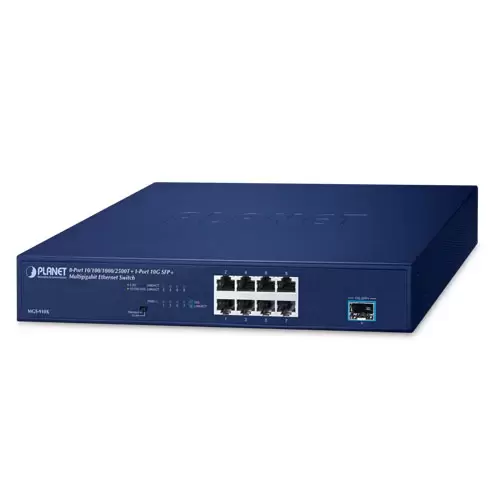

Planet - MGS-910X - 8-Port 10/100/1000/2500T + 1-Port 10G SFP+ Multigigabit Ethernet Switch (Fanless design, Standard/VLAN mode, desktop size with rackmount kit)
Product Overview
The Planet MGS-910X is an unmanaged multigigabit switch equipped with eight 2.5GbE RJ45 ports and one 10G SFP+ uplink port. Its fanless design delivers up to 60Gbps switching capacity and 44.64 Mpps forwarding performance, making it suitable for high-speed desktop or rackmount deployments. The switch also supports Standard and VLAN operating modes, 12K jumbo frames, and IEEE 802.3az Energy Efficient Ethernet.
Key Configuration
- • Copper ports: 8 × 10/100/1000/2500BASE-T RJ45 (auto-negotiation, auto-MDI/MDI-X)
- • SFP+ port: 1 × 10GBASE-X SFP+ (10G uplink)
- • Switch fabric: 60 Gbps; throughput: 44.64 Mpps @ 64 bytes
- • MAC address table: 4K entries; jumbo frame: 12K bytes
- • DIP switch modes: Standard (normal switch) / VLAN (port-based isolation)
- • Dimensions: 280 × 180 × 44 mm; weight: 1505g
Key Features
The switch features eight 2.5GbE ports for high-speed networking over existing Cat5e cabling, a fanless metal chassis for silent operation, and a 10G SFP+ uplink for backbone connectivity. It supports Standard and VLAN isolation modes, Energy Efficient Ethernet (IEEE 802.3az), auto-negotiation, and auto-MDI/MDI-X. Additional highlights include ESD and surge protection, low 6.6W power consumption, universal 100–240V AC input, and FCC, CE, and TAA compliance.
Technical Context
The MGS-910X delivers an affordable upgrade path from Gigabit networking by supporting 2.5GbE speeds over existing Cat5e cabling. A built-in VLAN mode enables easy traffic isolation without software configuration, making it well-suited for surveillance systems and segmented network deployments. Its silent, fanless design is ideal for office and workspace environments, while the 10G SFP+ uplink ensures sufficient capacity for handling traffic from multiple 2.5GbE devices.
Installation Notes
Measuring 280 × 180 × 44 mm and includes a rackmount kit for 1U installation in a standard 19-inch rack. It weighs 1.505 kg and operates in temperatures from 0°C to 50°C with 5–95% non-condensing humidity. Powered by a universal 100–240V AC supply, it consumes up to 6.6W. A built-in DIP switch allows selection between Standard operation and VLAN isolation mode. The SFP+ uplink supports both 10GBASE-SR/LR and 1000BASE-SX/LX fiber transceivers. Designed for plug-and-play deployment, the switch requires no IP configuration and supports 2.5Gbps connectivity over Cat5e or better cabling up to 100 meters.
| Hardware Specifications | |
|---|---|
| 10/100/1000/2500BASE-T Copper Interfaces | 8 |
| 10GBASE-X SFP+ interface | 1 |
| DIP Switch | Selectable operation mode Standard VLAN |
| LED | System Power (Green) 10/100/1000/2500T RJ45 Interfaces 10/100/1000 LNK / ACT(Amber) 2500 LNK / ACT (Green) 10G SFP+ Interface LNK / ACT (Green) |
| Weight | 1505g |
| Power Requirements | 100~240V AC, 1A, 50-60Hz |
| Power Consumption/Dissipation | 6.6watts/22.5 BTU |
| Dimensions (W x D x H) | 280 x 180 x 44mm |
| ESD Protection | Contact discharge of ±6KV DC, Air discharge of ±8KV DC |
| Surge Protection | ±6KV |
| Switching | |
| Switch Architecture | Store-and-Forward |
| Switch Fabric | 60Gbps |
| Switch Throughput@64bytes | 44.64Mpps |
| MAC Address Table | 4K entries |
| Jumbo Frame | 12K |
| Flow Control | IEEE 802.3x pause frame for full duplex; back pressure for half duplex |
| Standards Conformance | |
| Regulatory Compliance | FCC Part 15 Class A, CE |
| Standards Compliance | IEEE 802.3 (Ethernet) IEEE 802.3u (Fast Ethernet) IEEE 802.3ab (Gigabit Ethernet) IEEE 802.3bz (2.5Gigabit Ethernet) IEEE 802.3ae 10Gbps Ethernet IEEE 802.3x (Full-Duplex Flow Control) IEEE 802.3az Energy Efficient Ethernet (EEE) |
| Environment | |
| Temperature | Operating: 0~50 degrees C Storage: -10~70 degrees C |
| Humidity (non-condensing) | Operating: 5% to 95% Storage: 5% to 95% |
