8-Port Web Smart PoE Switch

NMS is Integrated to Improve Network Management Efficiency

PLANET GS-2210-8P2S Smart Ethernet switch combined with NMS System makes network management easier and more efficient. In addition, it is easy to configure whatever application that the industry needs. It features link aggregation, IGMP, QoS, PoE schedule and more to improve the availability of critical business applications.

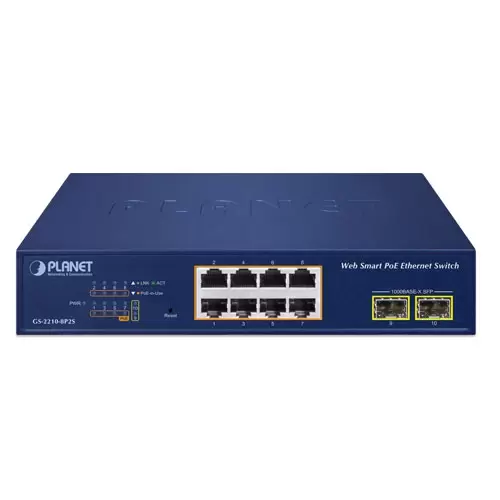

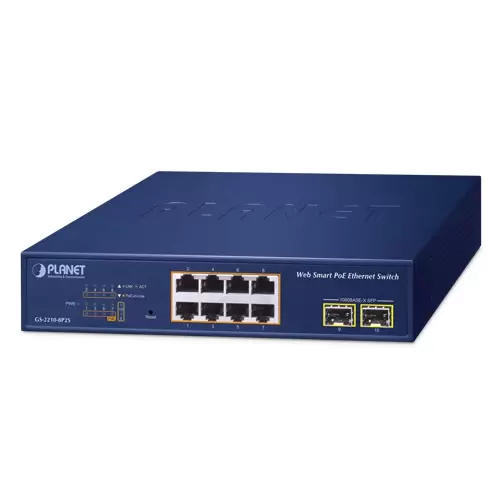

The GS-2210-8P2S provides 8 10/100/1000BASE-T ports featuring 32-watt 802.3at PoE+ and 2 additional Gigabit SFP slots. With a total power budget of up to 120 watts for different kinds of PoE applications, it provides a quick, safe and cost-effective Power over Ethernet network solution for small businesses and enterprises.

Through the NMS system, administrators can centrally manage networks of up to 102,400 nodes from a central office, thereby greatly improving network and power management efficiency. With its user authentication management, combined with the NMS system, the security of data transmission in modern factory automation systems is enhanced.

UNI-NMS Remote Management Solution

The GS-2210-8P2S supports PLANET’s Universal Network Management System (UNI-NMS) helping IT staff by remotely managing all network devices and monitoring PDs’ operational statuses. Thus, they’re designed for both the enterprises and industries where deployments of PDs can be as remote as possible, without having to go to the actual location once a bug or faulty condition is found. With the UNI-NMS, all kinds of businesses can now be speedily and efficiently managed from one platform.

Powerful NMSViewerPro Solution that Meets Evolving Network Management Challenges

The GS-2210 Web Smart Switch series, known for such features as QoS, Link aggregation, PoE, VLANs, IGMP, and so on, provides an eye-catching feature called NMS developed by PLANET to easily and remotely manage and monitor network devices in the local environment from mobile app. The NMSViewerPro can downloaded at PLANET Website. This feature not only improves operational convenience, but also ensures users have real-time control over their network infrastructure. It provides users with an unparalleled experience.

The intuitive interface of the local NMSViewerPro allows administrators to easily perform a variety of tasks, including monitoring traffic, setting configuration, troubleshooting, and more. At the same time, PLANET UNI-NMS application provides real-time alerts and notifications, allowing administrators to respond to any emergency situations anytime, anywhere to ensure the stable operation of the network.

The introduction of this feature demonstrates our sensitivity to user needs and our commitment to providing a comprehensive and powerful solution to meet evolving network management challenges. We firmly believe that this feature of supporting local NMSViewerPro will bring users a more efficient and flexible management experience.

Built-in Unique PoE Functions for Powered Devices Management

As it is the managed PoE switch for surveillance, wireless and VoIP networks, the GS-2210-8P2S features the following special PoE management functions:

• PD alive check
• Scheduled power recycling (reserved)
• PoE schedule (reserved)
• PoE priority
• PoE power limit
• PoE usage monitoring

Intelligent Powered Device Alive Check

The GS-2210-8P2S can monitor connected PD status in real time via PD alive check function. Once the PD stops working and responding, the GS-2210-8P2S will resume the PoE power and bring the PD back to work. It will greatly enhance the network reliability through the PoE port resetting the PD’s power source and reducing administrator management burden.

Scheduled Power Recycling

The GS-2210-8P2S allows each of the connected PoE IP cameras or PoE wireless access points to reboot at a specific time each week. Therefore, it will reduce the chance of IP camera or AP crash resulting from buffer overflow.

PoE Schedule for Energy Savings

Under the trend of energy savings worldwide and contributing to environmental protection, the GS-2210-8P2S can effectively control the power supply besides its capability of giving high watts power. The “PoE schedule” function helps you to enable or disable PoE power feeding for each PoE port during specified time intervals and it is a powerful function to help SMBs or enterprises save power and money. It also increases security by powering off PDs that should not be in use during non-business hours.

PoE Usage Monitor and Power Control

Through the power usage chart in the web management interface, the GS-2210-8P2S empowers administrators to real-time monitor the power usage status of connected PDs. This capability significantly improves facility management efficiency. Additionally, the switch allows for timely activation or deactivation of PoE ports, providing the ability to power off or reboot connected PDs as needed.

Robust Layer 2 Features

The GS-2210-8P2S can be programmed for basic switch management functions such as port speed configuration, port aggregation, VLAN, Multiple Spanning Tree Protocol, bandwidth control and IGMP snooping. This switch provides 802.1Q tagged VLAN Protocol functions. By supporting port aggregation, the GS-2210-8P2S allows the operation of a high-speed trunk combined with multiple ports, and supports fail-over as well. Also, the Layer 2 protocol included to help discover basic information about neighboring devices on the local broadcast domain.

Flexibility and Long-distance Extension Solution

The two mini-GBIC slots built in the GS-2210-8P2S support SFP auto-detection and dual speed as it features 100BASE-FX and 1000BASE-SX/LX SFP (Small Form-factor Pluggable) fiber transceivers to uplink to backbone switch and monitoring center in long distance. The distance can be extended from 550 meters to 2 kilometers (multi-mode fiber) and up to above 10/20/30/40/50/70/120 kilometers (single-mode fiber or WDM fiber). They are well suited for applications within the enterprise data centers and distributions.

Convenient and Smart ONVIF Devices with Detection Feature

PLANET has newly developed an awesome feature — ONVIF Support — which is specifically designed for cooperating with video IP surveillances. From the GS-2210-8P2S GUI, you just need one click to search and show all of the ONVIF devices via network application. In addition, you can open the camera web page via the IP address link to get real-time monitoring information and online/offline status through IP-based camera, and perform PoE restart control from the GS-2210-8P2S GUI.

ONVIF management functions:

• Supports PLANET ONVIF IP camera discovery
• A maximum of 8 PLANET ONVIF IP cameras can be powered by one GS-2210-8P2S switch.
• IP camera MAC address, IP address, port and model name
• Open the Camera web page via the IP address hyperlink

Features:

• Ports: 8 10/100/1000T + 2 100/1000X SFP
• Type: Web Smart
• PoE Ports: 8
• Standards: 802.3af/at
• Total PoE Budget: 120W

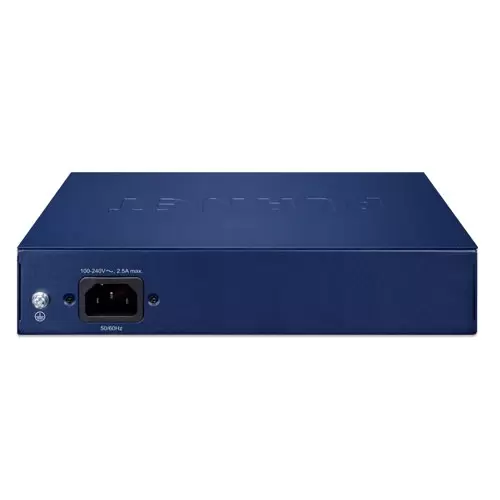

• Power Requirements: 100~240V AC, 50/60Hz
• Throughput: 14.88Mpps
• Operating Temperature: 0 to 50°C
• TAA Compliant
