Name: TRENDNET - TE100-S8 - 8 Port 10/100Mbps Switch
Brand: Trendnet
SKU: TE100-S8

Home — Brands — Trendnet — Switches —

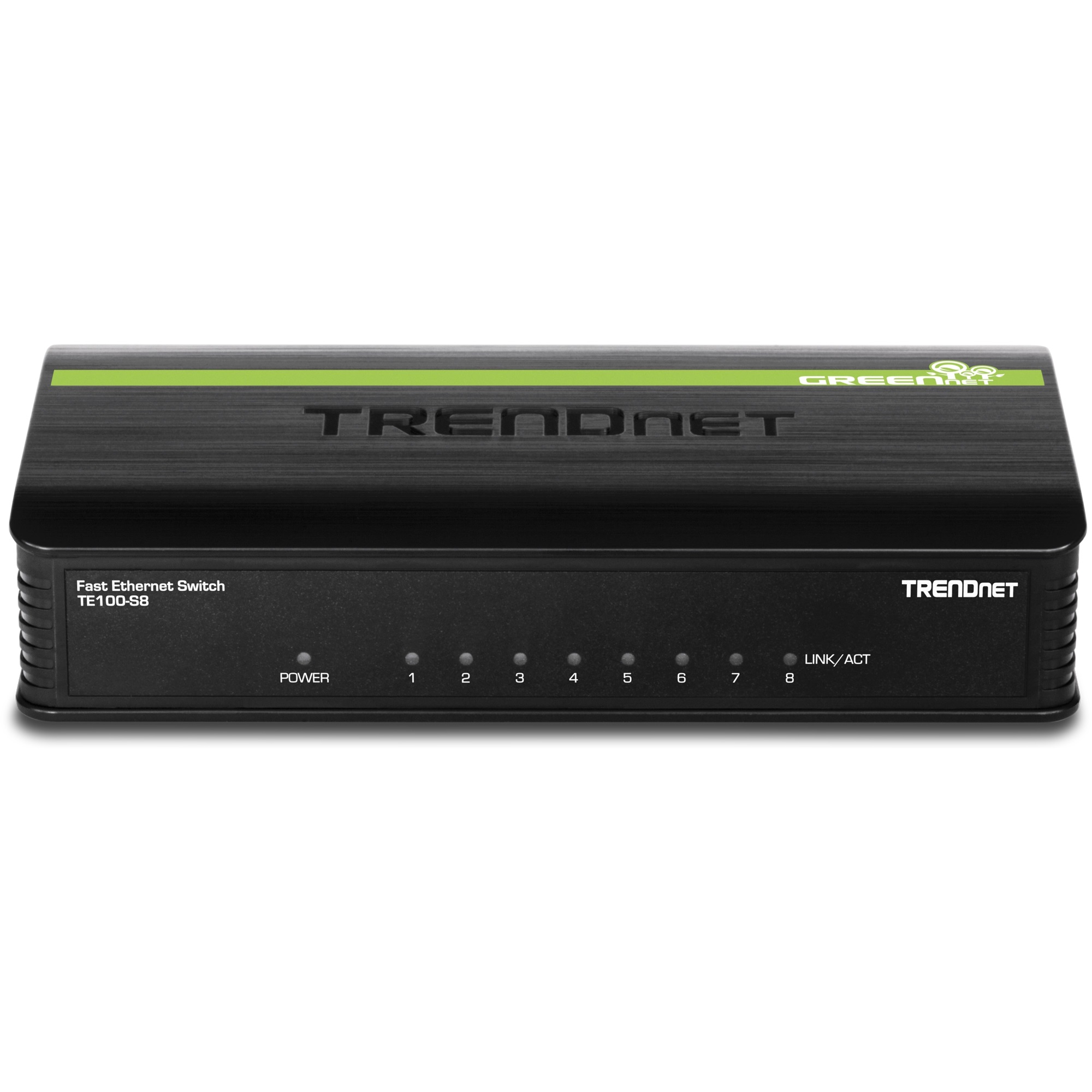

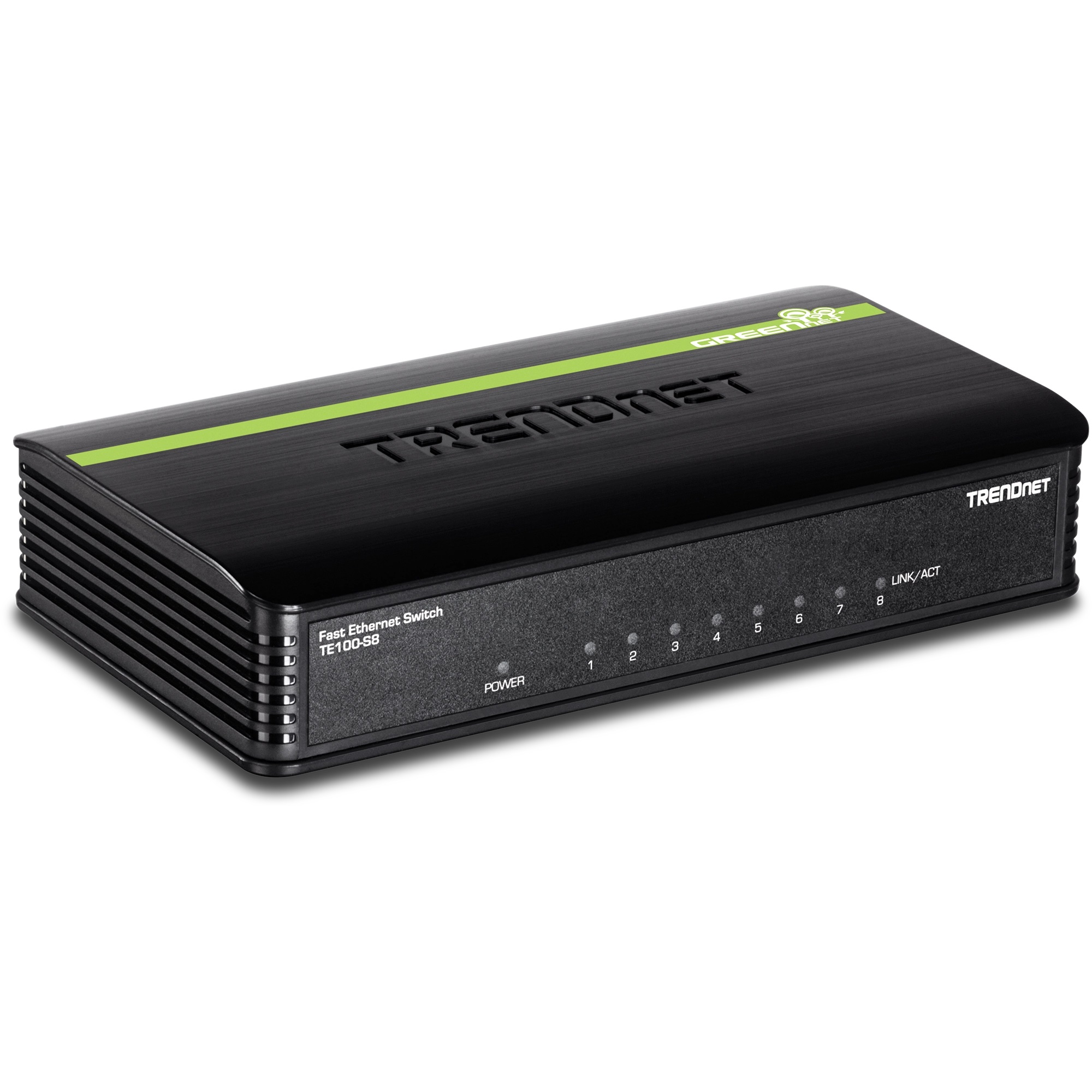

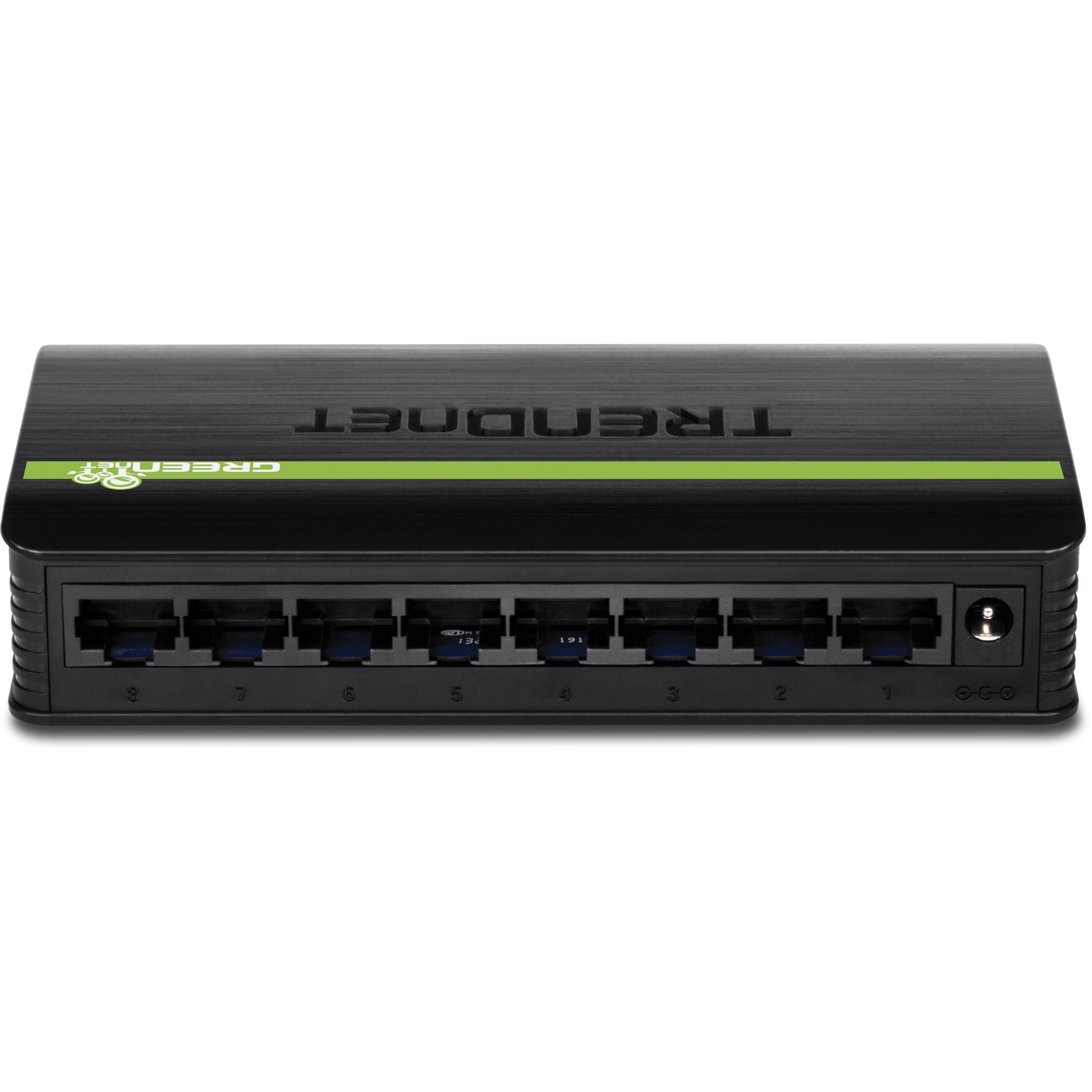

TRENDNET - TE100-S8 - 8 Port 10/100Mbps Switch

Part number:

TE100-S8

Price:

Dealers only

Add to Quote/Project Registration

Description Specifications Downloads

The compact 8-Port 10/100 Mbps GREENnet Switch, model TE100-S8, offers plug and play switching reliability and reduced power consumption. Embedded GREENnet technology reduced power consumption by up to 40% out of the box, with no management requirement. This switch offers speeds of up to 200 Mbps per port and total switching capacity of 1.6 Gbps.

Features:

Plug and play out of the box
8 x 10/100 Mbps Ethernet ports
Up to 40% GREENnet energy savings*
1.6 Gbps switching capacity
NDAA compliant

Standards	IEEE 802.3 IEEE 802.3u IEEE 802.3x IEEE 802.3az
Device Interface	8 x 10/100 Mbps Ethernet ports Power LED indicators
Data Transfer Rate	Ethernet: 10 Mbps (half duplex), 20 Mbps (full duplex) Fast Ethernet: 100 Mbps (half duplex), 200 Mbps(full duplex)
Performance	Data RAM buffer: 56 KB Switch fabric: 1.6 Gbps MAC address table: 1 K entries Forwarding rate: 1.19 Mpps (64-byte packet size)
Special Feature	GREENnet energy saving technology
Power	Input: 100 240 V, 50/60 Hz, 0.2 A Output: 5 V, 1 A Consumption: 1.4 Watts max.
Operating Temperature	0 - 50 °C (32 - 122 °F)
Operating Humidity	Max. 90% non-condensing
Dimensions	140 x 75 x 28 mm (5.5 x 3 x 1.1 in.)
Weight	126 g (4.4 oz.)
Certifications	CE FCC
Warranty	3 year limited

PACKAGE CONTENTS

TE100-S8
Quick Installation Guide
Power adapter (5 V, 1 A)

Name

Description

Size

Downloads

File

Datasheet

0.5mb
