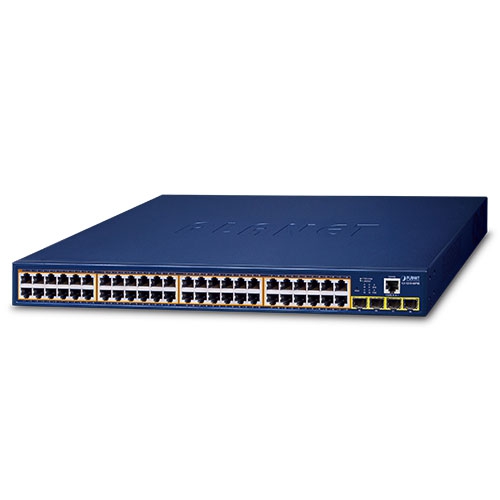

The GS-4210-48P4S is a cost-optimized, high-density PoE Managed Gigabit Ethernet Switch featuring Planet’s intelligent PoE functions to improve the availability of critical business applications.

Cost-effective and High-density PoE Solution

The GS-4210-48P4S is a cost-optimized, high-density PoE+ Managed Gigabit Ethernet Switch featuring PLANET intelligent PoE functions to improve the availability of critical business applications. It provides IPv6/IPv4 dual stack management and built-in L2/L4 Gigabit switching engine along with 48 10/100/1000BASE-T ports featuring 36-watt 802.3at PoE+ and 4 additional Gigabit SFP slots. With a total power budget of up to 400 watts for different kinds of PoE applications, it provides a quick, safe and cost-effective Power over Ethernet network solution for small businesses and enterprises.

Premium VoIP Networks for Medium- to Large-scale Deployments

The GS-4210-48P4S has 48 IEEE 802.3at PoE+ ports, 104Gbps switch fabric and advanced QoS functionality for deploying medium- to large-scale VoIP or wireless networks at a low total cost. One GS-4210-48P4S can power up 48 PoE VoIP phones and delivers HD (high-definition) voice to VoIP network with high priority, resulting in higher quality voice and clearer communication. From now on, customers only need fewer units of the GS-4210-48P4S than before to achieve the goal of cost-effectiveness, thereby saving setup time and human resource.

Built-in Unique PoE Functions for Powered Device Management

As it is the managed PoE switch for VoIP, wireless and surveillance networks, the GS-4210-48P4S features the following special PoE management functions:

• PoE schedule
• PD alive check
• Scheduled power recycling
• PoE usage monitoring

PoE Schedule for Energy Saving

Under the trend of energy saving worldwide and contributing to environmental protection, the GS-4210-48P4S can effectively control the power supply besides its capability of giving high watts power. The “PoE schedule” function helps you to enable or disable PoE power feeding for each PoE port during specified time intervals and it is a powerful function to help SMBs or enterprises save power and money. It also increases security by powering off PDs that should not be in use during non-business hours.

Intelligent Powered Device Alive-Check

The GS-4210-48P4S can be configured to monitor connected PD (powered device) status in real time via ping action. Once the PD stops working and responding, the GS-4210-48P4S will resume the PoE port power and bring the PD back to work. It will greatly enhance the network reliability through the PoE port resetting the PD’s power source and reducing administrator management burden.

Scheduled Power Recycling

The GS-4210-48P4S allows each of the connected PoE IP cameras or PoE wireless access points to reboot at a specific time each week. Therefore, it will reduce the chance of IP camera or AP crash resulting from buffer overflow.

Environment-friendly, Smart Fan Design for Silent Operation

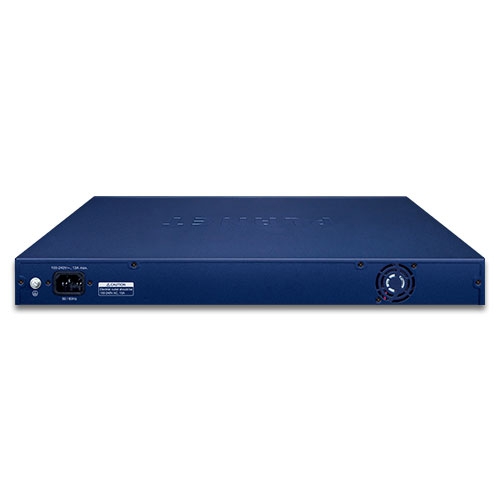

The GS-4210-48P4S features a low noise design and an effective ventilation system. It supports the smart fan technology that automatically controls the speed of the built-in fan to reduce noise and maintain the temperature of the PoE switch for optimal power output capability. The GS-4210-48P4S is able to operate reliably, stably and quietly in any environment without affecting its performance.

IPv6/IPv4 Dual Stack Management

Supporting both IPv6 and IPv4 protocols, the GS-4210-48P4S helps the SMBs to step in the IPv6 era with the lowest investment as its network facilities need not be replaced or overhauled if the IPv6 network is set up.

Robust Layer 2 Features

The GS-4210-48P4S can be programmed for advanced switch management functions such as dynamic port link aggregation, 802.1Q VLAN and Q-in-Q VLAN, Multiple Spanning Tree protocol (MSTP), loop and BPDU guard, IGMP snooping, and MLD snooping. Via the link aggregation, the GS-4210-48P4S allows the operation of a high-speed trunk to combine with multiple ports, and supports fail-over as well. Also, the Link Layer Discovery Protocol (LLDP) is the Layer 2 protocol included to help discover basic information about neighboring devices on the local broadcast domain.

Efficient Traffic Control

The GS-4210-48P4S is loaded with robust QoS features and powerful traffic management to enhance services to business-class data, voice, and video solutions. The functionality includes broadcast/multicast storm control, per port bandwidth control, IP DSCP QoS priority and remarking. It guarantees the best performance for VoIP and video stream transmission, and empowers the enterprises to take full advantage of the limited network resources.

Powerful Security

PLANET GS-4210-48P4S offers comprehensive IPv4/IPv6 Layer 2 to Layer 4 Access Control List (ACL) for enforcing security to the edge. It can be used to restrict network access by denying packets based on source and destination IP address, TCP/UDP ports or defined typical network applications. Its protection mechanism also comprises 802.1X port-based user and device authentication, which can be deployed with RADIUS to ensure the port level security and block illegal users. With the protected port function, communication between edge ports can be prevented to guarantee user privacy. Furthermore, port security function allows to limit the number of network devices on a given port.

Advanced Network Security

The GS-4210-48P4S also provides DHCP snooping, IP source guard and dynamic ARP inspection functions to prevent IP snooping from attack and discard ARP packets with invalid MAC address. The network administrators can now construct highly-secure corporate networks with considerably less time and effort than before.

Friendly and Secure Management

For efficient management, the GS-4210-48P4S is equipped with web, Telnet and SNMP management interfaces. With the built-in web-based management interface, the GS-4210-48P4S offers an easy-to-use, platform-independent management and configuration facility. By supporting the standard SNMP, the switch can be managed via any standard management software. For text-based management, the switch can be accessed via Telnet. Moreover, the GS-4210-48P4S offers secure remote management by supporting SSH, SSL and SNMP v3 connections which encrypt the packet content at each session.

Flexibility and Long-distance Extension Solution

The four mini-GBIC slots built in the GS-4210-48P4S support SFP auto-detection and dual speed as it features 100BASE-FX and 1000BASE-SX/LX SFP (Small Form-factor Pluggable) fiber transceivers to uplink to backbone switch and monitoring center in long distance. The distance can be extended from 550 meters to 2 kilometers (multi-mode fiber) and up to 10/20/30/40/50/70/120 kilometers (single-mode fiber or WDM fiber). They are well suited for applications within the enterprise data centers and distributions.

Intelligent SFP Diagnosis Mechanism

The GS-4210-48P4S supports SFP-DDM (Digital Diagnostic Monitor) function that can easily monitor real-time parameters of the SFP for network administrator, such as optical output power, optical input power, temperature, laser bias current and transceiver supply voltage.

Features:

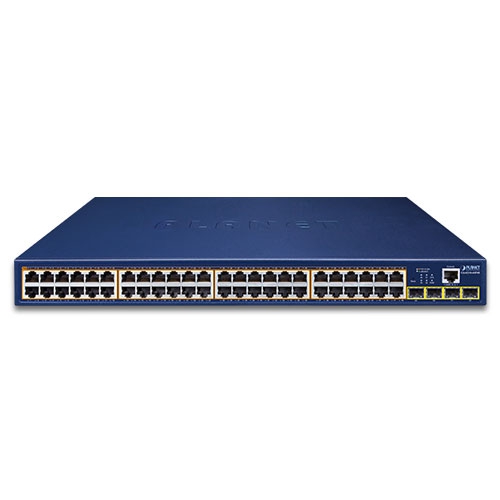

• Ports: 48 10/100/1000TX + 4 100/1000X SFP
• Type: Managed
• PoE Ports: 48
• Standards: 802.3at
• PoE Budget: 400W / 50°C max.
• Power Consumption: 449.9W/1534 BTU
• Throughput: 77.38Mpps/64Bytes
• Operating Temperature: 0 to 50°C
• TAA Compliant
