8-Port PoE Switch

Flexible, Extendable and Centralized Power Distribution

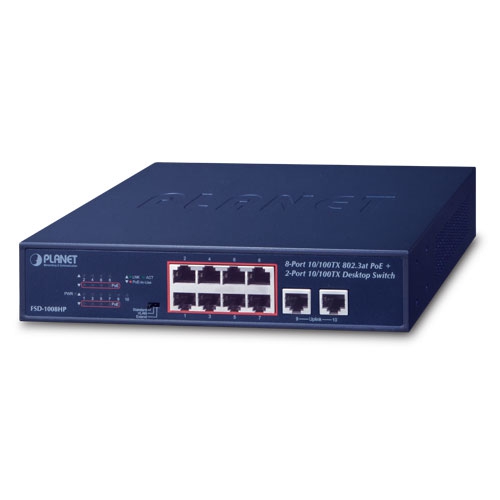

PLANET’s FSD-1008HP desktop PoE switch provides 8 10/100TX ports featuring 30-watt 802.3at PoE+ and two uplink ports with 120W PoE budget. This switch fulfills the demand for sufficient PoE power for HD IP surveillance and Wi-Fi systems in a small-scale but high-performance network. Placement of the unit is convenient and provides a quick and easy PoE PD deployment with power feeding with the desktop-sized, compact metal housing.

Ethernet Data Transmit Distance Extension

The built-in solid DIP switch provides “Standard”, “VLAN” and “Extend” operation modes. The FSD-1008HP operates as a normal IEEE 802.at PoE+ switch in the “Standard” operation mode. The “VLAN” operation mode features a port-based VLAN function that helps to prevent the IP camera’s multicast or broadcast storm from influencing each other.

The VLAN isolation function isolates each port so as to prevent broadcast storm and defend DHCP spoofing in the Extend operation mode. In the “Extend” operation mode, the FSD-1008HP operates on a per-port basis at 10Mbps duplex operation but supports 30-watt PoE power output over a distance of up to 250 meters overcoming the 100m limit on Ethernet UTP cable. With this brand-new feature, the FSD-1008HP provides an additional solution for 802.3at PoE+ distance extension, thus saving the cost of Ethernet cable installation.

Environment-friendly, Fanless Design for Silent Operation

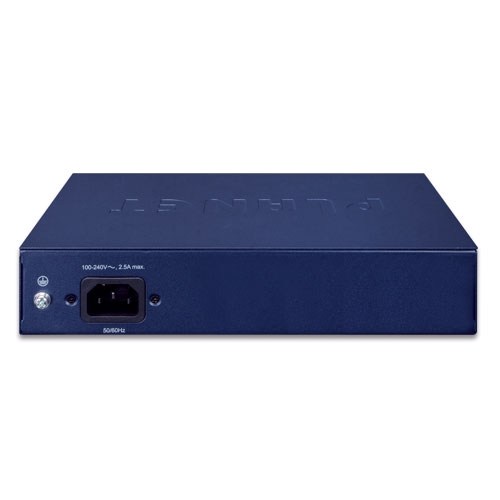

Placement of the FSD-1008HP is convenient due to its desktop-sized, compact metal housing. It features a ventilated construction in which a cooling fan is not necessary, thereby making its operation noiseless. The FSD-1008HP is able to operate reliably and stably in any environment without affecting its performance. The deployment of PoE PDs with constant power feeding can be easily and quickly done.

Easy Cable Connection

With data and PoE from one unit, the FSD-1008HP reduces cabling requirements and eliminates the need for dedicated electrical outlets. This can lower the installation costs, simplify the installation effort and eliminate the need for electricians or extension cords. With 8 PoE interfaces, the FSD-1008HP is ideal for small businesses and workgroups requiring the deployment of PoE including wireless access points, IP-based surveillance cameras and IP phones in any place with ease, efficiency and cost-effectiveness.

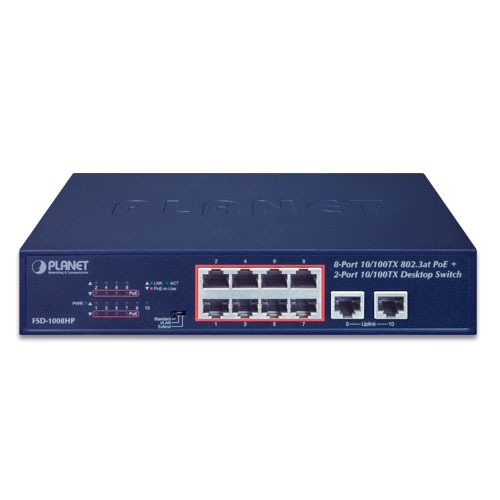

8-Port 10/100TX 802.3at PoE + 2-Port 10/100TX Desktop Switch (120W PoE Budget, Standard/VLAN/Extend mode, fanless, 10-inch and rack-mountable) . The FSD-1008HP desktop PoE switch provides 8 10/100TX ports featuring 30-watt 802.3at PoE+ and two uplink ports with 120W PoE budget.

Features:

• Ports: 10 10/100TX
• Type: Unmanaged
• PoE Ports: 8 PoE Ports
• Standards: 802.3at/af
• Tota PoE Budget: 120W
• Max. Power Consumption 129W/ 440.1BTU (PoE Full Loading)
• Throughput: 1.48Mpps 64Bytes
• Operating Temperature: 0 to 50°C
• TAA Compliant
