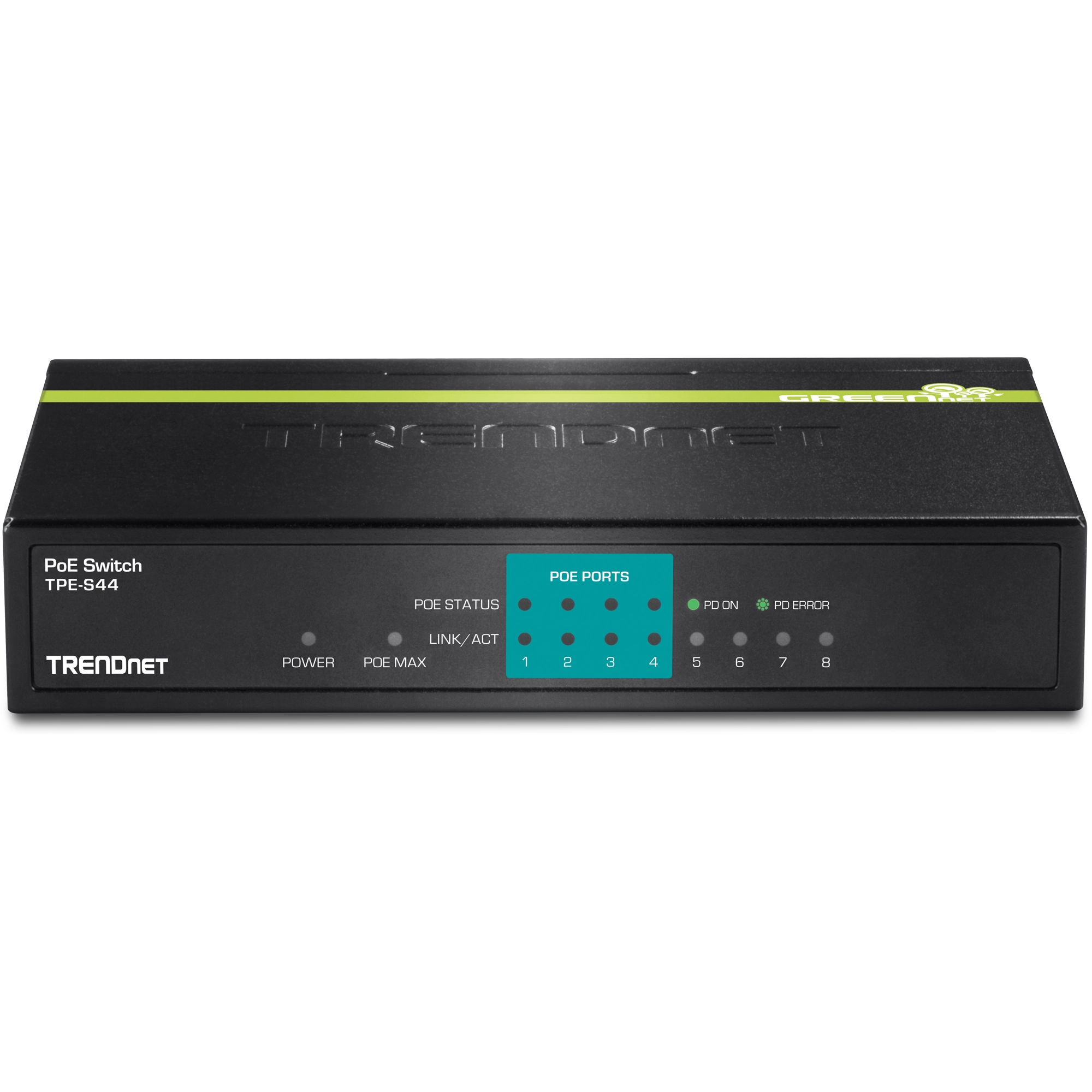

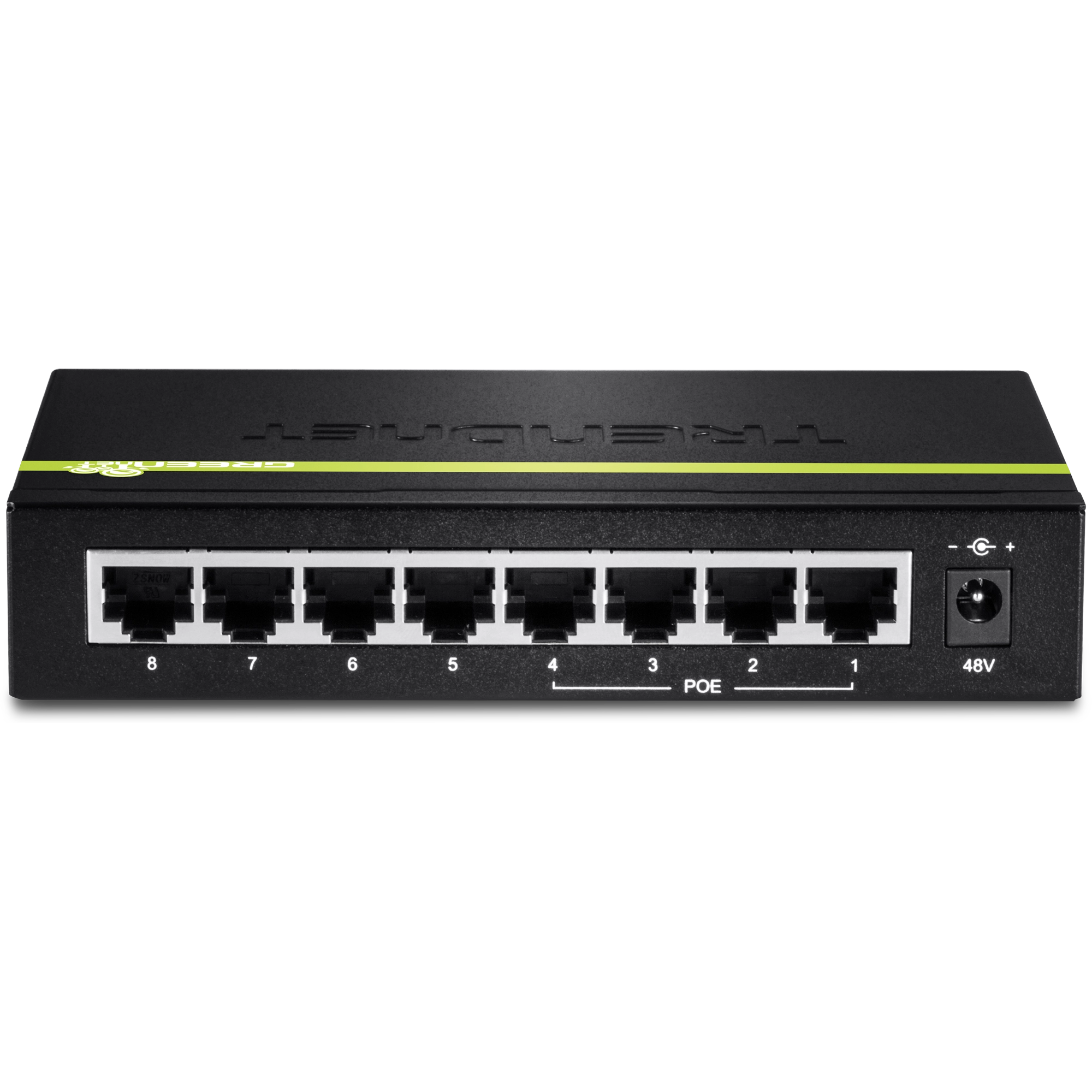

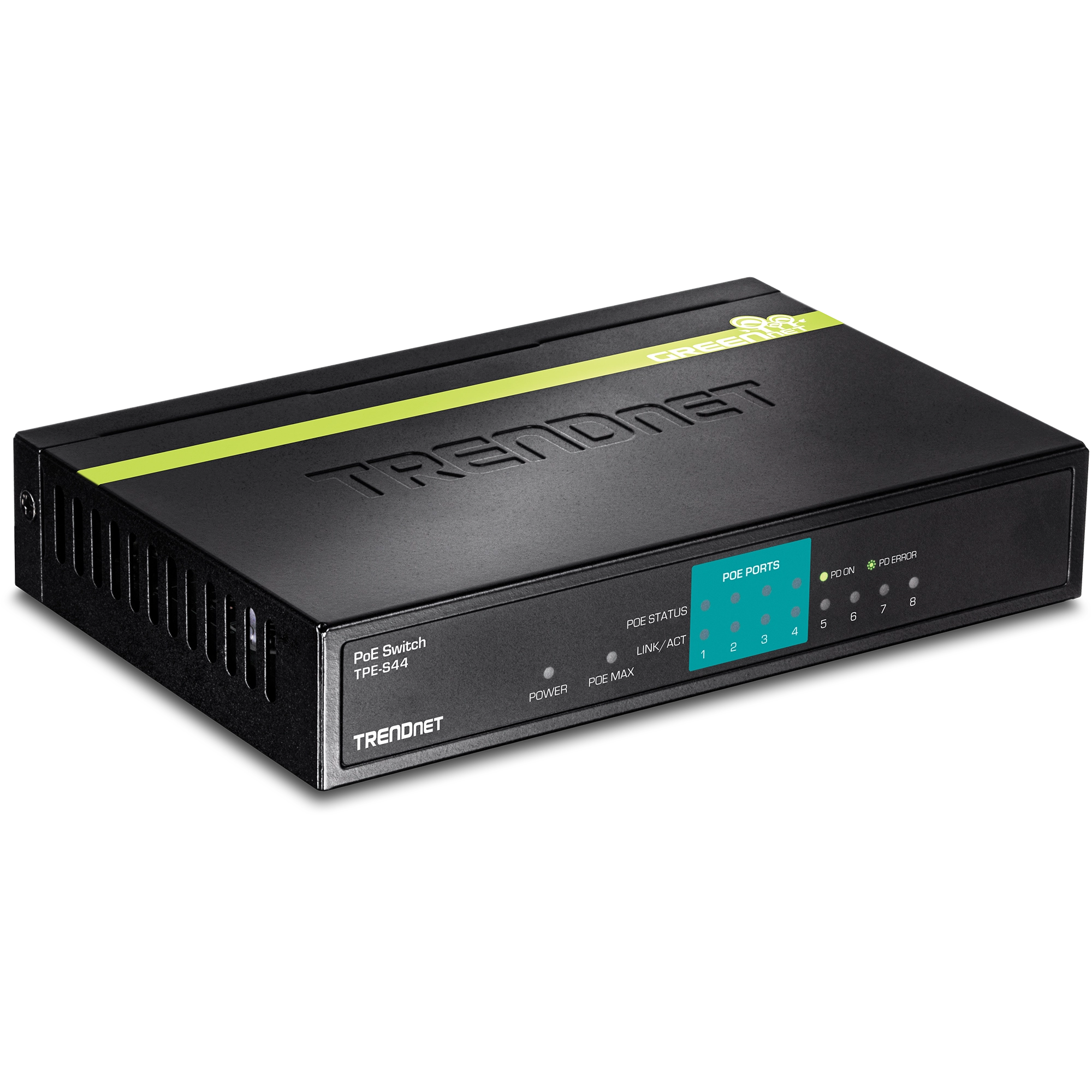

Trendnet - TPE-S44 - 8-port 10/100, 4 PoE Switch

Name: Trendnet - TPE-S44 - 8-port 10/100, 4 PoE Switch
Brand: Trendnet
SKU: TPE-S44

Part number:

TPE-S44

Price:

Dealers only

Add to Quote/Project Registration

Description Specifications Downloads Technical Overview

• 4 x 10/100Mbps PoE ports
• 4 x 10/100Mbps ports
• 30W PoE power budget
• 1.6Gbps switching capacity
• Sturdy metal switch
• Plug and Play installation
• NDAA / TAA compliant (U.S. and Canada only)
• Lifetime Warranty

Standards	• IEEE 802.1p QoS • IEEE 802.3 • IEEE 802.3u • IEEE 802.3af (15.4 Watts / port) • IEEE 802.3az • IEEE 802.3x
Device Interface	• 4 x 10/100Mbps PoE ports (port 1~4) • 4 x 10/100Mbps Fast Ethernet ports • LED indicators
Data Transfer Rate	• Ethernet: 10Mbps (half duplex), 20Mbps (full duplex) • Fast Ethernet: 100Mbps (half duplex), 200Mbps (full duplex)
Performance	• Data RAM Buffer: 96KB • Switch Fabric: 1.6Gbps • MAC Address Table: 2 K entries • Forwarding rate: 1.19Mpps (64-byte packet size)
Special Features	• GREENnet energy saving technology
Power	• Input: 110-240 V AC, 50 / 60 Hz, 0.75 A • Output: 48 V DC, 0.8 A • Consumption: 2.1 Watts (Max. without PD)
PoE	• PoE budget: 30 Watts • Pin 1, 2 for power+ and pin 3, 6 for power- (mode A)
Operating Temperature	• 0 – 45 °C (32 - 113 °F)
Operating Humidity	• Max. 90% non-condensing
Dimensions	• 150 x 96 x 28mm (5.9 x 3.8 x 1.1 in.)
Weight	• 370g (12.9 oz.)
Certifications	• CE • FCC
Warranty	• Lifetime Warranty

Name

Description

Size

Downloads

File

Data Sheets

1.4mb

TRENDnet's 8-Port 10/100 Mbps PoE Switch model TPE-S44 offers four 10/100 Mbps PoE ports and four 10/100 Mbps ports, as well as a 1.6 Gbps switching capacity and a PoE power budget of 30 watts. This sturdy metal switch is plug-and-play for reliable, high-speed PoE networking.
