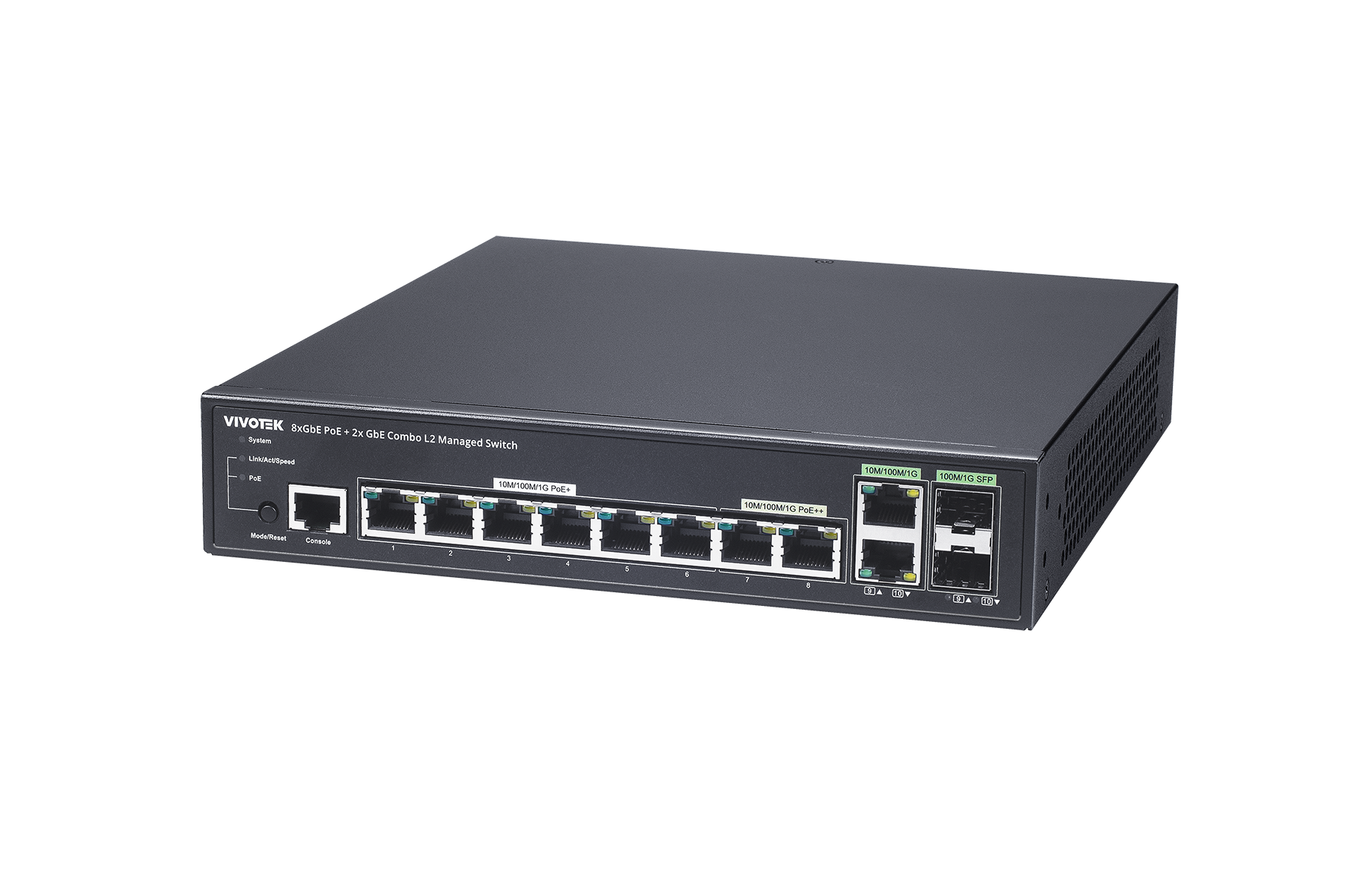

Vivotek - AW-GEV-108A-130 - 8-Port GbE RJ45(PoE)+2-Port GbESFP Web SmartManagedPoESwitch
Part number:
AW-GEV-108A-130
Price:
8-Port GbE RJ45(PoE)+2-Port GbESFP Web Smart Managed PoE Switch
Features:
- Topology View, Floor View, Map View
- Traffic Monitor
- Device List
- DHCP Server
- Non-Stop PoE
- 3 af/at/bt Hybrid, bt PoE Port Max. 90W
- Extended PoE Mode up to 250M
| Model | AW-GEV-108A-130 |
| Short Highlight | 2xGbE bt 90W PoE + 6xGbE 30W PoE + 2xGbE Combo VIVOCAM L2 Managed PoE Switch |
| Port Configuration | - |
| Gigabit RJ45 Port | 8 |
| Gigabit Combo Port | 2 |
| Total Ports | 10 |
| Console Port | 1 |
| HW Performance | - |
| Switching Bandwidth | 20Gbps |
| Forwarding Capacity | 14.88 Mpps |
| MAC Address | 8K |
| Jumbo Frames | 9216 Bytes |
| Network | - |
| IPv4/IPv6 | V |
| Surveillance Features | - |
| Network Device | up to 256 pcs |
| PoE Reboot | V |
| Surveillance Device Management List | V |
| DHCP Server Function | V |
| VIVOTEK Device Account/Password Setting | V |
VIVOTEK Device Grouping Setting for VLAN | V |
| VIVOTEK Device Name Edit | V |
| VIVOTEK Camera/Video Server Reboot/ Restore Default | V |
| VIVOTEK Device Re-direct Link | V |
| VIVOTEK Device On/Off Line Status | V |
| E-Map View | - |
| Topology View | V |
| Floor View | V |
| Google Map View | V |
| Maintenance | - |
VIVOTEK Camera/Video Server Configuration File Export/Import | V |
| Floor Image Management | V |
Export Surveillance Management Device List | V |
| Cable Diagnostics | V |
| Traffic Monitoring | V |
| Management | - |
| SNMP (v1, v2c, v3) | V |
| RMON (1,2,3 & 9 groups) | V |
| DHCP Server & Client | V |
| Port Mirroring | V |
| UPnP | V |
| LLDP (IEEE802.1ab) | V |
| LLDP-MED | V |
| S-Flow | V |
| Firmware Upgrade | V |
| NTP | V |
| PoE Management | - |
| PoE On/Off Control | V |
| PoE Alive Checking for PD | V |
| PoE Scheduling | V |
| Power Delay | V |
| Non-Stop PoE | V |
| Extended PoE Mode (up to 250m/10mbps) | V |
| PoE Function | - |
| IEEE 802.3af/at/bt PoE Standard Compliant | V |
| Number of PoE Output Port | 24 |
| PoE Output Power | Port 1-20 at 30W Port 21-24 bt 90W |
| Totoal PoE Power Budget | 370W |
| PoE Pin Assignment | Port 21-24 bt: 4 pairs 1/2 (-), 3/6 (+) and 4/5 (+), 7/8 (-) Port 1-20 af/at: 2 pairs 1/2 (+), 3/6 (-) |
| Environmental Specifications | - |
| Operating Temperature | -10°C ~ 50°C (14°F ~ 122°F) |
| Storage Temperature | -20°C ~ 70°C (-4°F ~ 158°F) |
| Operating Humidity | 10 ~ 90% RH |
| Mechanical Specifications | - |
| Dimensions | 442 (W) x 44 (H) x 211(D) mm |
| Weight | 3.2 kg |
| Power Source | - |
| AC Input | 100V ~ 240V |
| Frequency | 50 ~ 60 Hz |
| Certifications | - |
| Certifications | UL, CE, UKCA, FCC, VCCI, LVD, ICES |
| Warranty | - |
| Warranty | 24 months |
| Accessories | - |
| Included Accessories | Power Cord, QIG, CD Manual, Rack Mount Kit |
