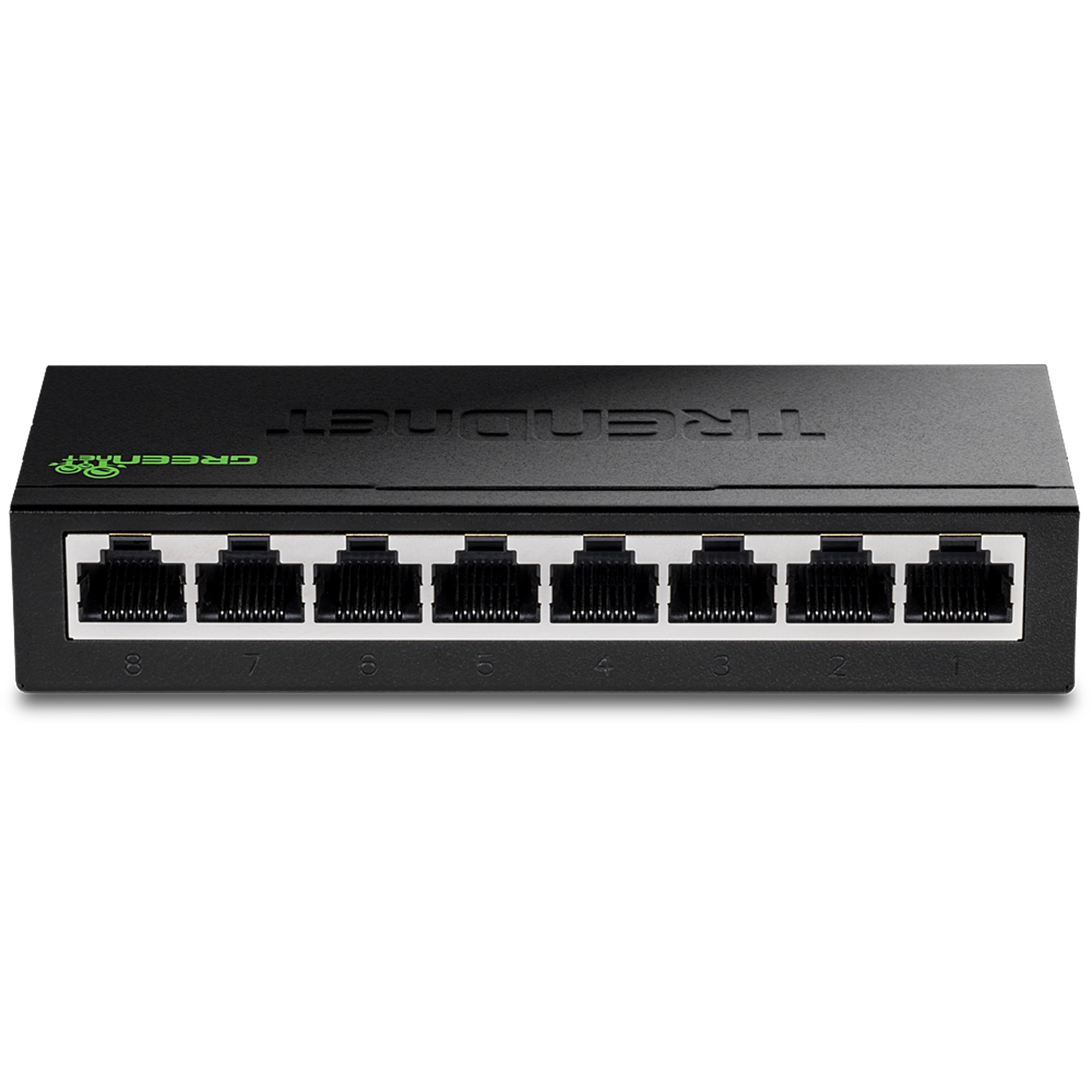

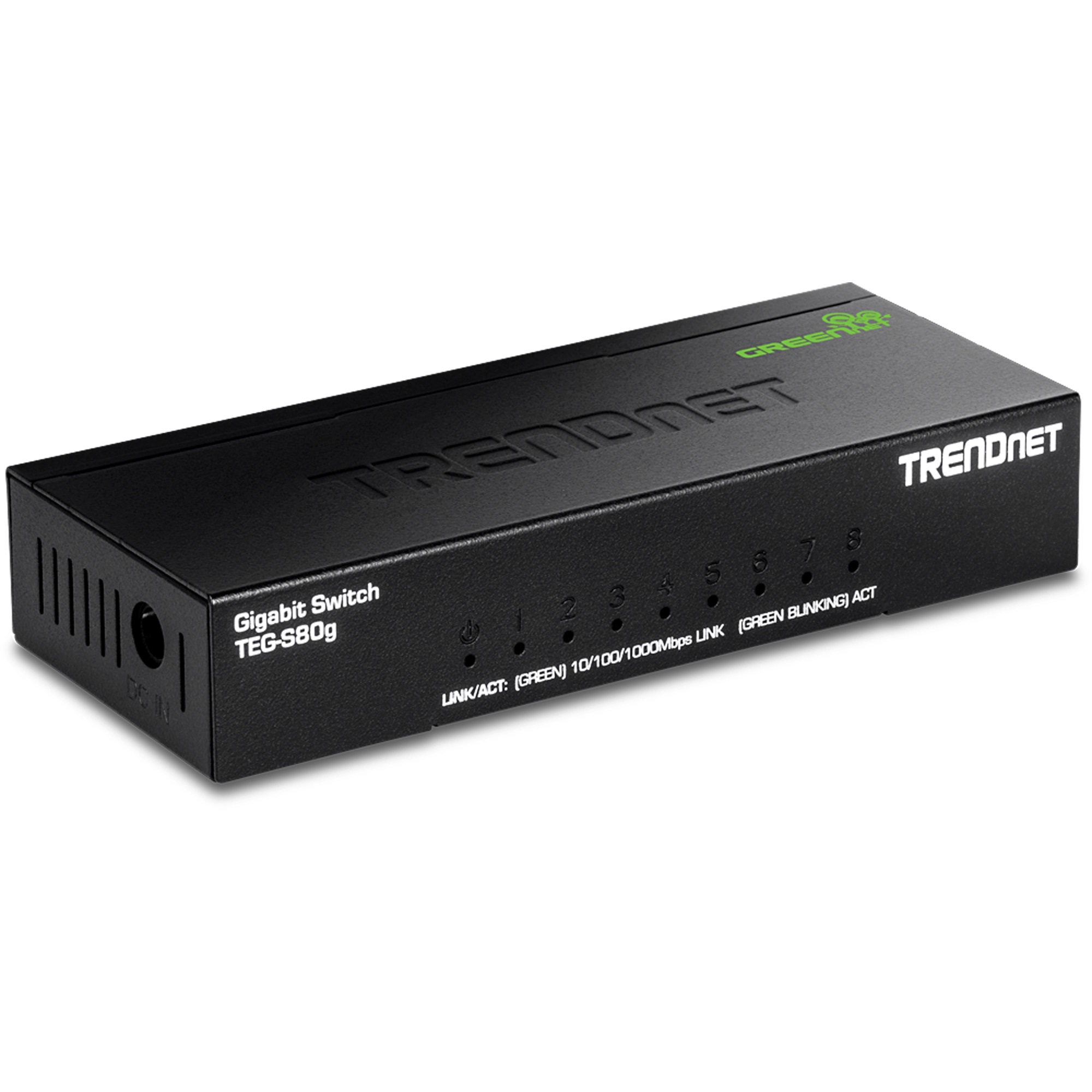

TRENDNET - TEG-S80g - 8-port Gigabit GREENnet Switch (Metal)
Part number:
TEG-S80g
Price:

The 8-Port Gigabit GREENnet Mini Switch, model TEG-S80g, provides high-bandwidth performance, ease-of-use, and reliability, all from a tiny and durable metal enclosure, while reducing power consumption. GREENnet™ technology automatically adjusts power consumption as needed, resulting in substantial energy savings. Embedded GREENnet technology works right out of the box with no management requirement.



This space-saving metal mini switch is designed to fit into any desktop setup, and is small enough to fit into your pocket. It’s ideal for both a minimalist desk setup or a desk packed with gear. Boost office network efficiency and eliminate network congestion with gigabit speeds and a total switching capacity of 16Gbps with full-duplex mode. Integrate this sturdy mini switch for reliable high-speed network connectivity.



Features:

  • 8 x Gigabit ports
  • 16Gbps switching capacity
  • Energy savings with GREENnet™ technology
  • Sturdy wall mountable metal mini switch
  • Fanless design eliminates operating noise
  • NDAA / TAA compliant (U.S. and Canada only)
  • Lifetime Warranty

Standards

  • IEEE 802.3
  • IEEE 802.3u
  • IEEE 802.3x
  • IEEE 802.3ab
  • IEEE 802.3az

Device Interface
  • 8 x Gigabit ports

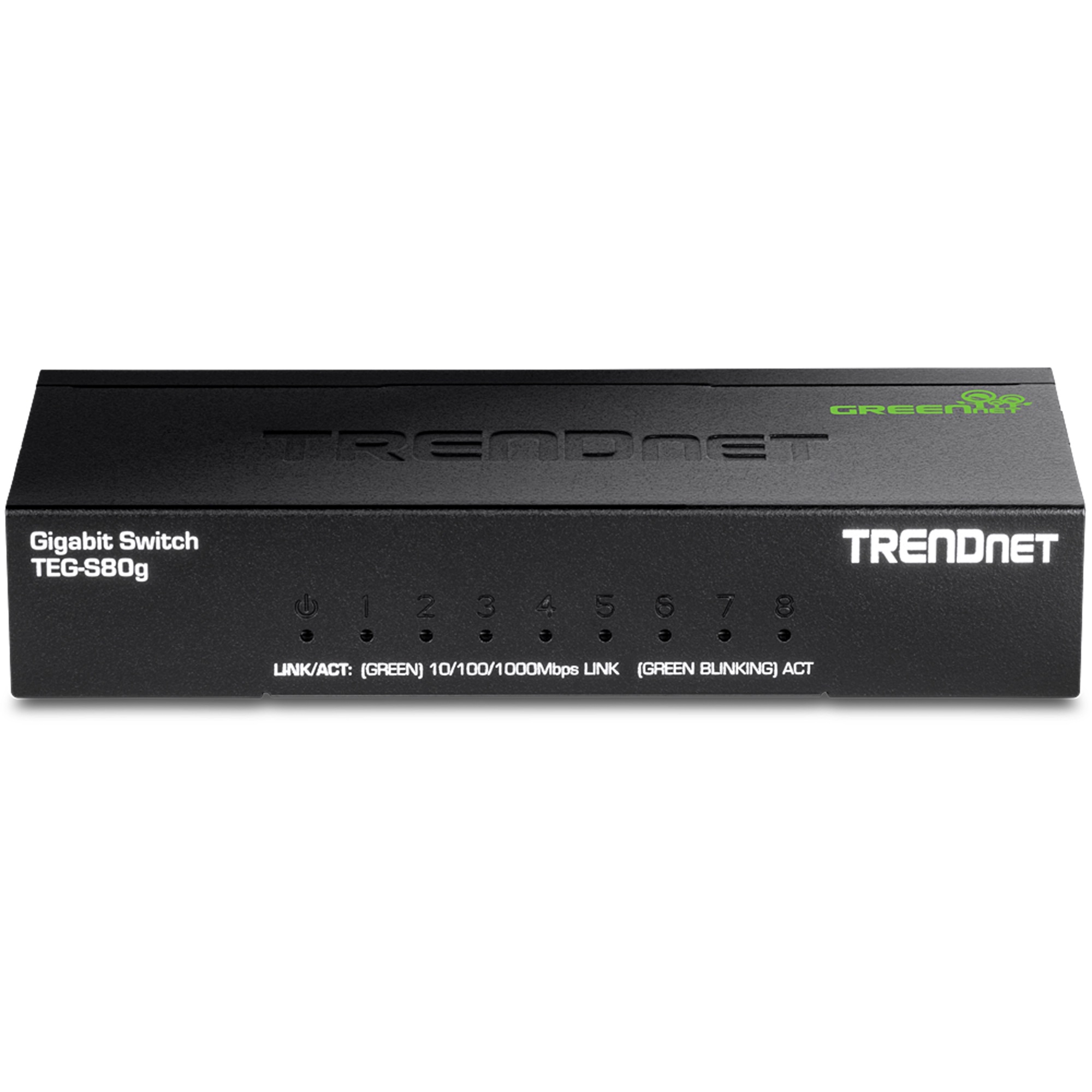

  • LED indicators

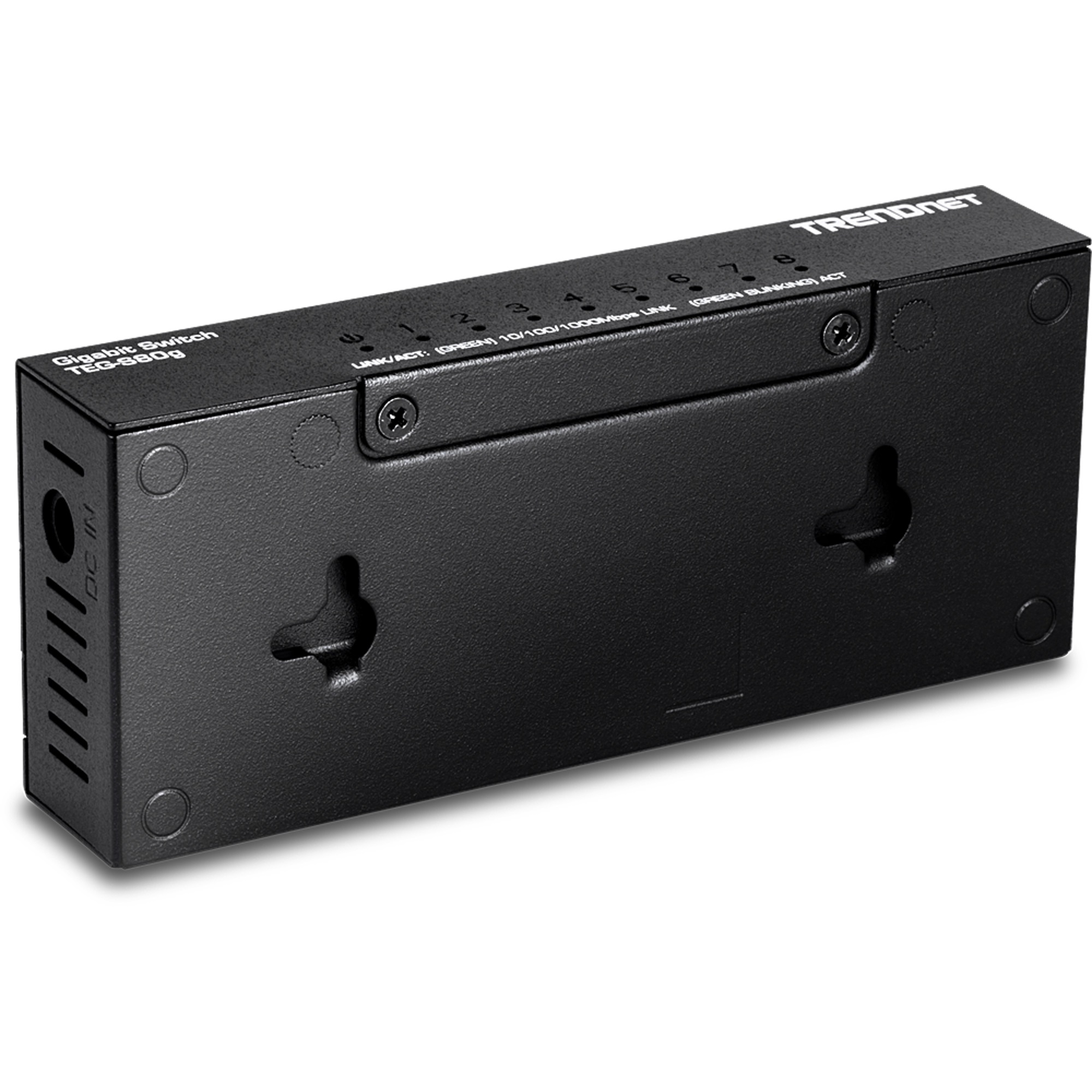

  • Wall mountable
Data Transfer Rate
  • Ethernet: 10Mbps (half duplex), 20Mbps (full duplex)
  • Fast Ethernet: 100Mbps (half duplex), 200Mbps (full duplex)
  • Gigabit: 2000Mbps (full duplex)
Performance
  • Switch fabric: 16Gbps
  • RAM buffer: 192KB
  • MAC address table: 4K entries
  • Jumbo Frames: 9KB
  • Forwarding mode: Store and forward
  • Forwarding rate: 11.9Mpps (64-byte packet size)
Power
  • Input: 100 – 240V AC, 50/60 Hz
  • Output: 5V DC, 1A
  • Max. consumption: 3.2W
MTBF
  • 104,375 hours
Fan / Acoustics
  • Fanless
Operating Temperature
  • 0° – 40° C (32° – 104° F)
Operating Humidity
  • Max. 90% non-condensing
Dimensions
  • 126 x 51.8 x 24mm (4.96 x 2.04 x 0.94 in.)
Weight
  • 0.176 kg (0.388 lbs.)
Certifications
  • CE
  • FCC
  • LVD
Warranty
  • Lifetime Warranty*

PACKAGE CONTENTS

  • TEG-S80g
  • Quick Installation Guide
  • Power adapter (5V, 1A)
Name
Description
Size
Downloads
File
Datasheet
1.1mb
