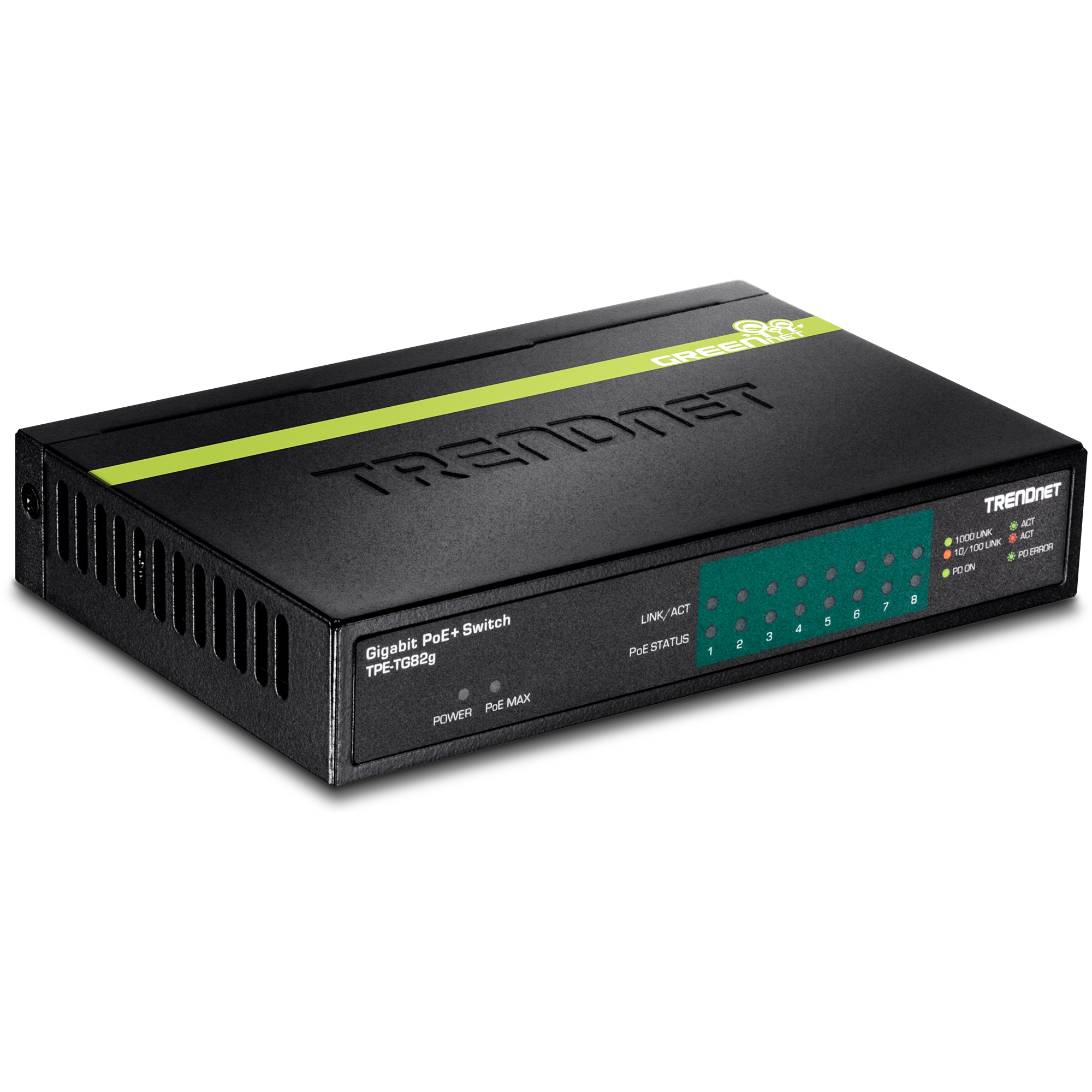

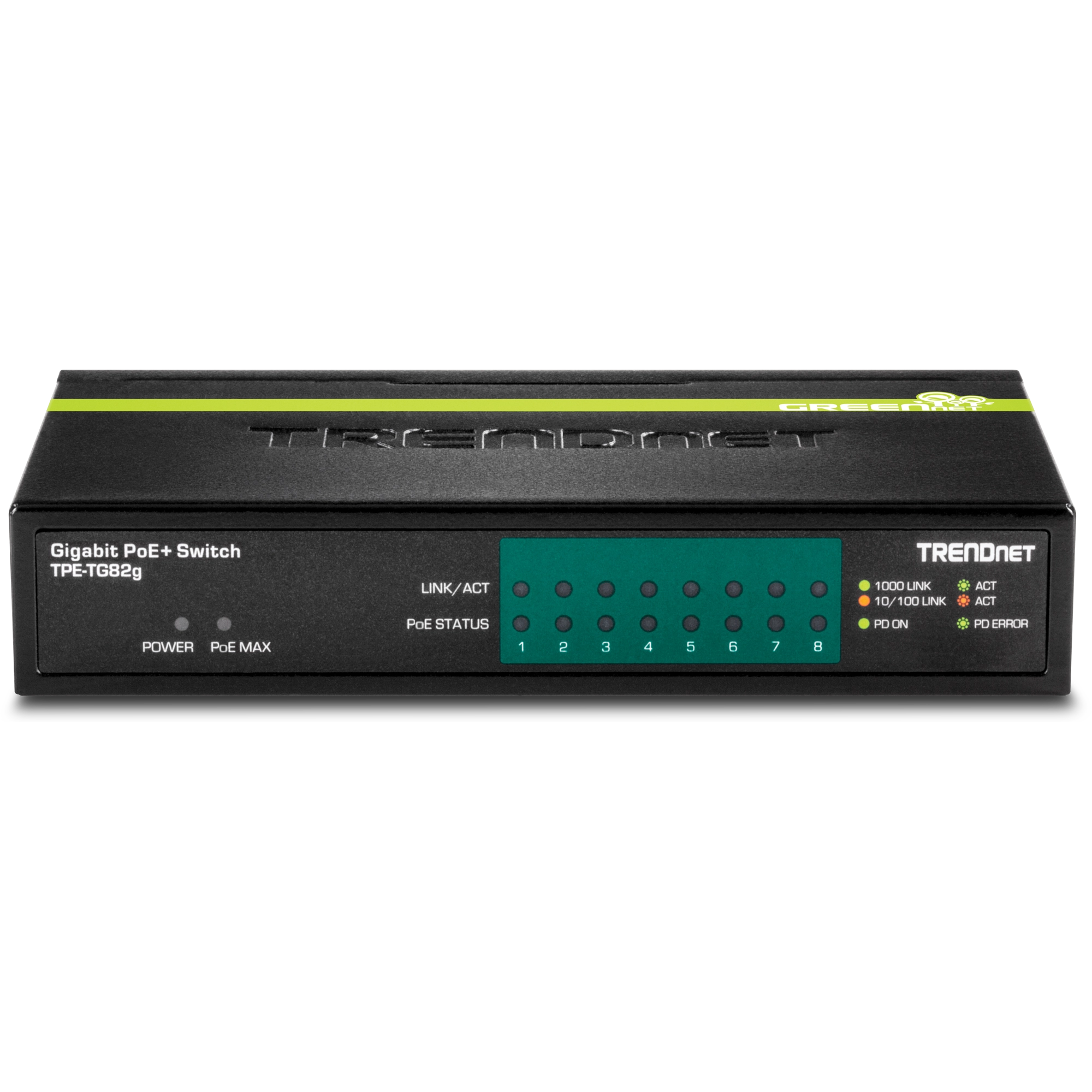

Trendnet - TPE-TG82G - 8-Port Gigabit PoE+ Switch
Part number:
TPE-TG82G
Price:

The 8-Port Gigabit PoE+ Switch, model TPE-TG82g, delivers data and power over existing Ethernet cables to Power over Ethernet (PoE) devices such as Access Points and IP Cameras. It supports both PoE and PoE+ devices with a 61W PoE budget. Plug and Play this sturdy metal switch for reliable high-speed PoE networking.



PoE Power

A 61W PoE power budget supports up to eight Power over Ethernet devices.



Gigabit Ethernet

Eight gigabit ports provide a 16Gbps switching capacity to support edge network installations.



Compact Design

With a compact and lightweight housing design, this switch is well-suited for desktop installations. Its fanless design is ideal for quiet environments that require silent operation.



Features:

  • 8 x Gigabit PoE+ ports
  • 61W PoE budget
  • 16Gbps switching capacity
  • Sturdy metal switch
  • Plug and Play installation
  • Use with TRENDnet's PoE Splitter to network and power non-PoE devices
  • NDAA / TAA compliant (U.S. and Canada only)
  • Lifetime Warranty*
Technical Specifications
Standards
  • IEEE 802.3
  • IEEE 802.3u
  • IEEE 802.3x
  • IEEE 802.3ab
  • IEEE 802.3af
  • IEEE 802.3at
  • IEEE 802.3az
  • IEEE 802.1p
Device Interface
  • 8 x Gigabit PoE/PoE+ ports
  • LED indicators
Data Transfer Rate
  • Ethernet: 10 Mbps (half duplex), 20 Mbps (full duplex)
  • Fast Ethernet: 100 Mbps (half duplex), 200 Mbps (full duplex)
  • Gigabit: 2000 Mbps (full duplex)
Performance
  • Packet Buffer: 1.5Mbits
  • Switch Fabric: 16Gbps
  • MAC Address Table: 4K entries
  • Forwarding rate: 11.9Mpps (64-byte packet size)
  • Jumbo Frame: 9K
Power
  • Input: 100-240V AC, 50/60 Hz 1.2A
  • Output: 54 V DC, 1.67 A
  • Max. consumption: 5.3W (no PD connected)
PoE
  • PoE budget: 61W
  • PoE Mode A: Pins 1, 2, 3, and 6 for power
MTBF
  • 612, 220 hours
Operating Temperature
  • 0 – 40 °C (32 - 104 °F)
Operating Humidity
  • Max. 90% non-condensing
Dimensions
  • 150 x 95 x 30 mm (5.9 x 3.7 x 1.2 in.)
Weight
  • 400 g (14 oz.)
Certifications
  • CE
  • FCC
Warranty
  • Lifetime Warranty*
Name
Description
Size
Downloads
File
Datasheet
0.9mb
