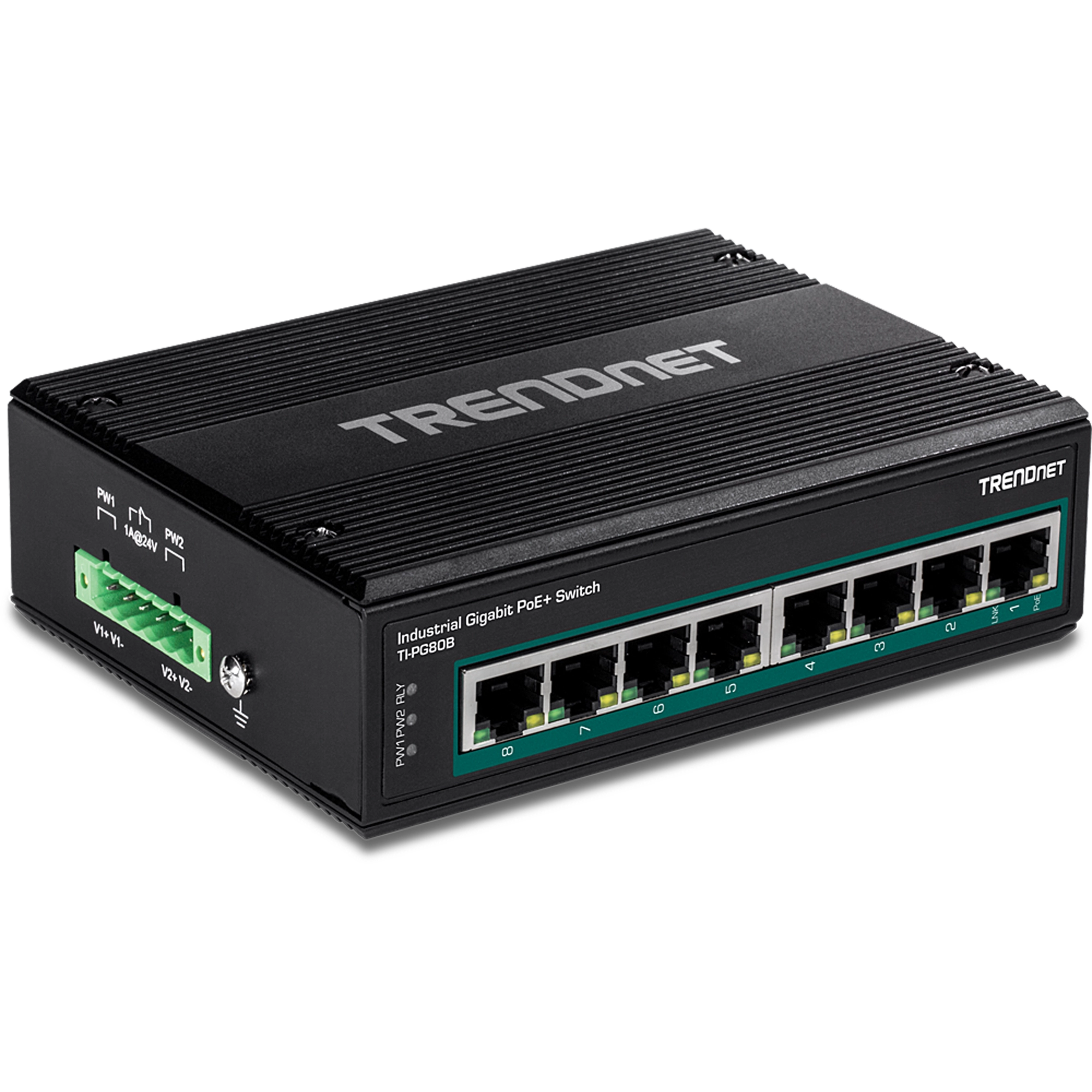

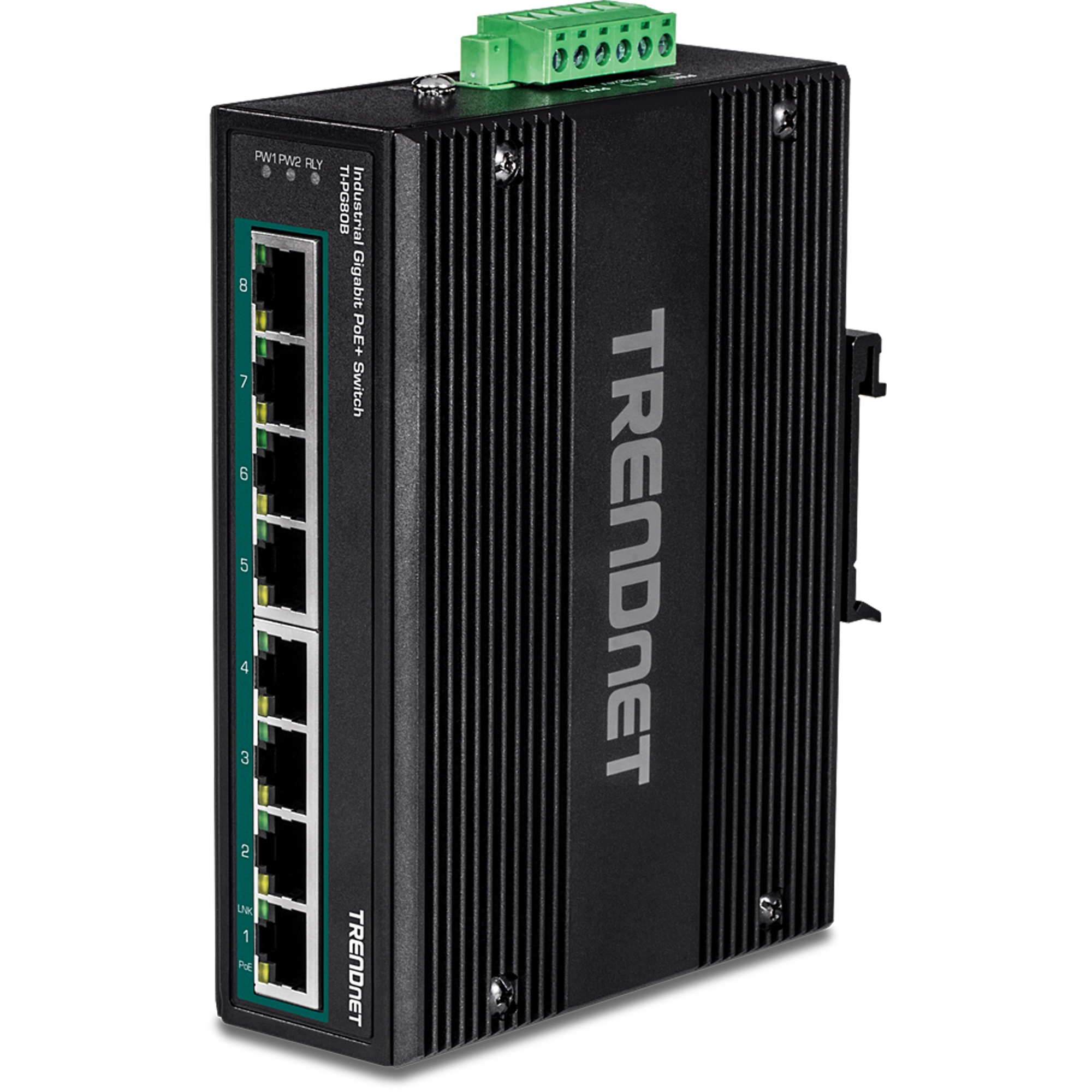

TRENDnet's 8-Port Industrial Gigabit PoE+ DIN-Rail Switch, model TI-PG80B, is an industrial variable voltage switch with eight gigabit PoE+ ports and a 200W PoE power budget. Users are able to connect eight PoE+ devices to this industrial variable voltage PoE+ switch for high-speed connectivity to the network. The industrial variable voltage PoE+ switch is equipped with a rugged IP30 rated metal enclosure, and designed to withstand a high degree of vibration and shock, while operating within a wide temperature range of -40° – 75° C (-40° – 167° F) for industrial environments. Dual 24 – 56V DC power inputs on the industrial variable voltage switch provide redundancy with power failure alarm relay.
PoE Power
The industrial variable voltage PoE switch features a 200W PoE+ power budget, and supplies up to eight Power over Ethernet devices with PoE+ power.
Fault Tolerance
The industrial variable voltage PoE switch features dual 24V – 56V DC power inputs for redundancy with overload current protection.
Industrial Design
Equipped with a rugged IP30 rated housing, resistant to a high degree of vibration and shock, and operates within a wide temperature range of -40° – 75° C (-40° – 167° F).
Features:

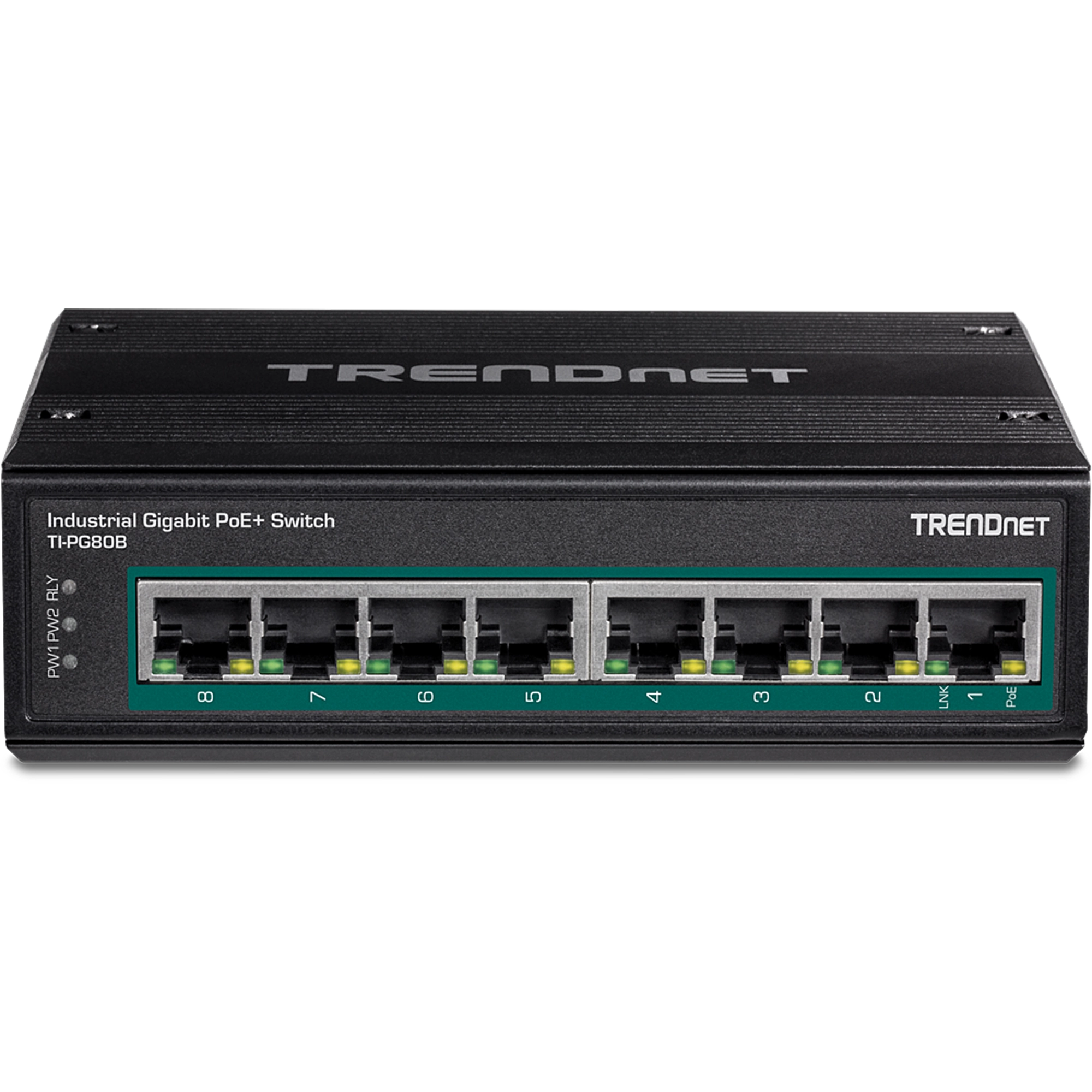

- 8 x Gigabit PoE+ ports
- PoE power budget 120W@24V – 200W@48V
- 16Gbps switching capacity
- Hardened IP30 rated metal switch

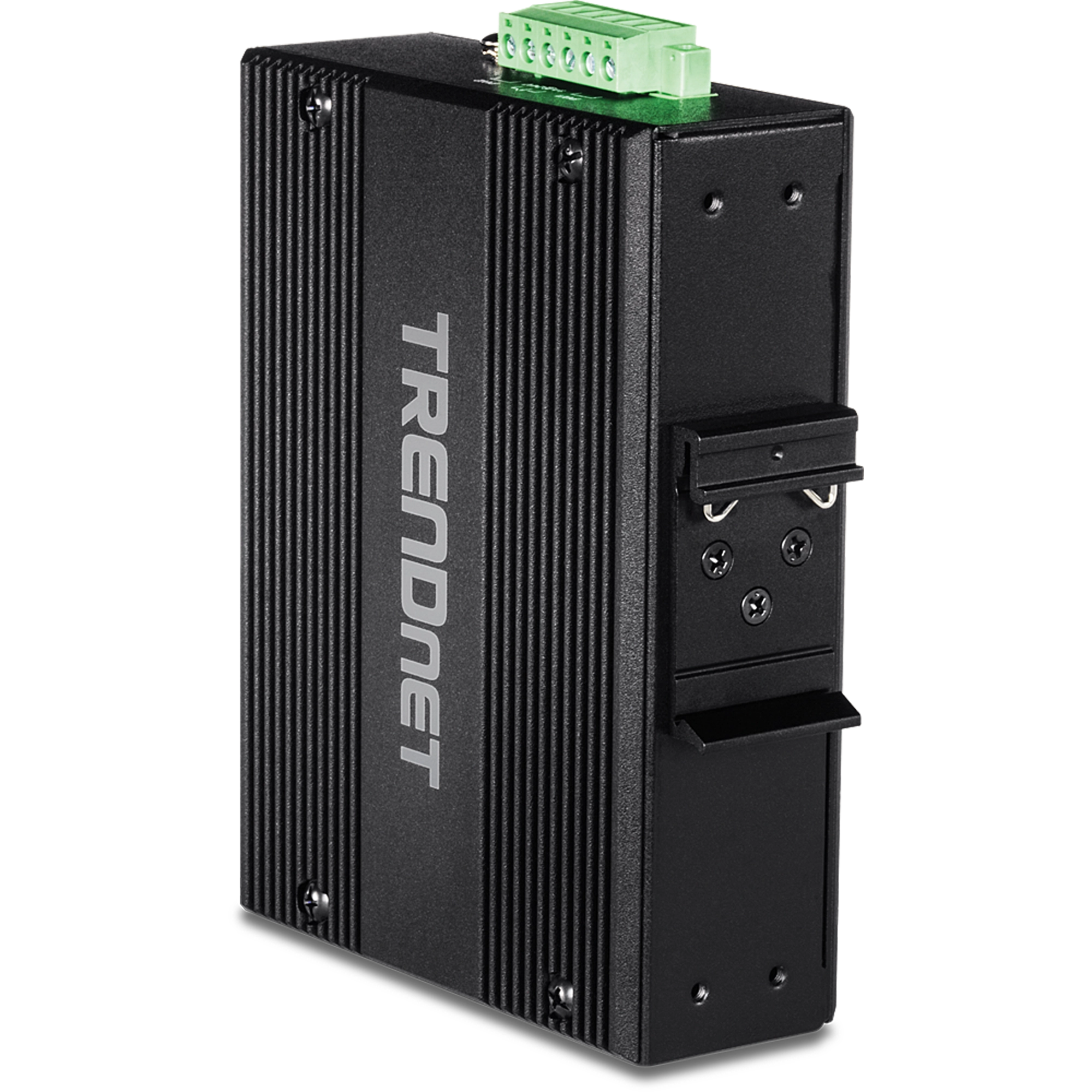

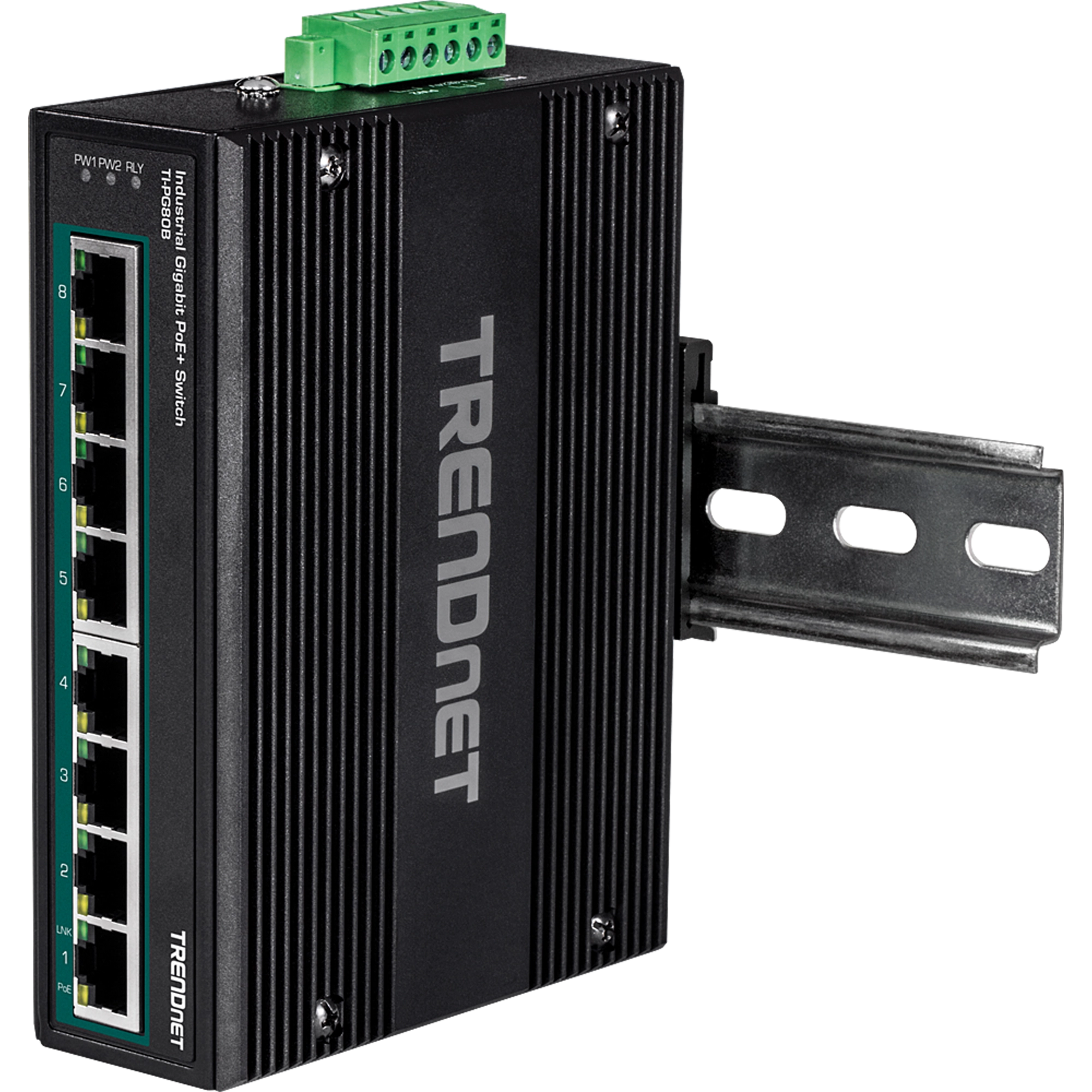

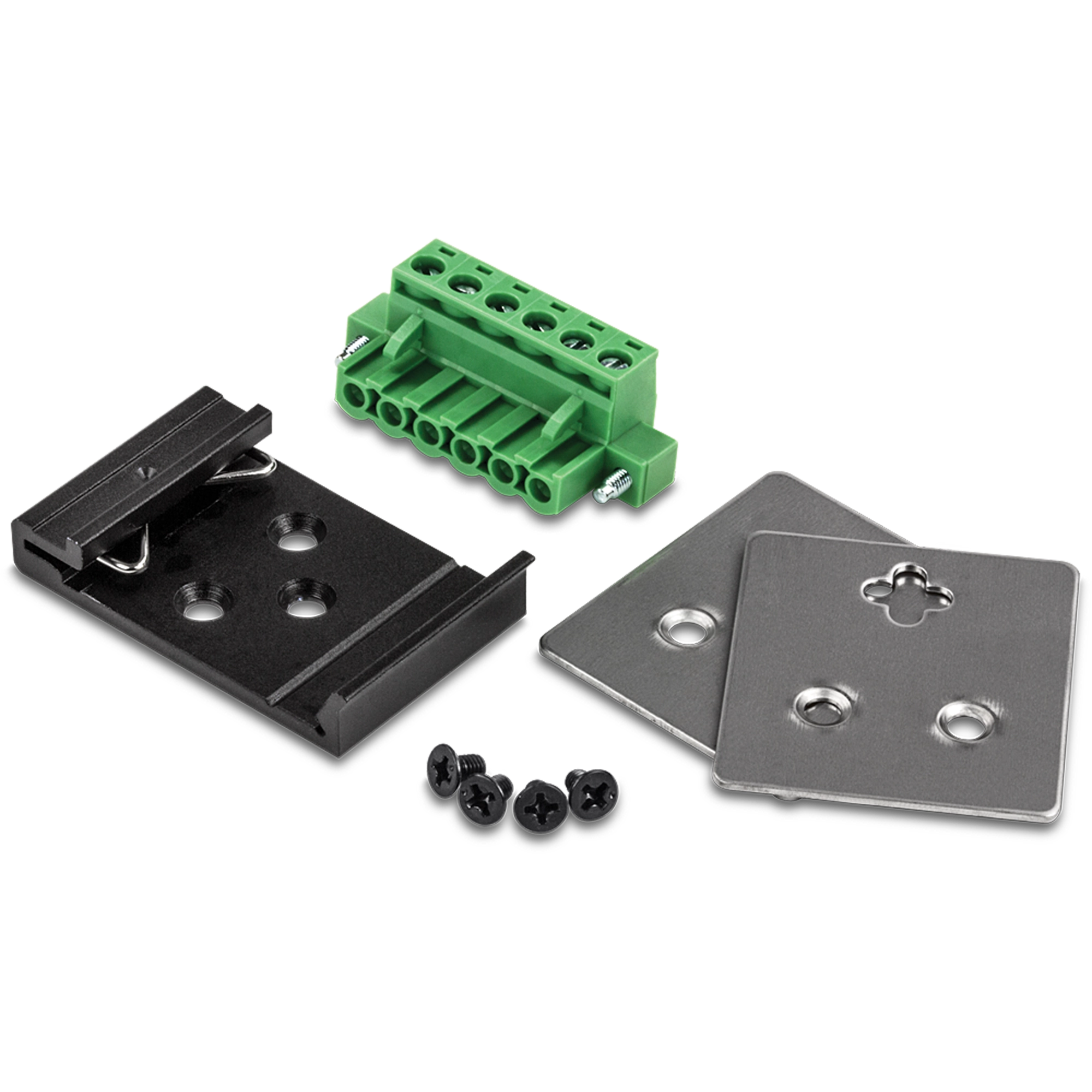

- Includes DIN-Rail and wall mounts
- Operating temperature range of -40° – 75° C (-40° – 167° F)

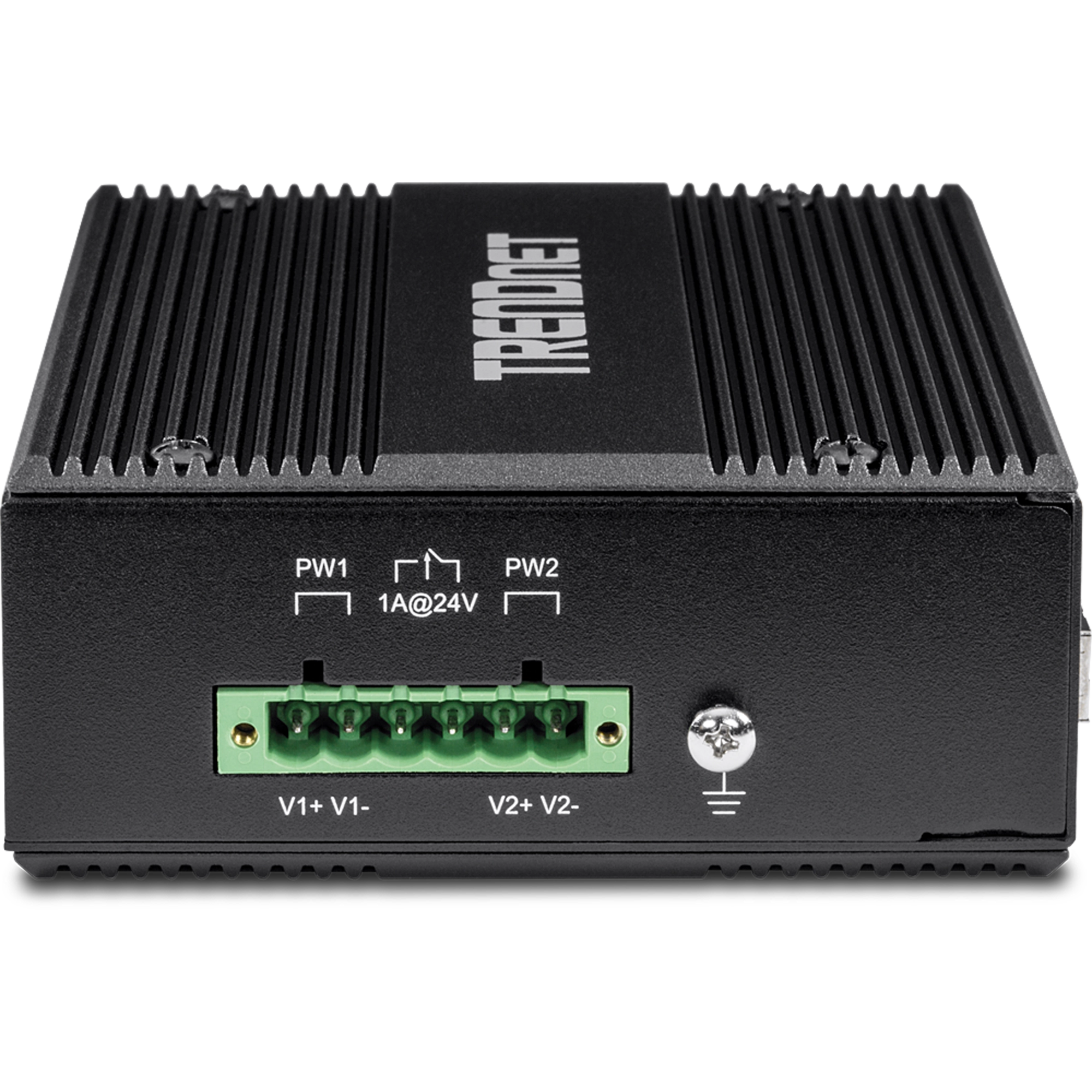

- Dual 24 – 56V DC power inputs for redundancy
- Power supply sold separately (models: TI-S15052, TI-S24052, TI-S12024, TI-S24048)
- NDAA / TAA compliant
- Lifetime Warranty*
| Technical Specifications | |
| Standards |
|
| Device Interface |
|
| Data Transfer Rate |
|
| Performance |
|
| Special Features |
|
| DC Power |
|
| PoE |
|
| Terminal Block |
|
| Alarm Relay Contact |
|
| MTBF |
|
| Housing |
|
| Operating Temperature |
|
| Operating Humidity |
|
| Dimensions |
|
| Weight |
|
| Certifications |
|
| Warranty |
|
