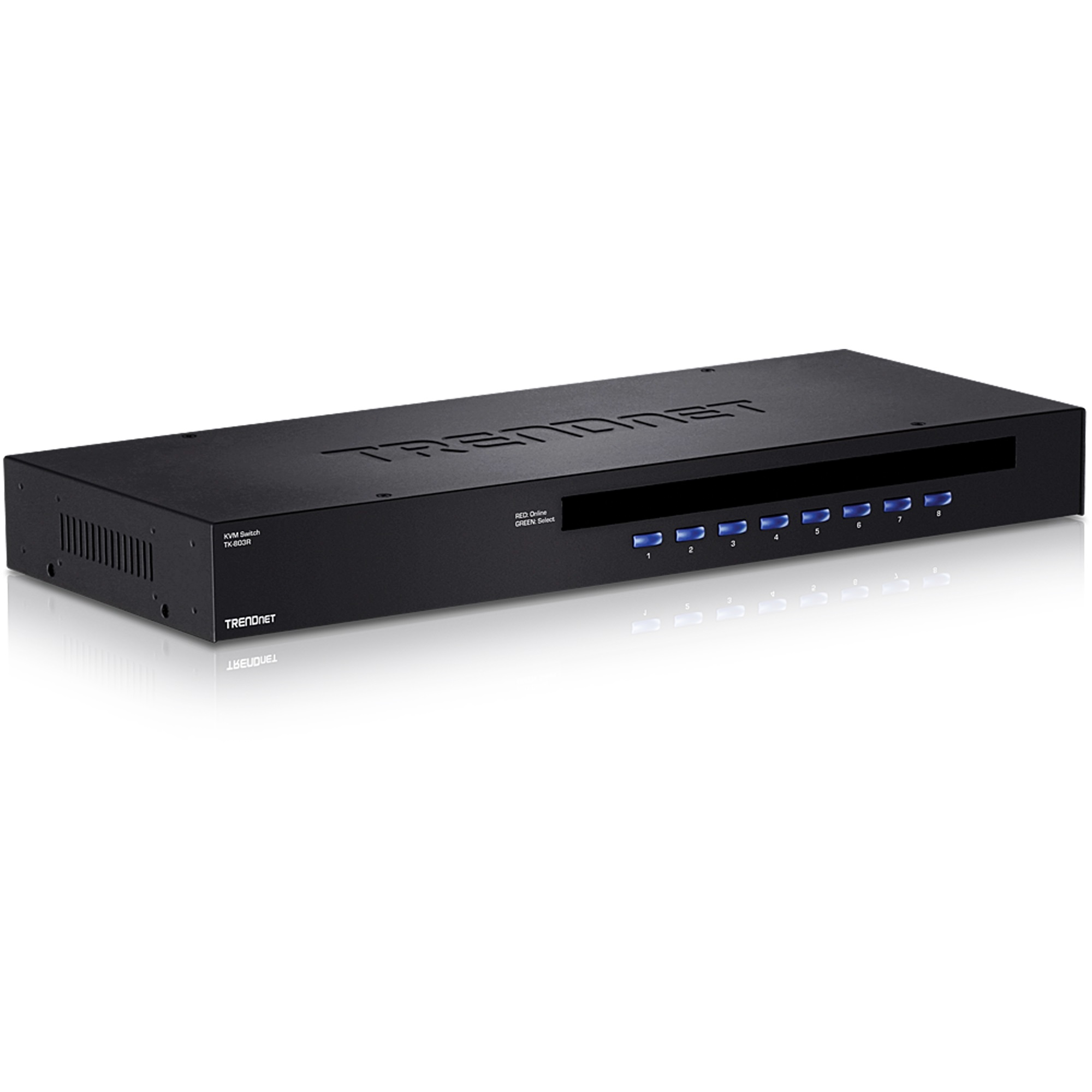

Trendnet - TK-803R - 8-port KVM USB/PS2 Rack Mount Switch
Part number:
TK-803R
Price:

TRENDnet's 8-Port Rackmount VGA KVM Switch, model TK-803R, lets you manage multiple computers with just one set of keyboard, monitor, and mouse. This rackmount USB KVM switch supports USB and PS/2 interface on the console side, and USB only on the PC side. Popular hardware platforms such as Windows, Linux, and Mac are supported. Users can switch between PCs using hot-key or push button for flexible management. Users can also hot-plug PCs on the fly to avoid downtime. The 8-Port Rackmount USB KVM Switch is the perfect choice for managing multiple PC's.



Features:

  • Controls up to 8 computers or servers
  • Console port supports both USB and PS/2 for keyboard and mouse interfaces
  • USB only for PC side mouse and keyboard connections
  • Supports Windows, Linux, Mac OS and more
  • Supports up to 2048 x 1536 VGA resolution
  • Auto-scan for monitored PCs with adjustable scan interval from 10-99 seconds
  • Keyboard status restored when switching between computers
  • LEDs display for easy status monitoring
  • Audio notification for port switching confirmation (enable/disable)
  • Keyboard hot-key command or push button switching
  • Plug & Play and Hot-Pluggable
  • Required cabling sold separately (TK-CU06 / TK-CU10 / TK-CU15)
  • Standard 19” (1U) rackmount design
  • 2 year warranty
  • NDAA / TAA compliant (U.S. and Canada only)

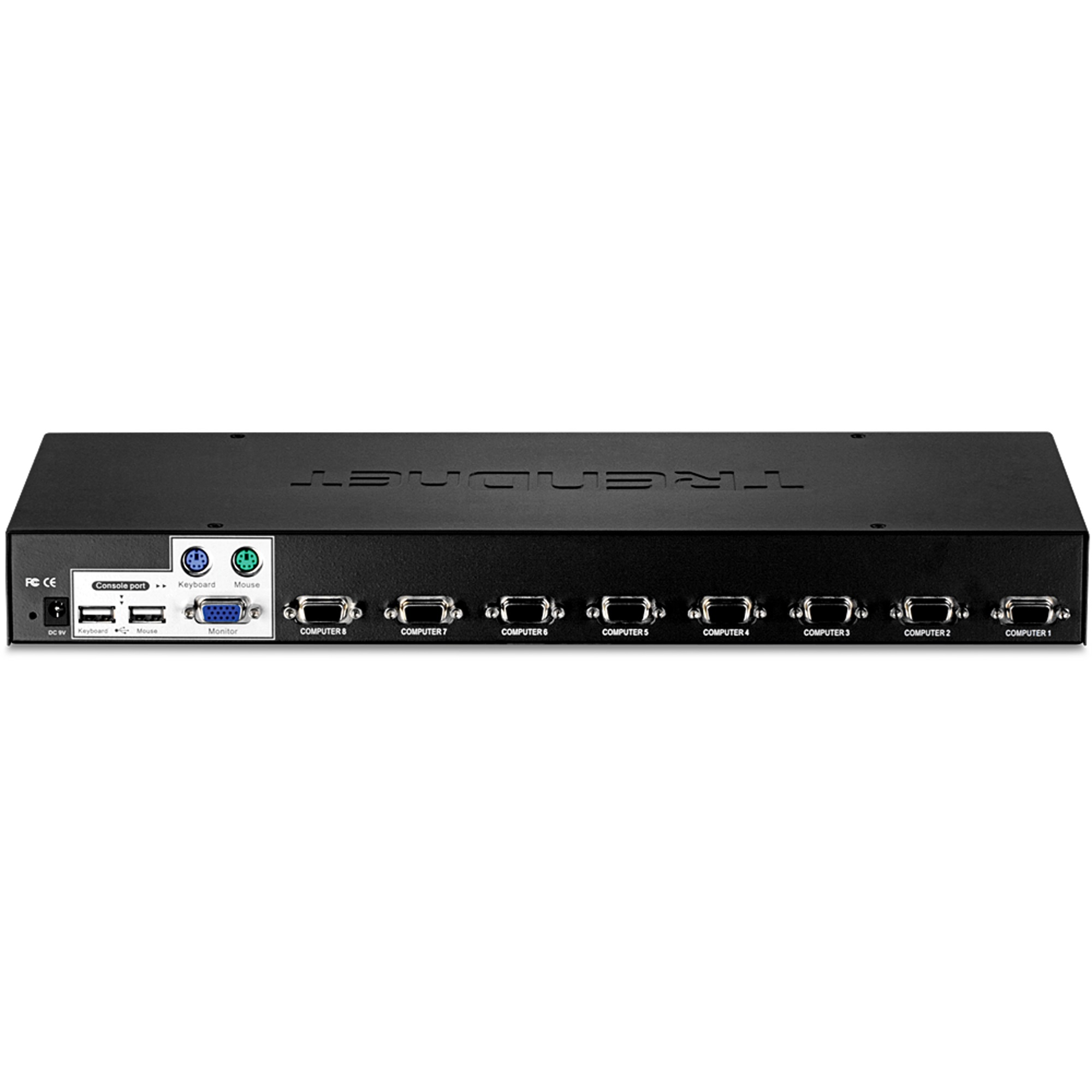

Console Port Connectors
  • Keyboard: USB Type A, PS/2
  • Mouse: USB Type A, PS/2
  • Monitor: VGA
Computer Interface (up to 8)
  • Keyboard/Mouse: USB Type A
  • Monitors: VGA
Monitor Resolution
  • 2048 x 1536
Switching Control

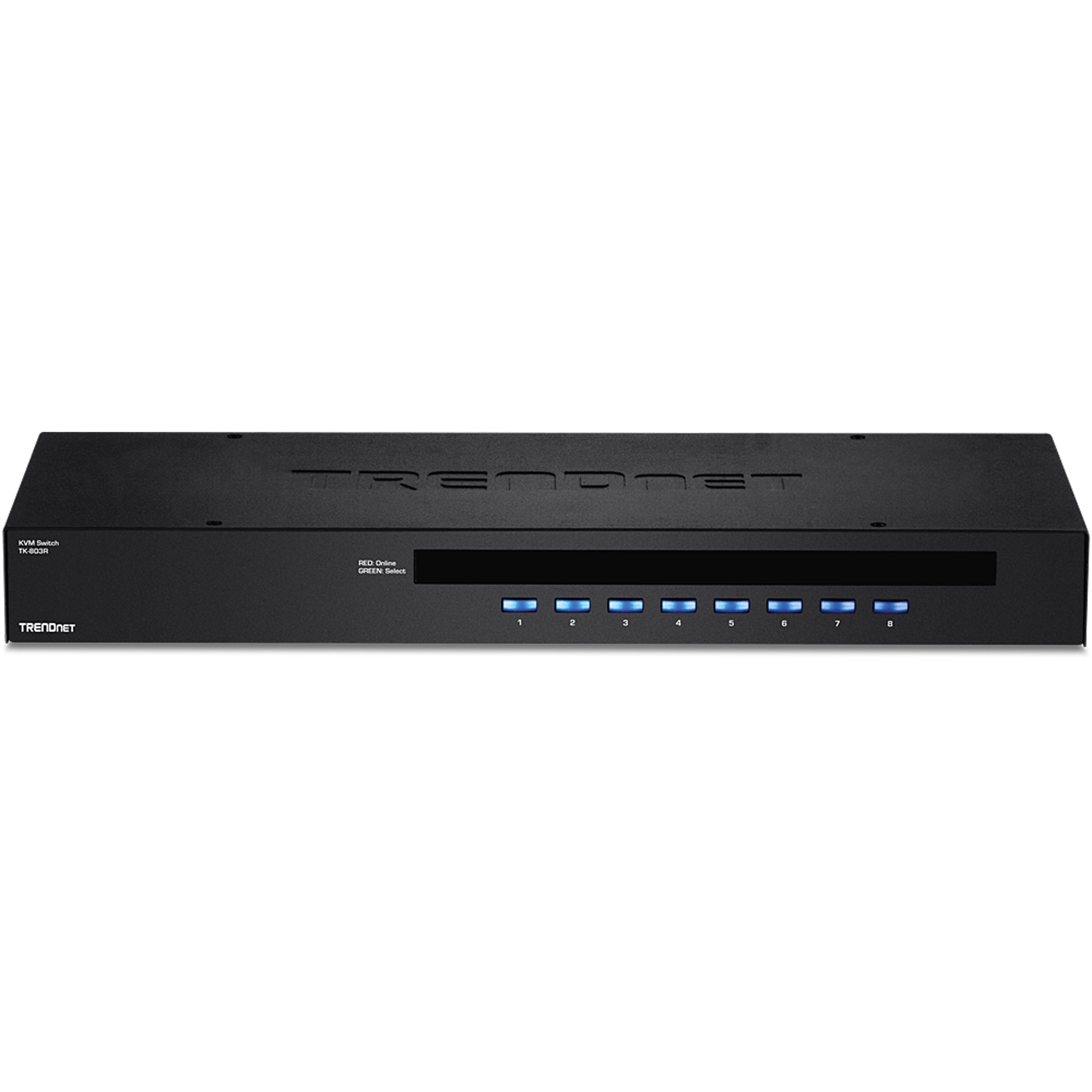

  • Front panel push buttons
  • Keyboard hot key commands
Operating Temperature
  • 0° – 40° C (32° – 104° F)
Operating Humidity
  • Max. 80% non-condensing
Power
  • Input: 100 – 240V AC, 50/60Hz, 0.8A
  • Output: 9V DC, 1.33A external power adapter
  • Max. consumption: 0.7W
Dimensions
  • 407 x 165 x 45mm (16 x 6.5 x 1.8 in.)
Weight
  • 1.8kg (4 lbs.)
Certifications
  • CE
  • FCC
Warranty
  • 2 year

PACKAGE CONTENTS

  • TK-803R
  • Quick Installation Guide
  • Power adapter (9V DC, 1.33A)
  • Rackmount kit
Name
Description
Size
Downloads
File
Datasheet
1.1mb
