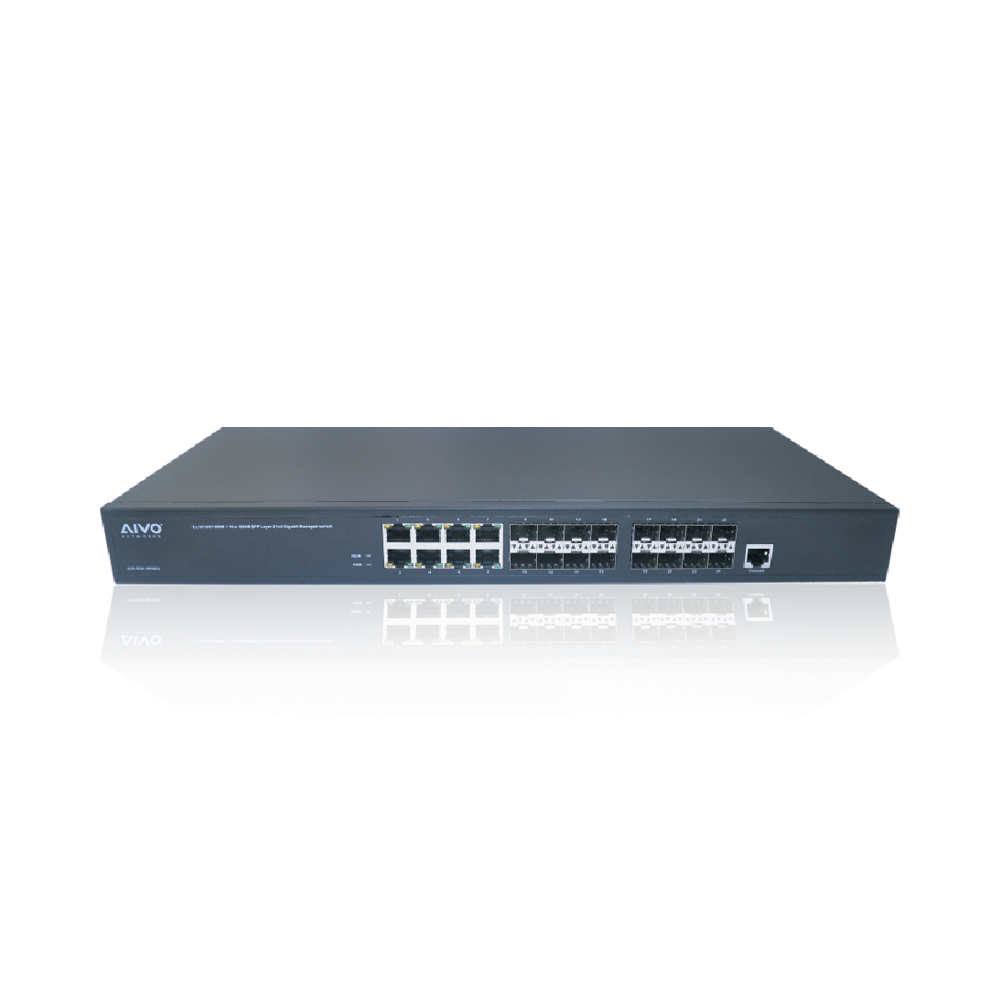

AVYCON - AVN-S24-16P08G - 8G RJ45 Ports with 16 Gigabit SFP Ports, L2+ Managed Network Switch
Part number:
AVN-S24-16P08G
Price:
The AVN-S24-16P08G is a managed L2+ 8 x 10/100/1000M RJ45 Port + 16 Gigabit SFP Port switch. With it’s advanced surge protection features and console port for programming, it is suitable for larger commercial applications. The AVN-S24-16P08G comes with an industrial standard 19” 1U rack-mountable chassis and rack ears. The 16 SFP slots can support both copper and fiber modules.
Features:
- Conforms to IEEE802.3, IEEE 802.3u, IEEE 802.3ab, IEEE802.3z protocols
- Provides 8 x 10/100/1000Base-TX ports and 16 x 1000M SFP ports
- High back-plane bandwidth of 64Gbps
- Supports Standard IP/ Extend IP / MAC IP / ARP ACL
- IGMP Snooping / IGMP Query mode for multi-media application
- Port mirroring and bandwidth control
- Supports GVRP function
- Supports IEEE802.3x Flow control
- Supports Port Based VLAN / 802 .1Q Tag VLAN
- Supports IEEE802.3ad Port trunk with LACP
- Support Spanning tree protocol IEEE 802.1d
- Supports IEEE 802.1p class of service
- Supports IEEE 802.1x user authentication
- Supports broadcast storm filtering
- Supports DHCP server and client modes
- Supports system event log
- Supports CLI management
- Management by Web / SNMP / Telnet / Console Port
- Surge protection for power port and data ports
| SUMMARY | |
| Fixed Port | 8 10/100/10000Base-TX ports 16 1000M SFP ports 1 Console port |
| LED Indicators | PWR, Link/Act LED |
| Input Voltage | 100V ~ 240V, 50/60 Hz |
| Power Consumption | <30W |
| Operating Temperature | 0°C ~ 40°C (32°F ~ 104°F) |
| Storage Temperature | -10°C ~ 70°C (14°F ~ 158°F) |
| Relative Humidity | 20% ~ 85% (Non-Condensing) |
| Thermal Methods | Fanless |
| LAYER 2 SWITCHING | |
| Switching Capacity | 64G |
| MAC Address Table | 8K, Support MAC address table management |
| MAC Address Binding | Supported |
| MAC Address Filtering | Supported |
| MAC Address Learning Control | Control number of port-based MAC address learning |
| Jumbo Frame | Jumbo packets up to 16379 bytes |
| Port Feature | Port Control, Port Isolation, Port Self-Loop Detection |
| Port Mirroring | Supported |
| VLAN | 4k 802.1q VLANS, MAC-based VLAN, IP-base VLAN, Voice VLAN, VLAN Mapping, QinQ |
| Link Aggression | Up to 8 maximum aggregation groups, each containing up to 8 GE ports |
| Traffic Control | IEEE 802.3x full-duplex flow control |
| Rate Limit | Unit: 64kbps |
| Spanning Tree | IEEE 802.1d Spanning Tree Protocol (STP) IEEE 802.1w Rapid Spanning Tree Protocol (RSTP) IEEE 802.1s Multiple Spanning Tree Protocol (MSTP |
| Ring Protocol | Supports EAPS |
| Multicast | Supports 256 Multicast groups. Support IGMP snooping. |
| LAYER 3 SWITCHING | |
| Static ARP | Supported |
| Static Routing | Supported |
| L3 VLAN Interface | Up to 32 L3 VLAN Interface |
| CONVERGENCE | |
| QoS | 4 output queues on each port Supports flexible queue scheduling algorithms: WRR, Q+WRR Supports port-based / MAC-based / 802.1p / DSCP classification |
| SECURITY | |
| ACL | Supports Standard IP / Extend IP / MAC IP / ARP |
| Security Features | Supports 512 Entries Supports MAC-based 802.1X authentication Supports AAA/RADIUS authentication Supports WEB/Telnet password protection Supports Accessing privilege mode password protection |
| Self-Protection | Supports CPU Self-Protection |
| MANAGEMENT | |
| CLI | Supports CLI (Commend Line Interface) configuration mode |
| Console | Supports Configuration via the console port |
| Telnet | Supports Local/remote configuration via Telnet |
| WEB | Supports WEB management system |
| SNMP | Supports System configuration with SNMP v1/v2/v3 |
| User Management | Supports Multi-user management |
| System Log | Supported |
| Configuration File Download/Upload | Supports Download/Upload configuration via WEB/TFTP |
| Upgrade Firmware | Supports Upgrade Firmware via WEB/TFTP/Console |
| DEBUG | |
| PING | Supported |
| TRACEROUTE | Supported |
| Telnet Client | Supported |
| Process View | Supported |
