Name: TRENDNET - TI-G5091 - 9-Port Industrial 2.5G DIN-Rail Switch with 10G SFP+ Port
Brand: Trendnet
SKU: TI-G5091

Home — Brands — Trendnet — Industrial —

TRENDNET - TI-G5091 - 9-Port Industrial 2.5G DIN-Rail Switch with 10G SFP+ Port

Part number:

TI-G5091

Price:

Dealers only

Add to Quote/Project Registration

Description Specifications

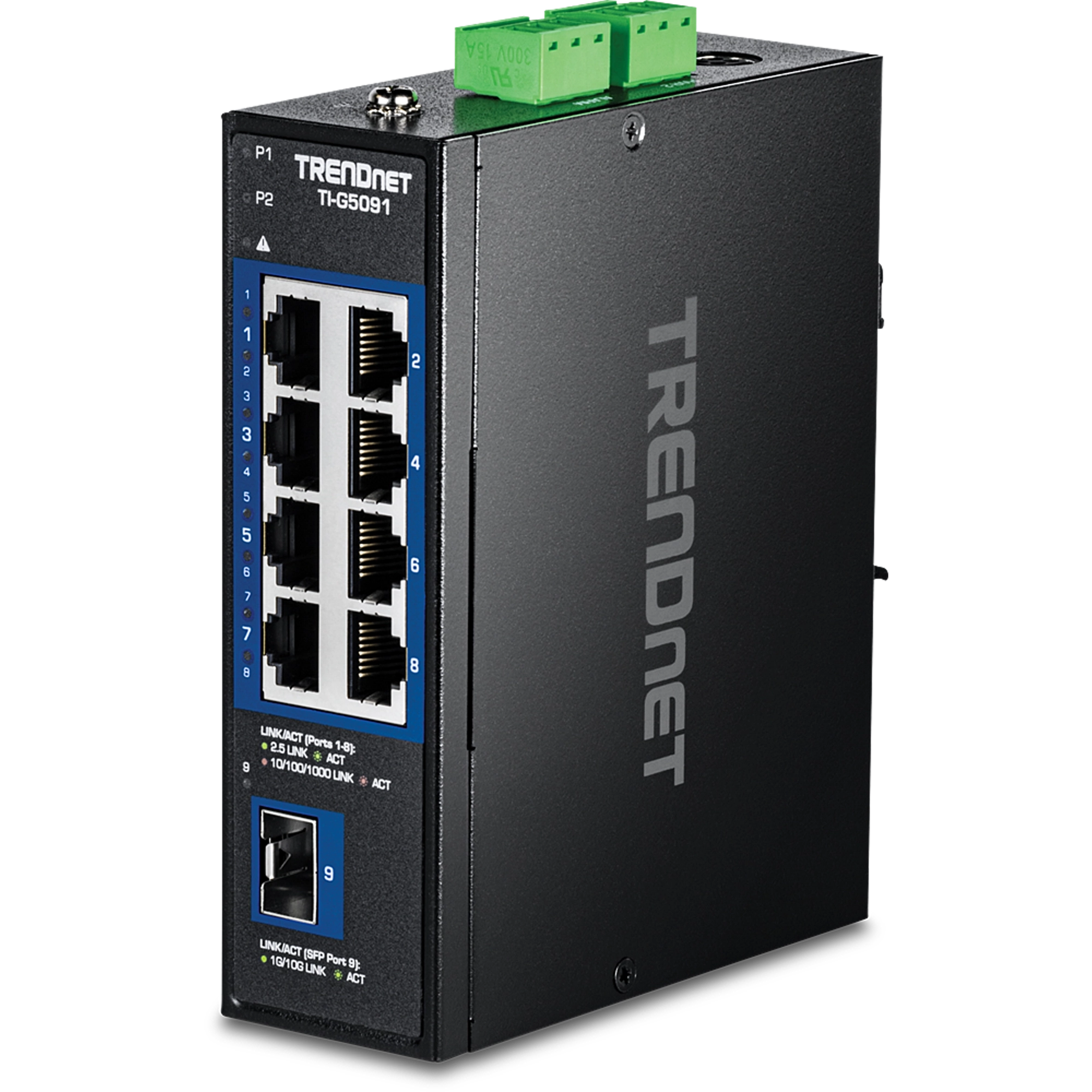

9-Port Industrial 2.5G DIN-Rail Switch with 10G SFP+ Port

Features:

8 x 2.5G ports
1 x 10G SFP+ port
Hardened IP50 rated metal switch
Extreme -40° – 75° C (-40° – 167° F) operating temperature range
Redundant power inputs with overload current protection
Alarm output triggered by power failure
60Gbps switching capacity

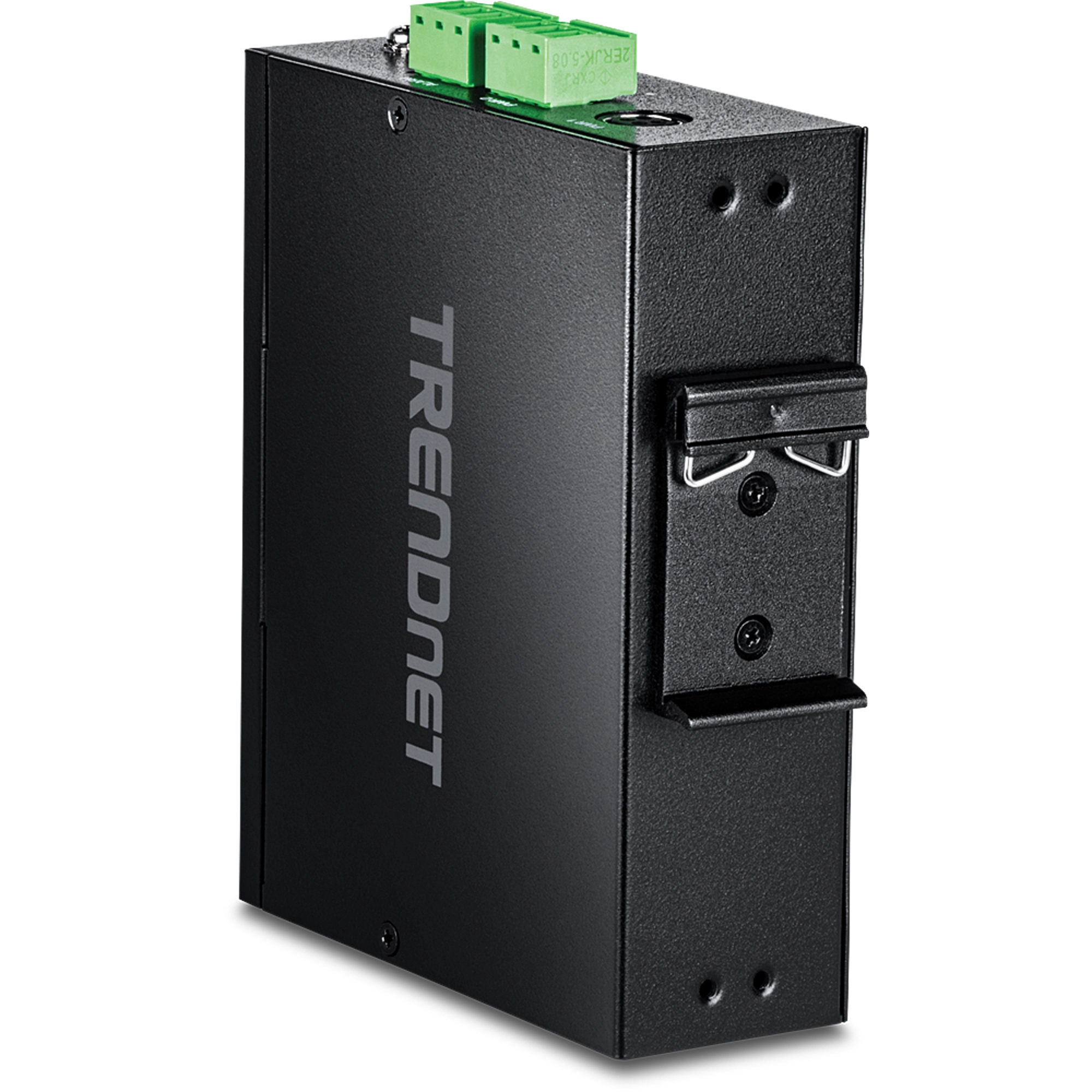

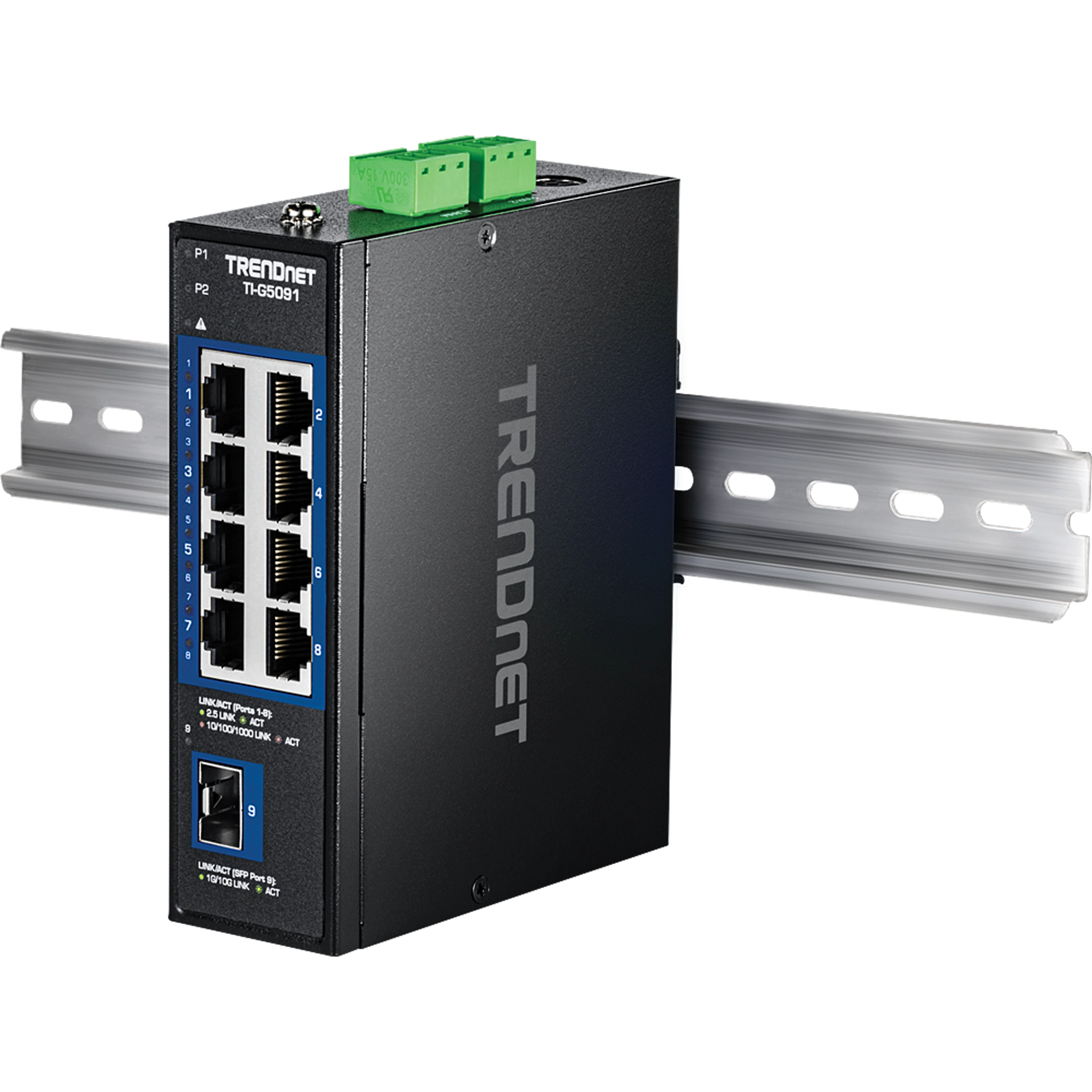

Includes DIN-Rail and wall mounts
Power supply sold separately (models: TI-M6024, 48VDC3000)
NDAA / TAA compliant
Lifetime Warranty*

Technical Specifications
Standards	IEEE 802.3 IEEE 802.3u IEEE 802.3x IEEE 802.3z IEEE 802.3ab IEEE 802.3ae IEEE 802.3bz

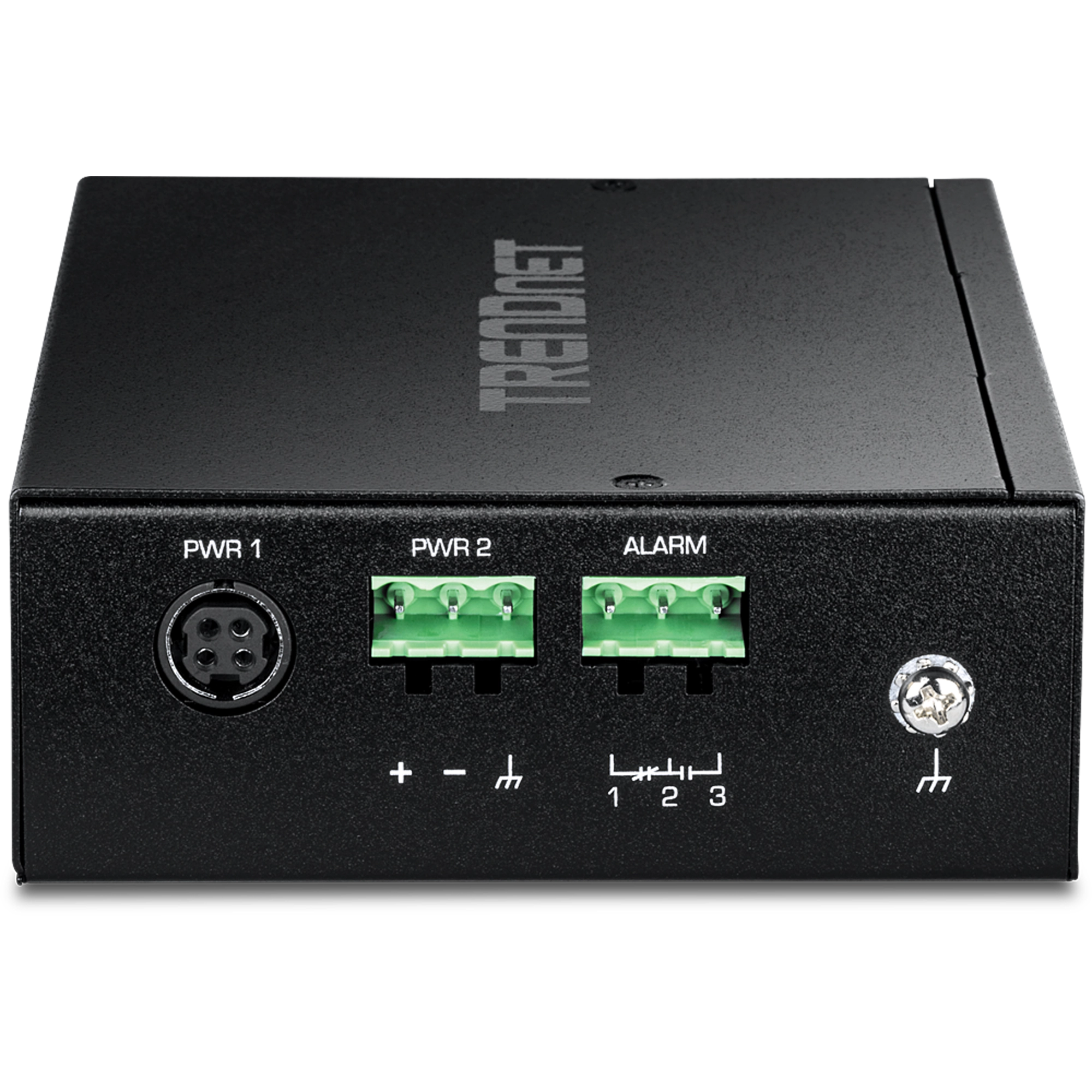

Device Interface	8 x 2.5G ports (10Mbps/100Mbps/1000Mbps/2.5Gbps) 1 x 10G SFP+ port (1000Mbps/10Gbps) 3-pin power terminal block 3-pin alarm relay terminal block Power port LED indicators Grounding point
Data Transfer Rate	Ethernet: 10Mbps (half duplex), 20Mbps (full duplex) Fast Ethernet: 100Mbps (half duplex), 200Mbps (full duplex) Gigabit Ethernet: 2000Mbps (full duplex) 2.5G Ethernet: 5Gbps (full duplex) 10G SFP+: 20Gbps (full duplex)
Performance	Data RAM Buffer: 1MB Switching Fabric: 60Gbps MAC Address Table: 4K entries Jumbo Frame: 12KB Forwarding Rate: 44.64Mpps (64-byte packet size)
Special Features	Hardened components rated for extreme temperatures Dual power inputs Auto negotiation Auto store and forward architecture Automatic address learning and address aging ESD 6kV protection
Power	Input: 9 - 60V DC Compatible power supply: TI-M6024 (sold separately) Compatible power adapter: 48VDC3000 (sold separately) Max. consumption: 14W
Terminal Block	3-pin terminal block Wire range: 2.5mm^2 Solid wire (AWG): 16-28 Stranded wire (AWG): 16-28 Torque: 3 lb. – In / 0.3Nm / 0.33Nm Wire strip length: 7-8mm
Alarm Relay Contact	Relay outputs with current carrying capacity of 1A, 24V DC Short circuit mode when two power sources are connected Open circuit mode when only one power source is connected
MTBF	615,965 hours
Housing	IP50 metal case DIN-Rail mount Wall mount
Operating Temperature	- 40° – 75° C (-40° – 167° F)
Operating Humidity	Max. 95% non-condensing
Dimensions	120 x 100 x 40mm (4.7 x 3.9 x 1.5 in.)
Weight	574g (20.2 oz.)
Certifications	CE FCC LVD Shock (IEC 60068-2-27) Freefall (IEC 60068-2-32) Vibration (IEC 60068-2-6)
Warranty	Lifetime Warranty*
